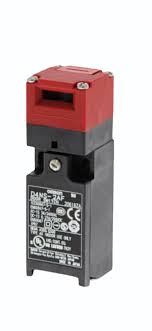

Specifications Door switch type Key-operated Guard-lock Material housing Plastic Material head Plastic Ambient temperature (operating) -10-55 °C Connection method Screw terminal Cable length 0 m Direction of operation Adjustable Holding force 1300 N Door contacts NC 1 Door contacts NO 1 Lock monitor contacts NC 1 Lock monitor contacts NO 1 Lock/Release key type Standard key Lock/Release key position Bottom Lock/Release key material Resin Solenoid voltage 24 V LED indicator Degree of protection (IP) IP67 Conduit size PG13.5 Number of conduits 2 Switch action Slow action Shape Cuboid Overall length of sensor 95 mm Height of sensor 35.5 mm Width of sensor 88.5 mm Switch without actuator Lock/Release logic Power to unlock (Mechanical lock)

Read more less

Power supply voltage 100 to 240 VAC 50/60 Hz Allowable power supply voltage range 85 to 110% of the power supply voltage Power consumption 18 VA max. (at maximum load) External power supply 12 VDC ±10% 80 mA Input type DC current Output type Judgment output: ContactComparative output: H, LTransfer output: Linear current Current measurement input Measurement range A: ±199.99 mAB: ±19.999 mAC: ±1.9999 mAD: 4.000 to 20.000 mA Accuracy ±0.1% rdg ±1 digit max. Input impedance A: 1 Ω max.B: 10 Ω max.C: 33 Ω max.D: 10 Ω max. Allowable instantaneous input (30 s) A: ±400 mAB: ±200 mAC: ±200 mAD: ±200 mA Judgment output Contact output H, L (SPDT)Rated load: Resistive load: 250 VAC 5 A (cosφ=1)/30 VDC 5 A (L/R＝0 ms), Inductive load: 250 VAC 1 A (Close cosφ=0.4)/30 VDC 1 A (L/R＝7 ms)Life expectancy: 100,000 operations (Electrical)/5,000,000 operations (Mechanical) Linear output Linear current 0 to 20 mA DC/4 to 20 mA DCAllowable load impedance: 500 Ω max.Resolution: Approx. 10000Output error: ±0.5% FS Display Display method Negative LCD (backlit LED) 7-segment digital display Digits 5 digit (-19999 to 99999) Character height PV: 14.2 mm (green/red)SV: 4.9 mm (green) A/D conversion method Delta-Sigma method Sampling period 50 times/second (20 ms) Comparative output response time 100 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) Linear output response time 150 ms max. (time until the final analog output value is reached when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) Insulation resistance 20 MΩ min. (at 500 VDC) Dielectric strength Between the entire external terminal and case: 2,300 VAC 1 min Noise immunity ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) Vibration resistance Malfunction: 10 to 55 Hz, Acceleration: 50 m/s2, 5 min 10 sweeps each in X, Y, and Z directions Shock resistance Malfunction: 100 m/s2, 3 times each in 3 axes 6 directions Degree of protection Front: NEMA4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) Memory protection EE-PROM (non-volatile memory) Number of rewrites: 100,000 Ambient temperature Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) Ambient humidity Operating: 25 to 85 % Accessories Waterproof packing, Fixtures, Terminal Cover, Unit label, Instruction manual Weight Approx. 300 g

Read more less

Sensing head size 50 mm x 14 mm x 14 mm Type Square type, Magnetic type Sensing distance 15 mm Response frequency 20 Hz max. Ambient temperature (Operating) -20 to 60 ℃ Ambient temperature (Storage) -20 to 60 ℃ Ambient humidity (Operating) 35 to 85 % Ambient humidity (Storage) 35 to 85 % Dielectric strength Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 300 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP40 Connection method Terminal block models Material Sensor: ABSMagnet: ABS

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS: N Technology: Inductive Measuring Range - Max: 2 mm Output Type: PNP Mounting Style: Cable Mount Connection Method: Pre-Wired Cable Cable Length: 2 m Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2B Brand: Omron Automation and Safety Housing Material: Stainless Steel IP Rating: IP67 Maximum Frequency: 1.5 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2BS08KS02WPB12M Unit Weight: 65 g

Read more less

Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type

Read more less

Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method Pre-wired models

Read more less

Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 120 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Omron P2RF-08-E Omron Automation and Safety  Order today, ships today. P2RF-08-E ? Relay Socket DIN Rail from Omron Automation and Safety. Pricing and Availability on millions of electronic components Model No.P2RF-08-E Make Omron

Read more less

Specifications Application Interface Number of phases 1 Mounting method With plug-in socket Terminal type Plug-in Complete with socket LED indicator Rated operational voltage, AC 100-240 V Operating voltage range, AC 75-264 V Rated operational voltage, DC 75-264 V Operating voltage range, DC 75-264 V Rated operation current Ie at AC-1 2 A Product Height (unpacked) 29 mm Product Width (unpacked) 13 mm Product Depth (unpacked) 28 mm Supply voltage DC 5-24 V Control current max. 15 mA Must operate voltage max. 4 V Must release voltage min. 1 V Maximum operating temperature 80 °C Minimum operating temperature -30 °C Isolation Phototriac Switching at zero-crossing

Read more less

Specifications Door switch type Non-contact Guard-lock Coding Basic Material housing PBT Ambient temperature (operating) -10-55 °C Door contacts NC 1 Door contacts NO 1 LED indicator Connection method Cable Cable length 5 m Cable exit direction Bottom Degree of protection (IP) IP67 Output type PNP Shape Cuboid Overall length of sensor 13 mm Height of sensor 48 mm Width of sensor 25 mm Switch without actuator

Read more less

Dual Load Capacity: Lifts up to 500 kg with a double hook and 250 kg with a single hook – ideal for various small-scale lifting needs. 20M x 4mm Steel Wire Rope: Durable and long-reaching galvanized wire rope for extended lift height and secure performance Remote-Controlled Operation: Easy-to-use handheld remote for smooth, safe, and precise lifting Quick & Easy Setup: Compact design for effortless installation on overhead beams or fixed supports in garages and workshops. Safety First: Equipped with automatic braking, thermal overload protection, and a limit switch to prevent over-winding. Perfect for garages, DIY projects, small workshops, and lifting equipment or materials with ease    Report an issue with this product

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:   Brand: Omron Automation and Safety Product Type: Photoelectric Sensors Series: E3Z 1 Subcategory: Sensors Part # Aliases: E3ZT61D2M Unit Weight: 120 g
