Operating mechanism Snap action ctuator Roller lever 17.5 dia. x 6.8Metal lever, Resin rollerR26 Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit M20Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 5 N max. Release Force (RF) Standard value 0.5 N min. Pre-Travel (PT) Standard value 18 to 27 ° Movement Differential (MD) Standard value 14 ° max. Over-Travel (OT) Standard value 40 ° min. Total Travel (TT) Reference value 80 ° Direct Opening Force Standard value 20 N min. Direct Opening Travel Standard value 50 ° min.

Read more less

Shape Square type Sensing method Retro-reflective with M.S.R. function Sensing distance When using the E39-R1S: 100 mm to 4 mWhen using the E39-R1: 100 mm to 3 m Standard sensing object Opaque: 75 mm dia. min. Directional angle 2 to 10 ° Light source Red LED (660 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Methacrylate resin

Read more less

Type Description Select All Category Switches Accessories Manufacturer Omron Automation and Safety Series D4NS Packaging Box Part Status Active Accessory Type Operation Key For Use With/Related Products D4NS Series

Read more less

Type Description Select All Category Switches Accessories Manufacturer Omron Automation and Safety Series D4NS Packaging Box Part Status Active Accessory Type Operation Key For Use With/Related Products D4NS Series

Read more less

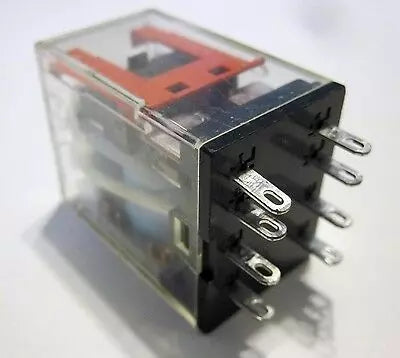

Current 7A Pole 2 Type of Product Electrical Relay Current Rating 24 VDC Model No MY2N-D2-GS DC24 Country of Origin Japan Name of Manufacturer/Packer/Importer Omron Corporation

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   REACH - SVHC: Technology: Inductive Measuring Range - Max: 7 mm Output Type: NO Mounting Style: Cable Mount Connection Method: Cable with Connector Cable Length: 300 mm Connector Type: M12 Coding: C Coded Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Series: E2E Brand: Omron Automation and Safety IP Rating: IP67 Maximum Frequency: 500 Hz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EX7D1M1JT03MQ E2EX7D1M1JT03M Unit Weight: 130 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Technology: Inductive Measuring Range - Max: 7 mm Output Type: NPN-NC Mounting Style: Panel Mount Connection Method: Pre-Wired Cable Cable Length: 2 m Coding: D Coded Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Series: E2E Brand: Omron Automation and Safety IP Rating: IP67 Maximum Frequency: 500 Hz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EX7D2NQ E2EX7D2N Unit Weight: 192.780 g

Read more less

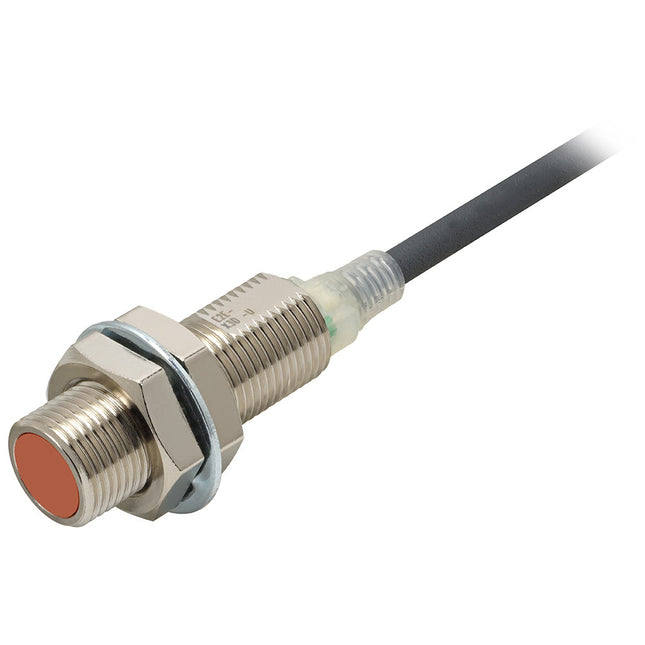

Sensing head size M12 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 3 mm ±10% Setting distance 0 to 2.4 mm Operation mode NC

Read more less

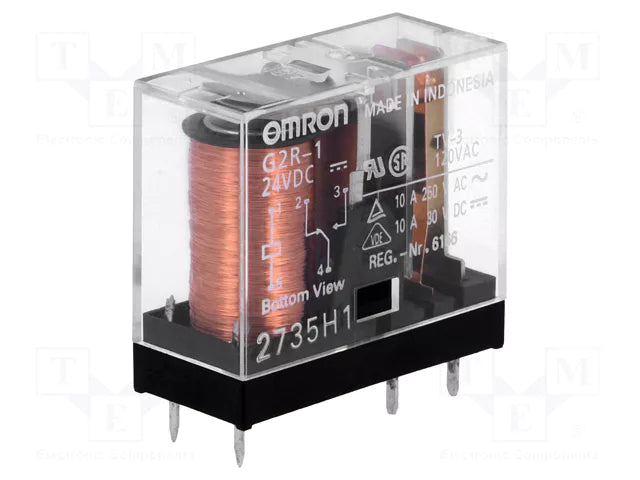

Manufacturer OMRON Electronic Components Type of relay electromagnetic Contacts configuration SPDT Rated coil voltage 24V DC Contact current max. 10A AC contacts rating @R(at resistive load) 10A / 250V AC DC contacts rating @R(at resistive load) 10A / 30V DC Manufacturer series G2R Switched voltage max. 125V DC, max. 380V AC Relay variant miniature, monostable Mounting PCB Coil resistance 1.1kΩ Operate time 15ms Body dimensions 29x13x25.5mm Release time 5ms Contact resistance 30mΩ Terminal pitch 3.5mm Coil current 21.8mA Leads for PCB Related items PODST-1 Enclosure description standard seal Operating temperature -40...70°C

Read more less

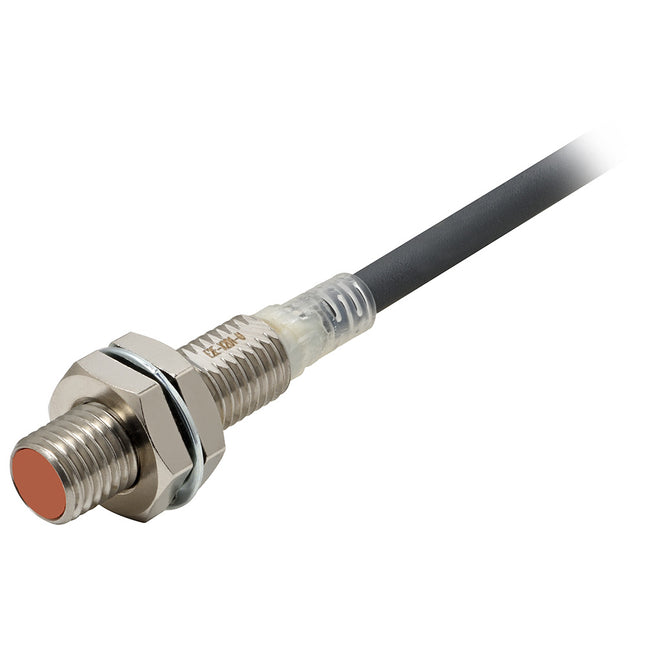

Sensing head size M8 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 2 mm ±10% Setting distance 0 to 1.6 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 8 x 8 x 1 mm Response frequency 1500 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

roduct Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   REACH - SVHC: Technology: Inductive Measuring Range - Max: 1 mm Output Type: NPN-NO Mounting Style: Cable Mount Connection Method: Pre-Wired Cable Cable Length: 2 m Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2E Brand: Omron Automation and Safety Housing Material: Brass IP Rating: IP67 Maximum Frequency: 4 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2EC05S01WCC12M Unit Weight: 35 g

Read more less

Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)
