DELIVERY TIME : 1-2 WEEKS  Type Description Select All Category Switches Accessories Manufacturer Omron Automation and Safety Series D4NS Packaging Bulk Part Status Active Accessory Type Operation Key For Use With/Related Products D4NS Series

Read more less

DELIVERY TIME : 1-2 WEEKS  Solid State Relay, Phototriac, Applied output load: 5 A at 100 to 240 VAC, Without Zero cross function, #110 input terminals, Certified by UL, CSA, and EN (TUV), Rated input voltage: 24 VDC Product classification For single-phase heater Zero cross function None Operating indicator None Rated voltage 24 VDC Rated load voltage 100 to 240 VAC Load current 0.1 to 5 A (With heat sink at 40 ℃)0.1 to 5 A (Without a heat sink at 40 ℃) Terminal structure Tab terminal (Input: #110, Output: #250)

Read more less

DELIVERY TIME : 1-2 WEEKS  [Features]· Lead-use eliminated, safe for environment.·With different colors for AC and DC coil tapes, AC and DC specifications are easily identified.·Type MY(S) with a convenient latching lever for circuit check is now also available.·Wiring labor-hours can be shortened by 60% if combined with push-in plus socket Type PYF-□-PU (according to the manufacturer's measured data).·Terminal Shape: Socket / plug-in terminal, PCB terminal.[Applications]·Widely applicable to almost all types of electrical machines and devices.

Read more less

DELIVERY TIME : 1-2 WEEKS  Operating indicator LED Degree of protection Closed type (cover) Terminal structure Plug-in terminal Coil Coil ratings 24 VDC 36.3 mA Coil resistance 662 Ω Operate voltage (Set voltage) 80 % max. Release voltage (Reset voltage) 10 % min. Maximum voltage 110 % (23 ℃) Power consumption Approx. 0.9 W Contact Contact rated load 220 VAC 3 A (Resistive load)220 VAC 0.8 A (Inductive load (cosφ = 0.4))24 VDC 3 A (Resistive load)24 VDC 1.5 A (Inductive load (L/R = 7 ms)) Max. contact voltage 250 VAC125 VDC Max. contact current AC: 3 ADC: 3 A Maximum switching power 660 VA (Resistive load)176 VA (Inductive load (cosφ = 0.4))72 W (Resistive load)36 W (Inductive load (L/R = 7 ms)) Contact form 4PDT Contact method Single Contact material Au clad + Ag alloy Performance Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 20 ms max. (With rated operating power applied, not including contact bounce) Reset time 20 ms max. (With rated operating power applied, not including contact bounce) Maximum operating frequency Mechanical: 18000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)Between contacts of different polarity: 100 MΩ min. (at 500 VDC)Between contacts of same polarity: 100 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 200 m/s2 Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h) Endurance (Electrical) 200,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h) Failure rate 1 VDC 1 mA (failure level: Preference value, Switching frequency: 120 operations per minute) Ambient temperature (Operating) -55 to 60 ℃ (with no freezing or condensation) Ambient humidity (Operating) 5 to 85 % Weight Approx. 35 g Mounting method Socket Applicable socket PYF14S/ PYF14T/ PYF-14-PU/ PYF-14-PU-L/ PYFZ-14/ PYFZ-14-E/ PY14/ PY14-Y1/ PY14QN/ PY14QN2/ PY14QN-Y1/ PY14QN2-Y1/ PY14-02

Read more less

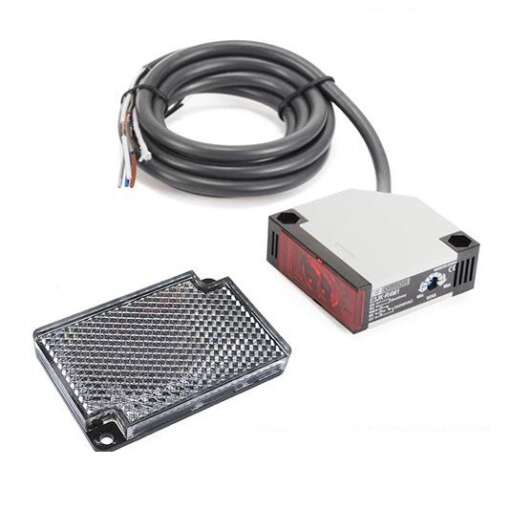

DELIVERY TIME : 1-2 WEEKS  Specification Value Sensing Method Retroreflective Sensing Distance 4 m Light Source Red LED Power Supply Voltage 50/60 Hz 12 to 240 VDC ±10%, 24 to 240 VAC ±10 Current Consumption 2 W max. Control Output Relay output: 3 A max. at 250 VAC (cosφ = 1), 10 mA min. at 5 VDC Operation Mode Light-ON mode Response Time 30 ms max. Sensitivity Adjustment Fixed Indicators Light (red) Ambient Temperature Range Operating: –25°C to 55°C (with no icing) Material Plastic The Omron E3JK-R4M1 is a reliable retroreflective photoelectric sensor built for long-distance object detection in general industrial environments. With a sensing range of up to 4 meters, this sensor uses a red LED light source and operates in conjunction with a reflector to detect the presence or absence of objects accurately. It is ideal for applications such as pallet detection, carton counting, and conveyor automation. This sensor supports dual power input: 12 to 240 VDC and 24 to 240 VAC (±10%), allowing flexible installation in both AC and DC systems. The E3JK-R4M1 provides a relay output capable of switching up to 3 A at 250 VAC (cosφ = 1), with a minimum switching capacity of 10 mA at 5 VDC. The sensor operates in Light-ON mode and features a fixed sensitivity setting with a fast 30 ms maximum response time, suitable for moderate-speed automation processes. Power consumption is limited to 2 W max., making it energy-efficient in continuous operation. The red LED status indicator offers clear visibility of sensor activity. Although sensitivity is fixed, the sensor provides reliable performance across a variety of materials and surface finishes when properly aligned with its retroreflective target. The housing is made of durable plastic, and the sensor functions reliably within an ambient temperature range of −25°C to 55°C. It includes essential protections such as insulation resistance, dielectric strength, and tolerance to vibration and shock, ensuring durability in active production environments. With a design focused on simplicity and ruggedness, the Omron E3JK-R4M1 is ideal for OEMs, maintenance engineers, and system integrators looking for dependable long-range sensing in space-efficient form factors.

Read more less

DELIVERY TIME : 1-2 WEEKS  Shape/Structure Enclosed Limit switches ctuator Hinge roller lever 12.7 dia. x 7.5 Frequency 50/60 Hz Contact form SPDT Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VACLamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VACLamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VACInductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDCLamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCInductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature Operating: -10 to 80 ℃ (with no icing) Ambient humidity 35 to 95 % Permissible operating frequency Electrical: 20 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 15 mΩ max. (initial value for the built-in switch whentested alone) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 minBetween each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min Durability Electrical: 500,000 operations min.Mechanical: 10 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position. Shock resistance Destruction: 1,000 m/s2 max. Degree of protection IP67 Operating Force (OF) Standard value 1.96 N max. Release Force (RF) Standard value 0.39 N min. Movement Differential (MD) Standard value 3 mm max. Over-Travel (OT) Standard value 5 mm min. Operating Position (OP) Standard value 40±1 mm Free Position (FP) Standard value 51 mm max.

Read more less

DELIVERY TIME : 1-2 WEEKS  Shape/Structure Enclosed Limit switches ctuator Panel mount roller plunger 11 dia. x 4.7Stainless sintered alloy roller Frequency 50/60 Hz Contact form SPDT Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VACLamp load (NC): 3 A at 125 VAC/2.5 A at 250 VACLamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VACInductive load: 10 A at 125 VAC/10 A at 250 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDCLamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCInductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature Operating: -10 to 80 ℃ (with no icing) Ambient humidity 35 to 95 % Permissible operating frequency Electrical: 20 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 15 mΩ max. (initial value for the built-in switch whentested alone) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 minBetween each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min Durability Electrical: 500,000 operations min.Mechanical: 10 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position. Shock resistance Destruction: 1,000 m/s2 max. Degree of protection IP67 Classification of protection against electric shock Class II Operating Force (OF) Standard value 11.8 N max. Release Force (RF) Standard value 4.9 N min. Pre-Travel (PT) Standard value 1.5 mm max. Movement Differential (MD) Standard value 0.2 mm max. Over-Travel (OT) Standard value 3 mm min. Operating Position (OP) Standard value 47.4±0.8 mm

Read more less

DELIVERY TIME : 1-2 WEEKS  Even though it is a small proximity sensor, the installation is surprisingly easy.[Features]· M4, ø5.4, ø6.5 size, non-shielded, connector relay type, connector type additions for all 108 variations· High-speed response frequency for stable detection of moving work Max. 5kHz· With four indicator lights, easy alignment of indicator lights· reduction of jig manufacturing man-hours with dedicated mounting brackets· for protection against breakage stainless steel spiral tube available (for M4, M5 use only)

Read more less

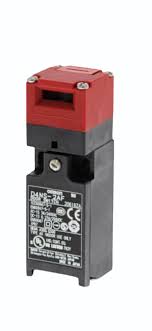

DELIVERY TIME : 1-2 WEEKS  Blocks the control circuit by directly opening the contact by using the operation key only used to open the protective door of machine tools[Features]· Approved by EN (TÜT) compliant to CE marking.· Approved by UL, CSA.· Direct opening of contact of switch at the time of opening protective cover by using the direct opening operation mechanism (only at NC contact side).· Approval of EN standard of direct opening operation is shown by mark on the switch.· Prevents error operation and fake operation by using exclusive operation key.· A wide temperature range of -40 to+80°C.· The protective structure of switch box is approved by IP67 (EN60947-5-1).

Read more less

DELIVERY TIME : 1-2 WEEKS  Model GLS-1 GLS-1L Sensing distance 15 mm *1 Contact circuit SPST-NO Switching capacity *2 Maximum operating voltage: 100 VDCMaximum operating current: 0.1 A DCMaximum switching capacity: 10 W (for both open and closed contacts) Contact dielectric strength 250 VDC for 1 min with a leakage current of 1 mA max. Response frequency 20 Hz max. Ambient temperature range Operating/Storage: -20 to 60°C (with no icing or condensation) Ambient humidity range Operating/storage: 35% to 85% (with no condensation) Contact resistance 150 mΩ max. 250 mW max. (including conductor resistance of lead wire) Dielectric strength 1,000 VAC for 1 min between terminals and case Life expectancy 50,000,000 times min. with 0.1-A resistive load at 24 VDC Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions Shock resistance Destruction: 300 m/s2 3 times each in X, Y, and Z directions Degree of protection IP40 (IEC) IP62 (IEC) Connection method Terminal block Pre-wired (standard cable length: 1 m) Materials Sensor ABS Magnet

Read more less

DELIVERY TIME : 1-2 WEEKS  Features]•Magnetic proximity sensor that is easy to handle.•Proximity sensor to operate reed switch with permanent magnet.•Ideal for detection of opening and closing of door etc.•We can sell set products (Sensor & Magnet) and individual part (Sensor, Magnet)•Wiring: Terminal Block Model, Pre-wired Model•Sensing Distance: 15mm•Contact Circuit: SPST-NO (Normally Open)•Operating Temperature range: -20 to +60 ℃•Operating Humidity: 25% to 85%•Degree of protection: IP40(Terminal Block Model), IP64(Pre-wired Model)•Material: ABS•Cable Length: 1m (Pre-Wired Model)

Read more less

Door switch type Key-operated Guard-lock Material housing Resin Material head Resin Ambient temperature (operating) -30-70 °C Direction of operation Adjustable Door contacts NC 1 Door contacts NO 1 Switch action Slow action Make before break LED indicator Connection method Terminal block Cable length 0 m Degree of protection (IP) IP67 Conduit size PG13.5 Number of conduits 1 Shape Cuboid Overall length of sensor 96 mm Height of sensor 30 mm Width of sensor 31 mm
