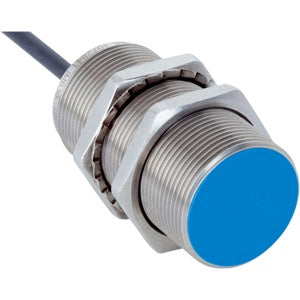

DELIVERY TIME : 1-2 WEEKS  Size M30 Mounting type Quasi-flush Sensing distance 15 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 60 mm Thread length 41 mm Degree of protection (IP) IP67

Read more less

DELIVERY TIME : 1-2 WEEKS  Small economic counter that is easier to see and easier to use.[Features]·Compact economy counter with improved visibility and ease of use· Realizes large display with 8.6 mm character height. The counter can count up to 8 digits·Series of backlit types with an emphasis on visibility·With a key protect switch to prevent erroneous operation of the reset key·In addition to the conventional light gray case color, a black type has been added to the series· Front part compatible with NEMA4. The main body can be reused by replacing the battery·Adopted finger protection structure compliant with VDE0106 Prat100・ Obtained safety standards UL and CSA·EN61010-1 Contamination Degree 2 / Overvoltage Category III compliant, EMC standard (EN61326-1) compliant  Features H7E◯-N external appearance Standard Type / Type With Backlight Type Standard Type Type WithBacklight Mounting Method Embedded Mounting Operation Method Addition Display Method LCD (numerical display by liquid crystal) (character height 8.6 mm) (displayed with zero suppression)*1 Recovery Method External Reset / Manual Reset Number Of Digits 8 Digits Count Input Non-Voltage Input Voltage Input Free Voltage Input Voltage Input 4.5 to 30 V DC 24 to 240 V AC / V DC 4.5 to 30 V DC Maximum Counting Speed 30 Hz / 1 kHz 20 Hz 30 Hz / 1 kHz External Color LightGray Format ◎ Series H7EC-N *2 ◎ Series H7EC-NV *2 ◎ Series H7EC-NFV ◎ Series H7EC-NV-H *3 Black Format ◎ Series H7EC-N-B *2 ◎ Series H7EC-NV-B *2 ◎ Series H7EC-NFV-B ◎ Series H7EC-NV-BH *3 Accessories Waterproof packing, adapter for embedded mounting (Y92F-34) *1. Zero suppression: Zeros are not displayed to increase readability (e.g., "0000008.2" -> "8.2").* 2. For the mark format, a model without a reset key on the front is available as a special option. (In these cases, "-300" is attached to the end of the format.) Please inquire for details.* 3. To turn ON the backlight, it is necessary to externally supply 24 V DC (0.3 W max.).Note: A special option whereby insulating sheets for batteries are not inserted is available. (In these cases, "-350" is attached to the end of the format.) Please inquire for details. Standard Type Mounting Method Embedded Mounting Operation Method Addition Display Method LCD (numerical display by liquid crystal) (character height 8.6 mm) (displayed with zero suppression)*1 Recovery Method External Reset / Manual Reset Number Of Digits 7 digits Time Display 0.0 h to 999,999.9 h / 0.0 h to 3,999 d 23.9 h (switchable) Timing Input Non-Voltage Input Voltage Input Free Voltage Input 4.5 to 30 V DC 24 to 240 V AC / V DC *3 External Color LightGray Format ◎ Series H7ET-N *2 ◎ Series H7ET-NV *2 ◎ Series H7ET-NFV *2 Standard Price (¥) 5,950 6,900 7,250 Black Format ◎ Series H7ET-N-B *2 ◎ Series H7ET-NV-B *2 ◎ Series H7ET-NFV-B *2 Standard Price (¥) 5,950 6,900 7,250 Accessories Waterproof packing, adapter for embedded mounting (Y92F-34), unit sticker *1. Zero suppression: Zeros are not displayed to increase readability (e.g., "0000008.2" -> "8.2").* 2. For the mark format, a model without a reset key on the front is available as a special option. (In these cases, "-300" is attached to the end of the format.) Please inquire for details.* 3. To turn ON the backlight, it is necessary to externally supply 24 V DC (0.3 W max.).Note: A special option whereby insulating sheets for batteries are not inserted is available. (In these cases, "-350" is attached to the end of the format.) Please inquire for details.

Read more less

DELIVERY TIME : 1-2 WEEKS  [Features]· A dust-proof, easy-to-configure, push-in type with large easily visible text.· Configure via an easy-to-operate push method. Displays large, easily viewable alpha-numeric characters.· The window on the sealed plate prevents dust from infiltrating the display. Model A7PS A7PH Switching capacity (resistive load) 50 VAC or 3.3 to 28 VDC1 mA to 0.1 A 125 VAC or 3.3 to 28 VDC10 μA to 0.15 A Continuous carry current 1 A max. 3 A max. Contact resistance 300 mΩ max. Insulationresistance Between non-connected terminals 10 MΩ min. (at 500 VDC) 100 MΩ min. (at 500 VDC) Between terminal andnon-current carrying part 1,000 MΩ min. (at 500 VDC) Dielectricstrength Between non-connected terminals 600 VAC, 50/60 Hz for 1 min Between terminal andnon-current carrying part 1,000 VAC, 50/60 Hz for 1 min Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours min. Shock resistance 490 m/s2 min. Durability Mechanical 100,000 operations min. 2,000,000 operations min. Electrical 50,000 operations min. 1,000,000 operations min. Ambient temperature Operating: -10°C to 65°C Ambient humidity Operating: 45% to 85% Max. operating force 6.37 N max.

Read more less

DELIVERY TIME : 1-2 WEEKS  Mounting method With plug-in socket Usage General purpose, High power Poles 4 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description 4PDT Features Diode, LED, Transparent case Terminal type Plug-in

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors Delivery Restrictions:  Mouser does not sell this product in your region. RoHS:  Details Sensing Method: Inductive Sensing Distance: 2 mm Mounting Style: Wire Output Configuration: NPN Brand: Omron Automation and Safety Description/Function: NO Height: 21 mm Length: 47 mm Maximum Operating Temperature: + 85 C Minimum Operating Temperature: - 40 C Operating Supply Voltage: 30 V Product Type: Proximity Sensors Series: E2E Factory Pack Quantity: 1 Subcategory: Sensors Width: 21 mm Part # Aliases: 1603039 E2EX2E1 Unit Weight: 15 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Shape Cuboid, rail mounting Sensing method Amplifier Setting method Manual adjustment Connection method Cable Cable length 2 m Output type NPN Operation mode Dark-ON, Light-ON Response time 0.2 ms Material housing PBT Product Width (unpacked) 10 mm Product Height (unpacked) 31.5 mm Product Length (unpacked) 64.3 mm Type of light Polarity free red light Power supply voltage 12-24 V Functions Timer Application Object detection Number of channels 1 Degree of protection (IP) IP50 Number of digital outputs 1

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Coil ratings 24 VDC 21.6 mA Contact form SPDT Contact method Single Contact material Ag alloy Contact rated load 250 VAC 10 A (Resistive load)250 VAC 7.5 A (Inductive load (cosφ = 0.4))30 VDC 10 A (Resistive load)30 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Bi-power Relay, 2-pole, Single contact, With operation indicator, Plug-in Terminals, 24 VDC Coil ratings 24 VDC 36.9 mA Operating indicator LED Contact form DPDT Contact method Single Contact material Ag alloy Contact rated load 10 A (Resistive load)110 VAC 7.5 A (Inductive load (cosφ = 0.4))24 VDC 10 A (Resistive load)24 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer OMRON  Type of sensor Inductive Output configuration NPN/NO Range 0...2mm Switch housing M8 Connection cables Lead length 2m IP rating IP67 Max. operating current 200mA Operating temperature -25...70°C Kind of forehead embedded Body material stainless steel Switching frequency max 1.5kHz Overall length 64mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Type Description Select All Category Relays , Signal Relays , up to 2Amps  Manufacturer Omron Electronics Inc-EMC Div Series G6A Packaging Tube Part Status Active Mounting Type Through Hole Coil Voltage 24VDC Contact Form DPDT (2 Form C) Contact Rating (Current) 2 A Switching Voltage 250VAC, 220VDC - Max Load - Max Switching 500VA, 440W Coil Current 8.3 mA Coil Type Non Latching Features - Termination Style PC Pin Seal Rating - Coil Insulation - Must Operate Voltage 16.8 VDC Must Release Voltage 2.4 VDC Operate Time 5 ms Release Time 3 ms Operating Temperature -40°C ~ 70°C Contact Material Silver (Ag), Gold (Au) Approval Agency - Relay Type General Purpose Grade - Qualification - Coil Resistance 2.88 kOhms Base Product Number G6A-274 Report Product Information Error View Similar

Read more less

DELIVERY PERIOD : 1-2 WEEKS  • Additional Push-In Plus terminal sockets are used to save wiring work in comparison with traditional screw terminals.(Wiring time is reduced by 60%* in comparison with traditional screw terminals.) • Relays with forcibly guided contacts (EN 61810-3, Certified by VDE). • Supports the CE marking of machinery (Machinery Directive). • Helps avoid hazardous machine status when used as part of an interlocking circuit. • Four-pole and six-pole Relays are available. • The Relay’s terminal arrangement simplifies PWB pattern design. • Reinforced insulation between inputs and outputs. Reinforced insulation between some poles of different polarity. * According to OMRON actual measurement data Coil (4 poles)   Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW) Rated voltage 12 VDC 30 400 110% Approx. 360 18 VDC 20 900 21 VDC 17.1 1,225 24 VDC 15 1,600 48 VDC 7.5 6,400 110 VDC 3.8 28,810 Approx. 420   Coil (6 poles)   Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW) Rated voltage 12 VDC 41.7 288 110% Approx. 500 18 VDC 27.8 648 21 VDC 23.8 882 24 VDC 20.8 1,152 48 VDC 10.4 4,606 110 VDC 5.3 20,862 Approx. 580   Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.           2. The maximum voltage is based on an ambient operating temperature of 23°C maximum. Contacts   Load Resistive load Rated load 6 A at 250 VAC, 6 A at 30 VDC Rated carry current 6 A Max. switching voltage 250 VAC, 125 VDC Max. switching current 6 A Contact materials Au plating + Ag alloy   Characteristics Safety Relay Unit   Contact resistance *1 100 mΩ max. Operating time *2 20 ms max. Response time *3 10 ms max. Release time *2 20 ms max. Must operate voltage 75% max. Must release voltage 10% min. Maximumoperatingfrequency Mechanical 36,000 operations/h Rated load 1,800 operations/h Insulation resistance *4 1,000 MΩ min. DielectricStrength*5 *6 Between coiland contacts 4,000 VAC, 50/60 Hz for 1 min. Betweencontacts ofdifferent olarity 4,000 VAC, 50/60 Hz for 1 min. (except for followings)4 poles (for poles 3-4 in 4-pole Relays),6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min. Betweencontacts of thesame polarity 1,500 VAC, 50/60 Hz for 1 min. Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shockresistance Destruction 1,000 m/s2 Malfunction 100 m/s2 Durability*7 Mechanical 10,000,000 operations min. (at approx. 36,000 operations/h) Electrical 100,000 operations min. (at the rated load) Inductive load switchingcapability *8(IEC60947-5-1) AC15 240 VAC, 2 ADC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A Failure rate (P level)(reference value *9) 5 VDC, 1 mA Ambient operatingtemperature *10 12 to 48 VDC: -40 to 85°C (with no icing or condensation)110 VDC: -40 to 60°C (with no icing or condensation) Ambient operating humidity 5% to 85% Weight 4 poles: Approx. 22 g6 poles: Approx. 25 g     Note: 1. The above values are initial values.           2. Performance characteristics are based on coil temparature of 23°C.*1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.*2. These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not       included.*3. The response time is the time it takes for the normally open contacts to open after the coil voltage is turned OFF.       Contact bounce time is included. Measurement conditions: Rated voltage operation, Ambient temperature: 23°C*4. The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric       strength was measured.*5. Pole 3 refers to terminals 31-32 or 33-34, pole 4 refers to terminals 43-44, pole 5 refers to terminals 53-54, and       pole 6 refers to terminals 63-64.*6.When using a P7SA Socket, the dielectric strength between coil contacts/between contacts of different polarity is 2,500 　　VAC, 50/60 Hz for 1 min.  *7. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%. For the durability       performance to the load, refer to the Durability Curve.*8. AC15: cosφ = 0.3, DC13: L/R = 48-ms.*9. The failure rate is based on an operating frequency of 300 operations/min.*10. 12 to 48 VDC:       When operating between 70 and 85°C, reduce the rated carry current of 6 A by 0.1 A for each degree above 70°C.  　　(See Fig. 1.)        110 VDC:       When operating between 40 and 60°C, reduce the rated carry current of 6 A by 0.27 A for each degree above 40°C.  　　(See Fig. 1.)   Options (order separately) Sockets   Model Push-In Plus terminals Screw terminals PCB terminals 4 poles 6 poles 4 poles 6 poles 4 poles 6 poles P7SA-10F-ND-PU P7SA-14F-ND-PU P7SA-10F(-ND) P7SA-14F(-ND) P7SA-10P P7SA-14P Ambient operating temperature P7SA-[]F-ND(-PU): -20 to +70°CP7SA-[]F: -40 to +85°C(with no icing or condensation) -40 to +85°C(with no icing or condensation) Ambient operating humidity 25% to 85% 5% to 85% Continuous carry current 6 A *1 Dielectricstrength Between coiland contactterminals 4,000 VAC for 1 min. 2,500 VAC for 1 min. Between contactterminals ofdifferent polarity 2,500 VAC for 1 min. Between contactterminals ofsame polarity 1,500 VAC for 1 min. Insulation resistance 1,000 MΩ min. *2 Weight Approx. 58 g Approx. 70 g Approx. 44 g Approx. 59 g Approx. 9 g Approx. 10 g   *1. When operating the P7SA-[]F-ND-PU at a temperature between 50 and 70°C, reduce the continuous current       (6 A at 50°C or less) by 0.25 A for each degree above 50°C.       When operating the P7SA-[]F-ND at a temperature between 50 and 70°C, reduce the continuous current       (6 A at 50°C or less) by 0.3 A for each degree above 50°C.       When operating the P7SA-[]F at a temperature between 50 and 85°C, reduce the continuous current       (6 A at 50°C or less) by 0.1 A for each degree above 50°C.*2. Measurement conditions: For 500 VDC applied to the same location as for dielectric strength measurement. Short Bars (for P7SA-[]F-ND-PU)   Application Applicablesockets Models Maximumcarry current Ambient operatingtemperature Ambient operatinghumidity Crossover wiring ofcontact terminals(bottom) P7SA-[]F-ND-PU XW5S-P2.5-2[] 24 A -40 to 55°C 5% to 95% XW5S-P2.5-3[] XW5S-P2.5-4[] XW5S-P2.5-5[]   Certified Standards Safety Relay Unit EN Standards, VDE Certified   Models Ratings Standard number Certification No. Operating coil Contact ratings G7SA-2A2B 12, 18, 21, 24, 48, 110 VDC EN/IEC 61810-1Electromagnetic relay EN 61810-3Relays with forcibly guided contacts 125547 12, 18, 21, 24, 48, 110 VDC 6 A, 240 VAC (Resistive)6 A, 30 VDC (Resistive) G7SA-3A1B G7SA-3A3B G7SA-4A2B G7SA-5A1B   UL Standards Certification (File No. E41515) Industrial Control Devices   Models Category Listed/Recognized Contact ratings Operating Coil ratings G7SA-2A2B E41515 Recognized 6 A, 250 VAC (Resistive)6 A, 30 VDC (Resistive) 12, 18, 21, 24, 48, 110 VDC G7SA-3A1B G7SA-3A3B G7SA-4A2B G7SA-5A1B   CSA standard CSA C22.2 No.14 Industrial Control Devices   Models Class number File No. Contact ratings Operating Coil ratings G7SA-2A2B 3211-07 LR35535 6 A, 250 VAC (Resistive)6 A, 30 VDC (Resistive) 12, 18, 21, 24, 48, 110 VDC G7SA-3A1B G7SA-4A2B G7SA-5A1B   South Korea S-mark certified (Rated voltage 24VDC only)   Models Applicable standard number G7SA-2A2B DC24 KS C IEC 61810-1 G7SA-3A1B DC24 G7SA-3A3B DC24 G7SA-4A2B DC24 G7SA-5A1B DC24   CQC   Models Standard number Certification No. G7SA GB/T, 21711.1 CQC14002119869   Sockets CE Marking Compliance   Models EMC Directive Low Voltage Directive Machinery Directive P7SA (Excluding -P type) Not applicable Applicable Not applicable P7SA-PU Not applicable Applicable Not applicable   The CE compliance declaration was made in combination with the Safety Relay. EN Standards, VDE Certified   Models Ratings Standard number Certification No. P7SA --- EN61984 40007586   EN Standards, TÜV Certified   Models Ratings Standard number Certification No. P7SA-PU --- EN61984 R50356981   UL Standards Certification (File No. E87929) Industrial Control Devices   Models Category Listed/Recognized P7SA SWIV2 Recognized P7SA-PU SWIV2, SWIV8 Recognized   CSA standard CSA C22.2 No.14 Industrial Control Devices   Models Class number File No. P7SA 3211-07, 3211-87 LR35535 P7SA-PU 3211-07, 3211-87 LR35535

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: General Purpose Relays RoHS:  Details Product: Power Relays Type: Standard Coil Voltage: 24 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 380 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.1 kOhms Coil Current: 21.8 mA Contact Material: Silver Cadmium Oxide (AgCdO) Series: G2R  Length: 29 mm Width: 12.7 mm Height: 25.3 mm Brand: Omron Electronics Contact Form: SPDT (1 Form C) Power Consumption: 530 mW Product Type: General Purpose Relays Factory Pack Quantity: 100 Subcategory: Relays Part # Aliases: G2R1DC24 G2R-1-DC24-BY-OMI G2R1DC24BYOMI Unit Weight: 17 g
