DELIVERY PERIOD : 1-2 WEEKS  Size M18 Mounting type Quasi-flush Sensing distance 8 mm Output type PNP Operation mode NO Connection method Connector M12 Material housing Brass, nickel plated Cable specifications - Overall length of sensor 59 mm Thread length 39 mm Degree of protection (IP) IP67

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Operating mechanism Snap action ctuator Top roller plunger 12.7 dia. x 4.8Stainless steel roller Frequency 50/60 Hz Contact form 1NC/1NO Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/10 A at 400 VACLamp load (NC): 3 A at 125 VAC/2 A at 250 VAC/1.5 A at 400 VACLamp load (NO): 1.5 A at 125 VAC/1 A at 250 VAC/0.8 A at 400 VACInductive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 400 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 400 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.8 A at 400 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCLamp load (NC): 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCLamp load (NO): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCInductive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCMotor load: 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDC Inrush current 30 A max. Conduit G1/2 (PF1/2) Earth terminal With ground terminal Ambient temperature Operating: -40 to 80 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating speed 1 mm/s to 0.5 m/s Permissible operating frequency Electrical: 30 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance Between each terminal of the same polarities: 100 MΩ min.Between each terminal and non-live-metallic part: 100 MΩ min.at 500 VDC Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminaland ground: 4 kV Durability Electrical: 500,000 operations min. (10 A at 250 VAC)Mechanical: 30 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2 min.Malfunction: 300 m/s2 min. Degree of protection IP67 Classification of protection against electric shock Class I (with ground terminal) Operating Force (OF) Standard value 18.63 N max. Release Force (RF) Standard value 1.96 N min. Pre-Travel (PT) Standard value 2 mm max. Movement Differential (MD) Standard value 1 mm max. Over-Travel (OT) Standard value 5 mm min. Operating Position (OP) Standard value 48±1 mm Total Travel (TT) Reference value 7 mm Free Position (FP) Standard value 51 mm max. Direct Opening Force Standard value 49.03 N min. Direct Opening Travel Standard value 3.2 mm min.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches RoHS:  Details Illuminated: Non-Illuminated Contact Form: DPST Actuator: Roller Plunger Current Rating: 5 A Voltage Rating AC: 250 VAC Voltage Rating DC: 250 VDC Operating Force: 8.83 N Termination Style: Crimp Mounting Style: Chassis Mount IP Rating: IP65 Actuator Style: Roller Plunger Brand: Omron Automation and Safety Maximum Operating Temperature: + 65 C Minimum Operating Temperature: - 5 C Product Type: Limit Switches Series: HL-5000 Factory Pack Quantity: 1 Subcategory: Switches Type: Limit Part # Aliases: HL5200 Unit Weight: 150 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Operating indicator LED Degree of protection Closed type (cover) Terminal structure Plug-in terminal Coil Coil ratings 24 VDC 36.9 mA Coil resistance 650 Ω Operate voltage (Set voltage) 80 % max. Release voltage (Reset voltage) 10 % min. Maximum voltage 110 % Power consumption Approx. 0.9 W Contact Contact rated load 10 A (Resistive load)110 VAC 7.5 A (Inductive load (cosφ = 0.4))24 VDC 10 A (Resistive load)24 VDC 5 A (Inductive load (L/R = 7 ms)) Max. contact voltage 250 VAC125 VDC Max. contact current AC: 10 ADC: 10 A Contact form DPDT Contact method Single Contact material Ag alloy Performance Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Reset time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Maximum operating frequency Mechanical: 18000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)Between contacts of same polarity: 100 MΩ min. (at 500 VDC)Between contacts of different polarity: 100 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 200 m/s2 Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h) Failure rate 100 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute) Ambient temperature (Operating) -25 to 40 ℃ (with no freezing or condensation) Ambient humidity (Operating) 5 to 85 % Weight Approx. 40 g Mounting method Socket Applicable socket PTF-08-PU/ PTF-08-PU-L/ PTF08A/ PTFZ-08-E/ PT08/ PT08QN/ PT08-0

Read more less

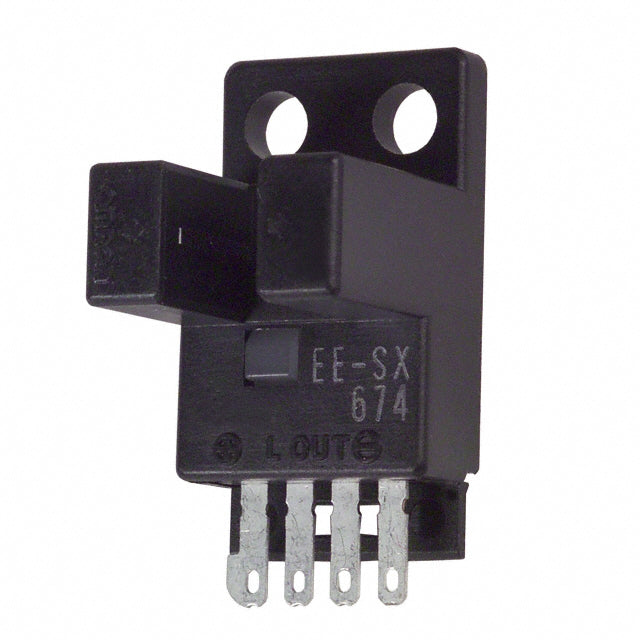

DELIVERY PERIOD : 1-2 WEEKS  Photomicrosensor, Slot type, Through-beam, Standard, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: No incident light, NPN output, Connector model Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type

Read more less

Size M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67

Read more less

DELIVERY PERIOD : 1-2 WEEKS  The Inductive Proximity Sensor LJ12A3-4-Z/DX by Ouee is a robust and reliable switch designed for close proximity detection of metal objects. With a detection distance of 4mm, this sensor is crafted from durable materials such as iron, nickel, and metal, ensuring longevity and consistent performance. Ideal for various industrial applications, it provides precise and quick responses in detecting metal presence. Features: Close proximity detection of 4mm Durable construction with iron, nickel, and metal High reliability and precision Quick response time Ideal for industrial applications Compatible with metal objects Package Includes: 1 x Inductive Proximity Sensor LJ12A3-4-Z/DX Close Proximity Switch (4mm)

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Photomicrosensor, Slot type, Through-beam, Closemounting, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Photoelectric Sensor, AC/DC power-free type, Through-beam, Red light, Sensing distance: 5 m, Relay output, Pre-wired, 2 m, with Mounting Bracket Sensing method Through-beam type Sensing distance 5 m Light source Red LED (624 nm) Connection method Pre-wired models

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Temperature Controllers Number of Inputs: 1 Input Number of Outputs: 3 Output Input Type: RTD, Thermocouple Output Type: Relay Mounting Style: Panel Mount Supply Voltage - Min: 100 VAC Supply Voltage - Max: 240 VAC Size: 48 mm x 48 mm IP Rating: IP66 Termination Style: Screw Display Type: 11-Segment, 4-Digit Minimum Operating Temperature: - 200 C Maximum Operating Temperature: + 2300 C Brand: Omron Automation and Safety Product Type: Temperature Controllers Factory Pack Quantity: 1 Subcategory: Controllers Type: Digital Temperature Controller Part # Aliases: E5CCRX2ASM800 Unit Weight: 181.750 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors RoHS:  Details Sensing Method: Inductive Sensing Distance: 7 mm Mounting Style: Cable Output Configuration: NO Brand: Omron Automation and Safety Height: 29 mm Length: 55 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Operating Supply Voltage: 24 V Product Type: Proximity Sensors Series: E2E Factory Pack Quantity: 1 Subcategory: Sensors Width: 29 mm Part # Aliases: 1608308 E2EX7D1N Unit Weight: 240.408 g

Read more less

Battery Capacity 01000 mpr Voltage 3 v Battery Type Lithium-Ion Brand omron Model Name/Number Cj1w-bat01 The Omron CJ1W-BAT01 is a lithium battery designed for use with Omron's CJ1M and CJ2 series programmable logic controllers (PLCs). Here's a detailed overview: Features:   Voltage: 3.0V Capacity: 850mAh Battery Chemistry: Lithium Design: Compact cylindrical shape with wired connectors Durability: Reliable performance in industrial environments Shelf Life: Long-lasting with minimal self-discharge Safety Standards: Compliant with industry regulations   Applications:   Data Retention: Ensures memory retention in Omron PLCs during power outages Industrial Automation: Supports critical processes in manufacturing and automation systems Backup Power: Provides backup for real-time clock and memory functions in PLCs

Read more less
