Products Under 3999
-
Model-E2E-X3D1-N 2M OMS-MAKE OMRON
Sensing Range Max 3mm Operating Temperature Max 70°C Thread Size - Metric M12 Sensor Output Type SPST-NO Supply Voltage DC Min 12V Supply Voltage DC Max 24V Sensor Output Type 2-Wire, NO Sensor Terminals Cable IP Rating IP67 Sensor Type Inductive Proximity Sensor Sensing Distance Min - Sensing Distance Max - Sensing Distance Nom 3mm Supply Voltage Min 12VDC Supply Voltage Max 24VDC Sensor Case / Package Cylindrical M12 Thread Sensor Body Material 303 Stainless Steel Operating Temperature Min -25°C
Rs. 2,950.00
-
Model-G2R-2-SND(S)24VDC-Make Omron
Mounting method With plug-in socket Usage General purpose, Interface Poles 2 Coil voltage 24 V Rated carry current 5 A Operation voltage DC Contact material AgSnIn Contact description DPDT Features Diode, LED, Transparent case, With mechanical indicator Terminal type Plug-in
Rs. 944.00
-
MODEL-POWER CARD FOR PLC NX-PF0730 MAKE OMRON
/O system NX I/O Bus Type of module Power feed I/O connection type Push-in Number of I/O connectors 1 Detachable I/O connector Suitable for safety functions SIL according to IEC 61508 None Number of IOV (V+) terminals 4 Number of IOG (V-) terminals 4 Number of FG terminals 0 Degree of protection (IP) IP20 Product Height (unpacked) 104.5 mm Product Width (unpacked) 12 mm Product Depth (unpacked) 80.1 mm Product Weight (unpacked) 65 g
Rs. 3,800.00
-
MODEL-LIMIT SWITCH Z-15GW 2255-M19R 1M MAKE OMRON
Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Basic / Snap Action Switches RoHS: REACH - SVHC: Series: Z Type: General Purpose Contact Form: SPDT Switch Function: ON - (OFF), OFF - (ON) Actuator: Roller Lever Current Rating: 15 A Voltage Rating AC: 250 VAC Voltage Rating DC: 14 VDC Operating Force: 1.96 N Termination Style: Screw Mounting Style: Chassis Mount IP Rating: IP62 Packaging: Bulk Actuator Style: Roller Lever Brand: Omron Automation and Safety Illuminated: Non-Illuminated Product Type: Snap Action Switches 1 Subcategory: Switches Part # Aliases: Z15GW2255BNC Z15GW2255B Unit Weight: 45 g
Rs. 1,340.00
-
MODEL- RELAY 24VDC, 5PIN,MM:G2RL-1 OMRON
Manufacturer: Omron Product Category: General Purpose Relays RoHS: Product: Power Relays Type: Low Profile Coil Voltage: 24 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 12 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 440 VAC, 300 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.44 kOhms Coil Current: 16.7 mA Contact Material: Silver Alloy (Ag) Series: G2RL Length: 29 mm Width: 12.7 mm Height: 15.7 mm Brand: Omron Electronics Contact Form: SPDT (1 Form C) Power Consumption: 400 mW Product Type: General Purpose Relays 100 Subcategory: Relays Part # Aliases: G2RL1DC24NC G2RL-1-DC24-BY-OMB G2RL1DC24 G2RL-1DC24 G2RL1DC24BYOMB Unit Weight: 17 g
Rs. 210.00
-
MODEL-POWER CARD FOR PLC NX-PF0730
DELIVERY TIME : 1-2 WEEKS I/O system NX I/O Bus Type of module Power feed I/O connection type Push-in Number of I/O connectors 1 Detachable I/O connector Suitable for safety functions SIL according to IEC 61508 None Number of IOV (V+) terminals 4 Number of IOG (V-) terminals 4 Number of FG terminals 0 Degree of protection (IP) IP20 Product Height (unpacked) 104.5 mm Product Width (unpacked) 12 mm Product Depth (unpacked) 80.1 mm Product Weight (unpacked) 65 g
Rs. 3,800.00
-
MODEL-LIMIT SWITCH WLH2-LD MAKE OMRON
DELIVERY TIME : 1-2 WEEKS [Features]· Circuit will break without fail by using 2-circuit double-break.· Structure suitable to IP67 due to O ring and/or cover seal.· Overseas approval corresponding to the machines for export approved by UL, CSA, TUV, EN/IEC, CCC.· Most suitable to machines for export.· Optimum high accuracy type in controlling the position is available in all types.· Movement till operation is less (about 5°) but repeatability is two times of standard type
Rs. 3,400.00
-
MODEL-E2E-X2D1-N 5M OMS PROXIMITY SENSOR MAKE OMRON
DELIVERY PERIOD ; 1-2 WEEKS Type Description Select All Category Industrial automation & controls sensors proximity sensors -- industrial Manufacturer Omron Automation and Safety Series E2E Packaging Bulk Part Status Active Sensor Type Inductive Sensing Distance 0.079" (2mm) Output Type NPN-NO, 2-Wire Response Frequency 1.5kHz Shielding Shielded Material - Body Stainless Steel Voltage - Supply 10V ~ 30V Termination Style Cable Leads Operating Temperature -25°C ~ 70°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M8 Base Product Number E2E X2 Report Product Information Error View Similar
Rs. 1,850.62
-
MODEL-PROX SWITCH E2B-M13KS04-WP-B1 OMRON
Size M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67 Downloads
Rs. 535.00
-

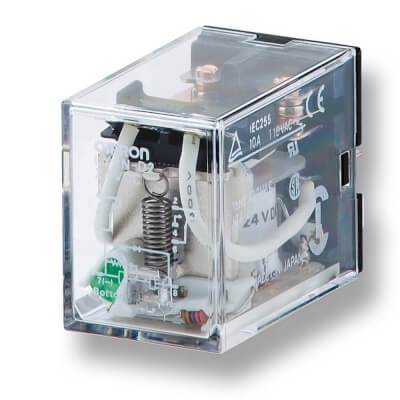

MODEL - Relay LY2N-D2-DC24 Make-OMRON
Mounting method With plug-in socket Usage General purpose, High power Poles 2 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description DPDT Features Diode, LED, Transparent case Terminal type Plug-in
Rs. 650.00
-

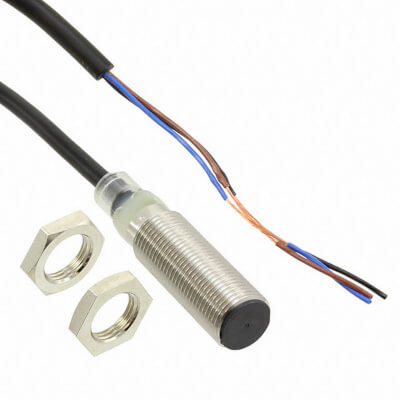

MODEL-PROX SWITCH E2B-M12KS04-WP-B1 OMRON
ize M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67 Downloads
Rs. 535.00
-

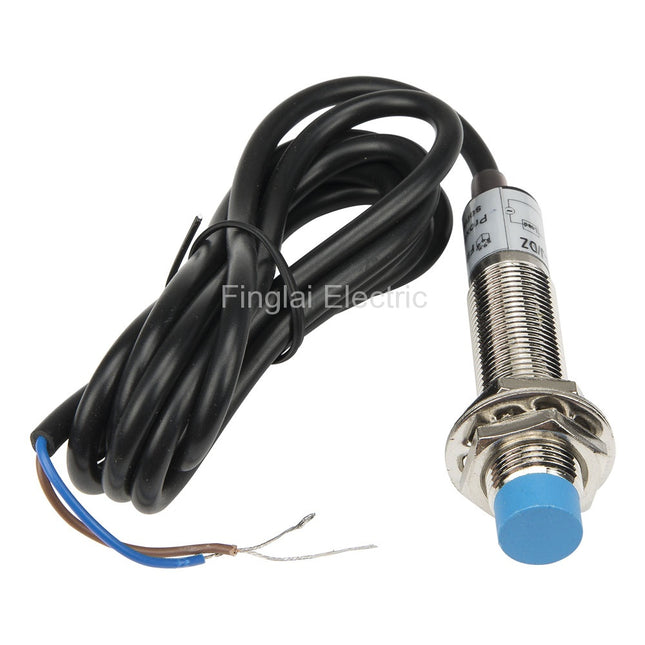

MODEL-LJ12A3-4-J/DZ M12 4MM AC 220V 2WIRE NC PROXIMITY SENSOR NC 220VAC RANGE 4MM DIA 18MM MAKE OMRON
Current type Operating form Contact form Connection form Model number Remark Online store: This site Aliexpress Ebay Amazon DC NPN NO Wire lead LJ12A3-4-Z/BX 6-36Vdc US $1.41/ pieceOrder DC NPN NO Wire lead LJ12A3-4-Z/BX-D2 6-36Vdc, 2m cable US $1.55/ pieceOrder DC NPN NO Wire lead LJ12A3-4-Z/BX-5V 5Vdc US $2.15/ pieceOrder DC NPN NO Connector LJ12A3-4-Z/BX-G 6-36Vdc US $3.12/ pieceOrder DC NPN NC Wire lead LJ12A3-4-Z/AX 6-36Vdc US $1.41/ pieceOrder DC NPN NC Wire lead LJ12A3-4-Z/AX-5V 5Vdc US $2.15/ pieceOrder DC NPN NO+NC Wire lead LJ12A3-4-Z/CX 6-36Vdc US $2.09/ pieceOrder DC PNP NO Wire lead LJ12A3-4-Z/BY 6-36Vdc US $1.41/ pieceOrder DC PNP NO Wire lead LJ12A3-4-Z/BY-5V 5Vdc US $2.15/ pieceOrder DC PNP NO Connector LJ12A3-4-Z/BY-G 6-36Vdc US $3.12/ pieceOrder DC PNP NC Wire lead LJ12A3-4-Z/AY 6-36Vdc US $1.41/ pieceOrder DC PNP NO+NC Wire lead LJ12A3-4-Z/CY 6-36Vdc US $2.09/ pieceOrder DC Two wires NO Wire lead LJ12A3-4-Z/EX 6-36Vdc US $1.49/ pieceOrder DC Two wires NO Connector LJ12A3-4-Z/EX-G 6-36Vdc US $3.12/ pieceOrder DC Two wires NC Wire lead LJ12A3-4-Z/DX 6-36Vdc US $1.77/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ 90-250Vac US $1.77/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ-36V 36Vac US $3.12/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ-380V 380Vac US $3.12/ pieceOrder AC Two wires NC Wire lead LJ12A3-4-J/DZ 90-250Vac Visiting... AC Two wires NC Wire lead LJ12A3-4-J/DZ-36V 36Vac US $3.12/ pieceOrder AC Two wires NC Wire lead LJ12A3-4-J/DZ-380V 380Vac US $3.12/ pieceOrder ▇ General Model number LJ12A3-4 series External dimensions M12x1x60 Installation type Non-shielded Detection distance 4mm Setting distance 0-3.2 mm Supply voltage 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz Output current DC type: 300mA max; AC Type: 400mA Standard detected object Mild steel (12x12x1mm) Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) Response frequency 500Hz Matched mounting bracket M12 mounting bracket Matched mounting connector Only for connector type: 3 wires bend connector, 3 wires straight connector Output indication Red LED Short-circuit protection No Reverse connection protection Yes Insulation resistance 50MΩ min (between charging part and housing) Dielectric strength 1000Vac, 1min (between charging part and housing) IP Rating IP65 Operating temperature -25 to 70 ℃ (13 to 158 ℉) Cable length 1.2m, PVC cable Material Case: Brass-nickel plated; Sensing surface: ABS Alias name LJ12A3-4 series cylinder inductive proximity switches
Rs. 720.00
