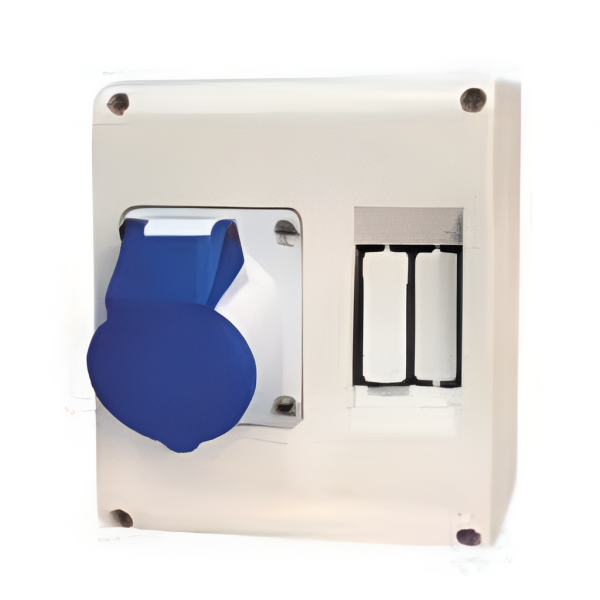

Description # Detail NEPTUNE BALS No 901 EAN/pcs 4024941012034 Amperage 16A Poles 4P (3P+PE) Earth ‘Clock’ Position 7 H Voltage 480 up to 500V Frequency 50 and 60Hz Protection IP44 Full Description Membership screw terminal Connection design screw terminal as box terminal with Kontex-contact Max. conductor 25.0 mm² Fixing centres flange 114×114 mm, fixing centres 90×90 mm

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Tactile Switches RoHS:   Illuminated: Non-Illuminated Mounting Style: Through Hole Mounting Direction: Straight Stem Height: 4.3 mm Actuator: Round Switch Function: OFF - (ON) Operating Force: 1.3 N Current Rating: 50 mA Voltage Rating DC: 24 VDC Ground Terminal: No Contact Form: SPST Termination Style: Solder Pin Color: White Length: 12 mm Width: 12 mm Height: 3.5 mm Series: B3F Life: 3000000 Cycle Brand: Omron Electronics Contact Plating: Silver Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Tactile Switches 500 Subcategory: Switches Part # Aliases: B3F4000 B3F-4000-BY-OMZ B3F4000BYOMZ Unit Weight: 850 mg

Read more less

Dimensions: 79 x 43 x 25 mm Measure range: DC 0-2a Operating Voltage: DC +5 V ± 5 percent Display: 4 digit 0 5 inch Display color: red

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: MEAN WELL Product Category: Power Supplies - Chassis Mount Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS:   Output Power: 225 W Input Voltage: 90 VAC to 264 VAC, 248 VDC to 370 VDC Number of Outputs: 1 Output Output Voltage-Channel 1: 15 VDC Output Current-Channel 1: 15 A Case Style: Enclosed Industry: Industrial Length: 150 mm (5.906 in) Width: 140 mm (5.512 in) Height: 86 mm (3.386 in) Series: S-250 Brand: MEAN WELL Input Frequency: 47 Hz to 63 Hz Mounting Style: Chassis Open Frame/Enclosed: Enclosed Product: Switching Supplies Product Type: Switching Power Supplies 8 Subcategory: Power Supplies Unit Weight: 1.150 kg

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: MEAN WELL Product Category: Power Supplies - Chassis Mount Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS:   Output Power: 225 W Input Voltage: 90 VAC to 264 VAC, 248 VDC to 370 VDC Number of Outputs: 1 Output Output Voltage-Channel 1: 15 VDC Output Current-Channel 1: 15 A Case Style: Enclosed Industry: Industrial Length: 150 mm (5.906 in) Width: 140 mm (5.512 in) Height: 86 mm (3.386 in) Series: S-250 Brand: MEAN WELL Input Frequency: 47 Hz to 63 Hz Mounting Style: Chassis Open Frame/Enclosed: Enclosed Product: Switching Supplies Product Type: Switching Power Supplies 8 Subcategory: Power Supplies Unit Weight: 1.150 kg

Read more less

This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 32A In rated current with B tripping curve. The rated short circuit breaking capacity is up to 10 kA at 380VAC - 415VAC conforming to IS/IEC 60947-2 standard. The MCB is suitability for isolation in the industrial sector as per IS/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003) According to IEC 60529 standard, the degree of protection is IP20 for the device The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.   This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 32A In rated current with B tripping curve. The rated short circuit breaking capacity is up to 10 kA at 380VAC - 415VAC conforming to IS/IEC 60947-2 standard. The MCB is suitability for isolation in the industrial sector as per IS/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003) According to IEC 60529 standard, the degree of protection is IP20 for the device The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.

Read more less

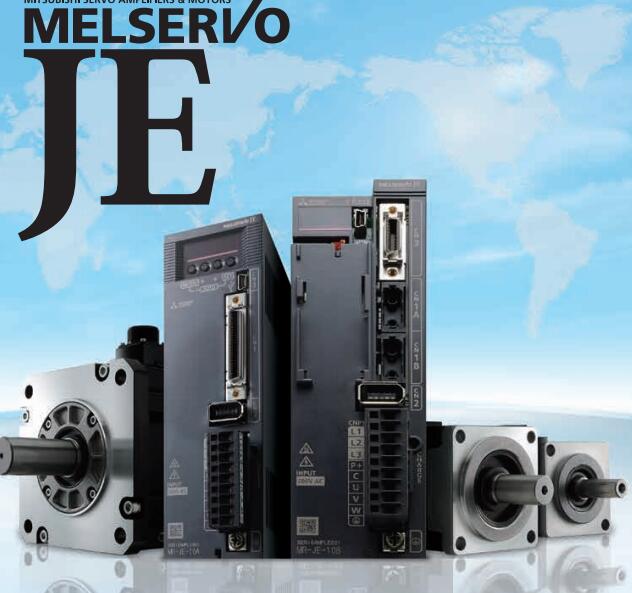

MITSUBISHI HG-SN202J-S100 Product information and technical parameters：Brand: MITSUBISHIName: Electric machineryModel: HG-SN202J-S100Servo motor series: low inertia, small capacity.Rated output: 2.0kw.Rated speed: 2000r/min.Electromagnetic brake: No.Oil seal: have.Corresponding servo amplifier: MR-JE-10B/MR-JE-10A.Support position control, speed control, torque control, push and press control.Position control can use linear, arc interpolation controller, fixed size feed control, target position change and other rich functions.The position control and torque control are realized by switching control mode.The gain adjustment of servo can be simply performed by the advanced one key tuning function.At the same time, it is also able to suppress the low frequency vibration of the manipulator by the advanced vibration suppression control II,Shorten the time to complete the positioning, so as to achieve the production of the rhythm of the shortening.   MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.Rated output: 11.0kw.SSCNET interface.Voltage: 3 phase AC400V.Complete synchronization system with SSCNET high speed serial communication,The communication cycle between the controller and the servo amplifier is the longest 0 MITSUBISHI HG-SN202J-S100. 888ms.Such systems will be able to provide high reliability and high performance HG-SN202J-S100When connecting the servo system with SSCNET,In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.This simple connection method reduces the routing time and helps to prevent noise MITSUBISHI HG-SN202J-S100.Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.It is only necessary to add a battery on the servo amplifier, which can form the absolute value system.Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use.Servo motor series: low inertia, medium / high power MITSUBISHI HG-SN202J-S100.Rated output: 30.0kw.Rated speed: 1000r/min.Electromagnetic brake: No.Shaft end specification: Standard (straight axis).Voltage: 400V level.Features: low inertia has low medium and high speed three models, suitable for different applications as a standard, 30KW and above servo motor can be installed flange or bracket.IP level: IP44.Application example:1, injection molding machine.2, semiconductor manufacturing equipment.3, large material handling system.4, stamping machine.Abundant motor product line can optimize the performance of the machine.Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor. 1 axis servo amplifier.MITSUBISHI general AC servo amplifier MELSERVO-J4 series.Rated output: 0.75kw.Interface: SSCNET III /H.Power supply: three phase AC200V.Servo amplifier supporting SSCNET III /H.Complete synchronization system capable of using high speed serial optical communication.Can be combined with the servo system controller to maximize the performance of the servo system.2 low frequency vibration can be suppressed at the same time by supporting the seismic algorithm of 3 inertial equipment.Configurator2 MR to achieve convenient adjustment.Effectively restrain the low frequency aftershock effect produced by the frontt end of the boom or the main body of the device 100Hz HG-SN202J-S100.Can effectively shorten the time to control the stability of the aftershock.In the XY design of trajectory control, improve the accuracy of arc track.At the same time, it can eeffectively control the phenomenon of quadrant protrusion caused by the rotation direction of the servo motor, which is caused by friction and twisting HG-SN202J-S100.

Read more less

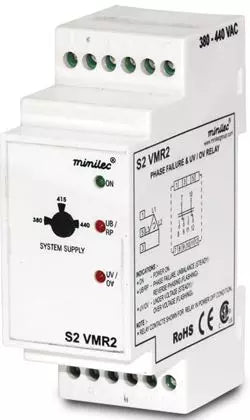

specifications description Weight 100 g Mounting Din Rail Rated Voltage 100-110-120 V AC Type of Product Phase Failure Relay Relay Type Phase Failure Relay Model No S2 VMR 2 Application AC And R Chiller Compressor Motors, AHU Fan /Pump Motors, Machinery Using Multiple Small Motors, MAIN Power Supply Distribution Panel Board, DG Set application, UPS, Submersible Pumps, Hoist And Crane. Features Microcontroller Design, Smd Technology, Auto Reset, Fixed Unbalance Setting, Fixed Uv/Ov Country of Origin India Name of Manufacturer/Packer/Importer Max Engineering & Marketing Pvt Ltd.

Read more less

Connector Type Through Hole Contact Material Silver Current Rating 16 Amps Mounting Type PCB Mount Brand Best Price Square

Read more less

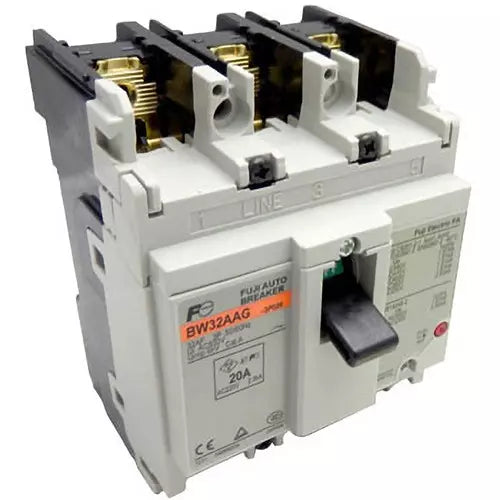

specifications description Model No BW32AAG-3P020 Type of Product Automatic Circuit Breaker Standard JIS C 8201-2-1, IEC60947-2, EN60974-2 (CE mark), gB14048.2 (CCC certification) Outer Dimension d (mm) 84 mm Rated Insulation Voltage AC500 V Frame (AF) 32 AF Type Instant Fixed Type For General Wiring Included Components Body Mounting Screws (M4 x 55) x 2, Terminal Screws (M5 x 14) x 6 Rated Current 20 A Outer Dimension c (mm) 60 mm Trip button Included Monotaro ID 35105707 Rated Breaking Capacity IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA, GB/T14048.2：(AC400V)1.5/1 kA ・(AC230V)2.5/2 kA Connection Type Surface Type (for crimping and bar terminals) Model Name BW32AAG No. of Pole 3P3E Weight 500 g Outer Dimension b (mm) 100 mm Outer Dimension a (mm) 75 mm Protection Line Protection Country of Origin JAPAN Name of Manufacturer/Packer/Importer Fuji Electric Co Ltd
