DELIVERY PERIOD : 1-2 WEEKS TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Range of product TeSys Deca Product or component type Contactor Device short name LC1D Contactor application Resistive loadMotor control Utilisation category AC-1AC-4AC-3AC-3e Poles description 3P [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage 220 V AC 50/60 Hz Complementary Motor power kW 4 kW at 220...230 V AC 50/60 Hz (AC-3)7.5 kW at 380...400 V AC 50/60 Hz (AC-3)9 kW at 415...440 V AC 50/60 Hz (AC-3)10 kW at 500 V AC 50/60 Hz (AC-3)10 kW at 660...690 V AC 50/60 Hz (AC-3)4 kW at 400 V AC 50/60 Hz (AC-4)4 kW at 220...230 V AC 50/60 Hz (AC-3e)7.5 kW at 380...400 V AC 50/60 Hz (AC-3e)9 kW at 415...440 V AC 50/60 Hz (AC-3e)10 kW at 500 V AC 50/60 Hz (AC-3e)10 kW at 660...690 V AC 50/60 Hz (AC-3e) Motor power hp 1 hp at 115 V AC 50/60 Hz for 1 phase motors3 hp at 230/240 V AC 50/60 Hz for 1 phase motors5 hp at 200/208 V AC 50/60 Hz for 3 phases motors5 hp at 230/240 V AC 50/60 Hz for 3 phases motors10 hp at 460/480 V AC 50/60 Hz for 3 phases motors15 hp at 575/600 V AC 50/60 Hz for 3 phases motors Compatibility code LC1D Pole contact composition 3 NO Protective cover With [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit32 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1300 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity 300 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 145 A 40 °C - 10 s for power circuit240 A 40 °C - 1 s for power circuit40 A 40 °C - 10 min for power circuit84 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-150 A gG at <= 690 V coordination type 1 for power circuit35 A gG at <= 690 V coordination type 2 for power circuit Average impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit Power dissipation per pole 2.5 W AC-10.8 W AC-30.8 W AC-3e [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified Overvoltage category III Pollution degree 3 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability 15 Mcycles Electrical durability 1.65 Mcycles 18 A AC-3 at Ue <= 440 V1 Mcycles 32 A AC-1 at Ue <= 440 V1.65 Mcycles 18 A AC-3e at Ue <= 440 V Control circuit type AC at 50/60 Hz standard Coil technology Without built-in suppressor module Control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation 2…3 W at 50/60 Hz Operating time 12...22 ms closing4...19 ms opening Maximum operating rate 3600 cyc/h at 60 °C Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Auxiliary contact composition 1 NO + 1 NC Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency 25...400 Hz Minimum switching voltage 17 V for signalling circuit Minimum switching current 5 mA for signalling circuit Insulation resistance > 10 MOhm for signalling circuit Non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact Mounting support PlateRail Environment Standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 60947-4-1IEC 60335-1:Clause 30.2IEC 60335-2-40:Annex JJUL 60335-2-40:Annex JJCSA C22.2 No 60947-4-1 Product certifications ULCCCCSAMarineUKCAEACCB Scheme IP degree of protection IP20 front face conforming to IEC 60529 Protective treatment TH conforming to IEC 60068-2-30 Climatic withstand conforming to IACS E10 exposure to damp heatconforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device -40…60 °C60…70 °C with derating Operating altitude 0...3000 m Fire resistance 850 °C conforming to IEC 60695-2-1 Flame retardance V1 conforming to UL 94 Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz)Vibrations contactor closed (4 Gn, 5...300 Hz)Shocks contactor open (10 Gn for 11 ms)Shocks contactor closed (15 Gn for 11 ms) Height 77 mm Width 45 mm Depth 86 mm Net weight 0.33 kg Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.000 cm Package 1 Width 9.200 cm Package 1 Length 11.200 cm Package 1 Weight 352.000 g Unit Type of Package 2 S02 Number of Units in Package 2 20 Package 2 Height 15 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 7.415 kg Unit Type of Package 3 P06 Number of Units in Package 3 320 Package 3 Height 75.000 cm Package 3 Width 60.000 cm Package 3 Length 80.000 cm Package 3 Weight 128.420 kg

Read more less

Manufacturer FINDER Type of relay ELECTROMAGNETIC Contacts configuration DPDT Rated coil voltage 230V AC Contact current max. 20A AC contacts rating @R(at resistive load) at resistive load 10A/250V AC  DC contacts rating @R(at resistive load) at resistive load 10A / 30V DC Switched voltage max. 220V DC, max. 400V AC Relay variant industrial Mounting socket Manufacturer series 55.32 Operating temperature -40...85°C Body dimensions 27.7x20.7x35.8mm Coil resistance 17kΩ Coil current 6mA Contact material AgNi Coil power consumption 1.5VA Related items 94.12, 94.02

Read more less

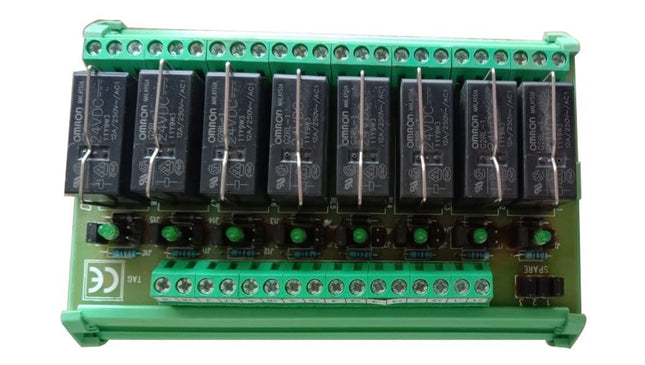

DELIVERY TIME : 1-2 WEEKS  Connector Type Screw Contact Material Silver or Copper Contact Type 2NO 2NC Current Rating 8 Amps Mounting Type DIN Rail Mount About this item 8 Amp RELAY MODULE 24V DC OMRON RELAY, With Base With Fuse 2 CHANGEOVER, 8 CHANNEL 12 MONTHS WARRANTY DIN RAIL MOUNTABLE

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-22W-B50 other name 4715MS-22W-B5O,4715MS22WB50 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Voltage 220V PoWer 14/13W Termination 2 wires Fan Speed [RPM] 2700 Frequency [Hz] 50 Input Power (+10% or -20%) [W] 14 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 89.3 Max. Air Flow [m3 per min] 2.5 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 63.8 Noise [dB] 37

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-22W-B50 other name 4715MS-22W-B5O,4715MS22WB50 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Voltage 220V PoWer 14/13W Termination 2 wires Fan Speed [RPM] 2700 Frequency [Hz] 50 Input Power (+10% or -20%) [W] 14 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 89.3 Max. Air Flow [m3 per min] 2.5 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 63.8 Noise [dB] 37

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-22T-B50 other name 4715MS-22T-B5O,4715MS22TB50 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Termination 2 wires Fan Speed [RPM] 2700 Size 120 mm x 120 mm x 38 mm Frequency [Hz] 50 Input Power (+10% or -20%) [W] 14 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 89.3 Max. Air Flow [m3 per min] 2.5 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 63.8 Noise [dB] 37 Manufacturer NMB Part number 4715MS-22T-B50 other name 4715MS-22T-B5O,4715MS22TB50 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Termination 2 wires Fan Speed [RPM] 2700 Size 120 mm x 120 mm x 38 mm Frequency [Hz] 50 Input Power (+10% or -20%) [W] 14 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 89.3 Max. Air Flow [m3 per min] 2.5 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 63.8 Noise [dB] 37

Read more less

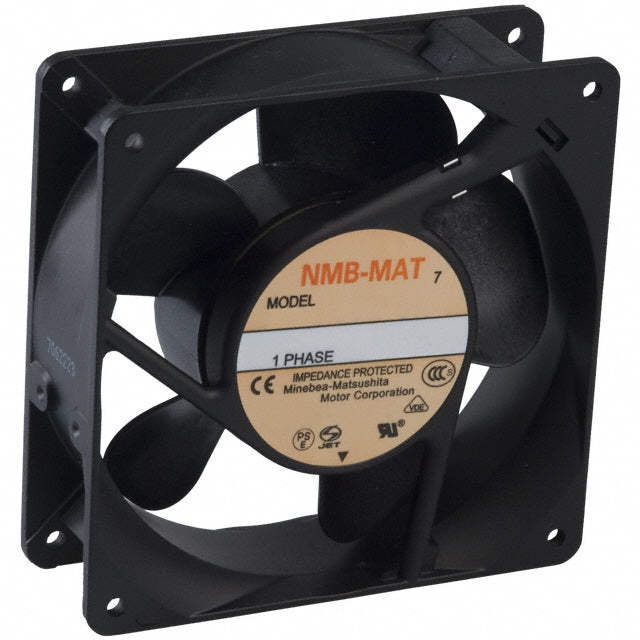

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-23T-B40 other name 4715MS-23T-B4O,4715MS23TB40 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Termination 2 wires Fan Speed [RPM] 2700 Frequency [Hz] 60 Input Power (+10% or -20%) [W] 13 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 95 Max. Air Flow [m3 per min] 2.7 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 63.7 Noise [dB] 39

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4710PS-23T-B30 other name 471OPS-23T-B3O,4710PS23TB30 AC/DC AC Fans Fan Type Axial Voltage 230V Termination 2 wires Fan Speed [RPM] 2700 Size 120 mm x 120 mm x 25 mm Frequency [Hz] 60 Input Power (+10% or -20%) [W] 11 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 360 Max. Air Flow [CFM] 71.4 Max. Air Flow [m3 per min] 2 Max. Static Pressure [In H2O] 0.16 Max. Static Pressure [Pa] 41.2 Noise [dB] 38

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-23T-B30 other name 4715MS-23T-B3O,4715MS23TB30 AC/DC AC Fans Fan Type Axial Size 120 mm x 120 mm x 38 mm Voltage 230V PoWer 12/11W Termination 2 wires Frequency [Hz] 50 Input Power (+10% or -20%) [W] 12 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 81 Max. Air Flow [m3 per min] 2.3 Max. Static Pressure [In H2O] 0.2 Max. Static Pressure [Pa] 49 Noise [dB] 34 Fan Speed [RPM] 2400 Bearing Type Ball Bearing

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 4715MS-20W-B50 other name 4715MS-2OW-B5O,4715MS20WB50 AC/DC AC Fans Fan Type Axial Size 119 mm x 119 mm x 38 mm Voltage 200V PoWer 14/15W Termination 2 wires Frequency [Hz] 50 Input Power (+10% or -20%) [W] 15 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 550 Max. Air Flow [CFM] 89.3 Max. Air Flow [m3 per min] 2.5 Max. Static Pressure [In H2O] 0.26 Max. Static Pressure [Pa] 64.7 Noise [dB] 37 Fan Speed [RPM] 2600 Bearing Type Ball Bearing

Read more less

DELIVERY PERIOD : 1-2 WEEKS  SKU 5915PC-10T-B30-SM0 Part Type Cooling Fan, Thermal Fans, Server Fan, Computer Fan, Industral Fan Manufacturer NMB Part Number 5915PC-10T-B30-SM0 Other Name 5915PC10TB30SM0 AC/DC AC Size 172 mm x 150 mm x 38 mm Power 42/40W Bearing Type Ball Bearing Frequency [Hz] 60 Input Power (+10% or -20%) [W] 40 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 225 Max. Air Flow [m3 per min] 6.3 Max. Static Pressure [In H2O] 0.66 Max. Static Pressure [Pa] 163.8 Noise [dB] 53 Fan Speed [RPM] 3150

Read more less

DELIVERY PERIOD : 1-2 WEEKS  SKU 5915PC-10T-B30 Part Type Cooling Fan, Server Fan, Computer Fan, Industral Fan Manufacturer NMB Part Number 5915PC-10T-B30 Other Name 5915PC10TB30 AC/DC AC Size 172 mm x 150 mm x 38 mm Power 37/33W Bearing Type Ball Bearing Frequency [Hz] 50 Input Power (+10% or -20%) [W] 42 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 189.3 Max. Air Flow [m3 per min] 5.3 Max. Static Pressure [In H2O] 0.51 Max. Static Pressure [Pa] 127.5 Noise [dB] 48 Fan Speed [RPM] 2650
