Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Rotary Encoder, Incremental, External Diameter: 40 dia., Line driver output, 1000 P/R, 5 VDC, Phases A/-A/B/-B/Z/-Z, Pre-wired model, 2 m Encoding method Incremental Shaft model Resolution 1000 P/R Output phases A, -A, B, -B, Z and -Z Control output Line driver output Connection method Pre-wired models (Cable length: 2 m)

Read more less

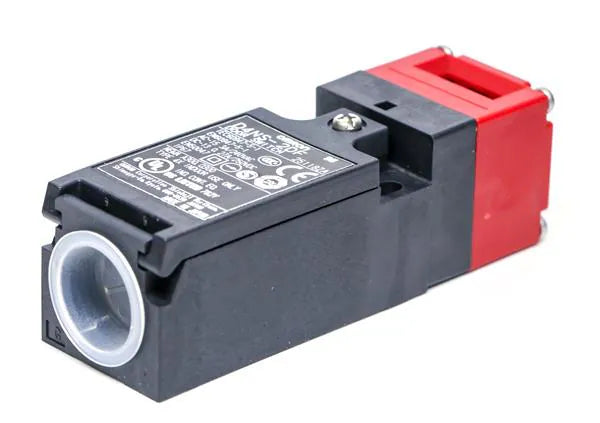

DELIVERY PERIOD : 1-2 WEEKS • Lineup includes three contact models with 2NC/1NO and 3NC contact forms and MBB models in addition to the previous contact forms 1NC/1NO, and 2NC. • M12-connector models are available, saving on labor and simplifying replacement. • Applicable to both standard loads and microloads. • Variety of metallic heads available.

Read more less

DELIVERY PERIOD : 1-2 WEEKS Easy design Equipped with exceptional sensing range*1 to enable collision-free sensor installation Enables designs with more distance between the sensor and the sensing object, thereby reducing unexpected facility stoppages due to collision and false detection, which occurred with previous proximity sensors.*1. Based on August 2022 OMRON investigation. Allows for more spacious design with less risk of contact With previous models, to avoid false detections, you were forced to adopt sensor installation designs that risked contact. The E2E NEXT PREMIUM Proximity Sensor can detect accurately from a greater distance, which means you can adopt designs with more space and less risk of contact. Less false detection even when a stationary gets away from the sensor due to equipment vibration PROX3 hybrid circuitry with Thermal Distance Control 2 eliminates ambient temperature influence to enable extended sensing ranges. Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance, and differences between individual sensors will be bigger. E2E NEXT Proximity Sensors (3-wire models) solve these issues by newly implementing Thermal Distance Control 2, a technology to enable extended sensing ranges. It enables in-line measurements of each sensor’s temperature characteristics, using multiple temperature points, in IoT-enabled production processes. The optimal correction values are then calculated based on our unique algorithm. The values are written into the analog digital hybrid IC (PROX3) for shipping to minimize differences between sensors and the influence of temperature changes that may occur in the customer’s environments.   *2. “Patent Pending” means that we applied for a patent in Japan, and “Patented” means that we obtained a patent in      Japan. (As of September 2022)   Standardized design [PREMIUM Model] Exceptional sensing range*1 allows you to standardize your design with a single one-size model Ensures equivalent sensing distance while being one size smaller than previous models. Equipment and facilities formerly designed to use sensors of multiple sizes can now be designed to use sensors that are all the same size, allowing you to standardize your designs. Easy to install, even where space is limited E2E NEXT PREMIUM Model Proximity Sensors ensure equivalent sensing distance while being one size smaller than previous models, allowing you to install them in spaces where conventional sensors were too big to fit. Note: When installing proximity sensors, make sure to factor the influence of surrounding metal into your designs.(Refer to Influence of Surrounding Metal upon Design on Catalog for details.) One size smaller than previous models Size comparisons between models with equivalent sensing distance (“E2E NEXT” refers to quadruple distance models) Unifying the model types to reduce the number of parts kept in inventory. New standards for usability Early error detection [PREMIUM Model] [BASIC Model] Enables facility designs that allow for early discovery of the site and substance of failure Less time required from failure to recovery (MTTR: Mean Time To Recovery). Enables real-time identification of the site and substance of sensor failure from a single location By using the IO-Link Master to connect proximity sensors to your controller, you can use your monitor (HMI) for early discovery of the site and substance of proximity sensor failures. Enables predictive maintenance through condition monitoring Connecting sensors with controllers using IO-Link Master enables to send information necessary for stable operation to host devices. This enables condition monitoring and failure detection of sensors, which in turn contribute to predictive maintenance of equipment and facilities. You can also increase the productivity of your facility by accumulating information in databases and feeding analysis results back to equipment on the site. New standards for usability Quick recovery [PREMIUM Model] [BASIC Model] * Applies only to the description of the high-brightness LED indicator. Enables facility designs that allow for quick recovery in case of failure Less time required from failure to recovery (MTTR: Mean Time To Recovery). All around visible high-brightness LED indicator Adopts high-brightness LED that is more luminous and visible than those in previous models. The indicator is visible from all angles, reducing the time required for operation checks after sensor replacement. Replacements in as little as 10 seconds*1 using e-jig Using e-jig eliminates the need for adjustment so that anyone can install in the same position. Easily upgrade existing facilities to enable “10-second* proximity sensor replacements” The HIGH SPEC Model’s sensing distance is approximately twice that of previous models. For example, the sensing distance of the quadruple distance model of M12 sized is 9 mm, which is about the same as conventional M18 models. Using these sensors together with the e-jig allows you to easily upgrade your existing facilities so that you can replace their sensors in just 10 seconds.*1 New standards for usability Less unexpected facility stoppages [PREMIUM Model] [BASIC Model] Excellent environmental resistance enables robust facility design Reduces sudden facility stoppages by reducing the number of failures, even in severe environments. Cables with enhanced oil resistance shut out cutting oil for 2 years*1 Our new PVC compound protects against damage caused by swelling, deterioration or cracking, preventing oil from seeping into and destroying internal circuits. Designed to resist oil ingress for up to two years. Two years*1 of stable operation verified by OMRON’s unique evaluation technology Please click image to enlarge (open in a new window). Two years*1 of stable operation verified for pre-wired connector models as well, using similar oil resistance tests • Delivers 2-year oil resistance*1 by adopting technologies unique to OMRON and PVC cables with enhanced oil resistance. [PATENTED]*2• Smartclick connector cables block the ingress of cutting oil, and with the same torque, no matter who connects them. For machining processes where the amount of splashing cutting oil is large, oil-resistant Proximity Sensors E2ER/E2ERZ   *1. • Applicable oil types: specified in JIS K 2241:2000        “2-year oil resistance” refers to median values (=Typical values) of the product designs and the oil-resistance        performance evaluation results.        Products to be shipped will have around 2 years of oil resistance; actual oil resistance will vary depending on the        product.      • The pre-wired connector model has a verified oil resistance of 2 years when mated with XS5 NEXT series round oil-         resistant connectors.         This value has not been verified for connector models(M1/M3/M5).*2. “Patent Pending” means that we applied for a patent in Japan, and “Patented” means that we obtained a patent in      Japan. (As of September 2022)   IP69K compliant for water resistance and wash resistance IEC 60529 compliant. Ensures water resistance during hot pressure washing, where equipment is washed intensively with high-pressure water or steam. (8,000 to 10,000 kPa pressure, 80°C hot water, 30 seconds for each angle)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Sensor Fixings & Accessories Brand: Omron Automation and Safety Product Type: Sensor Hardware Factory Pack Quantity: 1 Subcategory: Sensors Part # Aliases: EE1017R1M

Read more less

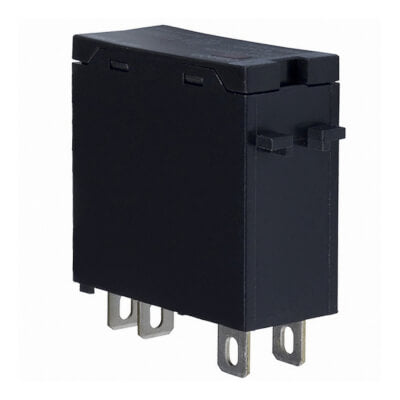

Solid State Relays - PCB Mount PHOTOTRIAC W/IND ZERO CRS FTN 5-24VDC

Read more less

Manufacturer: Omron Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Bi-Power Relay Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 650 Ohms Coil Current: 36.9 mA Contact Material: Silver Alloy (Ag) Series: LY Length: 28 mm Width: 21.5 mm Height: 53 mm Brand: Omron Automation and Safety Contact Form: DPDT (2 Form C) Power Consumption: 900 mW Product Type: General Purpose Relays 1 Subcategory: Relays Part # Aliases: 1133065 LY2NDC24NC LY2NDC24 Unit Weight: 40 g General Purpose Relays PLUG-IN DPDT 24VDC

Read more less

Type [Photoelectric Sensor] Photoelectric sensor Detected Objects Opaque Objects Light Axis Arrangement Type Use of Emitting and Receiving Integrated Reflection Plate Beam Shape Standard Light Source [Red] Red light emitting diode Head Shape [Square] Square shape Case Material [Plastic] Polybutylene Terephthalate Amplifier Installation Type Amplifier Built-in Type Detection Distance [Classification] ~4000 Reflection Type Detection Method [Retroreflective] Retro-Reflective Shape (With MSR Function) Operating Environment Standard / Cold Resistance Ambient Operating Temperature -25～55 Ambient Operating Temperature 35～85 Protection Structure IP67 Head Maximum Size Width 20 Head Maximum Size Height 10.8 Head Maximum Size, Depth 33.1 Power Supply Voltage 12-24 V DC Output Mode PNP open-collector Operation Mode Light ON/Dark-ON (selectable) Cable Length 2 Spot Dia. - Response Time (Standard Mode) 1 Accessories (Dedicated Reflective Plate, Etc.) - Overview - Strength (Tightening) 0.5 or less (M3 screws) Connection Method - - - Product Description The standard for photoelectric sensors. Produced in volumes of 1 million units per year.[Features]· Long-distances: Thru-beam type / 30 m; Retroreflective type / 4 m; Diffuse reflection type / 1 m.· Easy to adjust the optical axis: Deviation between the optical axis and machine axis is within ±2.5°.· High stability: Proprietary algorithm that prevents ambient light from affecting performance.

Read more less

[Features]· Magnetic proximity sensor that is easy to handle.· Proximity sensor to operate reed switch with permanent magnet.· Ideal for detection of opening and closing of door.

Read more less

Description Product Attribute Manufacturer Omron Product Category Relay Sockets & Hardware Product Relay Sockets Packaging Each Product Type Relay Sockets & Hardware Subcategory Relays

Read more less

Application Interface Number of phases 1 Mounting method With plug-in socket Terminal type Plug-in Complete with socket LED indicator Rated operational voltage, AC 100-240 V Operating voltage range, AC 75-264 V Rated operational voltage, DC 75-264 V Operating voltage range, DC 75-264 V Rated operation current Ie at AC-1 2 A Product Height (unpacked) 29 mm Product Width (unpacked) 13 mm Product Depth (unpacked) 28 mm Supply voltage DC 5-24 V Control current max. 15 mA Must operate voltage max. 4 V Must release voltage min. 1 V Maximum operating temperature 80 °C Minimum operating temperature -30 °C Isolation Phototriac Switching at zero-crossing

Read more less

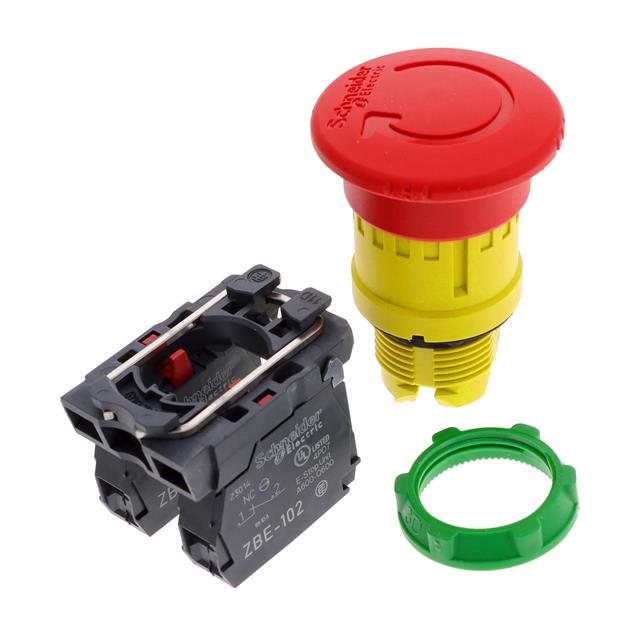

DELIVERY PERIOD : 1-2 WEEKS This Harmony XB5N/XB7N, emergency shutdown 30mm mushroom modular red push button operates with a turn-to-release mechanism. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Range of product Harmony XB5N/XB7N Product or component type Emergency switching off push-button Device short name XB5N Bezel material Dark grey plastic Fixing collar material Plastic Head type Mushroom Mounting diameter 22.5 mm Sale per indivisible quantity 20 Shape of signaling unit head Round Type of operator Turn to release mechanical latching Reset Turn to release Operator profile Red mushroom Ø 30 mm, unmarked Contact operation Slow-break Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 Device presentation Complete product Contacts type and composition 1 NC Complementary Height 41.5 mm Width 30 mm Depth 78.5 mm Terminals description ISO n°1 (11-12)NC Net weight 0.072 kg Fixing mode Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) Contacts usage Standard contacts Positive opening With conforming to IEC 60947-5-1 appendix K Operating travel 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) Operating force NC changing electrical stateNO changing electrical state Mechanical durability 300000 cycles Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1 Shape of screw head Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver Contacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1 [Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1 [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 [Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C Electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 Compatibility code XB5 Product compatibility ZB5...N Environment Protective treatment TH Ambient air temperature for storage -40…70 °C Ambient air temperature for operation -25…70 °C Overvoltage category Class II conforming to IEC 60536 Standards IEC 60947-5-4IEC 60947-1IEC 60947-5-1IS 13947-5-1 Product certifications CE Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 IP degree of protection IP65 IK degree of protection IK03 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.3 cm Package 1 Width 4.4 cm Package 1 Length 8.8 cm Package 1 Weight 57 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 11 cm Package 2 Width 16 cm Package 2 Length 28 cm Package 2 Weight 1256 g Unit Type of Package 3 S03 Number of Units in Package 3 100 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 6975 g
