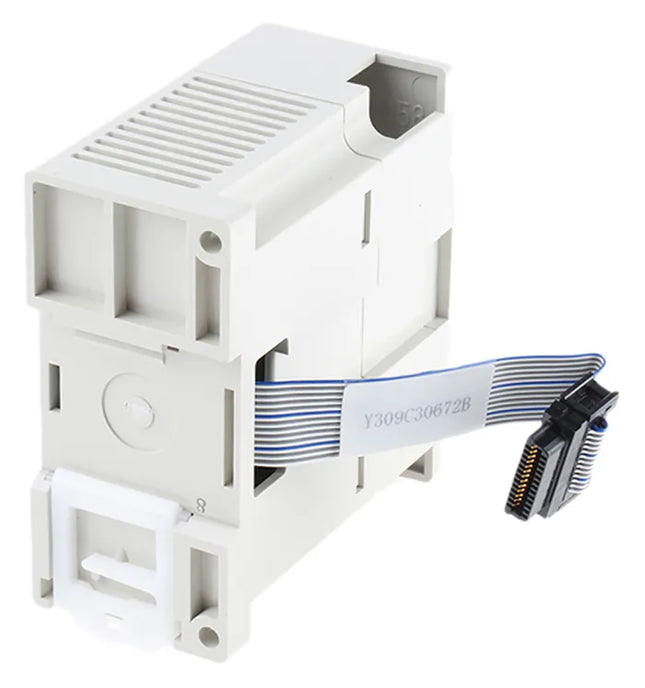

FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 8 Integrated Digital Inputs 8 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,18 Width (mm) 43 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals DNV GL EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

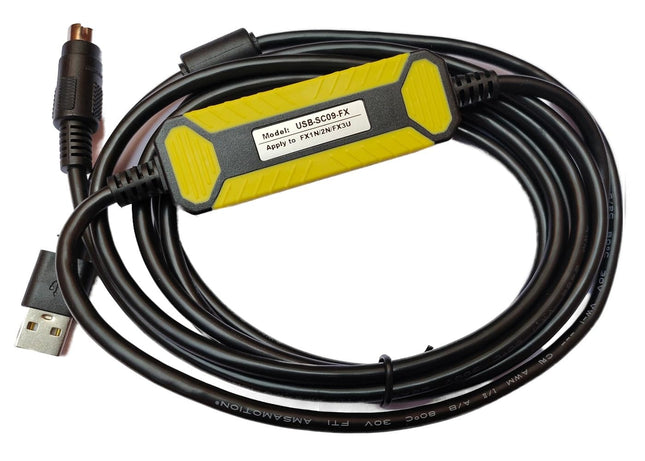

DELIVERY PERIOD : 1-2 WEEKS  Cable Type USB Model Number SC09_Mitsubishi Condition New Mitsubishi PLC Programming CableMelsec PLC programming CablePLC cablePLC programming Cable Mitsubishi PLC for:FX1S SeriesFX1N SeriesFX2N SeriesFX3U SeriesA SeriesQ Series (Big size Module)Remark: USB version of SC09 cable also available OR separate USB converter Also AvailableWe Keep all types of PLC programing Cables and HMI Communication cables in StockUSB-SC09 Programming CablePLC basics, PLC Training, prorammable controller, PLC Software, PLC cable, SCADA,Training PLC, micrologix, mitsubishi PLC programming Cable, Siemens PLC cable, Omron PLC Cable, Schneider PLC cable, telemecanique PLC cable, Modicon PLC Cable, HMI Cable, Delta PLC Cable, PPI cable, MPI Cable, SC09 cable, TSX Cable.

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 8 Integrated Digital Inputs 4 Integrated Digital Outputs 4 Output Type RELAY Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,2 Width (mm) 43 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals DNV GL EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS The Mitsubishi FX2N-8EYT is a digital I/O module in the MELSEC-F series, specifically designed as an 8-point output extension block for Mitsubishi's FX2N series of programmable logic controllers (PLCs). It expands the number of available outputs on a PLC by 8 points. The outputs are transistor-type and can be connected directly to the main unit or an expansion unit.  Here's a more detailed breakdown: Function: The FX2N-8EYT expands the output capabilities of a Mitsubishi FX2N PLC by providing 8 additional transistor-type outputs.  Part of MELSEC-F Series: This module is part of Mitsubishi's MELSEC-F series of PLCs, known for their compact size and versatility.  Output Type: The outputs are transistor-based, which are suitable for switching DC loads.  Connection: The module can be directly connected to the main FX2N PLC or to an expansion unit, and it receives its power from the connected unit.  Compatibility: This module is specifically designed for use with the FX2N series of PLCs.

Read more less

Primary brand Mitsubishi Electric Main function Cable Functions Electromagnetic brake cable / cordset for servo mtr. Design opposite to load-side lead; lead-out Connection type servo mtr. connectorbare end flying leads Length 30cm Degree of protection IP55 Technical compatibility with HF-SPHC-LPHC-RPHC-UPHA-LPHF-KPHG-KRHG-KNHF-MPHG-MR series Order code / Manufacturer SKU MR-BKS2CBL03M-A2-L Manufacturer product status Commercialized Equivalent to MRBKS2CBL03MA2L

Read more less

Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Sensor Fixings & Accessories Brand: Omron Automation and Safety Product Type: Sensor Hardware Factory Pack Quantity: 1 Subcategory: Sensors Part # Aliases: EE1017R1M

Read more less

Solid State Relays - PCB Mount PHOTOTRIAC W/IND ZERO CRS FTN 5-24VDC

Read more less

Manufacturer: Omron Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Bi-Power Relay Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 650 Ohms Coil Current: 36.9 mA Contact Material: Silver Alloy (Ag) Series: LY Length: 28 mm Width: 21.5 mm Height: 53 mm Brand: Omron Automation and Safety Contact Form: DPDT (2 Form C) Power Consumption: 900 mW Product Type: General Purpose Relays 1 Subcategory: Relays Part # Aliases: 1133065 LY2NDC24NC LY2NDC24 Unit Weight: 40 g General Purpose Relays PLUG-IN DPDT 24VDC

Read more less

Type [Photoelectric Sensor] Photoelectric sensor Detected Objects Opaque Objects Light Axis Arrangement Type Use of Emitting and Receiving Integrated Reflection Plate Beam Shape Standard Light Source [Red] Red light emitting diode Head Shape [Square] Square shape Case Material [Plastic] Polybutylene Terephthalate Amplifier Installation Type Amplifier Built-in Type Detection Distance [Classification] ~4000 Reflection Type Detection Method [Retroreflective] Retro-Reflective Shape (With MSR Function) Operating Environment Standard / Cold Resistance Ambient Operating Temperature -25～55 Ambient Operating Temperature 35～85 Protection Structure IP67 Head Maximum Size Width 20 Head Maximum Size Height 10.8 Head Maximum Size, Depth 33.1 Power Supply Voltage 12-24 V DC Output Mode PNP open-collector Operation Mode Light ON/Dark-ON (selectable) Cable Length 2 Spot Dia. - Response Time (Standard Mode) 1 Accessories (Dedicated Reflective Plate, Etc.) - Overview - Strength (Tightening) 0.5 or less (M3 screws) Connection Method - - - Product Description The standard for photoelectric sensors. Produced in volumes of 1 million units per year.[Features]· Long-distances: Thru-beam type / 30 m; Retroreflective type / 4 m; Diffuse reflection type / 1 m.· Easy to adjust the optical axis: Deviation between the optical axis and machine axis is within ±2.5°.· High stability: Proprietary algorithm that prevents ambient light from affecting performance.

Read more less

[Features]· Magnetic proximity sensor that is easy to handle.· Proximity sensor to operate reed switch with permanent magnet.· Ideal for detection of opening and closing of door.

Read more less

Description Product Attribute Manufacturer Omron Product Category Relay Sockets & Hardware Product Relay Sockets Packaging Each Product Type Relay Sockets & Hardware Subcategory Relays

Read more less
