This Harmony XB5N/XB7N, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.   Main Range of product Harmony XB5N/XB7N Product or component type Push-button Device short name XB5N Product compatibility ZB5...N Bezel material Dark grey plastic Head type Standard Fixing collar material Plastic Mounting diameter 22.5 mm Sale per indivisible quantity 20 Shape of signaling unit head Round Type of operator spring return Operator profile Red flush, unmarked Contacts type and composition 1 NO Contact operation Slow-break Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 [Us] rated supply voltage 24 V AC/DC at 50/60 Hz Complementary Height 42 mm Width 30 mm Depth 52 mm Terminals description ISO n°1 (13-14)NO Net weight 0.037 kg Device mounting Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60957-5-1 Fixing mode Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) Contacts usage Standard contacts Positive opening Without Operating travel 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) Operating force 3.5 N NC changing electrical state3.8 N NO changing electrical state Mechanical durability 5000000 cycles Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1 Shape of screw head Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver Contacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1 [Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1 [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 [Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 Electrical durability 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C1000000 cycles AC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C Electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 Device presentation Complete product Customizable No Customizable 0 Compatibility code XB5 Environment Protective treatment TH Ambient air temperature for storage -40…70 °C Ambient air temperature for operation -25…70 °C Overvoltage category Class II conforming to IEC 60536 Standards IEC 60947-5-4IEC 60947-1IEC 60947-5-1IS 13947-5-1 Product certifications CE Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 Electromagnetic emission Class B conforming to IEC 55011 IP degree of protection IP65 IK degree of protection IK03 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.5 cm Package 1 Width 5.5 cm Package 1 Length 8.5 cm Package 1 Weight 28 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 9 cm Package 2 Width 14 cm Package 2 Length 19 cm Package 2 Weight 644 g Unit Type of Package 3 S03 Number of Units in Package 3 240 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 8423 g

Read more less

Color Red Elements 1NC Illumination Non-Illuminated Lockable No Mounting Mushroom Head Size 30mm Sub Type - Type XB5

Read more less

Type: Contactor Poles: 3P (3 Normally Open Contacts) Rated Operational Voltage (Ue): ≤ 440 V AC Rated Operational Current (Ie): 9 A (AC-3) Coil Voltage: 220 V AC Utilization Category: AC-3 (Squirrel cage motors: starting, switching off) Mechanical Durability: Up to 10 million operations Electrical Durability: Up to 1 million operations Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail Terminal Type: Screw terminals Dimensions: Compact design for space-saving installation Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14 Environmental Protection: IP20 (finger-safe protection) Ambient Temperature: -25°C to +60°C Storage Temperature: -55°C to +85°C

Read more less

Type: Contactor Poles: 3P (3 Normally Open Contacts) Rated Operational Voltage (Ue): ≤ 440 V AC Rated Operational Current (Ie): 9 A (AC-3) Coil Voltage: 220 V AC Utilization Category: AC-3 (Squirrel cage motors: starting, switching off) Mechanical Durability: Up to 10 million operations Electrical Durability: Up to 1 million operations Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail Terminal Type: Screw terminals Dimensions: Compact design for space-saving installation Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14 Environmental Protection: IP20 (finger-safe protection) Ambient Temperature: -25°C to +60°C Storage Temperature: -55°C to +85°C Applications The LC1D09M7 contactor is ideal for controlling three-phase motors, heating systems, and other electrical loads in various industries, including manufacturing, HVAC, and automation. Benefits High reliability and long service life Compact and modular design for easy installation Compatible with a wide range of accessories (e.g., auxiliary contacts, timers) Energy-efficient coil design Global certifications for use in multiple regions Additional Information

Read more less

AC Adapter Current 400 Amps Brand Bussmann Voltage 500 Volts Item dimensions L x W x H 33 x 33 x 109 Millimeters Specification Met UL, iso About this item Bussman FWH-400A Buss High Speed Fuse Bussmann series solutions comply with major industrial standards and agency requirements such as: BS, IEC, DIN, UL, NEMA, SAE, CSA, CE, C-UL, etc. Manufactured at facilities that are ISO 9000 certified

Read more less

Model Name S8FS-C10024J Brand Omron Compatible Devices Personal Computer Connector Type ATX12V Output Wattage 100 Watts

Read more less

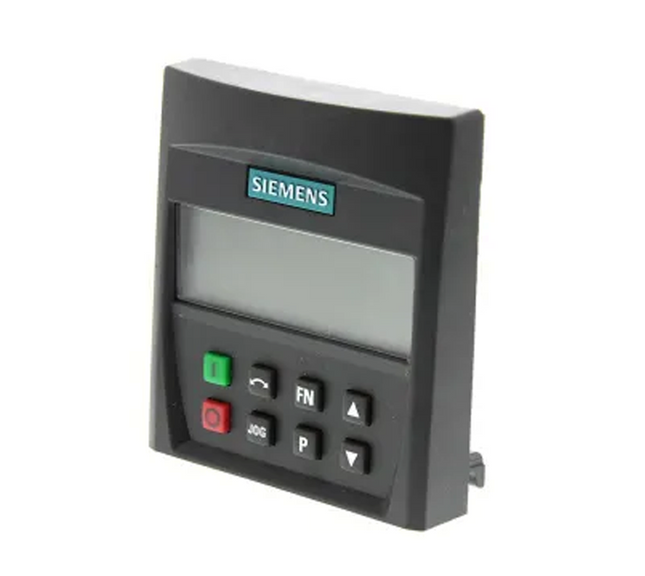

DELIVERY PERIOD : 1-2 WEEKS  Display Size 4 Inch Phase Single Phase Mounting Type Hand Held Resolution 1024 x 768 Pixels Model Number 6SE6400-0BP00-0AA0 SIEMENS  6SE6 400-0BP00-0AA0  MICRO-MASTER  4  BASIC  OPERATOR  PANEL  (BOP)

Read more less

Product Feature   ·         SIEMENS LOA24.171B2EM ·         Burner Controller ·         New In Box                                                                                                                               Product Specifications         Brand Name SIEMENS Model No. LOA24.171B2EM Type Burner Controller Condition New In Box

Read more less

DELIVERY PERIODS : 1-2 WEEKS  Sensor Type light sensors Brand Siemens Model Name/Number QRB1 A Black Size A 050 B 70 A Usage/Application Industrial Burners Operating Temperature Ambient Photoresistor Flame Sensor Make: Siemens Model: QRB1A TYPE: A 050 B 70 A

Read more less

Brand SIEMENS Current Rating 20 Amps Circuit Breaker Type Standard Mounting Type Panel Mount Manufacturer Siemens

Read more less

pecifications Mounting method With plug-in socket Usage General purpose, High power Poles 2 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description DPDT Features Diode, LED, Transparent case Terminal type Plug-in
