Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer Omron Automation and Safety Series E2E Packaging Bulk Part Status Active Sensor Type Inductive Sensing Distance 0.276" (7mm) Output Type NPN-NO, 2-Wire Response Frequency 500Hz Shielding Shielded Material - Body Nickel-Plated Brass Voltage - Supply 10V ~ 30V Termination Style Cable with Connector Operating Temperature -25°C ~ 70°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M18 Base Product Number E2E-X7

Read more less

Operating mechanism Snap action ctuator Plastic rodResin rod Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit G1/2Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 1.5 N max. Pre-Travel (PT) Standard value 15 ° max.

Read more less

ravel, aggregate of more or less rounded rock fragments coarser than sand (i.e., more than 2 mm [0.08 inch] in diameter). Gravel beds in some places contain accumulations of heavy metallic ore minerals, such as cassiterite (a major source of tin), or native metals, such as gold, in nuggets or flakes. Gravels are widely used building materials. Fragments in gravel range in size from pebbles (4–64 mm [0.16–2.52 inches] in diameter), through cobbles (64–256 mm [2.52–10.08 inches]), to boulders (larger than 256 mm). The rounding of gravel results from abrasion in the course of transport by streams or from milling by the sea. Gravel deposits accumulate in parts of stream channels or on beaches where the water moves too rapidly to permit sand to remain. Because of changing conditions, gravel formations generally are more limited and more variable in coarseness, thickness, and configuration than sand or clay deposits. Persistent accumulation of gravel or pebble beds may take place along an inner zone of breaking waves, on a beach that is otherwise sandy. Cobble and pebble beaches (shingle beaches) often originate from the points of rocky cliffs. In many regions marine gravels similar to those of the seashore exist tens or hundreds of metres above tide level; such gravel terraces (or raised beaches) may extend great distances and indicate that the sea at one time stood relatively higher. River gravels occur mostly in the middle and upper parts of streams where the currents are swiftest. Ancient gravel terraces found at levels much above those of the present rivers mark former streams or are evidence of uplift of the land or lowering of the sea.

Read more less

Usage/Application Softener Availability In Stock Indion 220Na Strong Acid Cation Exchange Resin is a high capacity strongly acidic cation exchanger in bead form. It is based on cross linked polystyrene and has a gel structure. The resin contains sulphonic acid functional groups. It is supplied moist in the sodium form. Indion 220 Na is used most widely in sodium form for water softening application.

Read more less

Our Activated carbon is used to an increasing extent in the treatment of water, including drinking water, ground-water, service water and waste water. Its primary role in this context is to adsorb dissolved organic impurities and to eliminate substances affecting odor, taste and color in halogenized hydrocarbons and other organic pollutants. Yet another broad field of application for activated carbon is the treatment, purification and decolourisation of liquids, which is of particular importance in the pharmaceuticals, food, beverage and other allied industries.

Read more less

The MIDAS Multiport Valve - 50NB, offered by us, is manufactured from quality raw material that ensures longer service life. We present you an extensive programme of filters manufactured with polyester and glassfiber winding for high resistance and high quality of water filtration. Further, these multiport valves are extensively used as filters, softeners and also as for water distribution. Features: Inlet, outlet, drain in one line Glass filled polyamide construction Union male end connections Top Mount Front Face Side Mount

Read more less

Technical Details Brand ‎Balluff Manufacturer ‎Balluff Country of Origin ‎China Item Weight ‎803 g Item part number ‎BCCM415-0000-1A-008-PX0434-050

Read more less

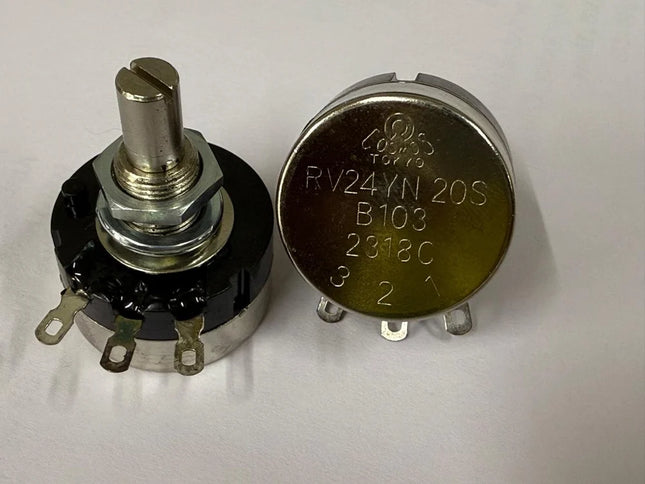

Resistance Value 10k Ohm Usage/Application Electronic Appliances I am interested in Linear Potentiometer Resistance Range 500E TO 1M ALL VALUE Resistance Values 10 K Travel Length 50 mm Brand COSMOS Part Number POTENTIOMETER, RV24YN-20S B103,COSMOS Country of Origin Made in India Availability In Stock

Read more less

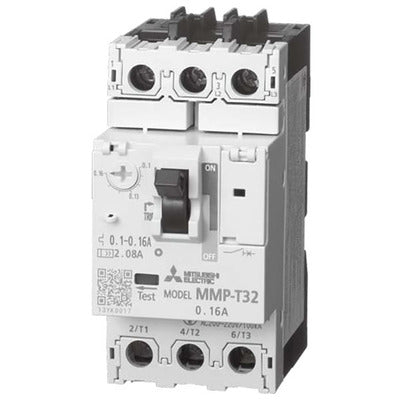

pecifications Primary brand Mitsubishi Main function Motor Protection Circuit Breaker (MPCB) Product series / family name WS-V series Sub-range name MMP-T Motor Circuit Breakers Functions Thermal-Magnetic Motor Protection Circuit Breaker (MPCB) / Manual Mot. Protector Starter Poles 3-poles (3P) Rated current 0.63A Trip current rating 0.63 AT Frame current rating 32 AF Rated operating voltage (Ue) 200-690 V Rated impulse voltage (Uimp) 6 kV Rated insulation voltage (Ui) 690 V Connection type Screw-clamp Ultimate short circuit current breaking capacity (Icu) 100kA (200Vac; IEC60947)100kA (240Vac; IEC60947)100kA (400Vac; IEC60947)100kA (415Vac; IEC60947)100kA (440Vac; IEC60947)100kA (460Vac; IEC60947)100kA (500Vac; IEC60947)100kA (600Vac; IEC60947)100kA (690Vac; IEC60947) Service short circuit current breaking capacity (Ics) 100kA (200Vac)100kA (240Vac)100kA (400Vac)100kA (415Vac)100kA (440Vac)100kA (460Vac)100kA (500Vac)100kA (600Vac)100kA (690Vac) Service short circuit current breaking capacity as a percentage of Icu (Ics%) (400Vac) 100 % Trip unit type Thermal-Magnetic (adjustable) Protection functions Thermal protection (Overload)Magnetic protection (Short-circuit) Protection settings Thermal protection (Overload) -- adjustable tripping threshold 0.4A...0.63A Mounting mode Surface mounting (or DIN rail with optional adapter) Electrical durability (with load) 100000 operations Mechanical durability (at no load) 100000 operations Utilisation category AC-3 Manufacturer product status Commercialized Equivalent to MMPT32LF063A Compliant with standard(s) IEC 60947-2IEC 60947-4-1EN 60947-2EN 60947-4-1GB14048.2JIS C8201-2-1 Ann.1JIS 8201-4-1

Read more less

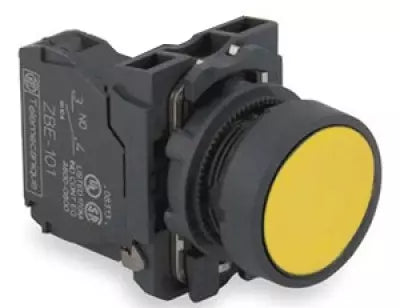

Model No XB5AA51N Type of Product Push Button Features Resistant to mechanical shock & vibration , EMC protection , robust and reliable , No. of Contacts NO
