UCF 206Square flanged ball bearing unit with set screw locking, cast iron housing, JIS These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement. Resist high levels of contamination Designed for high temperatures and speeds Accommodate relatively heavy loads Cost-effective

Read more less

Brand Generic Material Stainless Steel Item dimensions L x W x H 9 x 9 x 9 Centimeters Item Weight 100 Grams Bearing Number 6003ZZ About this item 6003ZZ- Ball bearing Type of Product : Deep Groove Ball Bearing Stainless steel for durability and resistance to deformity under heavy loads Single-row deep groove geometry for high speeds and supporting both radial and axial loads Normal radial internal clearance for applications that do not involve thermal expansion or atypical precision

Read more less

Brand DbuyChX Material Metal Item Weight 98 Grams Bearing Number 6204ZZ Bearing Type Ball Bearing About this item Product Name : Deep Groove Ball Bearing;Bearing Model : 6204ZZ Bearing Standard(mm) : 20 x 47 x 14;Inner Diameter : 20mm/ 0.78' Outer Diameter : 47mm/ 1.85';Width : 14mm/ 0.55' Material : Metal;Main Color : Silver Tone Weight : 98g;Package Content : 1 x Deep Groove Ball Bearing

Read more less

specifications description Type of Product Single Row Deep Groove Ball Bearing Material Steel Model No 6306ZZ/2AS Width 19 mm Bore Type Cylindrical Bore Inner Diameter 30 mm Outer Diameter 72 mm Country of Origin India Shape Round Name of Manufacturer/Packer/Importer Indo Mineral Industries Private Limited

Read more less

The Deep Groove Ball Bearing, known as 6304-ZZ-SKF SKF, has an inner diameter of 20 mm, an outer diameter of 52 mm and a thickness of 15 mm.

Read more less

COMPATIBILITY: Spider coupling designed for connecting shaft pipes, gearboxes, pumps, motors, and sweeping machines with precise alignment requirements MATERIAL: Constructed from durable polyurethane rubber in maroon colour, offering excellent shock absorption and vibration dampening DESIGN: Star-shaped coupling element ensures efficient power transmission while compensating for minor shaft misalignments PERFORMANCE: Helps reduce mechanical shock loads and torsional vibrations in rotating machinery applications INSTALLATION: Single unit package includes one coupling element for quick replacement and maintenance needs

Read more less

Shape Square type Sensing method Through-beam type Sensing distance 10 m Standard sensing object Opaque: 14.8 mm dia. min. Directional angle Emitter: 3 to 20 °Receiver: 3 to 20 ° Light source Infrared LED (950 nm) Power supply voltage 100 to 240 VAC±10% 50/60 Hz24 to 240 VDC±10% ripple (p-p) 10% max. Power consumption Emitter and Receiver: 3 W max. Control output Relay output (SPDT)250 VAC 3 A (cosφ= 1) max.5 VDC 10 mA min. Life expectancy (relay output) Electrical: 100 thousand times or more (switching frequency 1800 times/hour)Mechanical: 50 million times or more (switching frequency 18000 times/hour) Operation mode Light-ON/Dark-ON selectable Response time Operate or reset: 30 ms max. Timer function Select from ON-delay, OFF-delay, or One-shot delay0.1 to 5 s Ambient illuminance Incandescent lamp: 3,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -30 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 45 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 2000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hMalfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directionsMalfunction: 100 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP66 Connection method Terminal block models Indicator Operation indicator (red), Power indicator (red) Weight Package: Approx. 270 g Accessories Instruction manual, Mounting bracket, Nut, Terminal protection cover, One set of cable connection nuts Material Case: ABSLens: Methacrylate resinCover: PolycarbonateMounting Bracket: Iron

Read more less

Brand IDEC Lighting Color Green Body Material Plastic Power 230V 24V 110V Packaging Type Box Model Name/Number LB2P-1T03VWR Warranty 1 year Availability In Stock

Read more less

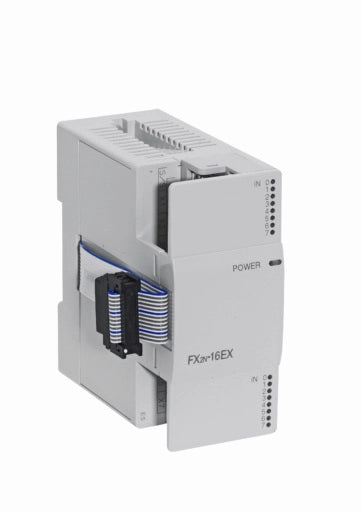

FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 16 Integrated Digital Inputs 16 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 40 Height (mm) 90 Depth (mm) 87 Weight (kg) 0,179

Read more less

Data sheet Print Display method 4-digit 7-segment LED Character height 14.2mm Max. display Range -1999 to 9999 Measurement AC current, Frequency Input specification 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA AC Measurement Average value (AVG), Root mean square value (RMS) Power voltage 100-240VAC~ 50/60Hz Output_Main Output(Comparative Value) Relay (HI, GO, LO) Display accuracy • 23℃±5℃ - ± 0.3 % F.S. rdg ± 3 digit (frequency: ± 0.1 % F.S. rdg ± 2-digit)• -10℃ to 50℃ - ± 0.5 % F.S. rdg ± 3-digit A/D conversion method ΣΔ (Sigma Delta) ADC Sampling cycle 16.6ms Hold function Includes (external hold function) Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation type Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) Protection structure IP56 (front part, IEC standard) Unit weight (packaged weight) ≈ 211 g (≈ 326 g)

Read more less

eatures More Details Type of Product Glass Tube Rotameter Model No JIPL-GTR-AIR-1 Connection Size 9.52 mm BSP (M) Application Home, Office, Industrial
