Product Attribute Attribute Value Select Attribute Manufacturer: MEAN WELL Product Category: Redundancy Modules Delivery Restrictions:  This item may require additional fees and documentation. Customs delays may also occur. RoHS:   Output Voltage: 24 VDC Output Current: 20 A Mounting Style: Chassis Mount Number of Outputs: 1 Output Input Voltage: 24 VDC Output Power: 1.5 W Length: 99 mm Width: 82 mm Height: 36 mm Series: ERDN20 Brand: MEAN WELL Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: CN Industry: Industrial Isolation Voltage: 500 VDC Maximum Operating Temperature: + 80 C Minimum Operating Temperature: - 40 C Output Current-Channel 1: 20 A Output Voltage-Channel 1: 24 VDC Product Type: Redundancy Modules 45 Subcategory: Redundancy Modules Unit Weight: 206 g

Read more less

Type Description Select All Category Power Supplies - External/Internal (Off-Board) External/Internal Power Supply Accessories Manufacturer MEAN WELL USA Inc. Series ERDN20 Packaging Bulk Part Status Active Accessory Type Redundancy Module For Use With/Related Products Power Supplies

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Brand LS Electric MPN XP10BKB/DC(EXP), XP10BKB/DC, LSS-XP10-BKA-DC(A), PLC, Programmabl Model XP10BKB/DC(EXP) Country of Origin South Korea

Read more less

Product Attribute Table Technical Attributes Brand LS Electric XGB Item Output module I/O Module Type Discrete Number of Output Points 32 Nominal Output Voltage 12-24 VDC Discrete Output Type Sinking Number of Non-Isolated Output Commons 1 Number of Points per Common 32 Load Current 0.2A/point, 2A/common External Power Requirement 24 VDC Requires XTB-40H terminal block and C40HH-xxSB-XBI cable Programming Software XG5000 programming software v4.7 or later

Read more less

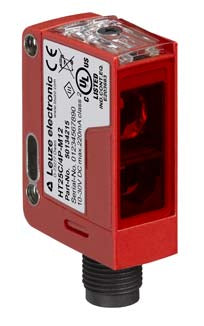

Series 25C Operating principle Diffuse reflection principle with background suppression Black-white error < 10% up to 400 mm Operating range Guaranteed operating range Operating range, white 90% 0 ... 1.2 m Operating range, gray 18% 0.005 ... 0.75 m Operating range, black 6% 0.005 ... 0.65 m Operating range limit 0 ... 1.2 m (typical operating range) Adjustment range 50 ... 1,200 mm Light source LED, Red Wavelength 640 nm Transmitted-signal shape Pulsed LED group Exempt group (in acc. with EN 62471) Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, PNP Switching principle Light switching Switching element Transistor, PNP Switching principle Dark switching Switching frequency 1,000 Hz Response time 0.5 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Connector Thread size M12 Type Male Material PUR No. of pins 4 -pin Encoding A-coded Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm Housing material Plastic Plastic housing ABS Lens cover material Plastic Net weight 22 g Housing color Red Type of fastening Through-hole mounting with M4 threadVia optional mounting device Recommended tightening torque for M3 fastening 0.9 N·m Recommended tightening torque for M4 fastening 1.4 N·m Compatibility of materials ECOLAB Type of display LED Number of LEDs 2 Piece(s) Operational controls Multiturn potentiometer Function of the operational control Range adjustment Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 69K Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270904 ECLASS 8.0 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ECLASS 13.0 27270903 ECLASS 14.0 27270903 ECLASS 15.0 27270903 ECLASS 16.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 ETIM 9.0 EC002719 ETIM 10.0 EC002719

Read more less

Series 5B Operating principle Throughbeam principle Device type Transmitter Operating range 0 ... 10 m (guaranteed operating range) Operating range limit 0 ... 15 m (typical operating range) Light source LED, Red Wavelength 645 nm Transmitted-signal shape Pulsed LED group Exempt group (in acc. with EN 62471) Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Readiness delay 300 ms Number of connections 1 Piece(s) Function Voltage supply Type of connection Cable Cable length 2,000 mm Sheathing material PVC Cable color Black Number of conductors 3 -wire Wire cross section 0.14 mm² Dimension (W x H x L) 11 mm x 32.4 mm x 20 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic Net weight 44 g Housing color BlackRed Type of fastening Two M3 threaded sleevesVia optional mounting device Recommended tightening torque for M3 fastening 0.9 N·m Compatibility of materials ECOLAB Type of display LED Number of LEDs 2 Piece(s) Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270901 ECLASS 8.0 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ECLASS 13.0 27270901 ECLASS 14.0 27270901 ECLASS 15.0 27270901 ECLASS 16.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 ETIM 9.0 EC002716 ETIM 10.0 EC002716

Read more less

Series 5 Operating principle Reflection principle Contains Reflector DTKS 30x50 (50136770) Application Detection of empty bottles Special version Article set Operating range 0.1 ... 0.3 m (guaranteed operating range), With reflector DTKS 30x50 Operating range limit 0.1 ... 0.3 m (typical operating range), With reflector DTKS 30x50 Light source LED, Red Wavelength 620 nm Transmitted-signal shape Pulsed LED group Exempt group (in acc. with EN 62471) Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, NPN Switching principle Light switching Switching element Transistor, NPN Switching principle Dark switching Switching frequency 500 Hz Response time 1 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Cable Cable length 2,000 mm Sheathing material PUR Cable color Black Number of conductors 4 -wire Wire cross section 0.2 mm² Dimension (W x H x L) 14 mm x 32.5 mm x 20.2 mm Housing material Plastic Plastic housing ABS Lens cover material Plastic Net weight 70 g Housing color BlackRed Recommended tightening torque for M3 fastening 0.9 N·m Type of display LED Number of LEDs 2 Piece(s) Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270902 ECLASS 8.0 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ECLASS 13.0 27270902 ECLASS 14.0 27270902 ECLASS 15.0 27270902 ECLASS 16.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 ETIM 9.0 EC002717 ETIM 10.0 EC002717

Read more less

50104572 - K-D M12A-4P-5m-FAB - Connecting cable Brand: Leuze Code: 50104572 LEUZE 50104572 - K-D M12A-4P-5m-FAB - Connecting cable, manufacturer code: 50104572 Get information

Read more less

Series C12 type. operating range limit Sn 8 mm Operating range Sa 0 ... 6.4 mm MTTF 326 years Protective circuit Inductive protectionPolarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC Residual ripple 0 ... 10 %, From UB Open-circuit current 0 ... 15 mA Temperature drift, max. (in % of Sr) 15 %, Over the entire operating temperature range Repeatability, max. (in % of Sr) 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C Switching hysteresis 15 % Number of digital switching outputs 1 Piece(s) Voltage type DC Switching current, max. 200 mA Residual current, max. 0.1 mA Voltage drop ≤ 2 V Switching element Transistor, NPN Switching principle NO (normally open) Switching frequency 800 Hz Readiness delay 100 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Connector Thread size M12 Type Male Material Metal No. of pins 4 -pin Encoding A-coded Design Cylindrical Dimension (Ø x L) 12 mm x 50 mm Thread size M12 x 1 mm Type of installation Non-embedded/non-flush Housing material Metal Metal housing Copper-nickel alloy Sensing face material Plastic, Polybutylene (PBT) Net weight 0.024 g Housing color Red, RAL 3000Silver Type of fastening Mounting threadVia optional mounting device Standard measuring plate 24 x 24 mm², Fe360 Type of display LED Number of LEDs 1 Piece(s) Ambient temperature, operation -25 ... 70 °C Ambient temperature, storage -25 ... 70 °C Degree of protection IP 67 Protection class II Test procedure for EMC in accordance with standard IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4 Standards applied IEC 60947-5-2 Aluminum 0.4 Stainless steel 0.75 Copper 0.45 Brass 0.35 Fe360 steel 1 Customs tariff number 85365019 ECLASS 5.1.4 27270101 ECLASS 8.0 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ECLASS 13.0 27274001 ECLASS 14.0 27274001 ECLASS 15.0 27274001 ECLASS 16.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 ETIM 9.0 EC002714 ETIM 10.0 EC002714

Read more less

Series 5B Operating principle Throughbeam principle Device type Receiver Operating range see transmitter Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 1 Piece(s) Type Digital switching output Switching element Transistor, NPN Switching principle Light switching(dark switching by reversing polarity of UB) Switching frequency 900 Hz Response time 0.56 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Cable Cable length 2,000 mm Sheathing material PVC Cable color Black Number of conductors 3 -wire Wire cross section 0.14 mm² Dimension (W x H x L) 11 mm x 32.4 mm x 20 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic Net weight 44 g Housing color BlackRed Type of fastening Two M3 threaded sleevesVia optional mounting device Recommended tightening torque for M3 fastening 0.9 N·m Compatibility of materials ECOLAB Type of display LED Number of LEDs 2 Piece(s) Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270901 ECLASS 8.0 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ECLASS 13.0 27270901 ECLASS 14.0 27270901 ECLASS 15.0 27270901 ECLASS 16.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 ETIM 9.0 EC002716 ETIM 10.0 EC002716

Read more less

Series C12 type. operating range limit Sn 8 mm Operating range Sa 0 ... 6.4 mm MTTF 326 years Protective circuit Inductive protectionPolarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC Residual ripple 0 ... 10 %, From UB Open-circuit current 0 ... 15 mA Temperature drift, max. (in % of Sr) 15 %, Over the entire operating temperature range Repeatability, max. (in % of Sr) 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C Switching hysteresis 15 % Number of digital switching outputs 1 Piece(s) Voltage type DC Switching current, max. 200 mA Residual current, max. 0.1 mA Voltage drop ≤ 2 V Switching element Transistor, NPN Switching principle NO (normally open) Switching frequency 800 Hz Readiness delay 100 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Connector Thread size M12 Type Male Material Metal No. of pins 4 -pin Encoding A-coded Design Cylindrical Dimension (Ø x L) 12 mm x 50 mm Thread size M12 x 1 mm Type of installation Non-embedded/non-flush Housing material Metal Metal housing Copper-nickel alloy Sensing face material Plastic, Polybutylene (PBT) Net weight 0.024 g Housing color Red, RAL 3000Silver Type of fastening Mounting threadVia optional mounting device Standard measuring plate 24 x 24 mm², Fe360 Type of display LED Number of LEDs 1 Piece(s) Ambient temperature, operation -25 ... 70 °C Ambient temperature, storage -25 ... 70 °C Degree of protection IP 67 Protection class II Test procedure for EMC in accordance with standard IEC 61000-4-2IEC 61000-4-3IEC 61000-4-4 Standards applied IEC 60947-5-2 Aluminum 0.4 Stainless steel 0.75 Copper 0.45 Brass 0.35 Fe360 steel 1 Customs tariff number 85365019 ECLASS 5.1.4 27270101 ECLASS 8.0 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ECLASS 13.0 27274001 ECLASS 14.0 27274001 ECLASS 15.0 27274001 ECLASS 16.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 ETIM 9.0 EC002714 ETIM 10.0 EC002714
