Products Under 6999

MODEL-LIMIT SWITCH Z-15GW 2255-M19R 1M MAKE OMRON

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Basic / Snap Action Switches RoHS: REACH - SVHC: Series: Z Type: General Purpose Contact Form: SPDT Switch Function: ON - (OFF), OFF - (ON) Actuator: Roller Lever Current Rating: 15 A Voltage Rating AC: 250 VAC Voltage Rating DC: 14 VDC Operating Force: 1.96 N Termination Style: Screw Mounting Style: Chassis Mount IP Rating: IP62 Packaging: Bulk Actuator Style: Roller Lever Brand: Omron Automation and Safety Illuminated: Non-Illuminated Product Type: Snap Action Switches 1 Subcategory: Switches Part # Aliases: Z15GW2255BNC Z15GW2255B Unit Weight: 45 g

Read more less

Rs. 1,340.00

MODEL- RELAY 24VDC, 5PIN,MM:G2RL-1 OMRON

Manufacturer: Omron Product Category: General Purpose Relays RoHS: Product: Power Relays Type: Low Profile Coil Voltage: 24 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 12 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 440 VAC, 300 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.44 kOhms Coil Current: 16.7 mA Contact Material: Silver Alloy (Ag) Series: G2RL Length: 29 mm Width: 12.7 mm Height: 15.7 mm Brand: Omron Electronics Contact Form: SPDT (1 Form C) Power Consumption: 400 mW Product Type: General Purpose Relays 100 Subcategory: Relays Part # Aliases: G2RL1DC24NC G2RL-1-DC24-BY-OMB G2RL1DC24 G2RL-1DC24 G2RL1DC24BYOMB Unit Weight: 17 g

Read more less

Rs. 210.00

MODEL-PLC CARD CJ1W-OD211 MAKE OMRON

DELIVERY TIME : 1-2 WEEKS Power 24V DC Brand Omron Operating Load Voltage Range 10.2 to 26.4 VDC Rated Voltage 12 to 24 VDC Maximum Load Current 0.5 A/point,5.0 A/Unit Maximum Inrush Current 4.0 A/point,10 ms max. Leakage Current 0.1 mA max Residual Voltage 1.5 V max ON Response Time 0.1 ms max OFF Response Time 0.8 ms max Insulation Resistance 20 Mega Ohms Internal Current Consumption 5 VDC 100 mA max Ambient Operating Temperature 0 to 55 Degree Celsius Ambient Humidity 10-90% Model No CJ1W-OD211 Omron Automation and Safety I/O Controllers Digital output unit, 16 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, screw terminal.

Read more less

Rs. 6,800.00

MODEL-E2E-X2D1-N 5M OMS PROXIMITY SENSOR MAKE OMRON

DELIVERY PERIOD ; 1-2 WEEKS Type Description Select All Category Industrial automation & controls sensors proximity sensors -- industrial Manufacturer Omron Automation and Safety Series E2E Packaging Bulk Part Status Active Sensor Type Inductive Sensing Distance 0.079" (2mm) Output Type NPN-NO, 2-Wire Response Frequency 1.5kHz Shielding Shielded Material - Body Stainless Steel Voltage - Supply 10V ~ 30V Termination Style Cable Leads Operating Temperature -25°C ~ 70°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M8 Base Product Number E2E X2 Report Product Information Error View Similar

Read more less

Rs. 1,850.62

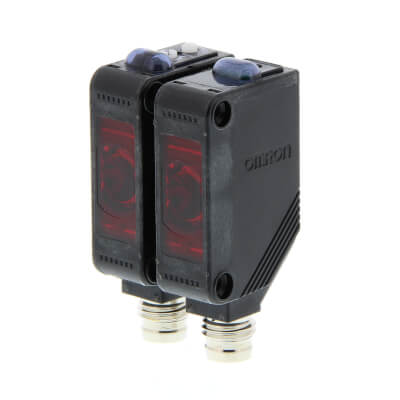

MODEL-OMRON-32-T66A-R

Shape Cuboid Sensing method Through-beam Sensing distance 10000 mm Setting method Manual adjustment Connection method Connector M8 - 4 pin Output type NPN Operation mode Dark-ON, Light-ON Response time 1 ms Material housing PBT Thread size Other Product Width (unpacked) 10.8 mm Product Height (unpacked) 31 mm Product Depth (unpacked) 20 mm Type of light Polarized red light Power supply voltage 12-24 V Degree of protection (IP) IP6

Read more less

Rs. 6,165.00

MODEL-OMRON-32-T 66A-L

DELIVERY PERIOD : 1-2 WEEKS Shape Square type Sensing method Through-beam type Sensing distance 10 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Red LED (660 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 30 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Rs. 6,165.29

MODEL-PROX SWITCH E2B-M13KS04-WP-B1 OMRON

Size M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67 Downloads

Read more less

Rs. 535.00

MODEL - Relay LY2N-D2-DC24 Make-OMRON

Mounting method With plug-in socket Usage General purpose, High power Poles 2 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description DPDT Features Diode, LED, Transparent case Terminal type Plug-in

Read more less

Rs. 650.00

MODEL-PROX SWITCH E2B-M12KS04-WP-B1 OMRON

ize M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67 Downloads

Read more less

Rs. 535.00

MODEL-LJ12A3-4-J/DZ M12 4MM AC 220V 2WIRE NC PROXIMITY SENSOR NC 220VAC RANGE 4MM DIA 18MM MAKE OMRON

Out of stock

Current type Operating form Contact form Connection form Model number Remark Online store: This site Aliexpress Ebay Amazon DC NPN NO Wire lead LJ12A3-4-Z/BX 6-36Vdc US $1.41/ pieceOrder DC NPN NO Wire lead LJ12A3-4-Z/BX-D2 6-36Vdc, 2m cable US $1.55/ pieceOrder DC NPN NO Wire lead LJ12A3-4-Z/BX-5V 5Vdc US $2.15/ pieceOrder DC NPN NO Connector LJ12A3-4-Z/BX-G 6-36Vdc US $3.12/ pieceOrder DC NPN NC Wire lead LJ12A3-4-Z/AX 6-36Vdc US $1.41/ pieceOrder DC NPN NC Wire lead LJ12A3-4-Z/AX-5V 5Vdc US $2.15/ pieceOrder DC NPN NO+NC Wire lead LJ12A3-4-Z/CX 6-36Vdc US $2.09/ pieceOrder DC PNP NO Wire lead LJ12A3-4-Z/BY 6-36Vdc US $1.41/ pieceOrder DC PNP NO Wire lead LJ12A3-4-Z/BY-5V 5Vdc US $2.15/ pieceOrder DC PNP NO Connector LJ12A3-4-Z/BY-G 6-36Vdc US $3.12/ pieceOrder DC PNP NC Wire lead LJ12A3-4-Z/AY 6-36Vdc US $1.41/ pieceOrder DC PNP NO+NC Wire lead LJ12A3-4-Z/CY 6-36Vdc US $2.09/ pieceOrder DC Two wires NO Wire lead LJ12A3-4-Z/EX 6-36Vdc US $1.49/ pieceOrder DC Two wires NO Connector LJ12A3-4-Z/EX-G 6-36Vdc US $3.12/ pieceOrder DC Two wires NC Wire lead LJ12A3-4-Z/DX 6-36Vdc US $1.77/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ 90-250Vac US $1.77/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ-36V 36Vac US $3.12/ pieceOrder AC Two wires NO Wire lead LJ12A3-4-J/EZ-380V 380Vac US $3.12/ pieceOrder AC Two wires NC Wire lead LJ12A3-4-J/DZ 90-250Vac Visiting... AC Two wires NC Wire lead LJ12A3-4-J/DZ-36V 36Vac US $3.12/ pieceOrder AC Two wires NC Wire lead LJ12A3-4-J/DZ-380V 380Vac US $3.12/ pieceOrder ▇ General Model number LJ12A3-4 series External dimensions M12x1x60 Installation type Non-shielded Detection distance 4mm Setting distance 0-3.2 mm Supply voltage 6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz Output current DC type: 300mA max; AC Type: 400mA Standard detected object Mild steel (12x12x1mm) Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) Response frequency 500Hz Matched mounting bracket M12 mounting bracket Matched mounting connector Only for connector type: 3 wires bend connector, 3 wires straight connector Output indication Red LED Short-circuit protection No Reverse connection protection Yes Insulation resistance 50MΩ min (between charging part and housing) Dielectric strength 1000Vac, 1min (between charging part and housing) IP Rating IP65 Operating temperature -25 to 70 ℃ (13 to 158 ℉) Cable length 1.2m, PVC cable Material Case: Brass-nickel plated; Sensing surface: ABS Alias name LJ12A3-4 series cylinder inductive proximity switches

Read more less

Out of stock

Rs. 720.00

View options

MODEL-H3DK-M2 AC/DC 24-240 V MAKE OMRON

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Timers RoHS: Details REACH - SVHC: Details Brand: Omron Automation and Safety Product Type: Timers Factory Pack Quantity: 1 Subcategory: Timers Part # Aliases: Z3329-ND H3DK-M2-24-240-VAC/DC H3DKM2ACDC24240 Unit Weight: 120 g

Read more less

Rs. 6,500.00

MODEL-E2E-X7D1N OMRON PROXIMITY SENSOR

anufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS: Brand: Omron Automation and Safety Cable Length: 2 m Coding: C Coded Connection Method: Pre-Wired Cable IP Rating: IP67 Maximum Frequency: 500 Hz Maximum Operating Temperature: + 70 C Measuring Range - Max: 7 mm Minimum Operating Temperature: - 25 C Mounting Style: Cable Mount Output Type: NO Product Type: Proximity Sensor Series: E2E 1 Subcategory: Sensors Supply Voltage - Max: 24 VDC Supply Voltage - Min: 12 VDC Technology: Inductive Part # Aliases: 1608308 E2EX7D1N Unit Weight: 240.408 g

Read more less

Rs. 2,150.00
