Specification Show similar products (12,108) Manufacturer HONGFA RELAY Type of relay electromagnetic Contacts configuration DPDT Rated coil voltage 24V DC Contact current max. 8A AC contacts rating @R(at resistive load) 8A / 250V AC DC contacts rating @R(at resistive load) 8A / 24V DC Manufacturer series HF115F Switched voltage max. 300V DC, max. 440V AC Relay variant miniature Mounting PCB Coil resistance 1.44kΩ Coil voltage min. 16.8V DC Coil voltage max. 36V DC Operate time 15ms Body dimensions 29x12.7x15.7mm Release time 8ms Coil power consumption 400mW Contact resistance 100mΩ Contact material AgNi Terminal pitch 5mm Operating temperature -40...85°C

Read more less

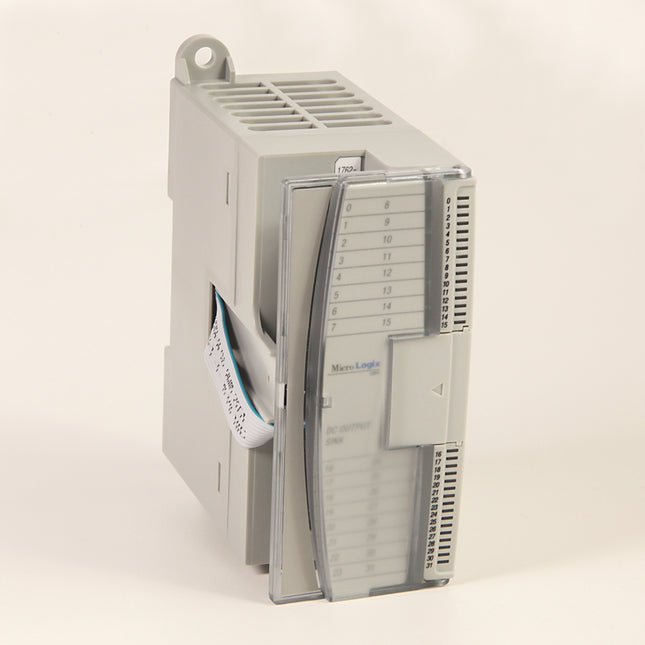

Class Progmable Logic Controller Module Depth 87 digital output modules 16 Point 24V DC Source Output Module Height 90 I/O Isolation Isolated I/O Status Indication LED Module Interfaces Digital Number Of Channels 16 point Output 16 Point, 24V DC Source Temperature Rating 0…55 °C (32…131 °F)

Read more less

specifications description Terminal Capacity Min 1x0.5mm, Max 2x1.5mm or 1x2.5 mm Product Sub Type Flush Ambient Humidity -25°C to 70°C Short Circuit Protection 10 A cartridge fuse HRC type Operating Positions All Positions Features All actuators are supplied with fixing flange Color Red Type of Product Momentary Actuators Model No P2AF4 Protection IP65 Material Plastic Country of Origin India Name of Manufacturer/Packer/Importer TEKNIC.LTD

Read more less

Product Specifications Current Rating 6A Contact operation Slow-break Number of Poles 1 Brand Schneider Model Name/Number ZBE101 Availability In Stock This Harmony ZB, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 or XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Read more less

Outside diameter4 mm Flow-relevant bending radius18 mm Inside diameter2.9 mm Min. bending radius12 mm Tubing characteristicsSuitable for energy chains Temperature-dependent operating pressure-0.095 MPa ... 1.5 MPa Temperature-dependent operating pressure-0.95 bar ... 15 bar Temperature-dependent operating pressure-13.775 psi ... 217.5 psi ApprovalGerman Technical Control Board (TÜV) Maritime classificationSee certificate Certificate issuing authorityB 013277 0527 00 Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformityVDMA24364-B2-L Ambient temperature-30 °C ... 80 °C Product weight according to length0.006 kg/m Pneumatic connectionFor push-in connector O.D. 4 mm For barbed fitting I.D. 3 mm with union nut For barbed fitting I.D. 3 mm ColourNatural Shore hardnessD 55 +/-3 Note on materialsRoHS-compliant Material tubingTPE-A Frequently bought together with PAN-4X0

Read more less

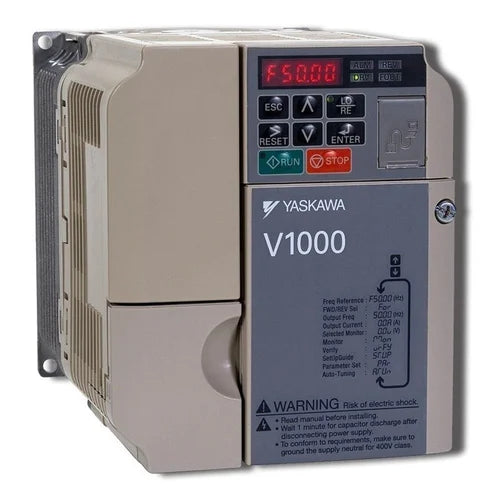

Usage For Pumps Brand Yaskawa Phase 3 Phase Model Name/Number CIMR-VT4A0018FAA Motor Power 7.4HP Availability In Stock 5.5kW (7.5HP) 400V 3ph motor to 14.8A at high overload, or 7.5kW (10HP) to 17.5A when Fan/Pump rated, is the Yaskawa V1000 Series AC Inverter.  Translates fixed frequency and operates under Sensorless Vector Control, or VxF. 400V in three phases with a variable frequency input. For a common AC induction motor, three phases at 400 volts.Overload: 60 seconds at 150%. elevated overload. Overload: 60 seconds at 120%. Pump/Fan Rated. Range of Speed Control: 0.01-400 Hz. Braking: 12 seconds of 100% torque every 120 seconds up to 32 ohms. Features include one relay contact set, six digital inputs, one pulse input, one pulse output, and two analog inputs and one output. SIL 2's "Safe Torque Off" (STO) feature. 15A at high overload and 20A when the pump or fan is rated. Voltage input: 380–480 volts Phase Three: 15%. Get Best Price Of Yaskawa CIMR-VT4A0018FAA AC Drive.

Read more less

Brand Fuji Model Name/Number FRN45G1S-4A Motor Power 55KW/75HP Input Voltage 400V Input Phase 3 - Phase Output Current 112A Availability In Stock

Read more less

Number of Contacts 24 Material Plastic, Metal Shape Rectangular Usage In Electric Connection I Deal In New Only Country of Origin Made in India Brand Sibass Pin Count 24 Model No HDD-024 Color Grey Availability In Stock

Read more less

Configured Specifications of EE-SPX403N Shape Standard Type Detection Distance 13 Head Maximum Width 26 Head Maximum Height 7.4 Head Maximum, Depth 26 Detection Method Through Beam Type (Groove Type) Luminescence Method Infrared light emitting diode (pulsing light) Operation Mode Light Seen - ON Output Mode NPN Voltage Output Connection Method Connector type (soldering not possible) Indicator Light Mode Illuminated light (red) Slit hole/width - Standard detected subject 2.2 × 0.5mm or more of opaque body Cable Specification - Cable Length - Protection Structure IP50 Mounting Format - Between Amplifiers - Applicable Pipe - Details Type - Product Description Type with 13 mm wide groove width. Noise-resistance performance is greatly upgraded compared with the manufacturer's conventional counterparts. Easy to use with reverse circuit connection due to reliable circuit design and convenient connector method for wiring and maintenance.[Features]· Ambient light, strong nozzle, 13 mm groove width.· Improved noise-resistance performance, equivalent to photoelectric sensor with built-in amplifier.· Common noise resistance performance of 30 times or more (relative to conventional products).· Inverter noise resistance performance of 10 times or more (relative to conventional products).

Read more less

Data Tork, Digital Torque Wrench, 10-50, 0.05N.m, 100-500, 0.5kgf.cm, 100-440, 0.5lbf.in, 7.5-36, 0.05lbf.ft, 3/8″ Square Drive Includes: Battery Charger BC-3-G, Battery Pack BP-5, Ratchet Head QH12D and Certificate of CalibrationV

Read more less

Spec Power: 12W 100V - 240V 12V 1.0A Plug shape: EIAJ-4 Plug polarity: Center plus Plug (outer diameter x inner diameter x pin length): 5.5 x 3.3 x 9.5mm Main unit size: 45.8 x 33.3 x 25.4mm Cord length: 1.8m Adaptive standards: PSE, CE UN310 series Model number: UN310-1210-EIAJ-4

Read more less

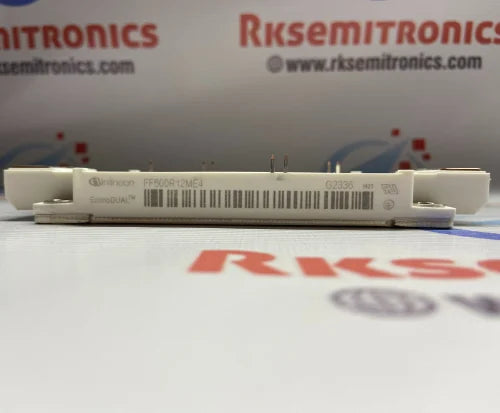

Voltage 1200 V Brand Infineon Technologies Part Number FF600R12ME4 Usage/Application UPS Mounting Type DIP Maximum Operating Temperature + 150 C Model Name/Number FF600R12ME4 Current Rating 995 A Availability In Stock

Read more less
