FA-HMI: Human Machine Interface Series GOT2000 SERIES Type GT27 MODEL Display TFT Display Colour 65536 Display Size (Inch) 5,7 Resolution (Pixels) 640X480 Power Supply (V) 24 Current Type DC Protection Class IP67F Internal Memory Capacity (MB) 80 Memory Card Slot SD USB 3 Ethernet Port 1 RS-232 1 RS-422/485 1 Network Options MODBUS, PROFIBUS, MELSECNET, ETHERNET, CCLINK Slot for Optional Cards YES Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 167 Height (mm) 139 Depth (mm) 60 Weight (kg) 1 Product Packaging Cardboard (g) 240 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 6,2 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Specifications Supply voltage type DC Number of digital inputs 36 Input type PNP/NPN Number of digital outputs 24 Output type PNP Program capacity 10 K steps Data memory capacity 32 K words Logic execution time 0.55 µs Communication port(s) USB Number of Ethernet ports 0 Number of USB ports 1 Number of RS-232 ports 0 Number of RS-485 ports 0 Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485 Number of encoder input channels 4 Max. encoder input frequency 100 kHz Max. number of PTP axes 2 Max. pulse output frequency 100 kHz Function Block programming Battery-free memory backup Real-time clock Analogue option boards Max. number of analogue I/O channels 25 Max. number of local I/O points 180 Max. number of expansion units 3 Built-in auxiliary 24 VDC output 0 mA Operating temperature range 0-55 °C Product Height (unpacked) 90 mm Product Width (unpacked) 195 mm Product Depth (unpacked) 85 mm Product Weight (unpacked) 680 g

Read more less

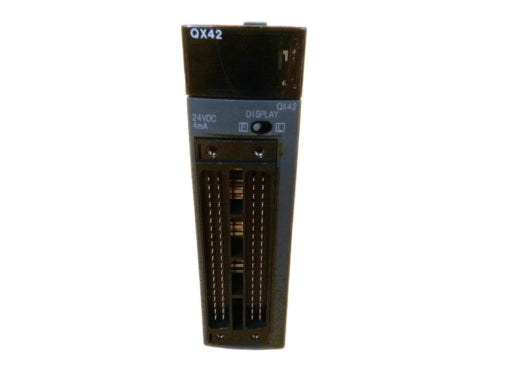

FA-MOD PLC: Digital Input Module Series MELSEC-Q SERIES Type DC INPUT (PLUS COMMON) Occupied I/O Points on PLC 64 Integrated Digital Inputs 64 Rated Input Voltage (VDC) 24 Wiring CONNECTOR Int. Current Consumption (A) 0,075 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,143 Product Packaging Cardboard (g) 40 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 0 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

General Information Product ID: 3HAC047184-003 ABB Type Designation: - Catalog Description: Mass Memory with boot loader

Read more less

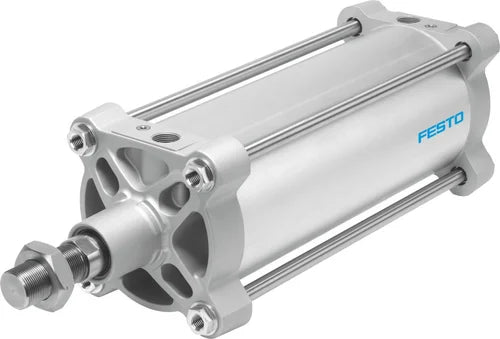

Shaft Diameter 150 mm Stroke Length 250 mm Force 11310 N Material aluminium Bore Size 0.06 MPa ... 1 MPa Country of Origin Made in India Availability In Stock Stroke320 mm Piston diameter160 mm Piston rod threadM36x2 CushioningPneumatic cushioning, adjustable at both ends Mounting positionoptional Conforms to standardISO 15552 Piston-rod endMale thread DesignPiston Piston rod Tie rod Cylinder barrel Position detectionVia proximity switch Symbol00991235 VariantsPiston rod at one end Operating pressure0.06 MPa ... 1 MPa Operating pressure0.6 bar ... 10 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions3.3 J Cushioning length48 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11310 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064 N Moving mass7396 g Moving mass for 0 mm stroke4292 g Additional moving mass per 10 mm stroke97 g Product weight18407 g Basic weight for 0 mm stroke11751 g Additional weight per 10 mm stroke208 g Type of mountingEither: Via female thread With accessories Pneumatic connectionG3/4 Note on materialsRoHS-compliant Material coverCast aluminium, coated Material piston sealNBR Material pistonCast aluminium Material piston rodHigh-alloy steel Material piston rod wiperNBR Buffer seal materialTPE-U(PU) Cushioning boss materialPOM Material cylinder barrelSmooth-anodised wrought aluminium alloy Material nutGalvanised steel Material bearingMetal polymer compound Material collar nutGalvanised steel Material tie rodHigh-alloy steel

Read more less

NMB 4710KL-04W-B30-B00 12V 0.36A 3.36W 2wires Cooling Fan Data Sheet NMB 4710KL-04W-B30-B00 12V 0.36A 2wires Cooling Manufacturer NMB Part number 4710KL-04W-B30-B00 other name 11925KA-12L-AA-00,4710KL04WB30B00,4710KL04WB30B00-ND,471OKL-O4W-B3O-BOO AC/DC DC Fans Fan Type Axial Size 119 mm x 119 mm x 25 mm Voltage 12V Current 0.36A PoWer 3.36W Termination 2 wires Speed (RPM) 2200 Air Flow 88.2 CFM (2.50 m³/min) Bearing Ball Shape Square Series 4710KL Static Pressure 0.129 in H2O (32.1 Pa) Noise 35 dBA Blade_material Plastic Frame_material Plastic Other Name 47L0KL-04W-B30-B00

Read more less

Specifications General Brand AS TOOL CENTER Model Number Non-Contact Detector, AC Voltage Tester Pen, 12-1000V/48-1000V Measurement Range 12-1000V Type Digital Body Material PLASTIC Model Name Non-Contact Detector, AC Voltage Tester Pen, 12-1000V/48-1000V Dimensions Width 50 mm Height 100 mm Depth 7 mm Weight 0.4 g

Read more less

Brand Litost Colour RED Material Polycarbonate Style Modern Light fixture form Recessed Room Type factory, office Product Dimensions 17.5L x 10W x 10H Centimeters Specific Uses For Product Home Indoor/Outdoor Usage Outdoor Power Source AC/DC See less About this item ✅ Revolving / Warning Light With Sound Alarm Buzzer Siren AC 220Volt and DC 12 Volt and DC 24Volt ( RED) ✅ PRODUCTS : MAKE IN INDIA. . High Brightness 14MIL 3528LED . Buzzer Volume : 110DB . Installation : Circular Chassis . Material : Lamp Holder-ABS, Lamp Shade-PC . Protection Degree : IP44 . Multi Voltage : 12VDC, 24VDC, 220VAC . Multi- function : Steady, Strobe, Revolving, flashing, . Wiring -Diagram : (1) BLACK WIRE - COMMON, (2) RED WIRE - 220 VOLT AC. (3) GREEN WIRE - 24 VOLT DC, (4) YELLOW WIRE - 12 VOLT DC ✅ Direct mount, highly efficient, dust proof. Widely used in industrial Lighting Residential Area, Office Building Factory, Traffic Corner, School, Bank. ✅ Total 4 wires are given where 1 is common wire and other 3 Wire for the different current supplies. Warranty not applicable for this product ( MODEL NO : TOWER-A11 )

Read more less
