Specification Show similar products (12,337) Manufacturer OMRON Type of relay electromagnetic Contacts configuration SPST-NO x4 + SPST-NC x2 Rated coil voltage 24V DC Contact current max. 6A AC contacts rating @R(at resistive load) 6A / 250V AC DC contacts rating @R(at resistive load) 6A / 30V DC Manufacturer series G7SA-14 Switched voltage max. 125V DC, max. 250V AC Relay variant safety Mounting PCB, socket Coil resistance 1152Ω Body dimensions 50x13x24mm Contact resistance 100mΩ Terminal pitch 5.08mm Coil current 20.8mA Operating temperature -40...85°C

Read more less

Specification Show similar products (12,337) Manufacturer OMRON Type of relay electromagnetic Contacts configuration SPST-NO x4 + SPST-NC x2 Rated coil voltage 24V DC Contact current max. 6A AC contacts rating @R(at resistive load) 6A / 250V AC DC contacts rating @R(at resistive load) 6A / 30V DC Manufacturer series G7SA-14 Switched voltage max. 125V DC, max. 250V AC Relay variant safety Mounting PCB, socket Coil resistance 1152Ω Body dimensions 50x13x24mm Contact resistance 100mΩ Terminal pitch 5.08mm Coil current 20.8mA Operating temperature -40...85°C

Read more less

Product Attributes Type Description Select All Category Relays Solid State Relays (SSR) Mfr Omron Automation and Safety Series G3SD Packaging Bulk Part Status Active Mounting Type Through Hole Relay Type Photo-Coupled Relay (Photorelay) Circuit SPST-NO (1 Form A) Output Type DC Voltage - Input 19.2 ~ 28.8VDC Voltage - Load 3 V ~ 26 V Load Current 1.1 A Termination Style PC Pin Operating Temperature -30°C ~ 100°C Package / Case Module Supplier Device Package - Approval Agency CSA, UR Grade - Qualification - Base Product Number G3SD-Z01

Read more less

Product Attributes Type Description Select All Category Safety Products Machine Safety Safety Relays Manufacturer Omron Automation and Safety Series G7SA Packaging Bulk Part Status Active Mounting Type Socketable, Through Hole Coil Voltage 24VDC Contact Form 4PST-3NO/1NC (3 Form A, 1 Form B) Contact Rating (Current) 6 A Switching Voltage 250VAC, 125VDC - Max Features Sealed - Flux Protection Termination Style PC Pin, Plug In Must Operate Voltage 18 VDC Must Release Voltage 2.4 VDC Operate Time 20 ms Release Time 10 ms Operating Temperature -40°C ~ 85°C Contact Material Silver (Ag), Gold (Au) Coil Current 15 mA Coil Power 360mW Coil Resistance 1.6 kOhms Base Product Number G7SA-3A

Read more less

Model Name/Number Z-15GQ22-B Operating Frequency 120 operations/min Dielectric Strength Contact gap G: 1,000 VAC, 50/60 Hz for 1 min Weight Approx. 42 to 48 g Operating Speed 1 mm to 1 m/s Brand Omron Mechanical 1,000,000 operations min. Electrical 100,000 operations min. Availability In Stock Voltage Rating - AC. 125 V ; Voltage Rating - DC. 30 V ; Actuator Type. Roller Plunger ; Mounting Type. Panel Mount ; Termination Style. Screw Terminal.

Read more less

Product Attributes Type Description Select All Category Switches Limit Switches Manufacturer Omron Automation and Safety Series Z Packaging Tray Part Status Active Circuit SPDT Switch Function On-Mom Current Rating (Amps) 15A (AC), 6A (DC) Voltage Rating - AC 125 V Voltage Rating - DC 30 V Actuator Type Roller Plunger Mounting Type Panel Mount Termination Style Screw Terminal Ingress Protection IP00 Features - Operating Force 250 ~ 350gf Release Force 114gf Operating Position 1.313" (33.4mm) Pretravel 0.015" (0.4mm) Differential Travel 0.002" (0.05mm) Overtravel 0.141" (3.6mm) Mechanical Life 10,000,000 Cycles Electrical Life 500,000 Cycles Operating Temperature -25°C ~ 80°C Base Product Number Z-15G

Read more less

Key attributes Mounting Type standard Manufacturing Date Code 24+ Model Number TL-M2MD1 Brand Name original brand Usage standard Theory standard Description standard Type standard Place of Origin China Series standard Features standard Output standard Description Proximity switch sensor Packaging and delivery Selling Units Single item

Read more less

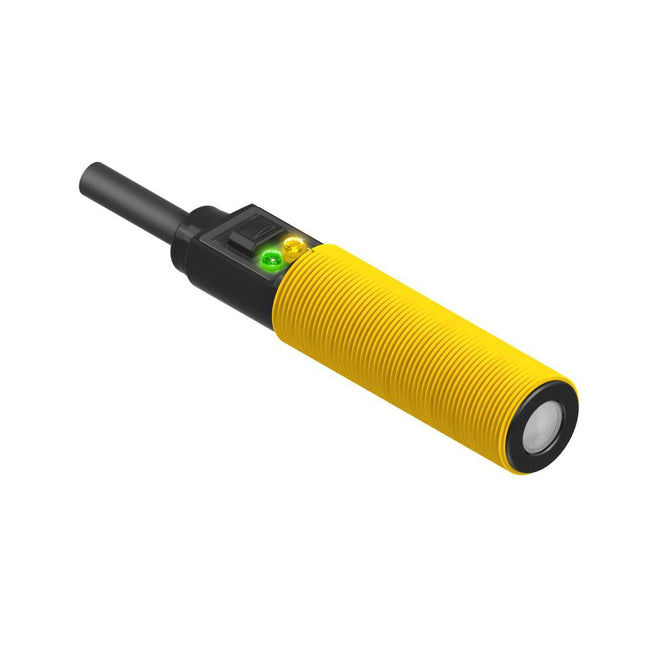

Analog S18U Ultrasonic Modified Output Response Range: 30-300 mm; Input: 10-30 V dc Output: Analog 0-10 V Goes to Max with No Target 3 m (9.8 ft) Cable Part Number: 74601

Read more less

Ratings   Item H8PS-[]B H8PS-[]BF H8PS-[]BP H8PS-[]BFP Rated supply voltage 24 VDC Operating voltage range 85% to 110% of rated supply voltage Mounting method Flush mounting Surface mounting,track mounting Flush mounting Surface mounting,track mounting Power consumption Approx. 4.5 W at 26.4 VDC for 8-output modelsApprox. 6.0 W at 26.4 VDC for 16-/32-output models Inputs Encoder input Connections to a dedicated absolute encoder Externalinputs Input signals 8-output Models: None16-/32-output Models: Bank inputs 1/2/4, origin input, start input Input type No voltage inputs: ON impedance:1 kΩ max. (Leakage current: approx. 2 mA at 0 Ω)ON residual voltage: 2 V max., OFF impedance: 100 kΩ min., Applied voltage: 30VDC max.Minimum input signal width: 20 ms Outputs Cam outputsRUN output NPN open-collector transistor outputs30 VDC max.,100 mA max. (Do not exceed 1.6 A totalfor all cam outputs and the RUN output.),residual voltage: 2 VDC max. PNP open-collector transistor outputs30 VDC max. (26.4 VDC for 16-/32-output Models),100 mA max. (Do not exceed 1.6 A totalfor all cam outputs and the RUN output.),residual voltage: 2 VDC max. Pulse output NPN open-collector transistor output30 VDC max.,30 mA max.,residual voltage: 0.5 VDC max. PNP open-collector transistor output30 VDC max. (26.4 VDC for 16-/32-output Models)30 mA max.,residual voltage: 2 VDC max. Number of outputs 8-output Models: 8 cam outputs, 1 RUN output, 1 pulse output16-output Models: 16 cam outputs, 1 RUN output, 1 pulse output32-output Models: 32 cam outputs, 1 RUN output, 1 pulse output Number of banks 8 banks (for 16-/32-output Models only) Display method 7-segment, negative transmissive LCD (Main Display: 11 mm (red), Sub-display:5.5 mm (green)) Memory backup method EEPROM (overwrites: 100000 times min.) that can store data for 10 years min. Ambient operating temperature -10 to 55°C (with no icing or condensation) Storage temperature -25 to 65°C (with no icing or condensation) Ambient humidity 25% to 85% Degree of protection Panel surface: IP40, Rear case: IP20 Case color Light gray (Munsell 5Y7/1)   Characteristics   Setting unit 0.5° increments at a resolution of 720, 1° increments at a resolution of 256 or 360 *1 Number of steps Up to 10 steps can be set for each cam to turn the output ON/OFF 10 times. *2 Inputs Encoder input Connections to a dedicated absolute encoderResponse rotation speed (in Run/Test Mode)1600 r/min max. at a resolution of 256 or 360 (1200 r/min max. if ADV function is set for4 or more cams) *3 *4800 r/min max. at a resolution of 720 (600 r/min max. if ADV function is set for 4 ormore cams)Includes error data detection Encoder cable extensiondistance 256/360 resolution100 m max. at 330 r/min or less52 m max. at 331 to 1200 r/min (331 to 900 r/min if ADV function is set for 4 or morecams)12 m max. at 1201 to 1600 r/min (901 to 1200 r/min if ADV function is set for 4 or morecams)720 resolution100 m max. at 330 r/min or less52 m max. at 331 to 600 r/min (331 to 450 r/min if ADV function is set for 4 or morecams)12 m max. at 601 to 800 r/min (451 to 600 r/min if ADV function is set for 4 or morecams) Output response time 0.3 ms max. Insulation resistance 100 MΩ min. (at 500 VDC) between current-carrying terminals and exposed non-current-carrying metal parts, between all current-carrying parts and the USB connector Dielectric strength 1000 VAC, 50/60 Hz for 1 min between current-carrying terminals and exposed non-current-carrying metal parts500 VAC, 50/60 Hz for 1 min between current-carrying section and USB connector, andbetween current-carrying terminals and non-current-carrying metal part of outputconnector Impulse withstand voltage 1 kV between power terminals1.5 kV between current-carrying terminals and exposed non-current-carrying metal parts Noise immunity ±480 V between power terminals, ±600 V between input terminalsSquare-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise) Static immunity 8 kV (malfunction), 15 kV (destruction) Vibrationresistance Destruction 10 to 55 Hz with 0.75-mm single amplitude each in 3 directions for 2 hours each Malfunction 10 to 55 Hz with 0.5-mm single amplitude each in 3 directions for 10 minutes each Shockresistance Destruction 300 m/s2 3 times each in 6 directions Malfunction 200 m/s2 3 times each in 6 directions Approved safety standards cULus (Listing): UL508/CSA C22.2 No. 14 EMC (EMI) EN61326Emission Enclosure: EN55011 Group1 Class A(EMS) EN61326Immunity ESD: EN61000-4-2: 4 kV contact discharge, 8 kV air dischargeImmunity RF-interference: EN61000-4-3: 10 V/m (Amplitude-modulated, 80 MHz to 1GHz), 10 V/m (Pulse-modulated, 900 MHz ±5 MHz)Immunity Conducted Disturbance EN61000-4-6: 10 V (0.15 to 80 MHz)Immunity Burst: EN61000-4-4: 2 kV for power-line, 1 kV for I/O signal-lineImmunity Surge: EN61000-4-5: 1 kV line to line (power line), 2 kV line to ground (powerline) Weight Approx. 300 g (Cam Positioner main unit only)
