Specifications Model LR-ZB250AN Type Distance based laser sensor Shape Rectangular Output NPN Cable connection 2 m cable Detectable distance 35 to 250 mm (215 to 0)*1 Standard detectable deviation 35 to 180 mm: 9 mm180 to 250 mm: 25 mm Display resolution 1 to 3 (1 to 3 mm) Spot diameter Approx. 2.4 × 1.2 mm at 250 mm Response time 1.5 ms / 10 ms / 50 ms selectable Light source Type Red laser (660 nm) Laser class Class 1 laser product(IEC60825-1, FDA (CDRH) Part1040.10*2) Function Indicator 3-digit 7-segment display (red),output indicator (yellow),DATUM indicator (orange),1 spot indicator (green) Timer OFF/ON delay/OFF delay/One-shot Rating Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS Power consumption 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V) Specifications Control output NPN Open collector,Applied voltage 30 VDC or less, Control current 100 mA or less,Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA Protection circuit Protection against reverse power connection, output overcurrent, output surge, reverse output connection Output operation Light-ON / Dark-ON selectable External input Input time calibration: 35 ms or more ON, 35 ms or more OFFLaser emission stop: 2 ms or more ON, 20 ms or more OFFShort-circuit current NPN: 1 mA or less/PNP: 2 mA or less Environmental resistance Enclosure rating IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3 Insulation resistance 20 MΩ or more (500 VDC) Ambient light Incandescent lamp: 2,000 lux or lessSunlight: 4,000 lux or less*4 Ambient temperature -10 to +50 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Storage temperature -25 to +75 °C (No freezing) Withstand voltage 1,000 VAC, 50/60 Hz, 1 min Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Material Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating,Packing/Connector ring: FKM Accessories Instruction Manual,Certification/Identification label (FDA) Weight Approx. 110 g (Including cable) *1 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds "-99", "-FF" is displayed.*2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice.*3 Have passed resistance tests with cleaning agents from multiple manufactures.*4 When the response time is 10 ms

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Honeywell Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Cube Coil Voltage: 220 VAC Relay Contact Form: 4 Form C (4PDT-NO, NC) Contact Current Rating: 3 A Contact Termination: Plug In Mounting Style: Panel Mount Switching Voltage: 250 VAC, 125 VDC Coil Termination: Plug In Coil Type: Non-Latching Coil Resistance: 12.9 kOhms Coil Current: 5.8 mA Contact Material: Silver Cadmium Oxide (AgCdO) Series: SZR-MY Length: 28 mm Width: 21.5 mm Height: 36 mm Brand: Honeywell Contact Form: 4PDT (4 Form C) Power Consumption: 1.1 W Product Type: General Purpose Relays 50 Subcategory: Relays Unit Weight: 65 g

Read more less

Colour: CJX2-6511 Size: 220V Thermal Circuit Breakers

Read more less

Range of product Telemecanique Safety switches XCS Accessory / separate part category Spare parts Accessory / separate part type Coded magnet Accessory / separate part designation Additional coded magnet Accessory / separate part destination Coded magnetic switch

Read more less

Specifications Manufacturer : TOCOS Model : RV24YN20S B501 Type of potentiometer : shaft Resistance : 500kΩ Power : 400mW Tolerance : ±10% Shaft diameter : 6mm Shaft length : 20mm Characteristics : linear Track material : carbon Mechanical rotation angle : 300° Voltage Rating : 350V Operating temperature : -10…85°C Electrical rotation angle : 280° Body dimensions : 40x38mm Weight : 50g

Read more less

Product description ▇ Model number and description Model number Remark Online store:             This site            Aliexpress            Ebay            Amazon           WTH118-1A 2W resistance 1k 2K2 4K7 10K 470K 220K 330K 1M Visiting... ▇ WTH118-1A potentiometer model number legend WTH118-1A Parent Model Number -4.7K Resistance -1K: 1K -2.2K: 2.2K -4.7K: 4.7K -10K: 10K -22K: 22K -47K: 47K -100K: 100K -150K: 150K -220K: 220K -330K: 330K -470K: 470K -1M: 1M 2W Rated Power 2W: 2W 2WS: 2W with scale plate

Read more less

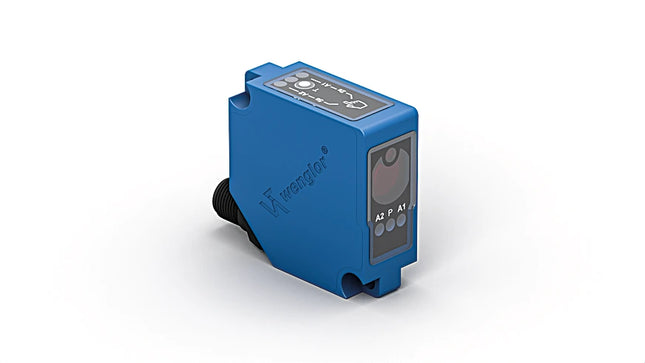

Optical Data Working Range 0 ... 3,000 mm Setting Range 200 ... 3,000 mm Switching Hysteresis  < 15 mm Light Source Laser (red) Wavelength 660 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 1 Beam Divergence < 2 mrad Max. Ambient Light 10,000 Lux Light Spot Diameter see Table 1 Reflector required no Electrical Data Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 500 Hz Response Time 1 ms Temperature Drift (-10 °C < Tu < 50 °C) < 1 % Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 2.5 % Temperature Range -40 ... 60 °C Number of Switching Outputs 2 Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 200 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Interface IO-Link V1.1 Protection Class III FDA Accession Number 1910001-001 Mechanical Data Setting Method Teach-In Housing Material Plastic, ABSPlastic, PC Optic Cover Plastic, PMMA Degree of Protection IP68 Connection M12 × 1; 5-pin Weight 37 g Safety-relevant Data MTTFd (EN ISO 13849-1) 949.92 a General Data Scope of delivery 1 × BEF-SET-44 mounting set1 × initial start-up instructions1 × sensor Output PNP NO yes IO-Link yes Adjustable parameters Output PNPNPN Circuit NONC Other parameters Off-delayOn-delayEmitted light

Read more less

Material Plastic Usage/Application Industrial Power/Voltage 220 V Cable Length 2 M Country of Origin Made in India Availability In Stock

Read more less

Product Details: Product Description Brand Honeywell Model No. SZL-VL-S-J-N Type Side rotary, adjustable lever steel roller, Ø18 x 6,5 Miniature industrial limit switch Housing material Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated Contact Material Silver Alloy Contact design Snap-action (all versions)   Positive-opening contacts (side rotary version only) Electrical Connection Conduit entry or cable gland Electrical Ratings AC-15 A300   DC-13 Q300 Dielectric Voltage 1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test Impulse Voltage 2500 Vdc Thermal current (Ith) 10 A/250 Vac Leakage Current < 10 mA Humidity 95 %RH Shock 30 G, conforming to IEC 60068-2-27 Vibration 10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded) Operating Temperature -20°C to 70°C (with no icing) Operating speed 0,05 mm/s to 2 m/s (based on pin plunger limit switch) Operating frequency Mechanical: 120 ops/min; Electrical: 30 ops/min Mechanical life 10M cycles @ 120 cpm max Electrical life 0.5M cycles @ 30 cpm max. under the rated resistance load Weight 120 g to 150 g Approvals CCC, CE, cULus Pollution Degree 3 Environmental Sealing IP67 COO China

Read more less

Specifications Primary brand Balluff Main function Sensor (Proximity; inductive) Product series / family name Industrial sensors > Inductive Sub-range name BES 516 series Functions Inductive proximity sensor / switch Supply voltage (DC) 7.7-9Vdc Sensing distance 1.5mm Pressure 500bar Frequency 1000Hz / 1kHz max. switching frequency Shape Cylindrical / barrel fully threaded body Rated insulation voltage (Ui) (Vdc) 75 V Thread size M12 Connection type Pre-equipped with a 4-pin M12 A-coded male connector Mounting mode Flush mounting with M12 nut Digital outputs 1 x digital output (NAMUR) Degree of protection IP68 Dimensions M12 x L56mm Material Stainless steel housingPOM (Polyoxymethylene) sensing surface Ambient air temperature for operation -13...+158°F / -25...+70 °C Customs Tariff Number 8536509065 Order code / Manufacturer SKU BHS0034 Manufacturer product status Commercialized Equivalent to BES516300S266S4 Compliant with standard(s) CEWEEEEACCE Ex II 2G EPL Gb (ATEX) Location of origin DE Degree of pollution Contamination scale 3 Benefits Inductive sensors for hazardous areas benefits- For zones 0 / 1 / 2 / 20 / 21 and 22- High-pressure rated to 500bar- For use in a variety of temperature ranges- With matching NAMUR switching amplifiers- Non-contacting- Media-resistant- Impervious to contamination

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches RoHS:   REACH - SVHC: Illuminated: Non-Illuminated Contact Form: SPDT Actuator: Roller Plunger Current Rating: 10 A Voltage Rating AC: 480 VAC Voltage Rating DC: 250 VDC Operating Force: 9.81 N Termination Style: Wire Lead Mounting Style: Panel Mount Actuator Style: Roller Plunger Brand: Omron Automation and Safety Maximum Operating Temperature: + 80 C Minimum Operating Temperature: - 10 C Product Type: Limit Switches Series: SHL 1 Subcategory: Switches Type: Basic Part # Aliases: 1385715 SHLQ2255 Unit Weight: 70 g

Read more less

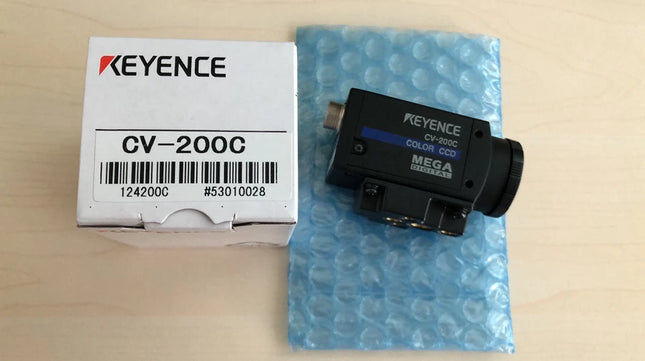

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition Country of Origin Japan Model CV-200C MPN Does not apply Brand keyence Controller Platform Automate

Read more less
