Glass Fuse Voltage: 250V Current: 10A Size: 6x30mm

Read more less

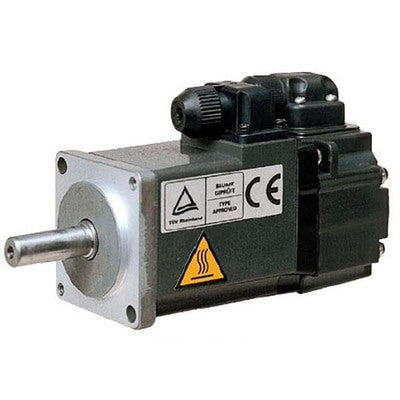

Specifications Primary brand Mitsubishi Electric Main function AC servo motor Product series / family name MELSERVO J3 series Sub-range name HF-KP series Functions AC brushless rotary servo motor Design straight shaftbuilt-in absolute feedback encod. (18-bit)low inertia / small power capacitynatural cooling Supply voltage (AC) 200Vac class Rated current 1.4A Rated active power (kW) 200W / 0.2kW Rotational speed 3000rpm6000rpm (maximum) Torque 0.64Nm nominal Maximum torque 1.9Nm Moment of inertia 0.000024kg.m2 (0.24kg.cm2) Mounting mode 60x60mm flange mounting Degree of protection IP65 Dimensions H77.1mm x W60mm x D106.6mm Net Height (mm) 77.1 mm Net Width (mm) 60 mm Net Depth (mm) 106.6 mm Ambient air temperature for operation 0...+40 °C Ambient air temperature for storage -15°C...+70 °C Maximum current 4.2 A Order code / Manufacturer SKU HF-KP23 Manufacturer product status Discontinued Benefits taking advantage of the characteristics of a servo motor such as smallness and high-outputthis motor serves as a compact and high-output spindle motor which is capable of high-speed rotation 6000rpm

Read more less

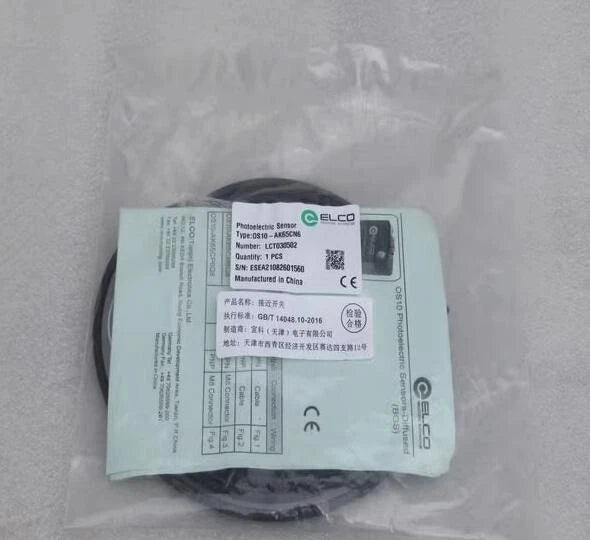

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition Brand Elco Model OS10-AK65CN6 MPN Does not apply UPC Does not apply

Read more less

Brand Mitsubishi Model Number FR-E720-1.5K State In stock Condition New Original Warranty 12 months

Read more less

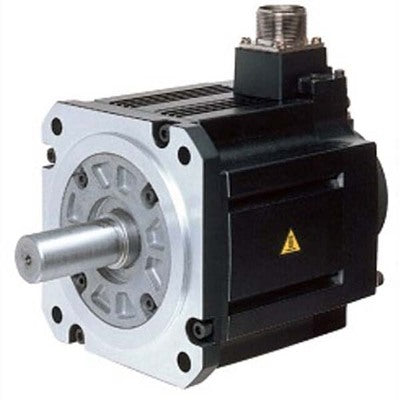

Specifications Primary brand Mitsubishi Electric Main function AC servo motor Product series / family name MELSERVO J2S series Sub-range name HC-KF series Functions AC brushless rotary servo motor Design keyed shaftbuilt-in e/m brakebuilt-in absolute feedback encod. (17-bit)low inertia / small power capacityfan cooling Supply voltage (AC) 200Vac class Rated current 2.3A Rated active power (kW) 400W / 0.4kW Rotational speed 3000rpm4500rpm (maximum) Torque 1.3Nm nominal Maximum torque 3.8Nm Moment of inertia 0.000051kg.m2 (0.51kg.cm2) Mounting mode 60x60mm flange mounting Resolution 17-bit (equivalent to 131072ppr) feedback Degree of protection IP55 Dimensions H72.8mm x W62mm x D186.5mm Net Height (mm) 72.8 mm Net Width (mm) 62 mm Net Depth (mm) 186.5 mm Ambient air temperature for operation 0...+40 °C Ambient air temperature for storage -15°C...+70 °C Maximum current 6.9 A Order code / Manufacturer SKU HC-KFS43BK Manufacturer product status Discontinued

Read more less

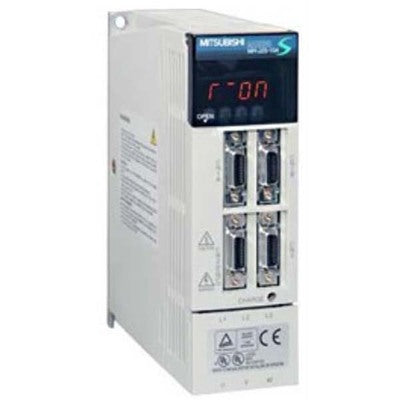

Specifications Primary brand Mitsubishi Electric Main function AC servo drive Product series / family name MELSERVO J2S series Sub-range name MR-J2 series Functions AC motion servo drive / amplifiersine wave PWM control/current control methodspeed control modetorque control mode Design built-in dynamic brakenatural cooling Supply voltage (AC) 200Vac-230Vac (200V class; 220Vac / 230Vac) Type of network Single-phase input (2P) or 3-phase input (3P) Rated active power (kW) 750W / 0.75kW Protection functions overcurrent shut-offregeneration overvoltage shut-offoverload shut-off (electronic thermal)servo motor overheat protectionencoder fault protectionregeneration fault protectionundervoltage/sudden power outage protectionoverspeed protectionexcessive error protection Communication protocol No communication interface Digital inputs 1 x digital input (24Vdc; sink/source) (EMG)1 x digital input (24Vdc; sink/source) (LSP)1 x digital input (24Vdc; sink/source) (LSN)1 x digital input (24Vdc; sink/source) (SON)1 x digital input (24Vdc; sink/source) (RES)1 x digital input (24Vdc; sink/source) (PC / ST1 / RS2)1 x digital input (24Vdc; sink/source) (TL / ST2 / RS1)1 x digital input (24Vdc; sink/source) (SP2) Digital outputs 1 x digital output (rly. contact type) (ALM)1 x digital output (rly. contact type) (ZSP)1 x digital output (rly. contact type) (TLC / VLC) Analog inputs 1 x analog input (0-10Vdc) (TLA / TC)1 x analog input (-10...+10Vdc) (VC / VLA) Resolution 17-bit / 131072ppr encod. feedback input Dimensions H168mm x W70mm x D190mm Net Height (mm) 168 mm Net Width (mm) 70 mm Net Depth (mm) 190 mm Ambient air temperature for operation 0...+55 °C Ambient air temperature for storage -20°C...+65 °C Current consumption 54A input Power consumption (drive auxiliary power consumption) 50 W Technical compatibility with HC-KFS series Order code / Manufacturer SKU MR-J2S-70A Manufacturer product status Discontinued

Read more less

Specifications Primary brand Mitsubishi Electric Main function AC servo drive Product series / family name MELSERVO J2S series Sub-range name MR-J2 series Functions AC motion servo drive / amplifiersine wave PWM control/current control methodspeed control modetorque control mode Design built-in dynamic brakenatural cooling Supply voltage (AC) 200Vac-230Vac (200V class; 220Vac / 230Vac) Type of network Single-phase input (2P) or 3-phase input (3P) Rated active power (kW) 400W / 0.4kW Protection functions overcurrent shut-offregeneration overvoltage shut-offoverload shut-off (electronic thermal)servo motor overheat protectionencoder fault protectionregeneration fault protectionundervoltage/sudden power outage protectionoverspeed protectionexcessive error protection Communication protocol No communication interface Digital inputs 1 x digital input (24Vdc; sink/source) (EMG)1 x digital input (24Vdc; sink/source) (LSP)1 x digital input (24Vdc; sink/source) (LSN)1 x digital input (24Vdc; sink/source) (SON)1 x digital input (24Vdc; sink/source) (RES)1 x digital input (24Vdc; sink/source) (PC / ST1 / RS2)1 x digital input (24Vdc; sink/source) (TL / ST2 / RS1)1 x digital input (24Vdc; sink/source) (SP2) Digital outputs 1 x digital output (rly. contact type) (ALM)1 x digital output (rly. contact type) (ZSP)1 x digital output (rly. contact type) (TLC / VLC) Analog inputs 1 x analog input (0-10Vdc) (TLA / TC)1 x analog input (-10...+10Vdc) (VC / VLA) Resolution 17-bit / 131072ppr encod. feedback input Dimensions H168mm x W70mm x D135mm Net Height (mm) 168 mm Net Width (mm) 70 mm Net Depth (mm) 135 mm Ambient air temperature for operation 0...+55 °C Ambient air temperature for storage -20°C...+65 °C Current consumption 30A input Power consumption (drive auxiliary power consumption) 50 W Technical compatibility with HC-KFS series Order code / Manufacturer SKU MR-J2S-40A Manufacturer product status Discontinued

Read more less

Description        ---------------------------------------------------------------------------------------------------------------------------------------------------------- --------------- ·Brand new, never used or installed·One Year Warranty, feel free to buy without worries·Ready to use, direct replacement for the old or broken one·Made with high quality material·100% Factory tested

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Relay Sockets & Fixings RoHS:   Product: Relay Sockets Accessory Type: DIN Rail Mount Associated Relay Series: H3YN Termination Style: Snap On Brand: Omron Automation and Safety Mounting Style: DIN Rail Product Type: Relay Sockets & Hardware 1 Subcategory: Relays Part # Aliases: 1387322 PYF14ANC PYF14AN Unit Weight: 50.585 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Phoenix Contact Product Category: Terminal Block Interface Modules RoHS:   Current Rating: 100 mA Wire Gauge Min: 12 AWG Termination Style: Screw Mounting Style: DIN Rail Brand: Phoenix Contact Connection Method: Screw Height: 99 mm Length: 110.99 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Terminal Block Interface Modules 1 Subcategory: Terminal Blocks Tradename: INTERFACE Analog Type: MCR Strain Gage Module Width: 22.5 mm Part # Aliases: MCR-SGA-4/6-DC MCRSGA46DC Unit Weight: 158.760 g

Read more less

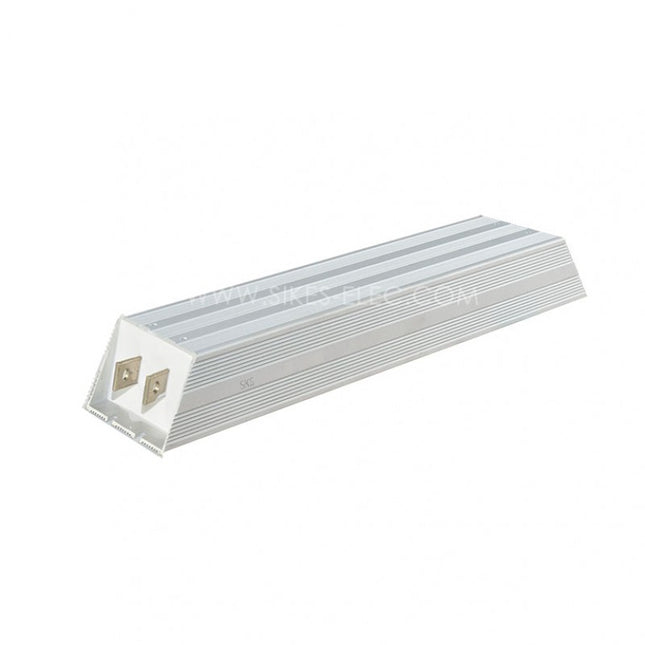

The RXLG series resistors with optional integrated thermal switch from our medium power range of ALUMINIUM HOUSED COMPACT BRAKE RESISTORS are electrically insulated and with small dimensions. They can easily be fitted into compact constructions and are especially designed to endure high pulse loads in industrial drive systems.Key Features:1.High IP class of IP21,IP33,IP55,IP65 or as required;2.High pulse load and high vibration capability;3.Compact structure,and cool surface;4.No live parts outside;5.Low noise level;6.Low thermal drift;7.Terminals suitable for soldering or bolt connection with high temperature.Characteristics of this series:1.Rated power: 50-5000W, based on 25°C free air rating;2.Resistance values: from 1Ω to as high as 10 KΩ( to 100 KΩ on request);3.Temperature Coefficients: 50,100 and 400ppm/°C or as required;4.Operating Temperature:-55°C to +225°C;5.Insulation Resistance: >1000MΩ (500V 25°C 75% relative humidity);6.Dielectric strength: >3.0KV 50Hz 1min(25°C 75% relative humidity);7.IP protection: IP21, IP33,IP55,IP65 or as required;8.Element material: OCR25AL5/CrAlFe/CrNi/CuNi;9.Lead material: Brass Caps(wiring leads available);10.Vibration grade:>1.5g.Application:1.capacitor charging & discharging,;2.balancing resistor, crowbar;3.filter,electrical machinery general use, available through distribution;4.light-duty braking of inverter,variable frequency drives and any other low-wattage load applications.
