Noise reduction has been realized over the entire pressure range.Tank capacity can be reduced since the loss power is small and suppresses oil temperature rise.High response, high stability, and long life make it possible to improve the reliability of the main machine.The appropriate discharge amount can be set by adjusting screws for large capacity and small capacity.Max Discharge Rate (L/min (1800 Revolutions)):68.0Maximum Working Pressure (MPa):21Noise (dB):72Outer Dimension (mm):196 x 309 x 250

Read more less

Main Range TeSys Range of product TeSys Deca Product or component type Contactor Device short name LC1D Contactor application Resistive load Utilisation category AC-1 Poles description 4P [Ue] rated operational voltage Power circuit: <= 300 V DC 25...400 HzPower circuit: <= 690 V AC [Ie] rated operational current 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit [Uc] control circuit voltage 220 V AC 50 Hz Complementary Motor power kW 22 kW at 220...230 V AC 50/60 Hz37 kW at 380...400 V AC 50/60 Hz45 kW at 660...690 V AC 50/60 Hz55 kW at 500 V AC 50/60 Hz45 kW at 415...440 V AC 50/60 HZ

Read more less

Current Rating 6 Amps Brand Raja Rubbers Controller Type Push Button Connectivity Protocol Wi-Fi Net Quantity 1.0 count

Read more less

FA-MOD PLC: Network Module Series MELSEC-Q SERIES Type MASTER/LOCAL STATION Network Interface CC-LINK Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,12 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT

Read more less

Connection type head A Female connector, M12, 5-pin, straight, A-coded Connection type head B Flying leads Locking plug connector Screw connection Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Seal material FKM Tightening torque 0.6 Nm Width across flats 13 Cable 2 m, 5-wire, PVC Jacket material PVC Jacket color Gray Cable diameter 5.2 mm Conductor cross section 0.34 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Nominal voltage, cable 300 V AC Test voltage, cable 2,000 V AC Reference voltage 125 V AC 125 V DC Rated impulse voltage 1.5 kV Current loading 4 A Signal type Sensor/actuator cable Application Zones with chemicals Uncontaminated zones UL File No. E335179 Enclosure rating IP65 / IP66K / IP67 Operating temperature Flexible use –5 °C ... +80 °C Stationary position –30 °C ... +80 °C Head –25 °C ... +85 °C Contamination rating 3 Insulation resistance 100 MΩ Overvoltage category III Specific insulation resistance 30 mΩ Thermal resistance, piping Flame retardant according to UL 1581 VW1 / CSA FT1

Read more less

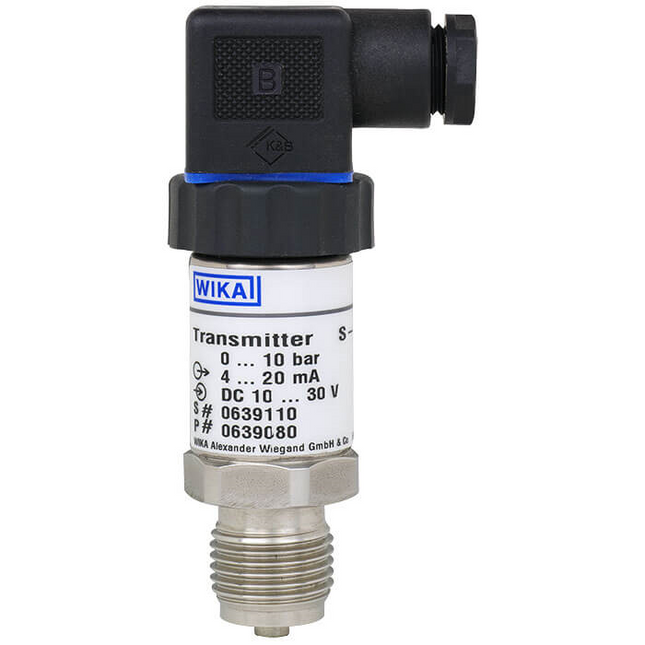

Usage/Application Machine building Hydraulics and pneumatics Pumps Chemical industry Model Name/Number S-10 pressure transmitter Brand wika Voltage Output signals: 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others Operating Range Measuring ranges from 0.05 to1,000 bar Availability In Stock

Read more less

Part Number: 2711P-RP1 Brand: Allen-Bradley Specifications Product Type: Logic Module Series: PanelView Plus 700 to 1500 Logic Modules Flash Memory: 64 MB RAM Memory: 64 MB Input Power: 24 Volts DC Features: Ethernet Port, Serial Port, 2 USB ports, and CompactFlash Card Slot Compatibility: Not Compatible with PanelView Plus 6 Terminals Safe Operating Temperature: 0 to 55 degrees Celsius Software: FactoryTalk View ME Software, Version 5.1 or earlier. Communication: Ethernet, RS-232

Read more less

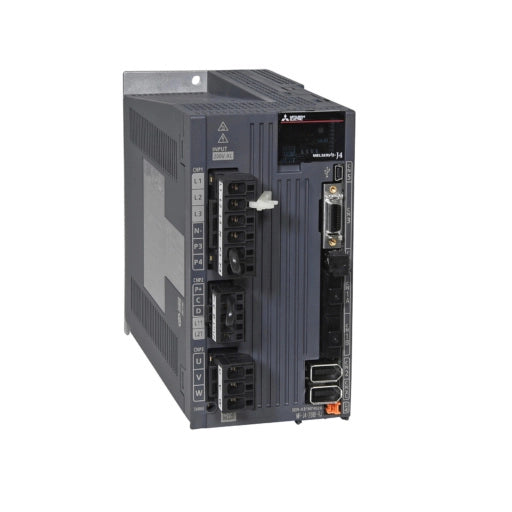

Series MELSERVO-J4 Type MR-J4 Command Interface SSCNETⅢ/H Rated Capacity (kW) 2 Number of Axes 1 Safety Function Type STO (IEC/EN 61800-5-2) Power Supply (VAC) 3PHASE 230V Dynamic Break BUILT-IN Product Dimensions & Weight Width (mm) 90 Height (mm) 168 Depth (mm) 195 Weight (kg) 2,1

Read more less

Data Rate (bits per second) 115200 bps Storage Temperature 0-60 C Dimension 49.3 x 24.6 x 88.3mm Brand San Telequip Model Number SC04M2 Number Of Ports RS 232(DB9 Female ) /485 (Screw type Terminal block) Speed 300 to 115,000 bps Mounting Type Din Rail Power Supply 24V DC (Optional 48V DC) Surge Protection 600 W on 485 lines ESD Protection 15 kV on RS232 & RS485 lines Optical Isolation 3000 V DC between RS232 & RS485

Read more less

Data Rate (bits per second) 115200 bps Power Supply 230 V AC or 24/48/110/220 V D Brand San Telequip Mounting Type Din Rail Model Name/Number SC04U RJ45 ESD Protection 15KV on RS232 & RS485 lines SURGE PROTECTION 600W on all 485 lines GALVANIC ISOLATION 3000 V DC between Power & RS232 & Power & RS485 OPTICAL ISOLATION 3000 V DC for both RS232 & RS485

Read more less

Ultrasonic proximity sensors - standard 100 … 700 mm PNP break function (NC) potentiometer cable, 2 m -10 … 60 °C IP 67

Read more less

SIMATIC S7-400, Backup battery 3.6 V/2.3 AH for PS 405 4 A/10 A/20 A and PS 407 4 A/10 A/20 A Product lifecycle Active Product  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 17.60 x 12.10 x 1.50 cm Net weight 0.023 Kg

Read more less
