Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Brand LS Electric MPN XP10BKB/DC(EXP), XP10BKB/DC, LSS-XP10-BKA-DC(A), PLC, Programmabl Model XP10BKB/DC(EXP) Country of Origin South Korea

Read more less

Product Attribute Table Technical Attributes Brand LS Electric XGB Item Output module I/O Module Type Discrete Number of Output Points 32 Nominal Output Voltage 12-24 VDC Discrete Output Type Sinking Number of Non-Isolated Output Commons 1 Number of Points per Common 32 Load Current 0.2A/point, 2A/common External Power Requirement 24 VDC Requires XTB-40H terminal block and C40HH-xxSB-XBI cable Programming Software XG5000 programming software v4.7 or later

Read more less

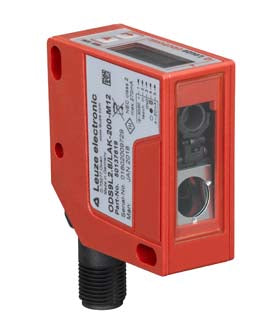

Series 9 Application Fill-level monitoringLength measurement in material cuttingObject measurement Type of scanning system Against object Special version Activation inputDeactivation inputTeach input Beam path Collimated Light source Laser, Red Wavelength 650 nm Laser class 2, IEC/EN 60825-1:2014 Transmitted-signal shape Pulsed Pulse duration 22,000 µs Light spot size [at sensor distance] 1 mm [450 mm] Type of light spot geometry Round Measurement range 50 ... 450 mm Resolution 0.1 mm Accuracy 1 % Reference value, accuracy Measurement distance Reproducibility (1 sigma) 0.1 mm Temperature drift 0.02 %/K Referencing No Optical distance measurement principle Triangulation Protective circuit Polarity reversal protectionShort circuit protectedTransient protection Supply voltage UB 18 ... 30 V, DC Number of digital switching inputs 1 Piece(s) Type Digital switching input Function Activation inputDeactivation inputTeach inputTrigger Number of analog outputs 1 Piece(s) Number of digital switching outputs 1 Piece(s) Switching power, max. 0.0012 W Type Configurable, factory setting: current Type Digital switching output Switching element Transistor, Push-pull Response time 1 ms, Under constant ambient conditions, 90% diffuse reflection, standard measure mode Readiness delay 300 ms Type IO-Link COM mode COM3 Profile Smart sensor profile Min. cycle time COM3 = 0.5 ms Frame type 2.V Port type A Specification V1.1 Device ID 2164 SIO-mode support Yes Process data IN 4 byte Process data OUT 8 bit Dual Channel Yes Number of connections 1 Piece(s) Function Signal INSignal OUTVoltage supply Type of connection Connector, Turning, 90° Thread size M12 Type Male Material Plastic No. of pins 5 -pin Encoding A-coded Dimension (W x H x L) 21 mm x 50 mm x 50 mm Housing material Plastic Lens cover material Glass Net weight 50 g Housing color Red Type of fastening Through-hole mountingVia optional mounting device Type of display LEDOLED display Number of LEDs 2 Piece(s) Operational controls Control buttonsPC software Ambient temperature, operation -20 ... 50 °C Ambient temperature, storage -30 ... 70 °C Ambient light sensitivity 20,000 lx, EN 60947-5-2 Degree of protection IP 67 Protection class III Approvals UL Customs tariff number 90318020 ECLASS 5.1.4 27270801 ECLASS 8.0 27270801 ECLASS 9.0 27270801 ECLASS 10.0 27270801 ECLASS 11.0 27270801 ECLASS 12.0 27270916 ECLASS 13.0 27270916 ECLASS 14.0 27270916 ECLASS 15.0 27270916 ECLASS 16.0 27270916 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 ETIM 9.0 EC001825 ETIM 10.0 EC001825

Read more less

Series 53C Operating principle Reflection principle Application Detection of highly transparent bottlesDetection of transparent films Special version AutocollimationHYGIENE design Operating range 0 ... 0.4 m (guaranteed operating range) Operating range limit 0 ... 0.5 m (typical operating range) Beam path Collimated Light source Laser, Red Wavelength 650 nm Laser class 1, IEC/EN 60825-1:2014 Max. laser power 0.0017 W Transmitted-signal shape Pulsed Pulse duration 5.3 µs Light spot size [at sensor distance] 1 mm [500 mm] Type of light spot geometry Round Shift angle Typ. ± 2° Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 15 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, Push-pull Switching principle IO-Link / light switching (PNP)/dark switching (NPN) Switching element Transistor, Push-pull Switching principle Dark switching (PNP)/light switching (NPN) Switching frequency 3,000 Hz Response time 0.17 ms Readiness delay 300 ms Type IO-Link COM mode COM2 Profile Smart sensor profile Min. cycle time COM2 = 2.3 ms Frame type 2.5 Specification V1.1 Device ID 6027 SIO-mode support Yes Number of connections 1 Piece(s) Function Signal INSignal OUTVoltage supply Type of connection Connector Thread size M8 Type Male Material Stainless steel No. of pins 4 -pin Dimension (W x H x L) 14 mm x 35.4 mm x 20.4 mm Housing material Stainless steel Stainless steel housing AISI 316L, DIN X2CrNiMo17132, W.No1.4404 Material of operational control Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive Housing roughness Ra ≤ 0,8, Typical value for the stainless steel housing Lens cover material Plastic (PMMA+) with scratch-resistant Indium protective coating Net weight 48 g Housing color Silver Type of fastening Housing fit Compatibility of materials CleanProof+ECOLABJohnson Diversey Type of display LED Number of LEDs 2 Piece(s) Operational controls Teach button Function of the operational control Light/dark switchingSensitivity adjustment Ambient temperature, operation -40 ... 60 °C, (70 °C ≤15min) Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 68IP 69K Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270902 ECLASS 8.0 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ECLASS 13.0 27270902 ECLASS 14.0 27270902 ECLASS 15.0 27270902 ECLASS 16.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 ETIM 9.0 EC002717 ETIM 10.0 EC002717

Read more less

Series 18 Operating principle Reflection principle Application Detection of highly transparent bottlesDetection of highly transparent films and glass panes Special version AutocollimationTracking function Operating range 0 ... 3 m (guaranteed operating range) Operating range limit 0 ... 4 m (typical operating range) Light source LED, Red Wavelength 660 nm Transmitted-signal shape Pulsed LED group 1 Type of light spot geometry Round Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC Current consumption, max. 35 mA Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 35 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, PNP Switching principle Dark switching Switching element Transistor, NPN Switching principle Light switching Switching frequency 1,000 Hz Response time 0.5 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal INSignal OUTVoltage supply Type of connection Connector Thread size M12 Type Male Material Stainless steel No. of pins 5 -pin Encoding A-coded Dimension (W x H x L) 15 mm x 50 mm x 33 mm Housing material Metal Metal housing Zinc Lens cover material Glass Net weight 75 g Housing color Red Type of fastening Mounting threadThrough-hole mounting Type of display LED Number of LEDs 4 Piece(s) Operational controls Step switch Ambient temperature, operation -25 ... 55 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 69K Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270902 ECLASS 8.0 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ECLASS 13.0 27270902 ECLASS 14.0 27270902 ECLASS 15.0 27270902 ECLASS 16.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 ETIM 9.0 EC002717 ETIM 10.0 EC002717

Read more less

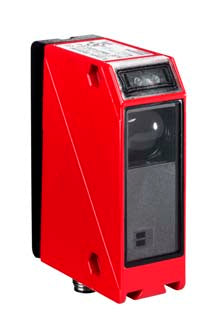

Series 96 Operating principle Throughbeam principle Device type Receiver Type 2, IEC/EN 61496 Performance Level (PL) c, EN ISO 13849-1:2008 MTTFd 400 years, EN ISO 13849-1 Mission time 20 years, EN ISO 13849-1 Category 2, EN ISO 13849 Protective circuit Polarity reversal protectionShort circuit protectedTransient protection Supply voltage UB 10 ... 30 V, DC Number of digital switching outputs 1 Piece(s) Switching element Transistor, PNP Switching principle Light switching Switching frequency 500 Hz Response time 1 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Terminal No. of pins 3 -pin Design Cubic Dimension (W x H x L) 30 mm x 90 mm x 70 mm Housing material Plastic Plastic housing PC Lens cover material Plastic Net weight 150 g Housing color Red Type of fastening Through-hole mounting Type of display LED Number of LEDs 2 Piece(s) Ambient temperature, operation -20 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 69K Protection class II Approvals TÜV Nordc UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 8.0 27272701 ECLASS 9.0 27272701 ETIM 5.0 EC001831 ETIM 6.0 EC001831

Read more less

SLE46C-40.K2/4P Single light beam safety device receiver Series: 46C Functions: Alignment indicator Connection: Cable Housing material: Plastic

Read more less

Series 3C Operating principle Diffuse reflection principle with background suppression Black-white error < 10% up to 170 mm Operating range Guaranteed operating range Operating range, white 90% 0.015 ... 0.4 m Operating range, gray 18% 0.015 ... 0.25 m Operating range, black 6% 0.015 ... 0.17 m Operating range limit 0.015 ... 0.4 m (typical operating range) Adjustment range 20 ... 400 mm Beam path Collimated Light source Laser, Red Wavelength 650 nm Laser class 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014) Max. laser power 0.0018 W Transmitted-signal shape Pulsed Pulse duration 5.1 µs Light spot size [at sensor distance] 1 mm [400 mm] Type of light spot geometry Round Shift angle Typ. ± 2° Protective circuit Overvoltage protectionPolarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 10 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, PNP Switching principle Light switching Switching element Transistor, PNP Switching principle Dark switching Switching frequency 3,000 Hz Response time 0.16 ms Decay time 0.16 ms Readiness delay 300 ms Response jitter 55 µs Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Cable Cable length 2,000 mm Sheathing material PUR Cable color Black Number of conductors 4 -wire Wire cross section 0.2 mm² Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic / PMMA Net weight 50 g Housing color Red Type of fastening Through-hole mountingVia optional mounting device Recommended tightening torque for M3 fastening 0.9 N·m Compatibility of materials ECOLAB Type of display LED Number of LEDs 2 Piece(s) Operational controls Multiturn potentiometer Function of the operational control Range adjustment Ambient temperature, operation -40 ... 55 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 69K Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270904 ECLASS 8.0 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ECLASS 13.0 27270903 ECLASS 14.0 27270903 ECLASS 15.0 27270903 ECLASS 16.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 ETIM 9.0 EC002719 ETIM 10.0 EC002719

Read more less

Area of application Food Design Rectangular Direction-dependent Yes Triple reflector size 0.3 mm Mounting dimension, width 14 mm Mounting dimension, height 36 mm Mounting dimension, thickness 20.3 mm Reflective surface, height 10 mm Reflective surface, width 29 mm Reflector material Plastic Material of base material Stainless steel Polarization-changing Yes Chemical designation, reflector material Stainless steel Structure, active surface Mikrotriple Net weight 50 g Type of fastening Housing fit Ambient temperature, operation -30 ... 70 °C Degree of protection IP 67IP 69K Customs tariff number 73269098 ECLASS 5.1.4 27279203 ECLASS 8.0 27279203 ECLASS 9.0 27273601 ECLASS 10.0 27273601 ECLASS 11.0 27273601 ECLASS 12.0 27273601 ECLASS 13.0 27273601 ECLASS 14.0 27273601 ECLASS 15.0 27273601 ECLASS 16.0 27273601 ETIM 5.0 EC002467 ETIM 6.0 EC002467 ETIM 7.0 EC002467 ETIM 8.0 EC002467 ETIM 9.0 EC002467 ETIM 10.0 EC002467

Read more less

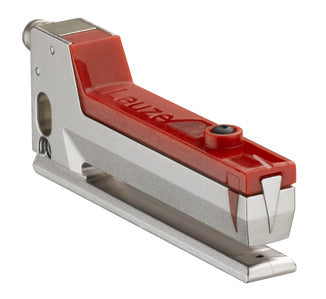

Series 63 Principle of physics Optical Application Detection of non-transparent labels Label width, min. 2 mm Label gap, min. 2 mm Medium Not transparent Light source LED, Infrared Wavelength 940 nm Transmitted-signal shape Pulsed Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 30 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Voltage type DC Switching current, max. 100 mA Switching voltage high: ≥(UB-2V)low: ≤ 2 V Switching element Transistor, Push-pull Switching principle Switching signal in label gap Switching element Transistor, Push-pull Switching principle Switching signal on label Switching frequency 10,000 Hz Response time 0.05 ms Readiness delay 300 ms Max. conveyor speed during teach-in 20 m/min Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Connector Thread size M8 Type Male Material Metal No. of pins 4 -pin Plug outlet Horizontal (parallel to belt movement) Design Fork Mouth width 3 mm Mouth depth 61 mm Dimension (W x H x L) 11 mm x 30 mm x 80 mm Housing material MetalPlastic Plastic housing PC Metal housing Diecast zinc, chemically nickel-plated Lens cover material Plastic/PC Net weight 55 g Housing color RedSilver Type of fastening Through-hole mountingVia optional mounting device Type of display LED Number of LEDs 2 Piece(s) Operational controls Teach button Ambient temperature, operation -20 ... 60 °C Ambient temperature, storage -30 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270909 ECLASS 8.0 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ECLASS 13.0 27270909 ECLASS 14.0 27270909 ECLASS 15.0 27270909 ECLASS 16.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 ETIM 9.0 EC002720 ETIM 10.0 EC002720

Read more less

Series 3B Operating principle Reflection principle Application Detection of small parts Operating range 0 ... 2 m (guaranteed operating range) Operating range limit 0 ... 3 m (typical operating range) Beam path Collimated Light source Laser, Red Wavelength 655 nm Laser class 1, IEC/EN 60825-1:2007 Mean life expectancy of laser 50,000 h Transmitted-signal shape Pulsed Light spot size [at sensor distance] 2 mm [0 mm] Type of light spot geometry Round Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC Current consumption, max. 15 mA Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 15 mA Number of digital switching outputs 1 Piece(s) Type Digital switching output Switching element Transistor, Push-pull Switching principle Light switching (PNP)/dark switching (NPN) Switching frequency 2,000 Hz Response time 0.25 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Cable with connector Cable length 200 mm Sheathing material PUR Cable color Black Wire cross section 0.2 mm² Thread size M8 Type Male Material Metal No. of pins 3 -pin Version Axial Dimension (W x H x L) 11 mm x 32 mm x 17 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic / PMMA Net weight 20 g Housing color Red, RAL 3000 Type of fastening Through-hole mounting Type of display LED Number of LEDs 2 Piece(s) Operational controls Teach button Ambient temperature, operation -40 ... 55 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 8.0 27270902 ECLASS 9.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717

Read more less

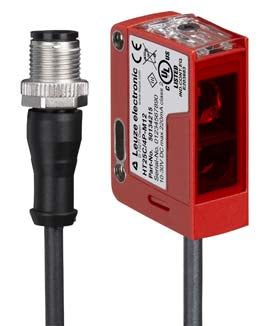

Series 25C Operating principle Diffuse reflection principle with background suppression Black-white error < 10% up to 400 mm Operating range Guaranteed operating range Operating range, white 90% 0 ... 1.2 m Operating range, gray 18% 0.005 ... 0.75 m Operating range, black 6% 0.005 ... 0.65 m Operating range limit 0 ... 1.2 m (typical operating range) Adjustment range 50 ... 1,200 mm Light source LED, Red Wavelength 640 nm Transmitted-signal shape Pulsed LED group Exempt group (in acc. with EN 62471) Protective circuit Polarity reversal protectionShort circuit protected Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 2 Piece(s) Type Digital switching output Switching element Transistor, PNP Switching principle Light switching Switching element Transistor, PNP Switching principle Dark switching Switching frequency 1,000 Hz Response time 0.5 ms Readiness delay 300 ms Number of connections 1 Piece(s) Function Signal OUTVoltage supply Type of connection Cable with connector Cable length 200 mm Sheathing material PUR Cable color Black Wire cross section 0.2 mm² Thread size M12 Type Male Material PUR No. of pins 4 -pin Encoding A-coded Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm Housing material Plastic Plastic housing ABS Lens cover material Plastic Net weight 33 g Housing color Red Type of fastening Through-hole mounting with M4 threadVia optional mounting device Recommended tightening torque for M3 fastening 0.9 N·m Recommended tightening torque for M4 fastening 1.4 N·m Compatibility of materials ECOLAB Type of display LED Number of LEDs 2 Piece(s) Operational controls Multiturn potentiometer Function of the operational control Range adjustment Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67IP 69K Protection class III Approvals c UL US Standards applied IEC 60947-5-2 Customs tariff number 85365019 ECLASS 5.1.4 27270904 ECLASS 8.0 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ECLASS 13.0 27270903 ECLASS 14.0 27270903 ECLASS 15.0 27270903 ECLASS 16.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 ETIM 9.0 EC002719 ETIM 10.0 EC002719
