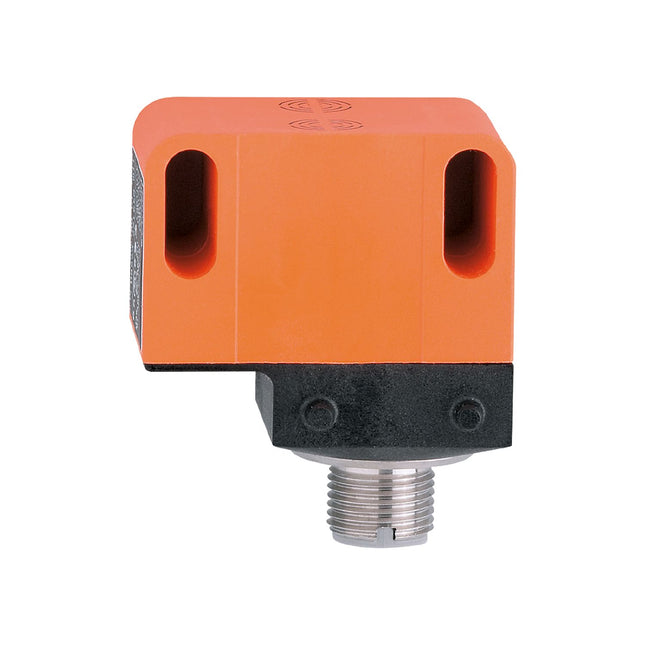

Product characteristics Electrical design PNP Output function 2 x normally open Sensing range[mm] 4 Housing rectangular Dimensions[mm] 40 x 26 x 47 Application Special feature Gold-plated contacts Application position sensor for valve actuators Electrical data Operating voltage[V] 10...30 DC Current consumption[mA] 15; (24 V) Protection class II Reverse polarity protection yes Outputs Electrical design PNP Output function 2 x normally open Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 200 Switching frequency DC[Hz] 1300 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Detection zone Sensing range[mm] 4 Real sensing range Sr[mm] 4 ± 10 % Operating distance[mm] 0...3.25 Accuracy / deviations Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 Hysteresis[% of Sr] 1...15 Switch point drift[% of Sr] -10...10 Operating conditions Ambient temperature[°C] -25...80 Protection IP 67 Tests / approvals EMC EN 60947-5-2 EN 55011 class B MTTF[years] 1064 UL approval Ta 0...40 °C Enclosure type Type 1 File number UL E174191 Mechanical data Weight[g] 57 Housing rectangular Mounting non-flush mountable Dimensions[mm] 40 x 26 x 47 Materials housing: PBT Displays / operating elements Display switching status 2 x LED, yellow Remarks Pack quantity 1 pcs. Electrical connection - plug Connector 1 x M12; coding: A; Moulded body: stainless steel; Contacts: gold-plated

Read more less

Usage For Industrial Sensing Distance 5 mm Output PNP Body Material Stainless Steel Voltage 30 V Sensor Type Inductive Sensor Current 15mA Brand IFM Model Name/Number GG712S Product Type Sensor Material Plastic Dimension M18 x 1 / L = 70 Usage/Application Industrial Response frequency 1000 Power supply voltage 250 V Protection circuits IP 67 Operating Frequency 1000 Dimension (W x H x L) M18 x 1 / L = 70 Maximum Switching Current 30 mA Weight 133 Availability In Stock View in Hindi GG712S IFM इंडक्टिव सेंसर, 5 मिमी Fail-safe inductive sensorGG712SGIGA4005-2PS/SIL2/US For ensuring machine safety Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849 No special actuator for electronic fail-safe sensors required Connection to safety PLC, safe AS-i modules or safe evaluation units

Read more less

Product Attributes Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer ifm efector, inc. Series - Packaging Box Part Status Active Sensor Type Inductive Sensing Distance 0.031" ~ 0.315" (0.80mm ~ 8mm) Output Type Analog Voltage Response Frequency - Shielding Unshielded Material - Body Nickel-Plated Brass, Polybutylene Terephthalate (PBT) Voltage - Supply 15V ~ 30V Termination Style Connector Operating Temperature -25°C ~ 80°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M18

Read more less

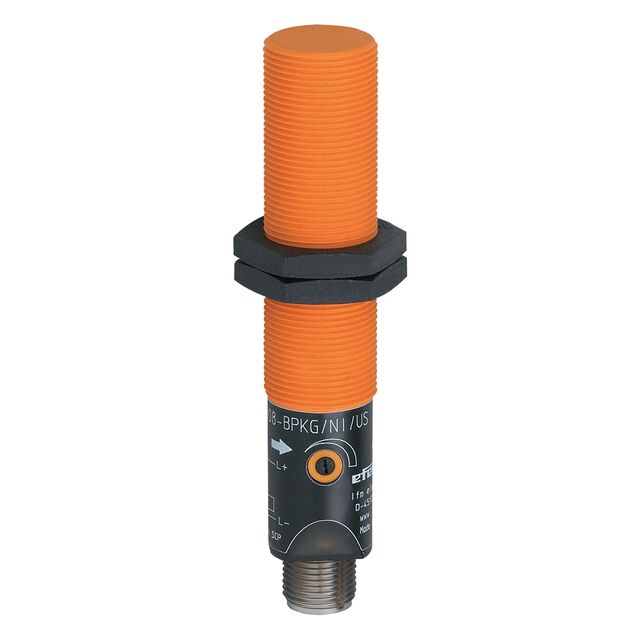

Functionality Type Sensor Sensor Type Capacitive Coolant Temperature Range -25...80 °C (Ambient temperature) Temperature Range -25...80 °C (Ambient temperature) Measurement Range 8 mm (Sensing range) Measurement Sensor Type Capacitive Thread Size M18 x 1 Instrument Type Sensor Part Type Transducer Application Industrial Mounting Type non-flush mountable Power Source DC Ports And Interfaces M12 Connector Wired Connectivity Yes Wireless Connectivity No Dimensions M18 x 1 / L = 93.8 mm Weight 29.4 g Shape threaded

Read more less

Functionality Type Sensor Measuring Media valve position Sensor Type Inductive Proximity Sensor Instrument Type Sensor Part Type Transducer Application valve position monitoring Measurement Range 4mm (sensing range) Measurement Sensor Type Inductive Proximity Sensor Thread Size M12 Display Indicator Type LED Highlighted Features Self-cleaning system, High shock and vibration resistance, IP67 Rated, Non-contact Mounting Type Non-flush mountable Output Signal PNP NO Output Ports And Interfaces M12 connector Wired Connectivity Yes Wireless Connectivity No Power Voltage 10-36V DC Power Source 10-36V DC Power Consumption 10-36V DC Dimensions 40 x 26 x 26 mm Material Stainless Steel, PBT, PC Shape Rectangular Top Use Cases valve position monitoring Typical Users industrial

Read more less

About this product Brand ifm

Read more less

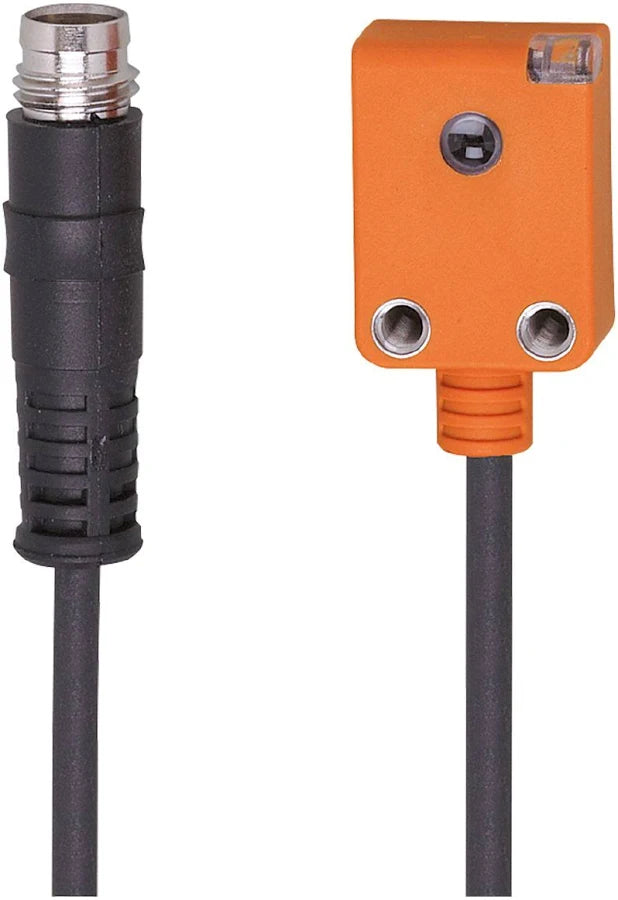

Functionality Type Sensor Sensor Type Photoelectric Measurement Range 1.5 m Measurement Sensor Type Through-beam Instrument Type Sensor Part Type Transducer Application Industrial Mounting Type Side sensing Display Type LED Display Backlight Yes Display Indicator Type LED Dimensions 1.5 m Color red Material PUR-Cable Weight 14.2 g Shape rectangular Ports And Interfaces M8 Connector Wired Connectivity Yes Wireless Connectivity No

Read more less

About this product Brand ifm

Read more less

Sensor Type Inductive sensor Instrument Type Sensor Part Type Sensor Application Industrial applications Temperature Range -25...70 °C (Ambient temperature) Measurement Range 1...8 mm (Enable zone) Measurement Sensor Type Inductive Measurement Response Time 20 ms (Risk time for safety-related faults) Thread Size M18 x 1 Functionality Type Sensor Modes Continuous operation (maintenance-free) Mounting Type Threaded type Included Hardware Lock nuts: 2 Highlighted Features Fail-safe Output Signal OSSD (A1 and A2) Ports And Interfaces M12 Connector Wired Connectivity Yes Wireless Connectivity No Power Voltage 30 V (Rated insulation voltage) Power Source DC Amperage < 30 mA (Current consumption), 100 mA (Permanent current rating of switching output DC) Power Consumption < 30 mA (Current consumption) Dimensions M18 x 1 / L = 70.5 mm Color Bright yellow (cap) Material Stainless steel (1.4571/316Ti ), PBT, PBT (Housing), Stainless steel (core body structure) Weight 129.5 g Shape Threaded type Top Use Cases Ensuring machine safety Typical Users Maintenance teams Sustainability Certifications SIL 2

Read more less

About this product Brand ifm

Read more less

About this product Brand ifm

Read more less

Brand ifm
