Specification Manufacturer Beckhoff Automation Type of automation module digital input Operating temperature -25...60°C IP rating IP20 Number of inputs 16 Communictions protocol EtherCAT Conform to the norm ATEX Ex UL Show similar products (100) Supply voltage 24V DC Gross weight58.96 g

Read more less

Technical data Technical data EL9400 EL9410 Input voltage 24 VDC Output current to supply the E-bus 2 A Power contact voltage 24 VDC Power contact current load max. 10 A Electrical isolation 500 V (E-bus/field voltage) Current consumption via E-bus - - Diagnostics no via LED and in the process image Electrical connection to mounting rail no Renewed infeed yes Connection facility to additional power contact 1 Side by side mounting on EtherCAT Terminals with power contact yes Side by side mounting on EtherCAT Terminals without power contact yes Bit width in process image - 2 diagnostic bits Configuration no address or configuration settings required Weight approx. 65 g Permissible ambient temperature range during operation 0 °C ... +55 °C -25 °C ... +55 °C Permissible ambient temperature range during storage -25 °C ... +85 °C -40 °C ... +85 °C Permissible relative air humidity 95 %, no condensation Dimensions (W x H x D) approx. 15 mm x 100 mm x 70 mm (width aligned: 12 mm) Installation on 35 mm mounting rail, conforms to EN 60715 Enhanced mechanical load capacity yes, see also Installation instructions for enhanced mechanical load capacity Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27 EMC immunity / emission conforms to EN 61000-6-2 / EN 61000-6-4 Protection rating IP20 Installation position variable, see chapter Mounting of passive terminals variable Approvals / markings* CE, cULus, UKCA, EAC, CCC, ATEX, IECEx CE, cULus, UKCA, EAC, CCC, ATEX, IECEx, DNV

Read more less

Technical data Technical data EL9400 EL9410 Input voltage 24 VDC Output current to supply the E-bus 2 A Power contact voltage 24 VDC Power contact current load max. 10 A Electrical isolation 500 V (E-bus/field voltage) Current consumption via E-bus - - Diagnostics no via LED and in the process image Electrical connection to mounting rail no Renewed infeed yes Connection facility to additional power contact 1 Side by side mounting on EtherCAT Terminals with power contact yes Side by side mounting on EtherCAT Terminals without power contact yes Bit width in process image - 2 diagnostic bits Configuration no address or configuration settings required Weight approx. 65 g Permissible ambient temperature range during operation 0 °C ... +55 °C -25 °C ... +55 °C Permissible ambient temperature range during storage -25 °C ... +85 °C -40 °C ... +85 °C Permissible relative air humidity 95 %, no condensation Dimensions (W x H x D) approx. 15 mm x 100 mm x 70 mm (width aligned: 12 mm) Installation on 35 mm mounting rail, conforms to EN 60715 Enhanced mechanical load capacity yes, see also Installation instructions for enhanced mechanical load capacity Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27 EMC immunity / emission conforms to EN 61000-6-2 / EN 61000-6-4 Protection rating IP20 Installation position variable, see chapter Mounting of passive terminals variable Approvals / markings* CE, cULus, UKCA, EAC, CCC, ATEX, IECEx CE, cULus, UKCA, EAC, CCC, ATEX, IECEx, DNV

Read more less

Measuring Range 100mm-1m Output Signal 0-10 V Installation Non Contact Standard target plate 100 mm x 100 mm Response delay About 45ms Nominal Sensing Distance 100 mm to 1000 mm Blind Zone 100 mm Transducer frequency About 224 KHz Beam Width 200 mm False Echo Rejection No Availability In Stock

Read more less

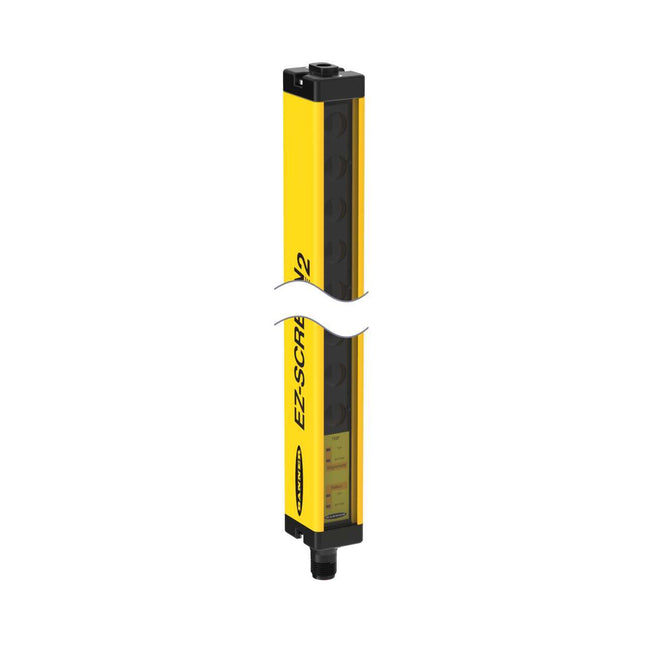

LS2TR30-150Q8 EZS TYPE2 R TRIP 30 mm x 150 mm

Read more less

LS2E30-150Q8 EZS TYPE2 E TRIP 30 mm x 150 mm

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Banner Engineering Corporation Series QS18 Packaging Box Part Status Active Sensing Method Retroreflective, Polarized Sensing Distance 118.110" (3m) Voltage - Supply 10V ~ 30V Response Time 400µs Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Red (625nm) Connection Method Cable Ingress Protection IP67, IEC, NEMA 6P Cable Length 78.74" (2m) Adjustment Type Adjustable, Potentiometer Operating Temperature -40°C ~ 70°C Base Product Number QS18VN6

Read more less

Product Attributes Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Banner Engineering Corporation Series QS18 Packaging Box Part Status Active Sensing Method Retroreflective, Polarized Sensing Distance 118.110" (3m) Voltage - Supply 10V ~ 30V Response Time 400µs Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Red (625nm) Connection Method Cable Ingress Protection IP67, IEC, NEMA 6P Cable Length 78.74" (2m) Adjustment Type Adjustable, Potentiometer Operating Temperature -40°C ~ 70°C Base Product Number QS18VN6

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Banner Engineering Corporation Series QS18 Packaging Box Part Status Active Sensing Method Retroreflective, Polarized Sensing Distance 118.110" (3m) Voltage - Supply 10V ~ 30V Response Time 400µs Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Red (625nm) Connection Method Cable Ingress Protection IP67, IEC, NEMA 6P Cable Length 78.74" (2m) Adjustment Type Adjustable, Potentiometer Operating Temperature -40°C ~ 70°C Base Product Number QS18VN6

Read more less

Specifications Primary brand Balluff Main function Encoder (Linear) Product series / family name Industrial sensors > Magnetostrictive Sub-range name Magnetostrictive sensors with standard rod Stroke length 610mm Functions Linear inductive encoder Design for 1 magnetfree-running (1ms refresh rate) Supply voltage (DC) 20-28Vdc (24Vdc nom.) Pressure 600bar Shape Hexagonal housing with rod Diameter 10.2mm diam. rod Connection type Pre-equipped with a 10-pin military standard MS/10 connector Communication protocol RS-422 Mounting mode Threaded (3/4"-16 UNF) flange mounting Digital outputs 1 x digital output (RS-422; 416kHz quadrature interface) Resolution ≤ 0.01mm / 10μm resolution Measurement accuracy +/-0.02%FS max. non-linearity< 11μm repeatability≤22μm reproductibility Degree of protection IP67 Material Anodized Aluminium housing Ambient air temperature for operation -40...+185°F / -40...+85 °C Current consumption 100mA current consumption max. at 24Vdc Customs Tariff Number 9031808085 Order code / Manufacturer SKU BTL0626 Manufacturer product status Commercialized Equivalent to BTL5Q1131M0610ZS140 Compliant with standard(s) cULusCEWEEEEAC Location of origin US Benefits BTL5 - Rod - Z series benefits- exceptionally well-suited for use in hydraulic cylinders for position feedback / for molding and rolling mills or for elevator and hoisting technology- the sensors are installed in the pressure area of the hydraulic cylinder and have the same pressure resistance as the cylinder itself

Read more less

Dimension 16 x 8 x 4.7 mm Style Housing 16x8x4.7 Installation for flush mounting Range 1.5 mm Switching output PNP normally open (NO)

Read more less

Dimension Ø 30 x 87 mm Series M30 Thread (A) M30x1.5 Installation for flush mounting Connection Connector, M12x1-Male, 4-pin
