Specifications Rated control supply voltage Us at AC 50HZ 0 V ... 0 V Rated control supply voltage Us at DC 24 V ... 24 V Nominal current 10 A Number of contacts as normally closed contact 2 Number of contacts as normally open contact 2 Number of contacts as change-over contact 2 Type of electric connection Plug-in connection;Plug-in connection With LED indication Yes Material contact Beryllium copper E-Number (SE) 4025228

Read more less

Item specifics Condition Used Seller Notes “An item has been previously used. It may have some signs of cosmetic wear, but is fully operational and functions as intended.”Read Lessabout the seller notes Country of Origin Japan Brand Beckhoff Type Stepper Motor Holding Torque Ingress Protection IP43 Operating Voltage 24/50VDC MPN AS1050-0120

Read more less

The BK9103 Bus Coupler connects PROFINET RT with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal. The Bus Couplers recognize the terminals to which they are connected, and perform the assignment of the inputs and outputs to the words of the process image automatically. The BK9103 Bus Coupler supports 10 Mbit/s and 100 Mbit/s Ethernet. Connection is through normal RJ45 connectors. The IP address is set on the DIP switch (offset to a freely selectable start address). In networks with DHCP (a service for the allocation of the logical IP address to the physical node address [MAC-ID]) the Bus Coupler obtains its IP address from the DHCP server. The BK9103 contains a 3-port switch. Two ports operate external on RJ45 connectors and can be utilized. The I/O stations can thus be configured with a line topology instead of the classic star topology. In many applications this significantly reduces the wiring effort and the cabling costs. The maximum distance between two couplers is 100 m. Up to 20 BK9103 Bus Couplers are cascadable, so that a maximum line length of 2 km can be achieved. PROFINET is the open Industrial Ethernet standard of the PNO (PROFIBUS Nutzerorganisation). Internationally established IT standards such as TCP/IP are used for communication. PROFINET RT describes the data exchange between controllers and field devices and can be used in standard Ethernet networks. Commercial switches are used for networking purposes. Technical data BK9103 Number of Bus Terminals 64 (255 with K-bus extension) Max. number of bytes fieldbus 512 byte input and 512 byte output Digital peripheral signals 512 inputs/outputs Analog peripheral signals 256 inputs/outputs Configuration via KS2000 Protocol PROFINET RT (Class B) Data transfer rates 10/100 Mbit/s, automatic recognition of the transmission rate Bus interface 2 x RJ45 (2-channel switch) Data transfer medium 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) Power supply 24 V DC (-15%/+20%) Input current 70 mA + (total K-bus current)/4, 500 mA max. Starting current 2.5 x continuous current Recommended fuse ≤ 10 A Current supply K-bus 1750 mA Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/fieldbus) Topology line or star wiring Distance between stations 100 m between hub/switch and bus coupler or between bus coupler and bus coupler Weight approx. 170 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 GcIECEx: Ex ec IIC T4 Gc Technical data Housing data

Read more less

Item specifics Condition Used Seller Notes “in good condition” Regulatory compliance FR269464_01ONKQ Manufacturer Part Number Does not apply EAN does not apply UPC does not apply ISBN does not apply Brand BECKHOFF MPN does not apply Country of Origin China

Read more less

The AS1000 stepper motors with flange codes from 42 to 86 mm (N1 = NEMA17, N2 = NEMA23, N3 = NEMA34) and torques from 0.4 to 5 Nm are ideally suited for use as auxiliary axes and positioning drives. They are characterized by robustness and high holding torques. Due to the integrated micro-stepping the motors can position very well even without a feedback system and require only a motion terminal for power electronics. Stepper motors can also be operated with TwinCAT NC PTP for synchronization functions such as cam plates or flying saws.

Read more less

Product information Technical data Ordering information Accessories Documentation and downloads Beckhoff Information System Further information Related products Technical data Housing data To top Technical data EL3062 Number of inputs 2 (single-ended) Power supply via the E-bus Signal voltage 0…10 V Distributed clocks – Internal resistance > 130 kΩ Input filter limit frequency 1 kHz Dielectric strength max. 30 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty < ±0.3% (relative to full scale value) Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all ESxxxx terminals Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, ATEX, IECEx Ex marking ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc

Read more less

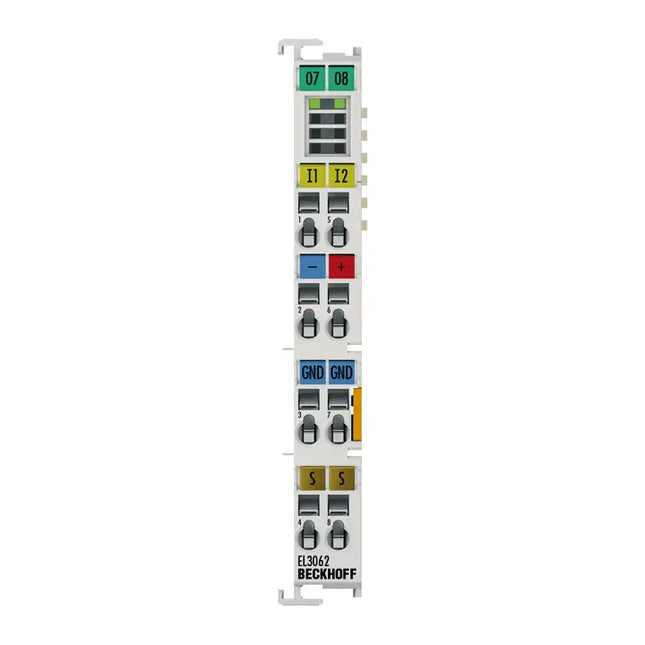

Technical data EL3062 Number of inputs 2 (single-ended) Power supply via the E-bus Signal voltage 0…10 V Distributed clocks – Internal resistance > 130 kΩ Input filter limit frequency 1 kHz Dielectric strength max. 30 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty < ±0.3% (relative to full scale value) Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all ESxxxx terminals Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, ATEX, IECEx Ex marking ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 Gc Technical data Housing data

Read more less

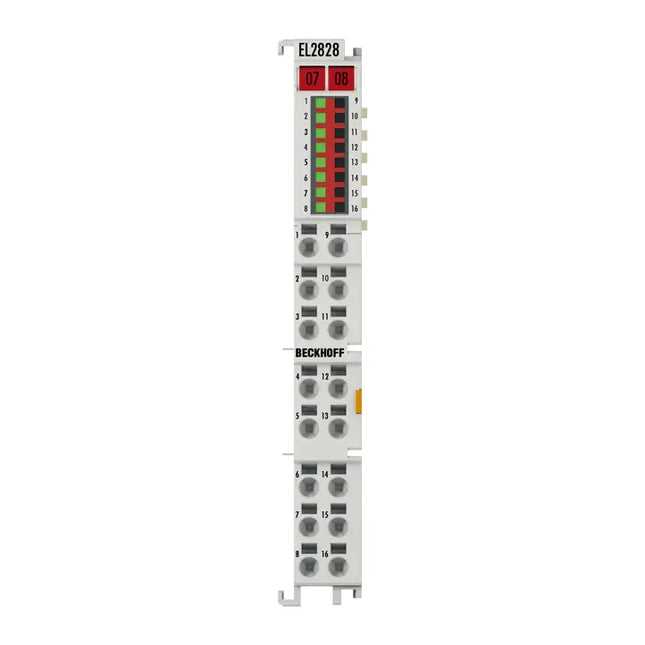

Technical data EL2828 Connection technology 2-wire Number of outputs 8 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, capacitive Distributed clocks – Max. output current 2 A per channel (∑ 10 A) Short-circuit current typ. < 40 A Reverse voltage protection yes Breaking energy < 1.2 J/channel Switching times typ. TON: 60 µs, typ. TOFF: 250 µs Current consumption E-bus typ. 110 mA Current consumption power contacts typ. 15 mA + load Bit width in the process image 8 outputs Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/vertical Approvals/markings CE, UL

Read more less

Number of Channels 16 Output Type Digital Model Name/Number EL2809 Brand BECKHOFF Power 24VDC Manufacturer Series EL2809 Usage/Application PLC Number of Inputs 16-channel digital output, 24 V DC, 0.5 A Availability In Stock The EL2809 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal has 16 channels, whose signal states are indicated by LEDs. The power contacts are connected through. The connection technology is particularly suitable for single-ended inputs. All components have to use the same reference point as the EL2809. In the EL2809 the outputs are supplied via the 24 V DC power contact. Special features: Connection of different load types possible (ohmic, inductive, lamp load) Max. output current 0.5 A per channel Overload and short-circuit proof outputs and reverse polarity protection Tool-free connection by direct plug-in technology for solid wire conductors Space-saving use in the control cabinet Direct connection of multi-channel actuators in 1-wire connection technology in the smallest space Increased packing density with 16 connection points in the housing of a 12 mm terminal block

Read more less

The EL1819 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has 16 channels, whose signal states are indicated by LEDs. The power contacts are connected through. With the EL1819, the reference ground for all inputs is the 0 V power contact. Special features: input specification type 1/3 low delay due to fast 10 µs input filter usable, for example, for inductive or capacitive sensors tool-free connection by direct plug-in technique for solid wire conductors space-saving use in the control cabinet direct connection of multi-channel sensors in 1-wire connection technology in the smallest space increased packing density with 16 connection points in the housing of a 12 mm terminal block Product status: regular delivery

Read more less

Technical data Housing data To top Technical data EL2809 Connection technology 1-wire Number of outputs 16 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Distributed clocks – Max. output current 0.5 A (short-circuit proof) per channel Short-circuit current typ. < 2 A Reverse voltage protection yes Breaking energy < 150 mJ/channel Switching times typ. TON: 60 µs, typ. TOFF: 300 µs Current consumption E-bus typ. 140 mA Current consumption power contacts typ. 35 mA + load Bit width in the process image 16 outputs Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV, cFMus Ex marking ATEX:II 3 G Ex ec IIC T4 GcIECEx:Ex ec IIC T4 GccFMus:Class I, Division 2, Groups A, B, C, DClass I, Zone 2, AEx ec IIC T4 Gc

Read more less

Specification Manufacturer Beckhoff Automation Type of automation module digital input Operating temperature -25...60°C IP rating IP20 Number of inputs 16 Communictions protocol EtherCAT Conform to the norm ATEX Ex UL
