DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module; 4096 I/O; 9,5 ns/com.; 60k steps; Ethernet int. FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 60K Program Memory Unit STEPS Local I/O Points 4.096 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 9,5 Cycle Time MOV (ns) 19 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,39 Product Dimensions & Weight Depth (mm) 89,3 Weight (kg) 0,22 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Model name Q06HCPU Overview Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 60K steps, basic operation processing speed (LD X0): 34 ns, program memory capacity: 240K bytes, external interface: USB/RS-232, with memory card interface Conformance standard UL cUL CE(EMC) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV Sales status Discontinued Discontinued date 2018/09 *Please check or inquire it in each overseas sales company site because the sale situation is different depending on each countries. Replacement models Q06UDVCPU

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC Q Series iQ CPU module; 1024 I/O; 60 ns/com.; 15k steps FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 15K Program Memory Unit STEPS Local I/O Points 1.024 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 60 Cycle Time MOV (ns) 120 USB 1 RS-232 1 Buffer Battery YES Int. Current Consumption (A) 0,33 Product Dimensions & Weight Depth (mm) 89,3 Weight (kg) 0,15 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 transistor outputs; sink FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 relay outputs FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 transistor outputs; sink FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 transistor outputs; sink FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 transistor outputs; sink FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 relay outputs FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS  PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 relay outputs FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

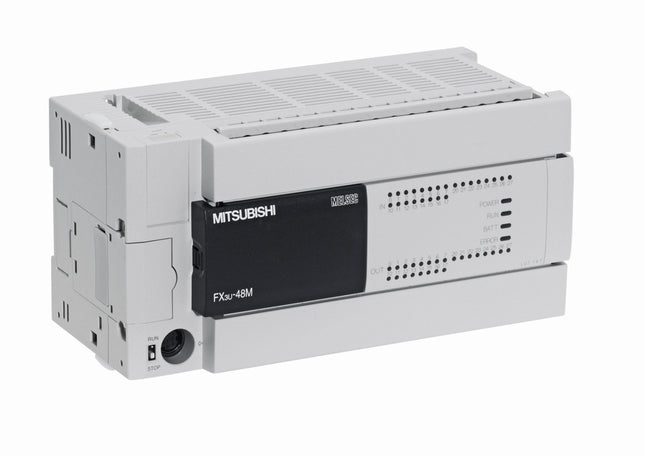

DELIVERY PERIOD : 1-2 WEEKS  PLC, FX3U Base Unit AC 100-240 V; 24 inputs DC 24 V; 24 transistor outputs; sink A-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 24 Integrated Digital Outputs 24 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 40 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 0,85 Width (mm) 182 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

PLC, FX3U Base Unit AC 100-240 V; 24 inputs DC 24 V; 24 relay outputs FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 24 Integrated Digital Outputs 24 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 40 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 0,85 Width (mm) 182 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less
