DELIVERY PERIOD : 1- 2 WEEKS FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,1 Inertia LOW INERTIA Rated Torque (Nm) 0,32 Maximum Torque (Nm) 1,1 Rated Speed (rpm) 3.000 Inertia (kg*cm2) 0,078 Brake NO Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4.194.304 Maximum Speed (rpm) 6.000 Protection Class IP65 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 82,4 Weight (kg) 0,54 Width (mm) 40 Height (mm) 41,7 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

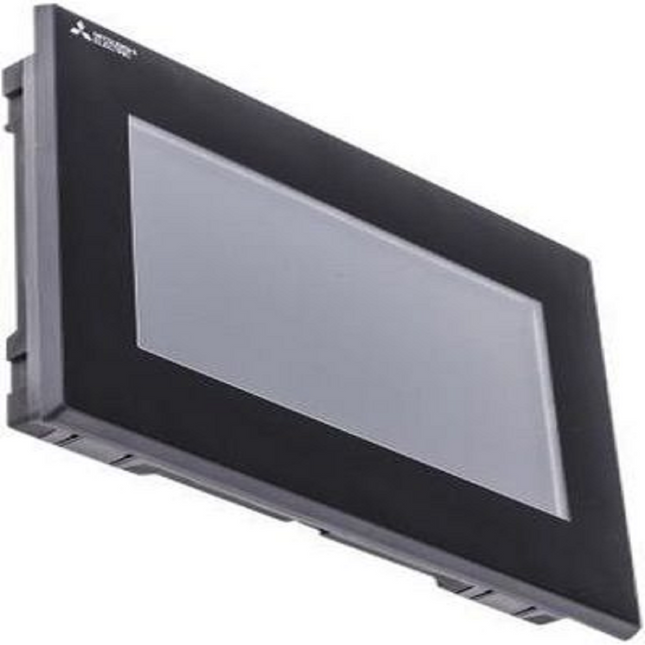

DELIVERY PERIOD : 1- 2 WEEKS FA-HMI: Human Machine Interface Series GOT SIMPLE SERIES Type GS21 MODEL Display TFT Display Colour 65.536 Display Size (Inch) 7 Resolution (Pixels) 800X480 Power Supply (V) 24 Current Type DC Protection Class IP65F Internal Memory Capacity (MB) 15 Memory Card Slot SD USB 1 Ethernet Port 1 RS-232 1 RS-422/485 1 Network Options MODBUS, CCLINK, ETHERNET Product Dimensions & Weight Depth (mm) 50 Weight (kg) 0,71 Width (mm) 206 Height (mm) 155 Conformity CE COMPLIANT Shipping Approvals NON-COMPLIANT EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

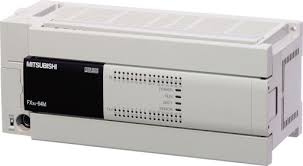

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

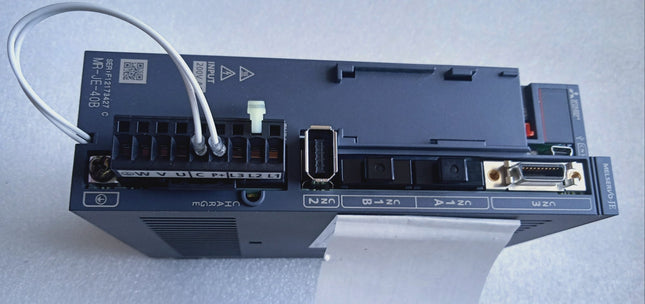

DELIVERY PERIOD : 1- 2 WEEKS Series MELSERVO-JE   Type MR-JE   Rated Capacity (kW) 0,4   Number of Axes 1   Power Supply (VAC) 1PHASE 230V  3PHASE 230V   Dynamic Break BUILT-IN   Product Dimensions & Weight Width (mm) 50   Height (mm) 168   Depth (mm) 135   Weight (kg) 0,8

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-SR Power Supply (V) 200 Rated Capacity (kW) 1,5 Inertia MEDIUM INERTIA Rated Torque (Nm) 7,2 Maximum Torque (Nm) 21,5 Rated Speed (rpm) 2.000 Inertia (kg*cm2) 18,2 Brake YES Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4.194.304 Maximum Speed (rpm) 3.000 Protection Class IP67 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 236 Weight (kg) 9,3 Width (mm) 130 Height (mm) 177,5 Conformity CE COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Type AC Voltage 113V Rated Output Capacity 200W Brand Mitsubishi Usage/Application Panasonic CM602 SMT Pick and Place Machine Model Name/Number HF-MP23B-S25 Input Phase 3-Phase

Read more less

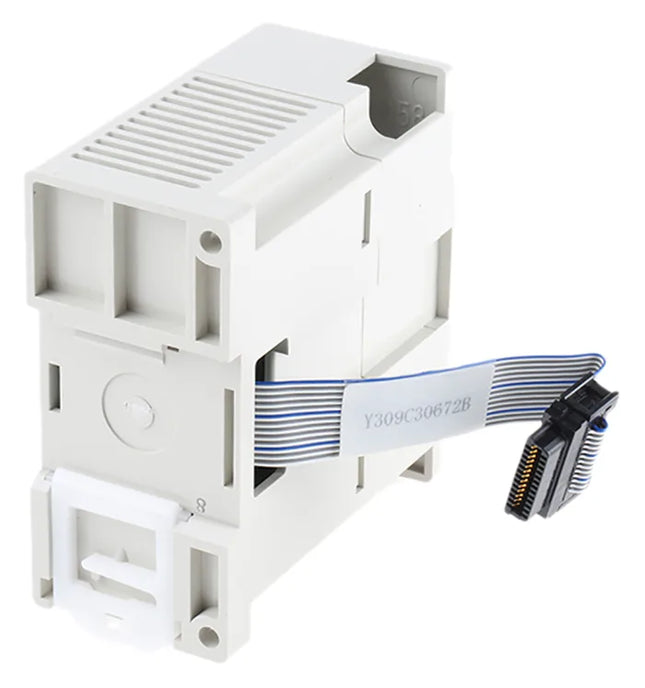

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 8 Integrated Digital Inputs 4 Integrated Digital Outputs 4 Output Type RELAY Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,2 Width (mm) 43 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals DNV GL EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-HMI: Human Machine Interface Series GOT SIMPLE SERIES Type GS21 MODEL Display TFT Display Colour 65.536 Display Size (Inch) 10 Resolution (Pixels) 800X480 Power Supply (V) 24 Current Type DC Protection Class IP65F Internal Memory Capacity (MB) 15 Memory Card Slot SD USB 1 Ethernet Port 1 RS-232 1 RS-422/485 1 Network Options MODBUS, CCLINK, ETHERNET Product Dimensions & Weight Depth (mm) 56 Weight (kg) 1,3 Width (mm) 272 Height (mm) 214 Conformity CE COMPLIANT Shipping Approvals NON-COMPLIANT EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Model name GT2705-VTBD Overview 5.7”, VGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 24 V DC Conformance standard UL cUL CE(EMC) CE(RoHS) KC LR NK DNV ABS RINA BV Sales status On sale Merit Advanced model with multi-touch gesture functions Zoom in to easily operate small and hard to reach switches.After zooming in, scroll the display to show the area you want to operate.Prevent accidental operations by designating two pressing points for critical operations. A wide variety of specifications suit every system design Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device and SD memory card are standard features. High capacity data processing ensure smooth screen operation even when multiple tasks, such as logging, script, alarm, or device data transfer, are running. With Backup/Restoration function, fear troubles no more!

Read more less

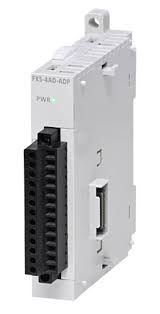

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Analogue I/O Module Series MELSEC IQ-F SERIES Type ANALOG INPUT Power Supply (V) 24 Current Type DC Integrated Analogue Inputs 4 Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5 Input Current Range (mA) -20-20; 0-20; 4-20 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Product Dimensions & Weight Depth (mm) 89,1 Weight (kg) 0,1 Width (mm) 17,6 Height (mm) 106 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS The Mitsubishi FX2N-8EYT is a digital I/O module in the MELSEC-F series, specifically designed as an 8-point output extension block for Mitsubishi's FX2N series of programmable logic controllers (PLCs). It expands the number of available outputs on a PLC by 8 points. The outputs are transistor-type and can be connected directly to the main unit or an expansion unit.  Here's a more detailed breakdown: Function: The FX2N-8EYT expands the output capabilities of a Mitsubishi FX2N PLC by providing 8 additional transistor-type outputs.  Part of MELSEC-F Series: This module is part of Mitsubishi's MELSEC-F series of PLCs, known for their compact size and versatility.  Output Type: The outputs are transistor-based, which are suitable for switching DC loads.  Connection: The module can be directly connected to the main FX2N PLC or to an expansion unit, and it receives its power from the connected unit.  Compatibility: This module is specifically designed for use with the FX2N series of PLCs.

Read more less

DELIVERY PERIOD : 1- 2 WEEKS The Mitsubishi Q02HCPU is a programmable logic controller (PLC) CPU module from the MELSEC-Q series. It's a high-speed, high-performance module known for its large program capacity and communication capabilities.  Here's a more detailed breakdown: Key Features: Model: Q02HCPU (MELSEC-Q series) Type: CPU (Central Processing Unit) PLC Platform: Mitsubishi Program Capacity: 28K steps Program Memory Capacity: 112K bytes Number of I/O Points: 4096 Number of I/O Device Points: 8192 Basic Operation Processing Speed (LD X0): 34 ns External Interfaces: USB and RS-232 Memory Card Interface: SD memory card, extended SRAM card  Discontinuation: The Q02HCPU has been discontinued by Mitsubishi Electric. The discontinuation date was September 2018. Sales situations may vary by region.  Other Information: The Q02HCPU is designed for high-speed, high-performance applications.  It supports communication with local protocols using external devices.  The Q02HCPU is part of the MELSEC-Q series, which is known for its modular design and scalability.

Read more less
