DELIVERY PERIOD : 1- 2 WEEKS FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-MR Power Supply (V) 200 Rated Capacity (kW) 0,2 Inertia ULTRA-LOW INERTIA Rated Torque (Nm) 0,64 Maximum Torque (Nm) 1,9 Rated Speed (rpm) 3.000 Inertia (kg*cm2) 0,087 Brake NO Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4.194.304 Maximum Speed (rpm) 6.000 Protection Class IP65 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 76,6 Weight (kg) 0,91 Width (mm) 60 Height (mm) 77,1 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-HMI: Human Machine Interface Series GOT2000 SERIES Type GT21 MODEL Display TFT Display Colour 65.536 Display Size (Inch) 5,7 Resolution (Pixels) 320X240 Power Supply (V) 24 Current Type DC Protection Class IP67F Internal Memory Capacity (MB) 9 Memory Card Slot SD USB 1 RS-232 1 RS-422/485 1 Network Options MODBUS, ETHERNET Product Dimensions & Weight Depth (mm) 56 Weight (kg) 0,7 Width (mm) 164 Height (mm) 135 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Brand Mitsubishi Usage/Application Automation Power 400W Voltage 200V Model Name/Number HC-KFS43 Speed 3000 RPM Input Phase Single Torque 1.3 Nm Motor Type AC The HC-KFS43 is a servo motor from Mitsubishi Electric's MELSERVO series. It is designed for precise speed and position control, featuring a rated power of 0.4 kW and a rated speed of 3000 rpm.15 This motor has a compact and sealed design, making it suitable for a variety of industrial applications.25 It includes an inbuilt electromagnetic brake for secure positioning and offers exceptional response and high linearity.2 The HC-KFS43 is part of the HC-KFS series and is known for its low inertia and high performance.12 It has a rated torque of 1.3 Nm and a rated current of 2.3 A, with a maximum torque of 3.8 Nm and a maximum speed of 4500 rpm.1 The motor also features a 17-bit (equivalent to 131072 pulses per revolution) absolute feedback encoder.5 It is rated for operation in an ambient temperature range of 0 to +40°C and has an IP55 rating.

Read more less

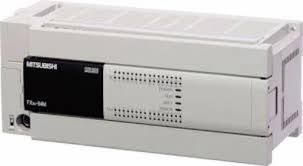

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Main Unit Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 32 Integrated Digital Outputs 32 Output Type TRANSISTOR Output Logic SOURCE Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 USB OPTION RS-422 1 Power Consumption (W) 45 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1 Width (mm) 220 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-MOD PLC: Network Module Series MELSEC-Q SERIES Type MASTER/LOCAL STATION Network Interface MODBUS RTU/MODBUS ASCII Product Dimensions & Weight Depth (mm) 90 Weight (kg) 0,2 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Dimensions   FX2N16EXESUL MODULAR EXTENSION UNIT DIGITAL 24 VDC 16 INPUTS SINK/SOURCE FOR USE W/ FX2N SERIES DIN RAIL MOUNT Specifications Part # FX2N-16EX-ES/UL Category PLCs/Machine Control Subcategory PLC Module/Rack

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MS-T SERIES MAGNETIC CONTACTOR Type NON-REVERSING, DC OPERATED Frame Size 65 Current Type DC TYPE Coil Voltage (V) 24 Rated Current (A) 3-PHASE AC690V: 38 Rated Capacity (kW) 3-PHASE AC220-240V: 18.5, 3-PHASE AC380-440V: 30, 3-PHASE AC690V: 30 Rated Voltage (V) 690 Number of Poles 3 No of Auxiliary Contacts NO 2 No of Auxiliary Contacts NC 2 Frequency Range (Hz) 50/60 Min. Ambient Temperature (°C) -10 Max. Ambient Temperature (°C) 40 Wiring SCREW-CLAMP Design / Styling STANDARD Compliant with Standard(s) EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 Mech. Durability (at no Load) 5 000 000 OPERATIONS Protection Class IP20 Product Dimensions & Weight Depth (mm) 133 Weight (kg) 2,15 Width (mm) 88 Height (mm) 106 Conformity CE COMPLIANT EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Type of Product Variable Frequency Drive Model No FR-D740-050-E16 Power Rating 2.2kW Series FR-D700 Height 128mm Supply Voltage 400 V Output Frequency 0.2 → 400Hz Width 108mm Motor Power Rating 3 HP Automation Grade Semi-Automatic Depth 129.5mm IP Rating IP20 Current 5A Phase Three Phase

Read more less

DELIVERY PERIOD : 1- 2 WEEKS FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 16 Integrated Digital Inputs 16 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,179 Width (mm) 40 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MELSERVO-J4   Type HG-SR   Rated Capacity (kW) 5   Rated Torque (Nm) 23,9   Maximum Torque (Nm) 71,6   Rated Speed (rpm) 2000   Maximum Speed (rpm) 3000   Inertia (kg*cm2) 109   Brake YES   Shaft Type STRAIGHT SHAFT   Protection Class IP67   Power Supply (V) 200   Current Type AC   Encoder Type 22-BIT   Encoder Resolution (p/rev) 4194304

Read more less

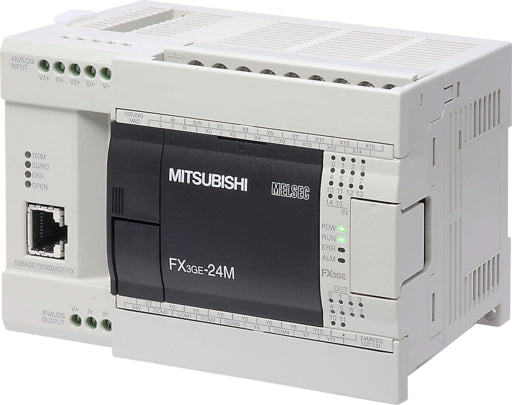

DELIVERY PERIOD : 1- 2 WEEKS Specification Value Type FX3G Power Supply (V) 100-240 Current Type AC Program Memory 32K STEPS Program Memory Unit EEPROM Integrated Digital Inputs 14 Integrated Digital Outputs 10 Output Type RELAY Local I/O Points 128 Local + Remote I/O Points 256 Expandable YES Cycle Time LD (ns) 210 Cycle Time MOV (ns) 500 Power Consumption (W) 32 Buffer Battery OPTION Protection Class IP10 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Depth (mm) 86 Weight (kg) 0,55 Width (mm) 90 Height (mm) 90 CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less
