Sensing head size M8 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 2 mm ±10% Setting distance 0 to 1.6 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 8 x 8 x 1 mm Response frequency 1500 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

Brand Omron Model Number E5CN-Q2HBT State In stock Condition New Original Warranty 12 months

Read more less

Specifications Primary brand OMRON Main function Sensor (Temperature) Product series / family name ES1-N series Functions Infrared (IR) non-contact temperature thermosensor Design thermopile elementnon-contact optical sensing Supply voltage (DC) 12Vdc-24Vdc Sensing distance 100mm (8mm target dia.) Temperature -50...+500°C Connection type 2m pigtail with connector and bare end flying leadsUSB pwr. connector Analog outputs 1 x analog output (4-20mA) Measurement accuracy USB output within +/-(-8%rdg+1)°C (Measurement temperature -50 to 0°C); within +/-1°C (0 to 200°C); within +/-0.5%rdg°C (200 to 500°C)current output (+/-0.1% of output range) °C or less Material Silicon lens Ambient air temperature for operation 0...+55 °C Ambient air temperature for storage -25...+55 °C Current consumption 30mA (at 24Vdc) Order code / Manufacturer SKU ES1-LP10-NES1LP10N Manufacturer product status Commercialized Equivalent to ES1LP10N EAN code 4549734162005 Compliant with standard(s) CE markingKCFCCRCM Benefits Measure workpieces without physical contact non-damaging; sanitary and efficient temperature managementMeasurement temperature -50 to 500°C and -50 to 1000°C types are available.High accuracy and fast measurement with +/-0.5°C reproducibility and a 0.14-second (95%) response time.You can use the ES1-TOOLS dedicated software (free download from our website) as a setting tool to monitor temperature and change the emissivity; moving average function and output range.Full lineup of laser pointer types. Location of origin Japan

Read more less

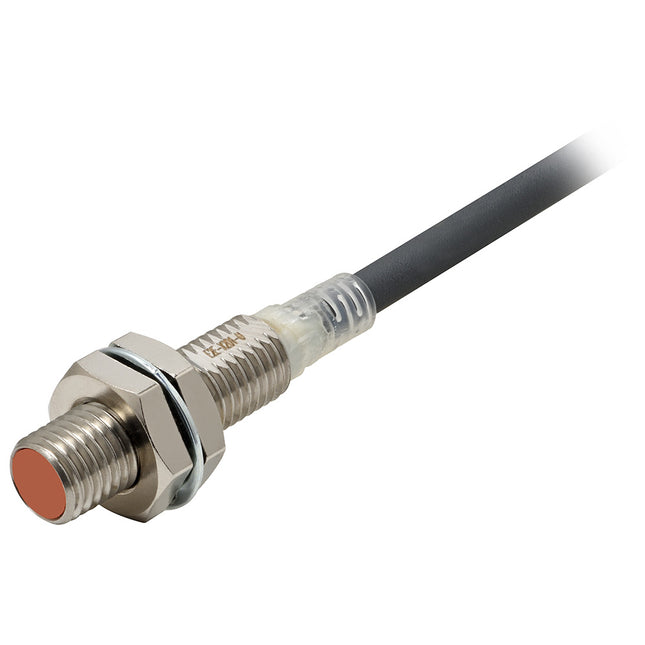

Technical Details Manufacturer ‎Omron Model number ‎E2E-X2D1-N 2M Item Weight ‎1 kg 360 g Item model number ‎E2E-X2D1-N 2M ASIN B00UYMC32C Date First Available 16 April 2019 Manufacturer Omron

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer Omron Automation and Safety Series E2E Packaging Bulk Part Status Active Sensor Type Inductive Sensing Distance 0.276" (7mm) Output Type NPN-NO, 2-Wire Response Frequency 500Hz Shielding Shielded Material - Body Nickel-Plated Brass Voltage - Supply 10V ~ 30V Termination Style Cable with Connector Operating Temperature -25°C ~ 70°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M18 Base Product Number E2E-X7

Read more less

Operating mechanism Snap action ctuator Plastic rodResin rod Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit G1/2Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 1.5 N max. Pre-Travel (PT) Standard value 15 ° max.

Read more less

Phase Three Phase Brand Omron Output Power 50 W Output Current 0.66 A Input Voltage 200–230 VAC Model Name/Number R88D-WNA5H-ML2 Motor Type Servo Drive 1 Phase Speed Range 3000 RPM Availability In Stock Omron R88D-WNA5H-ML2 AC Servo Drive  AC SERVO DRIVE .66 AMP 3 PHASE 0-230 V 0-300 HZ 50 W

Read more less

pecifications Mounting method With plug-in socket Usage General purpose, High power Poles 2 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description DPDT Features Diode, LED, Transparent case Terminal type Plug-in

Read more less

Mounting method With plug-in socket Usage General purpose, High power Poles 4 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description 4PDT Features Diode, LED, Transparent case Terminal type Plug-in

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches RoHS:   Brand: Omron Automation and Safety Illuminated: Non-Illuminated Product Type: Limit Switches Series: D4N 1 Subcategory: Switches Part # Aliases: D4N2132 Unit Weight: 82 g

Read more less

Type Temperature Measuring Resistor Thermocouple Type - Protective Tube Diameter D - Lead Wire Protection, L Selection - Operating Environment Standard / Heat Resistant Measurement Object Temperature Thermocouple Structure - Temperature Measuring Resistor Type Pt Temperature Measuring Resistor Structure Standard Operating Temperature Range -50～250 Number of Elements 1 Lead Wire Length M 2 Lead Wire Type Silicon Terminal Shape Exposed lead wire (Y-type crimp terminal)

Read more less

Sensing Range Max 3mm Operating Temperature Max 70°C Thread Size - Metric M12 Sensor Output Type SPST-NO Supply Voltage DC Min 12V Supply Voltage DC Max 24V Sensor Output Type 2-Wire, NO Sensor Terminals Cable IP Rating IP67 Sensor Type Inductive Proximity Sensor Sensing Distance Min - Sensing Distance Max - Sensing Distance Nom 3mm Supply Voltage Min 12VDC Supply Voltage Max 24VDC Sensor Case / Package Cylindrical M12 Thread Sensor Body Material 303 Stainless Steel Operating Temperature Min -25°C
