DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: General Purpose Relays RoHS:  Details Product: Power Relays Type: Bi-Power Relay Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 650 Ohms Coil Current: 36.9 mA Contact Material: Silver Alloy (Ag) Series: LY Length: 28 mm Width: 21.5 mm Height: 53 mm Brand: Omron Automation and Safety Contact Form: DPDT (2 Form C) Power Consumption: 900 mW Product Type: General Purpose Relays Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: 1133065 LY2NDC24NC LY2NDC24 Unit Weight: 40 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Configured Specifications Number of Relay Poles [Other] 2,4 Mounting Type Surface connection Wiring Method [Other] Screw Fastening Socket Type Square shape socket Number of Socket Pins 14 Safety standards UL / CSA Rated Current - Finger protection structure × Compatible Relay Series (Omron) MY Sockets for Proximity Sensors - Compatible Series - Socket for Level Equipment - Compatible Series - Compatible socket series for timers - Compatible socket series for counters - Compatible socket series for temperature regulators - Compatible socket series for signal converters - Compatible socket series for equipment protectors - Compatible socket series for HV power receivers - Compatible socket series for annunciators

Read more less

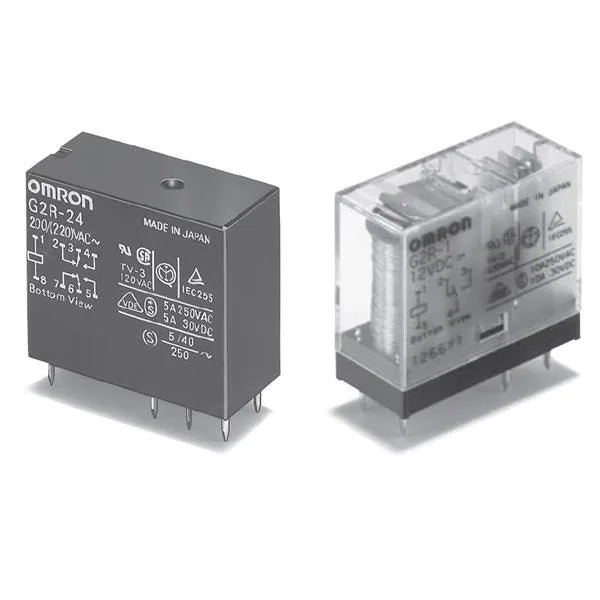

DELIVERY PERIOD : 1-2 WEEKS  Specifications Description Product Attribute Similar Manufacturer Omron Product Category General Purpose Relay Product Power Relays Type Standard Coil Voltage 24 VDC Relay Contact Form 2 Form C (DPDT-NO, NC) Contact Current Rating 5 A Contact Termination Solder Pin Mounting Style Through Hole Switching Voltage 380 VAC, 125 VDC Coil Termination Solder Pin Coil Type Non-Latching Coil Resistance 1.6 kOhms Coil Current 21.8 mA Contact Material Silver Alloy (Ag) Series G2R Length 29 mm Width 12.7 mm Height 25.5 mm Packaging Bulk Contact Form DPDT (2 Form C) Power Consumption 530 mW Product Type General Purpose Relays Subcategory Relays Part # Aliases G2R2DC24 G2R2DC24NC G2R2DC24BYOMI

Read more less

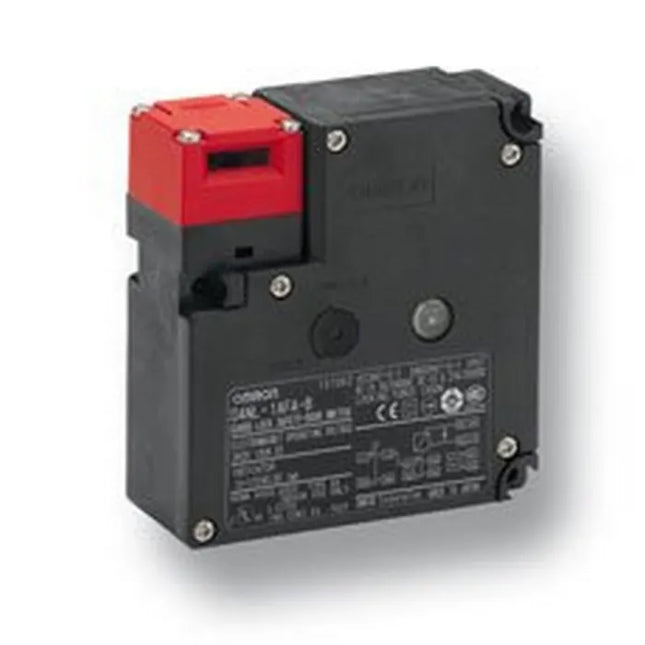

DELIVERY PERIOD : 1-2 WEEKS  Specifications Brand Omron Normal State Configuration 2NC/2NC Lock Type Mechanical Lock Connection Type PG13.5 Housing Material Plastic IP Rating IP67 Dimensions 95 x 88.5 x 35.5mm Series D4NL Length 95mm Width 88.5mm Maximum Operating Temperature +55°C Depth 35.5mm Standards Met CE Minimum Operating Temperature -10°C

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Configured Specifications Application Power Contact Configuration 2c Latch function NA Terminal shape Socket / plug-in Contact rated current (minimum value for AC and DC) 10 Coil rated voltage (DC) 24 Coil rated voltage (AC) - Representative Standard UL / TUV / CSA Dimension height 36 Dimension width 21.5 Dimension depth 28 Classification Standard Type Operation Indicator Lamp Available Latching Relay NA Upper Case Surface Mounting × Contact mechanism Single Note Solder Terminal Dual Use

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Shape/Structure Touch switches (M10) Operating mechanism Slow action ctuator Wire spring 0.6 dia.Stainless steel wireShort spring Electrical ratings Resistive load: 1 mA at 5 VDC to 10 mA at 30 VDC (resistive load) Frequency 50/60 Hz Contact form SPST-NC Cable specifications Oil-resistant cable, 2 cores, 5 mNominal sectional area: 0.08 mm2Diameter: 3 dia. Ambient temperature Operating: -10 to 70 ℃ (with no icing) Ambient humidity 35 to 95 % Permissible operating speed 5 to 500 mm/s Permissible operating frequency Electrical: 60 operations / 1 min max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 3.1 Ω max. Insulation resistance Between each terminal and non-live-metallic part: 100 MΩ min. (at 250 VDC) Dielectric strength Between each terminal of the same polarities: 250 VAC 50/60Hz 1 min (TTP)Between each terminal and non-live-metallic part: 1,000 VAC 50/60 Hz 1 min Durability Electrical: 5,000,000 operations min. (30 mA at 30 VDC)Mechanical: 10 million operations min. Vibration resistance Malfunction: 16.7 Hz, 1-mm double amplitude Shock resistance Destruction: 1,000 m/s2 max.Malfunction: 50 m/s2 max. Degree of protection IP67 Operating Force (OF) X-Y direction: Standard value 0.05 N max. Pre-Travel (PT) X-Y direction: Reference value 14 mm Total Travel (TT) X-Y direction: Reference value 30 mm Permissible Operating Force Standard value 0.49 N max.
