Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches Delivery Restrictions:  This item may require additional fees and documentation. Customs delays may also occur. RoHS:   Illuminated: Non-Illuminated Brand: Omron Automation and Safety Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP Product Type: Limit Switches Series: D4C 1 Subcategory: Switches Type: Limit Part # Aliases: D4C1802 Unit Weight: 540 g

Read more less

Light source (emitted wavelength) Red AIGALNN LED (620nm) Power supply voltage DC12 to 24V+-10% Ripple (P-P) 10% max. Power consumption (current consumption) 960mW max. (supply voltage 24V with current consumption 40mA max.) Control output Open collector output (NPN or PNP) Load current 50mA max. (Residual voltage 1.5V max.) L-ON and D-ON Country of Origin Made in India Availability In Stock

Read more less

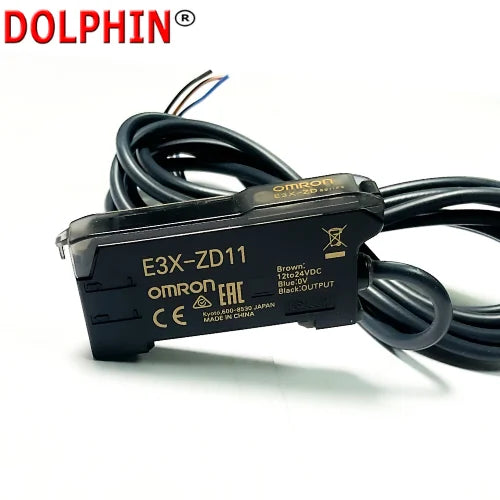

Specifications Shape Cuboid, rail mounting Sensing method Amplifier Setting method Teach-In Connection method Cable Cable length 2 m Output type NPN Operation mode Dark-ON, Light-ON Response time 0.05 ms Material housing Polycarbonate Product Width (unpacked) 10 mm Product Height (unpacked) 40.4 mm Product Depth (unpacked) 75 mm Type of light Polarity free red light Power supply voltage 12-24 V Functions Timer Application Object detection Number of numerical displays 2 Number of channels 1 Number of digital outputs 1 Number of digital inputs 0 Degree of protection (IP) IP50

Read more less

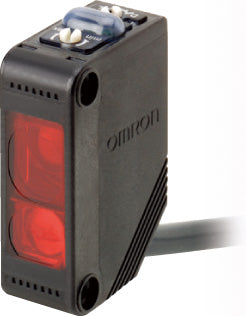

Shape Square type Sensing method Distance-setting Sensing distance 20 to 200 mm Setting range White paper 100 x 100 mm: 40 to 200 mmBlack paper 100 x 100 mm: 40 to 160 mm Detection range BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) Differential distance 10% max. of setting distance Reflectivity characteristic (black-white error) 10% max. of setting distance Light source Red LED (670 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting 5-turn endless adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Omron Automation and Safety Series E3Z Packaging Bulk Part Status Active Sensing Method Reflective, Diffuse Sensing Distance 0.787" ~ 7.874" (20mm ~ 200mm) ADJ Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Red (680nm) Connection Method Cable Ingress Protection IP67, IEC Adjustment Type Five-Turn Endless Adjuster Operating Temperature -25°C ~ 55°C

Read more less

As of July 25, 2024 Actuator Reverse hinge roller lever 9.5 dia. x 4Stainless steel lever, Plastic rollerRadius of curvature: R40.6 Contact form SPDT (Single-Pole, Double-Throw type)Ag Contact gap (standard value) 0.9 mm Terminal Screw terminal (M4) Load General load Rated current 10 A Ratings (DC) Non-Inductive load Resistive load: 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 10 A at 125 VDC, 3 A at 250 VDCLamp load (NC): 3 A at 8 VDC, 3 A at 14 VDC, 3 A at 30 VDC, 3 A at 125 VDC, 1.5 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC, 1.5 A at 14 VDC, 1.5 A at 30 VDC, 1.5 A at 125 VDC, 0.75 A at 250 VDCInductive load (NC): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 7.5 A at 125 VDC, 2 A at 250 VDCInductive load (NO): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 6 A at 125 VDC, 1.5 A at 250 VDCMotor load (NC): 5 A at 8 VDC, 5 A at 14 VDC, 5 A at 30 VDC, 5 A at 125 VDC, 2 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC, 2.5 A at 14 VDC, 2.5 A at 30 VDC, 2.5 A at 125 VDC, 1.5 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature -25 to 80 ℃ (with no freezing or condensation) Ambient humidity 35 to 85 % Permissible operating frequency Electrical: 20 operations / 1 minute max.Mechanical: 240 operations / 1 minute max. Contact resistance (Initial value) 15 mΩ max. Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between each terminal of the same polarities: 1,500 VAC 50/60 Hz 1 minBetween live-metallic part and ground: 1,500 VAC 50/60 Hz 1 minBetween each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min Durability Electrical: 100,000 operations min.Mechanical: 1,000,000 operations min. Degree of protection IP00 Degree of protection against electric shock Class I Proof tracking index(PTI) 175 Malfunction: 10 to 55 Hz, 1.5 mm double amplitude (Malfunction: 1 ms max.) Destruction: 1000 m/s2

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Switch Actuators RoHS:   Series: D4A Type: Lever For Use With: Limit Switches Designed for: D4A Series Brand: Omron Automation and Safety Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP Product: Actuators Product Type: Switch Actuators 1 Subcategory: Switch Accessories Part # Aliases: 4540554 D4AC00 Unit Weight: 81.648 g

Read more less

Type Description Select All Category Switches Accessories Manufacturer Omron Automation and Safety Series D4A Packaging Box Part Status Active Accessory Type Lever For Use With/Related Products D4A Series Base Product Number D4A

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Omron Automation and Safety Series E3Z Packaging Bulk Part Status Active Sensing Method Through-Beam Sensing Distance 590.551" (15m) Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Infrared (870nm) Connection Method Cable Ingress Protection IP67, IP69K, IEC Adjustment Type Single-Turn Operating Temperature -25°C ~ 55°C Base Product Number E3Z-T61

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Omron Automation and Safety Series E3Z Packaging Bulk Part Status Active Sensing Method Through-Beam Sensing Distance 590.551" (15m) Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration NPN - Dark-ON/Light-ON - Selectable Light Source Infrared (870nm) Connection Method Cable Ingress Protection IP67, IP69K, IEC Adjustment Type Single-Turn Operating Temperature -25°C ~ 55°C Base Product Number E3Z-T61

Read more less

Description Ultra-compact Pre wired Photo micro sensor Search Keywords: EESX951PW1M SPECS Product Attribute Attribute ValueSelect Attribute  Supplier: Omron Automation Part No: EESX951PW1M Unit of Measure: Per Each RoHS: Yes HTS: 8541408000 COO: JP ECCN: EAR99 Supplier Standard Pack:  1 Dimension: 13.4 x 12 x 12 mm Mounting: Screw

Read more less

Contact Material: Phosphor Bronze Contact Plating: Gold Over Nickel Operating Temp Range: -25C to 70C Current Rating (Max): 4(A) Cable Type: Sensor Voltage Rating Max: 250VDC/250VAC Connector Type: Circular to Circular Cable Length: 10(m) Gender: F-M Connector Type A: M12 CIRCULAR Connector Type B: M12 CIRCULAR
