Description:Photoelectric sensor, narrow beam, diffuse, 90±30mm, DC, 3-wire, NPN, 2m cable 100% insured shipping: A guarantee for your purchases Express delivery: Worldwide delivery by DHL express courier

Read more less

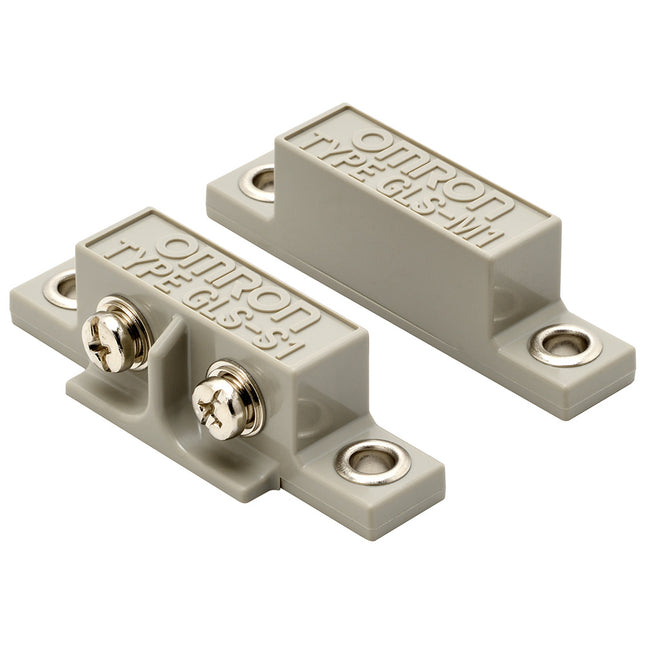

Sensing head size 50 mm x 14 mm x 14 mm Type Square type, Magnetic type Sensing distance 15 mm Response frequency 20 Hz max. Ambient temperature (Operating) -20 to 60 ℃ Ambient temperature (Storage) -20 to 60 ℃ Ambient humidity (Operating) 35 to 85 % Ambient humidity (Storage) 35 to 85 % Dielectric strength Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 300 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP40 Connection method Terminal block models Material Sensor: ABSMagnet: ABS

Read more less

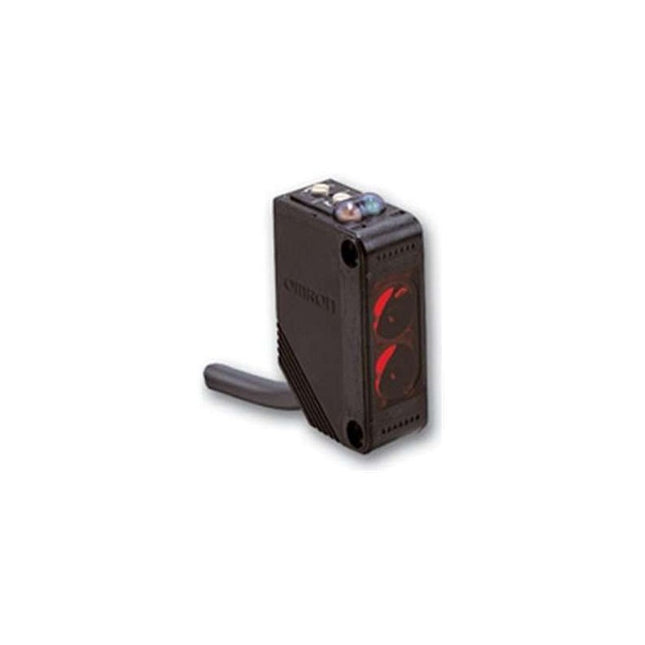

Shape Square type Sensing method Diffuse-reflective Sensing distance White paper 100 x 100 mm: 100 mm Differential distance 20% max. of sensing distance Light source Infrared LED (860 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output PNP open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

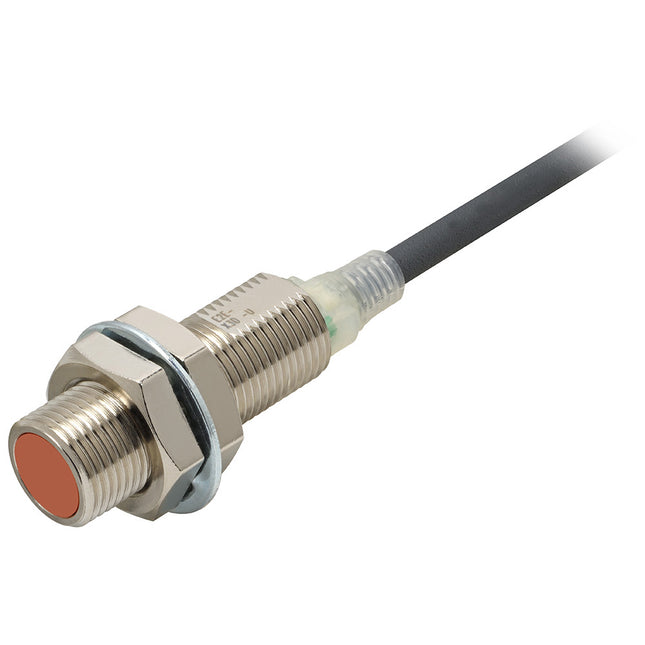

Sensing head size M12 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 3 mm ±10% Setting distance 0 to 2.4 mm Operation mode NO   Sensing head size M12 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 3 mm ±10% Setting distance 0 to 2.4 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 12 x 12 x 1 mm Response frequency 1000 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Brass nickel platingSensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

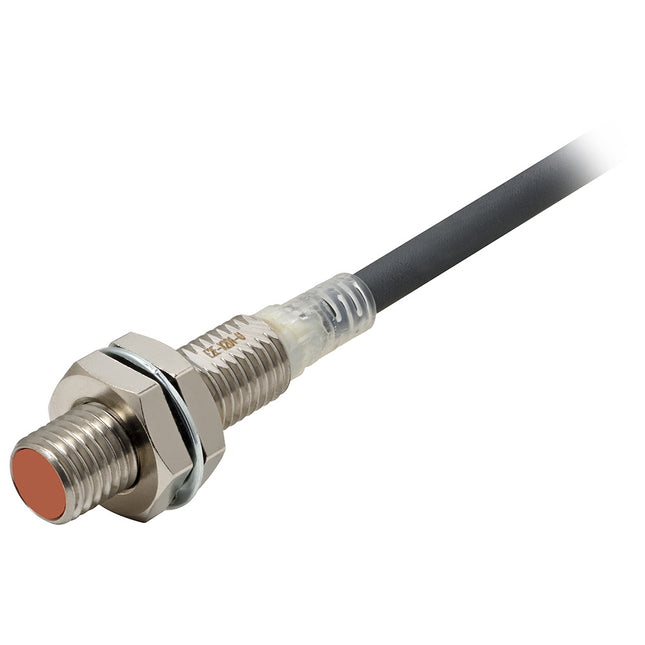

Sensing head size M8 Type Cylinder type (with screw), Shielded Power source DC 2-wire models Sensing distance 2 mm ±10% Setting distance 0 to 1.6 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 8 x 8 x 1 mm Response frequency 1500 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Material Case: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Basic / Snap Action Switches Delivery Restrictions:  This item may require additional fees and documentation. Customs delays may also occur. RoHS:   REACH - SVHC: Series: Z Type: General Purpose Contact Form: SPDT Switch Function: ON - (OFF), OFF - (ON) Actuator: Roller Plunger Current Rating: 15 A Voltage Rating AC: 250 VAC Voltage Rating DC: 14 VDC Operating Force: 3.43 N Termination Style: Screw Mounting Style: Chassis Mount IP Rating: IP00 Actuator Style: Roller Plunger Brand: Omron Automation and Safety Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP Illuminated: Non-Illuminated Product Type: Snap Action Switches 1 Subcategory: Switches Part # Aliases: 1181278 Z15GQ21BNC Z15GQ21B Unit Weight: 45 g

Read more less

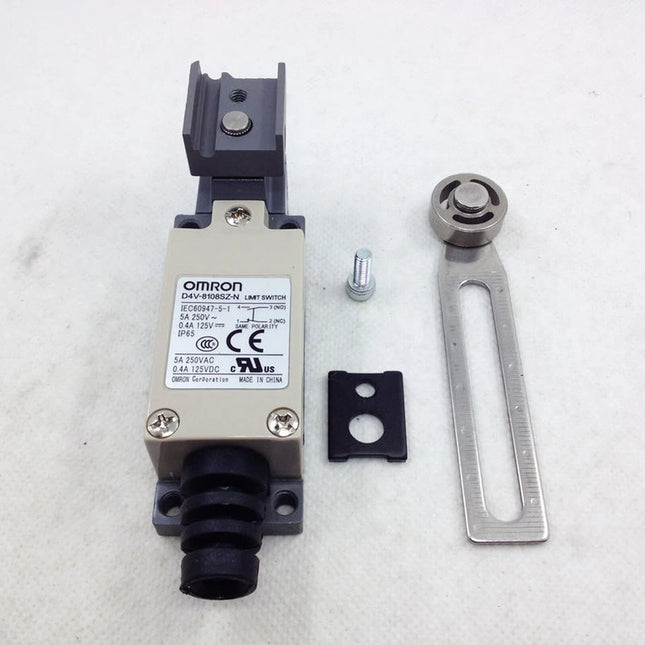

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Country of Origin Japan Brand Omron MPN Does Not Apply Model D4V-8108SZ-N Controller Platform Automate

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab Country of Origin Japan Brand Omron MPN Does Not Apply Model D4V-8108SZ-N Controller Platform Automate

Read more less

Ratings Product classification Relay compatible Isolation method Photocoupler Operating indicator Equipped Terminal structure Plug-in terminal Mounting Socket Input Rated voltage 5 to 24 VDC Operating voltage range 4 to 28 VDC Input impedance 1.5 kΩ+20% -10% Maximum operating range Operate voltage 4 V max.DC Release voltage 1 V min.DC Output Rated load voltage 4 to 48 VDC Load voltage range 3 to 52.8 VDC Load current 0.1 to 3 A (at 40 ℃) Inrush current resistivity 18 A (10 ms) Performance Operate time 0.5 ms max. Release time 2 ms max. Output ON voltage drop 1.5 V max. Leakage current 5 mA max. (at 50 VDC) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 1500 VAC 50/60 Hz 1 min Vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Shock resistance 1000 m/s2 Ambient temperature (Operating) -30 to 80 ℃ (with no freezing or condensation) Ambient temperature (Storage) -30 to 100 ℃ (with no freezing or condensation) Ambient humidity (Operating) 45 to 85 % Weight Approx. 50 g Other feature Certified by UL, CSA, and EN (VDE) Connecting socket PYF-08-PU/ PY08-02/ PYFZ-08/ PYFZ-08-E

Read more less

Specifications Door switch type Key-operated Guard-lock Material housing Resin Material head Resin Ambient temperature (operating) -30-70 °C Direction of operation Adjustable Door contacts NC 2 Door contacts NO 0 Switch action Slow action Make before break LED indicator Connection method Terminal block Cable length 0 m Degree of protection (IP) IP67 Conduit size M20 Number of conduits 1 Shape Cuboid Overall length of sensor 96 mm Height of sensor 30 mm Width of sensor 31 mm

Read more less

EU RoHS Compliant ECCN (US) EAR99 Part Status Active HTS 8542.39.00.90 Automotive No PPAP No Type Transmissive Number of Channels per Chip 1 Gap Width (mm) 5 Peak Wavelength (nm) 940 Output Device Transistor Maximum Collector Current (mA) 100 Maximum Collector-Emitter Voltage (V) 24 Minimum Operating Temperature (°C) -25 Maximum Operating Temperature (°C) 55 Mounting Screw Package Height 26 Package Width 13.7 Package Length 26 PCB changed 4 Pin Count 4 Lead Shape Cable

Read more less

EU RoHS Compliant ECCN (US) EAR99 Part Status Active HTS 8542.39.00.90 Automotive No PPAP No Type Transmissive Number of Channels per Chip 1 Gap Width (mm) 5 Peak Wavelength (nm) 940 Output Device Transistor Maximum Collector Current (mA) 100 Maximum Collector-Emitter Voltage (V) 24 Minimum Operating Temperature (°C) -25 Maximum Operating Temperature (°C) 55 Mounting Screw Package Height 26 Package Width 13.7 Package Length 26 PCB changed 4 Pin Count 4 Lead Shape Cable
