anufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Brand: Omron Automation and Safety Cable Length: 2 m Coding: C Coded Connection Method: Pre-Wired Cable IP Rating: IP67 Maximum Frequency: 500 Hz Maximum Operating Temperature: + 70 C Measuring Range - Max: 7 mm Minimum Operating Temperature: - 25 C Mounting Style: Cable Mount Output Type: NO Product Type: Proximity Sensor Series: E2E 1 Subcategory: Sensors Supply Voltage - Max: 24 VDC Supply Voltage - Min: 12 VDC Technology: Inductive Part # Aliases: 1608308 E2EX7D1N Unit Weight: 240.408 g

Read more less

Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:   Sensing Method: Diffuse Reflective Sensing Distance: 20 mm to 200 mm Light Source: Red LED Output Configuration: NPN Connection Method: Pre-Leaded Brand: Omron Automation and Safety Features: Adjustable sensing distance Product Type: Photoelectric Sensors Series: E3Z

Read more less

DELIVERY PERIOD : 1-2 WEEKS Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 15 m, PNP open collector, Pre-wired model, 2 m Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method Pre-wired models

Read more less

Sensing Range Max 3mm Operating Temperature Max 70°C Sensing Distance Min - Sensing Distance Max - Sensing Distance Nom 3mm Supply Voltage DC Max 24V Sensor Output Type 2-Wire, NO Sensor Terminals Cable IP Rating IP67 Sensor Type Inductive Proximity Sensor Thread Size - Metric M12 Sensor Output Type SPST-NO Supply Voltage DC Min 12V Supply Voltage Min 12VDC Supply Voltage Max 24VDC Sensor Case / Package Cylindrical M12 Thread Sensor Body Material 303 Stainless Steel Operating Temperature Min -25°C

Read more less

Product Description [CP30-BA] a combination of advanced breaker technology. Small, high performance circuit protector    Rated block capacity When AC 250 V 2.5kA Rated block capacity When DC 60 V - Rated block capacity voltage conditions besides AC 250 V/DC 60 V Available Number of Poles 2-Pole Rated Voltage AC250V / DC125V Rated Current 5 Operating properties Medium speed Polarity presence NA Warning output presence NA Representative Standard PSE / CE / UL / TUV / CCC / CSA Dimension height 73 Dimension width 35 Dimension depth 65 Inertial delay included × Connection Method Screw P1 internal circuit specification Series shape P2 internal circuit specification Serial type support switch (for general load) P3 internal circuit specification - Rated block capacity when DC 120 V - Rated block capacity when AC 230 V - Rated block capacity when DC 65 V - Rated block capacity When DC 125 V 2.5

Read more less

FA-COM PLC: Digital I/O Module Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 8 Integrated Digital Inputs 8 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,18 Width (mm) 43 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals DNV GL EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

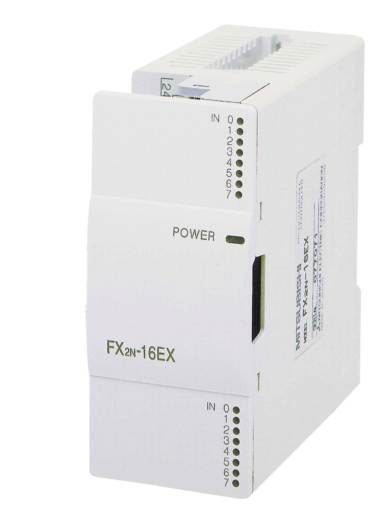

DELIVERY PERIOD : 1- 2 WEEKS Dimensions   FX2N16EXESUL MODULAR EXTENSION UNIT DIGITAL 24 VDC 16 INPUTS SINK/SOURCE FOR USE W/ FX2N SERIES DIN RAIL MOUNT Specifications Part # FX2N-16EX-ES/UL Category PLCs/Machine Control Subcategory PLC Module/Rack

Read more less

Series MELSEC-F SERIES Type FX2N Occupied I/O Points on PLC 16 Integrated Digital Inputs 16 Product Dimensions & Weight Depth (mm) 87 Weight (kg) 0,14 Width (mm) 40 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals BV,DNV,LR EAC NON-COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Specification Value Series MELSEC IQ-F SERIES Type DC INPUT (SINK/SOURCE) Occupied I/O Points on PLC 8 Integrated Digital Inputs 8 Depth (mm) 83 Weight (kg) 159 Width (mm) 40 Height (mm) 90 Power Supply (V) 24 Current Type DC

Read more less

Primary brand Mitsubishi Electric Main function Cable Functions Electromagnetic brake cable / cordset for servo mtr. Design opposite to load-side lead; lead-out Connection type servo mtr. connectorbare end flying leads Length 30cm Degree of protection IP55 Technical compatibility with HF-SPHC-LPHC-RPHC-UPHA-LPHF-KPHG-KRHG-KNHF-MPHG-MR series Order code / Manufacturer SKU MR-BKS2CBL03M-A2-L Manufacturer product status Commercialized Equivalent to MRBKS2CBL03MA2L

Read more less

Type Grooved Type (L-shaped) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm Light source （Peak wavelength） GaAs infrared LED (940 nm) Indicator No incident light (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA max. Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 3 kHz max. Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no icing)Storage: -30 to 80 ℃ (with no icing) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 10 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP64 IEC60529 Connection method Pre-wired models Cable length 2 m Weight Package: Approx. 20 g Material Case: Polybutylene terephthalate (PBT)

Read more less
