DELIVERY PERIOD : 1-2 WEEKS [Features]· Small 4-point output terminal SSR.· Small SSR (model G3S, 4 pcs. equipped) and socket, easy-to-use SSR with integrated radiator.· Terminal has IN/OUT isolated construction, so wiring is simple.· Includes operation display LED.· Dedicated socket allows for easy relay replacement.· Shared DIN rail mounting, screw mounting.

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Sensor Fixings & Accessories Brand: Omron Automation and Safety Product Type: Sensor Hardware Factory Pack Quantity: 1 Subcategory: Sensors Part # Aliases: EE1017R1M

Read more less

Solid State Relays - PCB Mount PHOTOTRIAC W/IND ZERO CRS FTN 5-24VDC

Read more less

Manufacturer: Omron Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Bi-Power Relay Coil Voltage: 24 VDC Relay Contact Form: 2 Form C (DPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 250 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 650 Ohms Coil Current: 36.9 mA Contact Material: Silver Alloy (Ag) Series: LY Length: 28 mm Width: 21.5 mm Height: 53 mm Brand: Omron Automation and Safety Contact Form: DPDT (2 Form C) Power Consumption: 900 mW Product Type: General Purpose Relays 1 Subcategory: Relays Part # Aliases: 1133065 LY2NDC24NC LY2NDC24 Unit Weight: 40 g General Purpose Relays PLUG-IN DPDT 24VDC

Read more less

Type [Photoelectric Sensor] Photoelectric sensor Detected Objects Opaque Objects Light Axis Arrangement Type Use of Emitting and Receiving Integrated Reflection Plate Beam Shape Standard Light Source [Red] Red light emitting diode Head Shape [Square] Square shape Case Material [Plastic] Polybutylene Terephthalate Amplifier Installation Type Amplifier Built-in Type Detection Distance [Classification] ~4000 Reflection Type Detection Method [Retroreflective] Retro-Reflective Shape (With MSR Function) Operating Environment Standard / Cold Resistance Ambient Operating Temperature -25～55 Ambient Operating Temperature 35～85 Protection Structure IP67 Head Maximum Size Width 20 Head Maximum Size Height 10.8 Head Maximum Size, Depth 33.1 Power Supply Voltage 12-24 V DC Output Mode PNP open-collector Operation Mode Light ON/Dark-ON (selectable) Cable Length 2 Spot Dia. - Response Time (Standard Mode) 1 Accessories (Dedicated Reflective Plate, Etc.) - Overview - Strength (Tightening) 0.5 or less (M3 screws) Connection Method - - - Product Description The standard for photoelectric sensors. Produced in volumes of 1 million units per year.[Features]· Long-distances: Thru-beam type / 30 m; Retroreflective type / 4 m; Diffuse reflection type / 1 m.· Easy to adjust the optical axis: Deviation between the optical axis and machine axis is within ±2.5°.· High stability: Proprietary algorithm that prevents ambient light from affecting performance.

Read more less

[Features]· Magnetic proximity sensor that is easy to handle.· Proximity sensor to operate reed switch with permanent magnet.· Ideal for detection of opening and closing of door.

Read more less

Description Product Attribute Manufacturer Omron Product Category Relay Sockets & Hardware Product Relay Sockets Packaging Each Product Type Relay Sockets & Hardware Subcategory Relays

Read more less

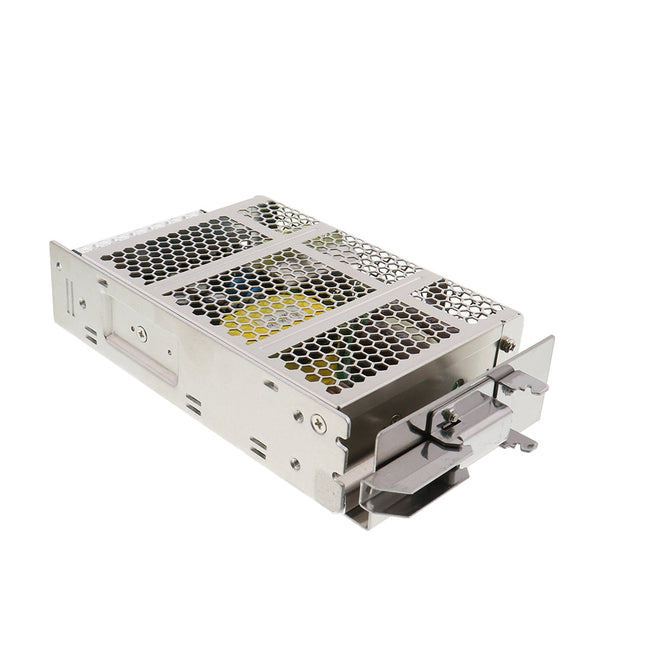

ower supply that is the best fit for machine tools and semiconductor manufacturing equipmentIn addition to the excellent basic functions that ensure reliability, it has sufficient compliance with standards and superior usability[Features]· Transformer for control circuit is unnecessaryUses an IEC 61558-2-16 compliant transformer· Easier certification of safety standardsAll standard models are UL 508 listing certified· Supports minimization of equipment size300 W / 600 W type has a slimmer body· Can be stably used in a wide variety of environmentsEnvironmental resistance functions make it possible to use it anywhere· Prevents entry of foreign matter and dropping of screwsThe front cover prevents the entry of foreign matter into the front partThe terminal block is standard equipped with a screw dropping prevention construction (removable)

Read more less

Application Interface Number of phases 1 Mounting method With plug-in socket Terminal type Plug-in Complete with socket LED indicator Rated operational voltage, AC 100-240 V Operating voltage range, AC 75-264 V Rated operational voltage, DC 75-264 V Operating voltage range, DC 75-264 V Rated operation current Ie at AC-1 2 A Product Height (unpacked) 29 mm Product Width (unpacked) 13 mm Product Depth (unpacked) 28 mm Supply voltage DC 5-24 V Control current max. 15 mA Must operate voltage max. 4 V Must release voltage min. 1 V Maximum operating temperature 80 °C Minimum operating temperature -30 °C Isolation Phototriac Switching at zero-crossing

Read more less

DELIVERY PERIOD : 1-2 WEEKS This Harmony XB5N/XB7N, emergency shutdown 30mm mushroom modular red push button operates with a turn-to-release mechanism. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Range of product Harmony XB5N/XB7N Product or component type Emergency switching off push-button Device short name XB5N Bezel material Dark grey plastic Fixing collar material Plastic Head type Mushroom Mounting diameter 22.5 mm Sale per indivisible quantity 20 Shape of signaling unit head Round Type of operator Turn to release mechanical latching Reset Turn to release Operator profile Red mushroom Ø 30 mm, unmarked Contact operation Slow-break Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 Device presentation Complete product Contacts type and composition 1 NC Complementary Height 41.5 mm Width 30 mm Depth 78.5 mm Terminals description ISO n°1 (11-12)NC Net weight 0.072 kg Fixing mode Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) Contacts usage Standard contacts Positive opening With conforming to IEC 60947-5-1 appendix K Operating travel 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) Operating force NC changing electrical stateNO changing electrical state Mechanical durability 300000 cycles Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1 Shape of screw head Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver Contacts material Silver alloy (Ag/Ni) Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1 [Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1 [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 [Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C1000000 cycles, AC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C Electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 Compatibility code XB5 Product compatibility ZB5...N Environment Protective treatment TH Ambient air temperature for storage -40…70 °C Ambient air temperature for operation -25…70 °C Overvoltage category Class II conforming to IEC 60536 Standards IEC 60947-5-4IEC 60947-1IEC 60947-5-1IS 13947-5-1 Product certifications CE Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 IP degree of protection IP65 IK degree of protection IK03 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.3 cm Package 1 Width 4.4 cm Package 1 Length 8.8 cm Package 1 Weight 57 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 11 cm Package 2 Width 16 cm Package 2 Length 28 cm Package 2 Weight 1256 g Unit Type of Package 3 S03 Number of Units in Package 3 100 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 6975 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS The fully revised CP-F series circuit protector model.Finger-protecting (IP20 equivalent) construction for the main circuit with no terminal cover required.Standard product that conforms to vital specifications both in Japan and abroad. Rated block capacity When AC 250 V 2.5 Rated block capacity voltage conditions besides AC 250 V/DC 60 V Available Number of Poles 3 Rated Voltage AC250V Rated Current 3 ～ 15 Operating properties Medium speed Polarity presence Available Representative Standard PSE / CE / UL / TUV / CCC / CSA Dimension height 71 Dimension width 17.5 ～ 52.3 Dimension depth 75.3 Mounting Method Both M4 screw / IEC35mm rail Included equipment NA Applicable circuit Only AC Main terminal Screw terminal Delay equipment NA Rated Breaking Capacity - Contact Configuration -

Read more less

DELIVERY PERIOD : 1-2 WEEKS TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Range of product TeSys Deca Product or component type Contactor Device short name LC1D Contactor application Resistive loadMotor control Utilisation category AC-1AC-4AC-3AC-3e Poles description 3P [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage 220 V AC 50/60 Hz Complementary Motor power kW 4 kW at 220...230 V AC 50/60 Hz (AC-3)7.5 kW at 380...400 V AC 50/60 Hz (AC-3)9 kW at 415...440 V AC 50/60 Hz (AC-3)10 kW at 500 V AC 50/60 Hz (AC-3)10 kW at 660...690 V AC 50/60 Hz (AC-3)4 kW at 400 V AC 50/60 Hz (AC-4)4 kW at 220...230 V AC 50/60 Hz (AC-3e)7.5 kW at 380...400 V AC 50/60 Hz (AC-3e)9 kW at 415...440 V AC 50/60 Hz (AC-3e)10 kW at 500 V AC 50/60 Hz (AC-3e)10 kW at 660...690 V AC 50/60 Hz (AC-3e) Motor power hp 1 hp at 115 V AC 50/60 Hz for 1 phase motors3 hp at 230/240 V AC 50/60 Hz for 1 phase motors5 hp at 200/208 V AC 50/60 Hz for 3 phases motors5 hp at 230/240 V AC 50/60 Hz for 3 phases motors10 hp at 460/480 V AC 50/60 Hz for 3 phases motors15 hp at 575/600 V AC 50/60 Hz for 3 phases motors Compatibility code LC1D Pole contact composition 3 NO Protective cover With [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit32 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1300 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity 300 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 145 A 40 °C - 10 s for power circuit240 A 40 °C - 1 s for power circuit40 A 40 °C - 10 min for power circuit84 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-150 A gG at <= 690 V coordination type 1 for power circuit35 A gG at <= 690 V coordination type 2 for power circuit Average impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit Power dissipation per pole 2.5 W AC-10.8 W AC-30.8 W AC-3e [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified Overvoltage category III Pollution degree 3 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability 15 Mcycles Electrical durability 1.65 Mcycles 18 A AC-3 at Ue <= 440 V1 Mcycles 32 A AC-1 at Ue <= 440 V1.65 Mcycles 18 A AC-3e at Ue <= 440 V Control circuit type AC at 50/60 Hz standard Coil technology Without built-in suppressor module Control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation 2…3 W at 50/60 Hz Operating time 12...22 ms closing4...19 ms opening Maximum operating rate 3600 cyc/h at 60 °C Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable endControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable endControl circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable endPower circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable endPower circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable endPower circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Auxiliary contact composition 1 NO + 1 NC Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency 25...400 Hz Minimum switching voltage 17 V for signalling circuit Minimum switching current 5 mA for signalling circuit Insulation resistance > 10 MOhm for signalling circuit Non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact Mounting support PlateRail Environment Standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 60947-4-1IEC 60335-1:Clause 30.2IEC 60335-2-40:Annex JJUL 60335-2-40:Annex JJCSA C22.2 No 60947-4-1 Product certifications ULCCCCSAMarineUKCAEACCB Scheme IP degree of protection IP20 front face conforming to IEC 60529 Protective treatment TH conforming to IEC 60068-2-30 Climatic withstand conforming to IACS E10 exposure to damp heatconforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device -40…60 °C60…70 °C with derating Operating altitude 0...3000 m Fire resistance 850 °C conforming to IEC 60695-2-1 Flame retardance V1 conforming to UL 94 Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz)Vibrations contactor closed (4 Gn, 5...300 Hz)Shocks contactor open (10 Gn for 11 ms)Shocks contactor closed (15 Gn for 11 ms) Height 77 mm Width 45 mm Depth 86 mm Net weight 0.33 kg Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.000 cm Package 1 Width 9.200 cm Package 1 Length 11.200 cm Package 1 Weight 352.000 g Unit Type of Package 2 S02 Number of Units in Package 2 20 Package 2 Height 15 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 7.415 kg Unit Type of Package 3 P06 Number of Units in Package 3 320 Package 3 Height 75.000 cm Package 3 Width 60.000 cm Package 3 Length 80.000 cm Package 3 Weight 128.420 kg
