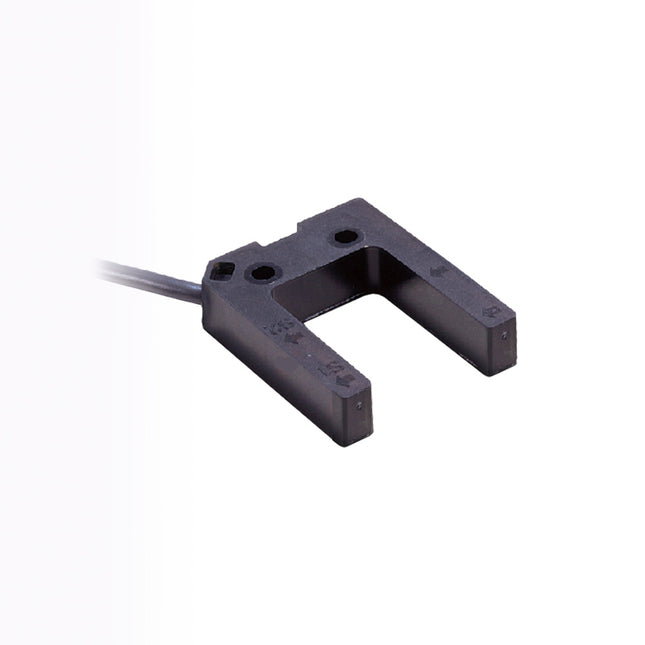

Shape Grooved Type Sensing distance 25 mm Standard sensing object Opaque: 1.5 mm dia. min. Light source Infrared LED (940 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 25 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength Between lead wires and case: 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP64 Connection method Pre-wired models (Cable length 2 m) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: ABS

Read more less

FA-MCB: Miniature Circuit Breaker Series WS-V SERIES - MCB Type BHW-T MINI. CIRCUIT BREAKER Rated Current (A) 16 Rated Voltage (V) 415 Current Type AC Number of Poles 4 Instantaneous Tripping TYPE C Breaking Capacity at 415V (kA) 10 Cycles with Rated Current 4000 Cycles without Rated Current 4000 Compliant with Standard(s) IEC 60898-1 Product Dimensions & Weight Width (mm) 72 Height (mm) 92,6 Depth (mm) 73,5 Weight (kg) 0,52 Conformity CE COMPLIANT EAC NON-COMPLIANT

Read more less

Series MMP-T SERIES Type MOTOR CIRCUIT BREAKERS Compliant with Standard(s) EN 60947-4-1, EN 60947-2, IEC 60947-4-1, GB14048.2, IEC 60947-2 Frame Size 32 Number of Poles 3 Rated Current (A) 0,63 Rated Voltage (V) 690 Frequency Range (Hz) 50/60 Rated Capacity (kW) 0,18 Heater Designation (A) 0,63 Range of Setting Current (A) 0,4-0,63 Breaking Capacity at 415V (kA) 100 Electrical Durability (Load) 100000 OPERATIONS Mech. Durability (at no Load) 100000 OPERATIONS Wiring SCREW-CLAMP Automatic Tripping Device THERMAL-MAGNETIC (ADJUSTABLE) Product Dimensions & Weight Width (mm) 45 Height (mm) 90 Depth (mm) 82 Weight (kg) 0,33 Conformity CE COMPLIANT UL/cUL NON-COMPLIANT EAC NON-COMPLIANT UKCA COMPLIANT

Read more less

Number of Poles 3 Pole Current Rating 200A Rated Current 200A Brand L&T Breaking Capacity 25kA Voltage 415-690 V Model Name/Number DH 200 MCCB, DH200 TH Range 160-200 A ICU 25 kA Instantaneous 200A Country of Origin Made in India Availability In Stock

Read more less

Brand NMB-Mat Voltage 12 Volts Wattage 4.32 Watts Cooling Method forced air Compatible Devices Laptop

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS: N Technology: Inductive Measuring Range - Max: 2 mm Output Type: PNP Mounting Style: Cable Mount Connection Method: Pre-Wired Cable Cable Length: 2 m Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2B Brand: Omron Automation and Safety Housing Material: Stainless Steel IP Rating: IP67 Maximum Frequency: 1.5 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2BS08KS02WPB12M Unit Weight: 65 g

Read more less

Product Dimensions 6L x 2.5W x 6H Centimeters Brand Generic Power Connector Type 3-Pin Voltage 24 Volts Wattage 3.12 Watts

Read more less

Lighting Color RED Voltage 24V AC/DC Model Name/Number DR22D0L-E3R IP Rating IP65 rated Lens Color Red Availability In Stock The Fuji Electric DR22D0L-E3R is a 22mm diameter, red, domed pilot light with a 24V AC/DC LED lamp that operates without a transformer. Its features include an easy-to-install, one-touch release arm and a locking nut that is compatible with different panel cutout sizes. It is certified to various standards, including UL, CSA, and EN.

Read more less

Particularly short housing For use where space is restricted Clearly visible indication of the switching status Long sensing range for high uptime Reduced stock-keeping due to operation as three-wire or two-wire unit

Read more less

Product Number GX-8MLU-C5 Part Number GX-8MLU-C5 Product DC 3-wire Cylindrical Inductive Proximity Sensor Details 5 m 16.404 ft cable length type Product Name Cylindrical Inductive Proximity Sensor GX-U/GX-FU/GX-N(Discontinued)

Read more less

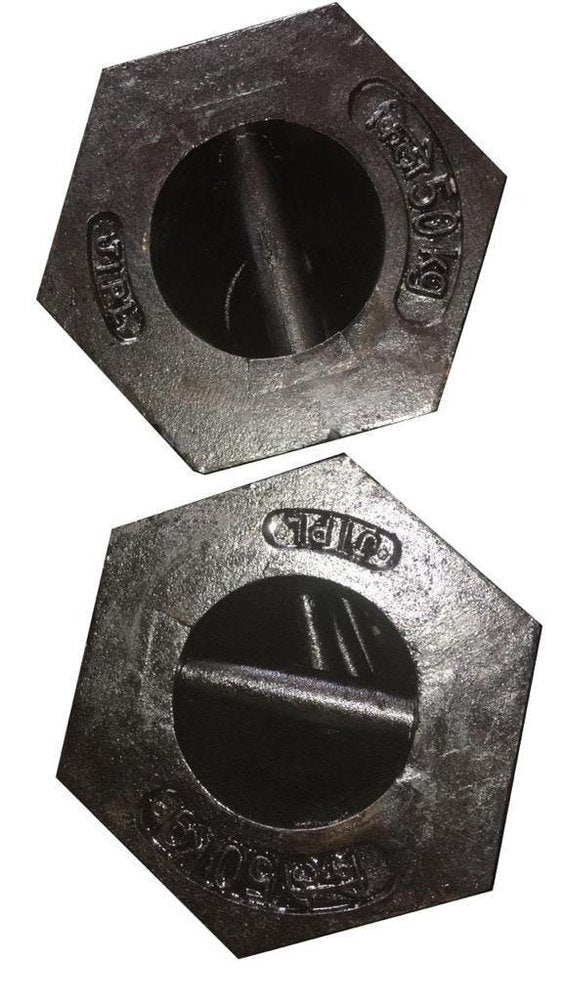

Material Cast Iron Weight 50 kg Shape Hexagonal Surface Treatment Enamel Paint Color Black Brand JIPL Type 50 Kg Hexagonal Cast Iron Weight Usage/Application Industrial Country of Origin Made in India Availability In Stock

Read more less

Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type

Read more less
