Model No AR22V0R-02R Type of Product Push Button Switch Insulation Resistance Between Live Part & Ground / Between Different Polarity Live Parts: 100 MΩ or more (at 500 VDC Megger) Protection Class IP65 (Oil-proof Type) Type Non-Illuminated Type Series AR22V0R Terminal Screw M3.5 Plus/Minus Screw with Square Washer (Self-Lifting Type) Return Function Turn Reset Withstand Voltage Between Live Part & Ground / Between Different Polarity Live Parts: 2500 VAC for 1 min Monotaro ID 39119228 Storage Temperature -40～+80° Rated Insulation Voltage AC/DC600 V Button Color Red Mounting Dimensions (mm) Φ22.3 mm・ Φ25.5 mm Shared Contact Configuration 2b Frame Round frame Operation Ambient Temperature -20~+70° (No Freezing or Condensation) Short Circuit Protection Device Fuse 15A Rated Impulse Withstand Voltage (kV) 6 kV Mechanical Durability 100000 times or more Pollution Degree (Environment to Use) 3 Electrical Durability 500000 times or more (at AC220V 6A) 1 million times or more (at AC220V 3A) Country of Origin Japan Name of Manufacturer/Packer/Importer Fuji Electric Co Ltd

Read more less

Brand Mitsubishi Model Number S-T20 State In stock Condition New Original Warranty 12 months

Read more less

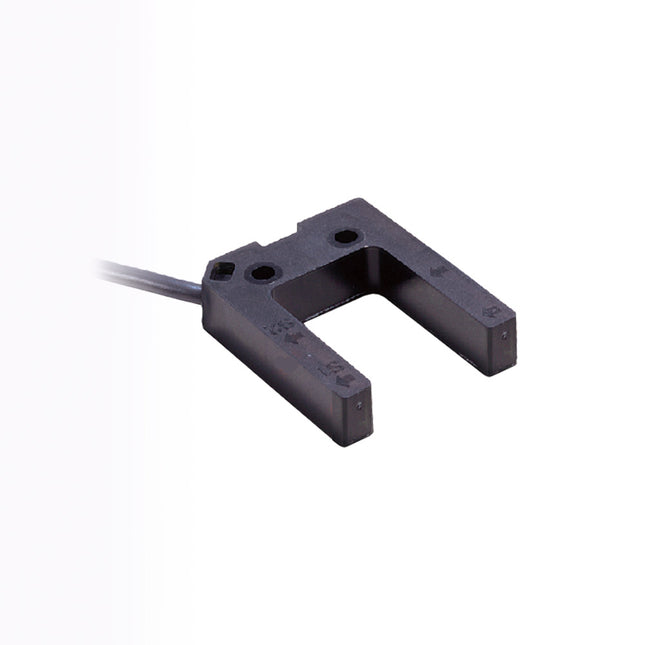

Shape Grooved Type Sensing distance 25 mm Standard sensing object Opaque: 1.5 mm dia. min. Light source Infrared LED (940 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 25 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength Between lead wires and case: 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP64 Connection method Pre-wired models (Cable length 2 m) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: ABS

Read more less

Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method Pre-wired models

Read more less

Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 120 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer Omron Automation and Safety Series E2B Packaging Bulk Part Status Active Sensor Type Inductive Sensing Distance 0.079" (2mm) Output Type NPN-NO, 3-Wire Response Frequency 1.5kHz Shielding Shielded Material - Body Stainless Steel Voltage - Supply 10V ~ 30V Termination Style Cable Leads Operating Temperature -25°C ~ 70°C Ingress Protection IP67 Indicator LED Package / Case Cylinder, Threaded - M8 Base Product Number E2B-S08

Read more less

Omron P2RF-08-E Omron Automation and Safety  Order today, ships today. P2RF-08-E ? Relay Socket DIN Rail from Omron Automation and Safety. Pricing and Availability on millions of electronic components Model No.P2RF-08-E Make Omron

Read more less

Specifications Application Interface Number of phases 1 Mounting method With plug-in socket Terminal type Plug-in Complete with socket LED indicator Rated operational voltage, AC 100-240 V Operating voltage range, AC 75-264 V Rated operational voltage, DC 75-264 V Operating voltage range, DC 75-264 V Rated operation current Ie at AC-1 2 A Product Height (unpacked) 29 mm Product Width (unpacked) 13 mm Product Depth (unpacked) 28 mm Supply voltage DC 5-24 V Control current max. 15 mA Must operate voltage max. 4 V Must release voltage min. 1 V Maximum operating temperature 80 °C Minimum operating temperature -30 °C Isolation Phototriac Switching at zero-crossing

Read more less

Operation Mode manual Contact Type Normally Open Connector Type Clamp Brand Schneider Electric Terminal Screw

Read more less

Operation Mode ON-OFF Operating Voltage 24 Volts Contact Type Normally Open Connector Type Clamp Brand Schneider Electric

Read more less

Specifications In The Box Pack of 1 General Brand waxcon Model Number LC1D18M7 Model Name Schneider Contactor, LC1D18M7 Type Three Way Color White Material Plastic Number of Switches 1 Net Quantity 1

Read more less

Contactor Type AC Power Contactors Number Of Poles 3 Pole Usage/Application Electric Fitting Model Number/Name LC1D09M7 Brand Schneider Frequency 60 Hz Voltage 400 V Current 9 Amp Packaging Type Box Box Content 1 Piece Availability In Stock
