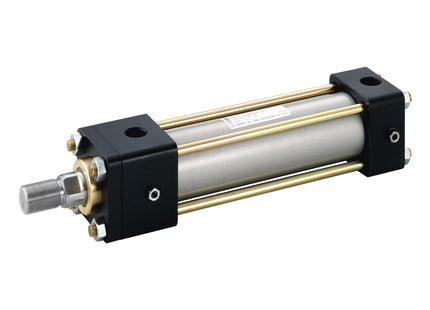

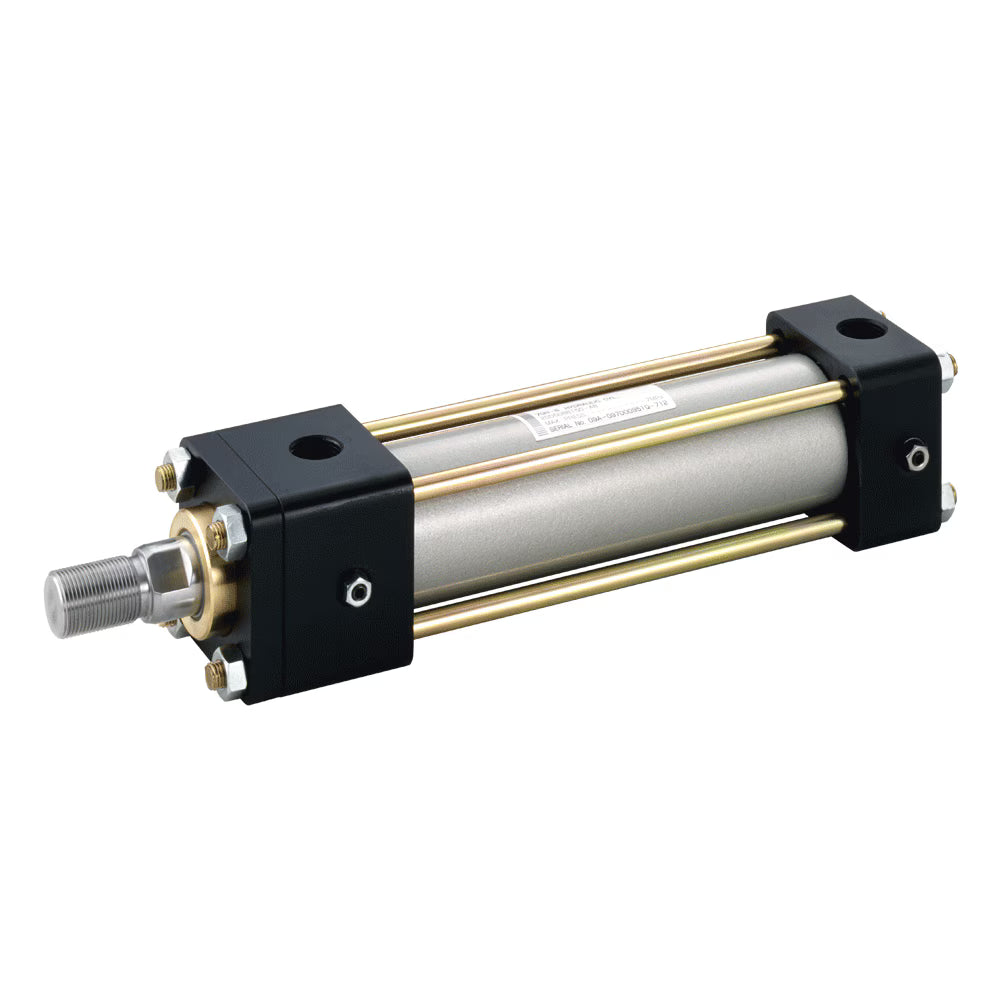

| Bore Diameter: |
32 to 250 mm (Rod B), 40 to 250 mm (Rod C), 40 to 160 mm (Rod A) |
| Seal Material: |
Nitrile (NBR) [1], Urethane Rubber [2](φ32 to φ160), Fluorocarbon [3], Hydrogenated Nitrile (HNBR) [6](φ32 to φ160), Slipper Seal [8](φ32 to φ100) |
| Operating Pressure: |
14 MPa |
| Maximum Operating Pressure: |
9 MPa Cap Side, 15 MPa Rod Side(A), 13.5 MPa Rod Side(B), 11 MPa Rod Side(C) |
| Proof Pressure: |
21 MPa |
| Minimum Operating Pressure: |
0.3 MPa or Less, Cap Side, 0.6 MPa or Less, Rod Side(A), 0.45 MPa or Less, Rod Side(B), 0.4 MPa or Less, Rod Side(C) |
| Operating Speed: |
8 to 400 mm/sec (U Sealφ32 to φ63), 8 to 300 mm/sec (φ80 to φ125), 8 to 200 mm/sec (φ140 to φ250), 1 to 400 mm/sec (Slipper Sealφ32 to φ63), 1 to 300 mm/sec (φ80,φ100) |
| Operating Temperature: |
-10 to 80 °C (No freezing) |
| Cushioning Type: |
Metal Fitting System |
| For Fluid Type: |
Petroleum-based Fluid (when using another fluid, give us such instructions.) |
| Thread Tolerance: |
JIS 6g/6H |
| Stroke Tolerance: |
0 to +0.8 mm (0 to 100 mm), 0 to +1.0 mm (101 to 250 mm), 0 to +1.25 mm (251 to 630 mm), 0 to +1.4 mm (631 to 1000 mm), 0 to +1.6 mm (1001 to 1600 mm), 0 to +1.8 mm (1601 to 2000 mm) |
| Tube Material: |
Carbon Steel for Machine Structural Use |
| Mounting Type: |
SD, LA, LB, LC, FA, FB, FC, FD, FK, FE, FY, FZ, CA, CB, CS, TA, TC |
| Rod End Type: |
Rod Eye (T-end), Rod Eye (S-end) with spherical bearing, Rod Clevis (Y-end) with pin, lock nut, Floating Joint (F-end:Do not use together with Mounting style CA, CB, CS, TA and TC accessories.), Boots Standard: Nylon tarpaulin, Semi-standard: Chloroprene, Conex |
| Bellows Material: |
Nylon Tarpaulin (Standard), Chloroprene, Conex (Semi-standard) |
