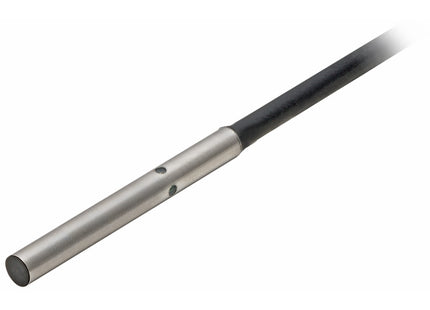

| Sensing head size |
3 dia. |
| Type |
Cylinder type, Shielded |
| Power source |
DC Three-wires models |
| Sensing distance |
0.8 mm ±10% |
| Setting distance |
0 to 0.56 mm |
| Differential distance |
15% max. of sensing distance |
| Sensing object |
Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object |
Iron 3 x 3 x 1 mm |
| Response frequency |
5 kHz |
| Power supply voltage |
10 to 30 VDC ripple (p-p) 10% included |
| Operating voltage range |
10 to 30 VDC |
| Current consumption |
10 mA max. |
| Control output (Output type) |
NPN open collector |
| Control output (Switching capacity) |
50 mA max. |
| Control output (Residual voltage) |
2 V max. (Load current 50 mA with cable length of 2 m) |
| Indicator |
Operation indicator (yellow) |
| Operation mode |
NC |
| Protective circuit |
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Surge suppressor |
| Ambient temperature (Operating) |
-25 to 70 ℃ |
| Ambient temperature (Storage) |
-25 to 70 ℃ |
| Ambient humidity (Operating) |
35 to 95 % |
| Ambient humidity (Storage) |
35 to 95 % |
| Temperature influence |
±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ |
| Voltage influence |
±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance |
Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength |
Between charged parts and the case: 500 VAC 50/60 Hz 1 min |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance |
Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection |
IEC: IP67
Company standard: Oil-proof |
| Connection method |
Pre-wired models (2 m) |
| Weight |
Package: Approx. 25 g |
| Material |
Case: SUS303 (EN1.4305)
Sensing surface: Heat-resistant ABS resin
Cable: PVC |
| Accessories |
Instruction manual, Model label |
