Description
DELIVERY PERIOD : 1- 2 WEEKS

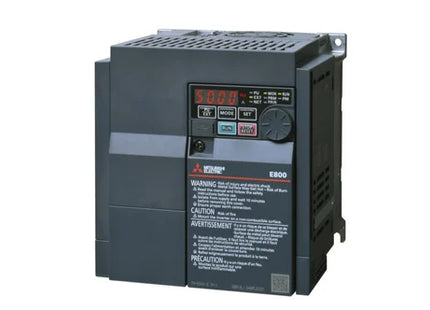

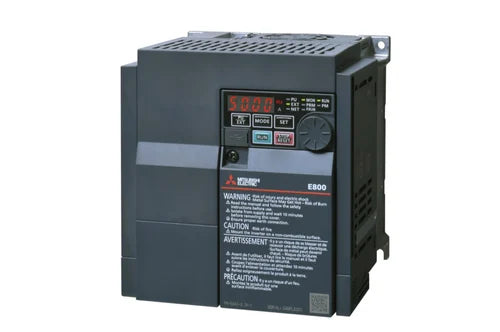

FA-Inverter: Inverter
| Series |
FR-E800 SERIES |
| Type |
FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) |
380 |
| Min. Permissible Voltage (V) |
323 |
| Maximum Rated Voltage (V) |
480 |
| Max. Permissible Voltage (V) |
528 |
| Current Type |
AC |
| Phases |
3 |
| Rated Output Current LD (A) |
6,9 |
| Rated Output Current ND (A) |
6 |
| Rated Motor Capacity LD (kW) |
3 |
| Rated Motor Capacity ND (kW) |
2,2 |
| Frequency Range (Hz) |
0,2–590 |
| Control Method |
V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type |
INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) |
100 |
| Integrated EMC Filter |
NO |
| Safe Torque Off (STO) |
YES |
| Regenerative (4Q) |
NO |
| Integrated DC Choke |
NO |
| Display |
BUILT-IN |
| Display Type |
4 DIGITS LED |
| PLC Function |
YES |
| Program Memory |
2K |
| Program Memory Unit |
STEPS |
| Integrated Digital Inputs |
7 |
| Digital Outputs (Transistor) |
2 |
| Digital Outputs (Relay) |
1 |
| Integrated Analogue Inputs |
2 |
| Integrated Analogue Outputs |
1 |
| IO Type of Terminal Block |
SPRING CLAMP |
| Expandable |
YES |
| RS-485 |
1 |
| USB |
1 (MINI B) |
| Ethernet Port |
NO |
| Built-In Network |
MODBUS-RTU |
| Leakage Current (mA) |
1,2 |
| Power Loss LD (W) |
88 |
| Power Loss ND (W) |
75 |
| Protection Class |
IP20 |
Product Dimensions & Weight
| Depth (mm) |
135 |
| Weight (kg) |
1,8 |
| Width (mm) |
140 |
| Height (mm) |
150 |
Conformity
| CE |
COMPLIANT |
| EAC |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
