MODEL-PG MITSUBISHI CARS FX2N-1PG FOR RC-01

Description

DELIVERY PERIOD : 1-2 WEEKS

Basic information

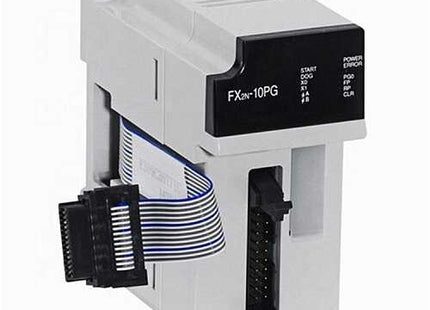

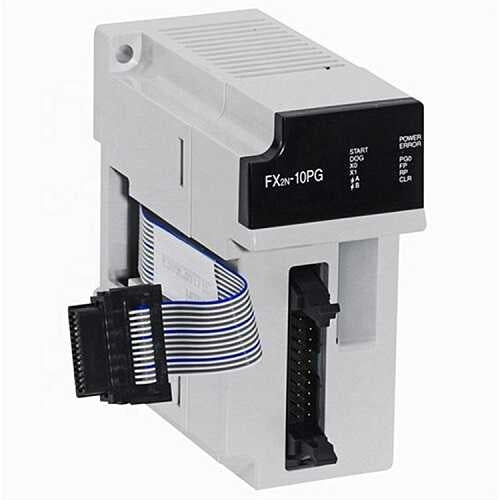

Product main imageZoom

Overview Pulse output: 1-axis (independent)
Sales status Discontinued
Discontinued date 2015/12
*Please check or inquire it in each overseas sales company site because the sale situation is different depending on each countries.

Merit

Pulse output block

• Seven operation modes required for simple positioning control are provided.
• One unit can control one axis. Up to 8 units can be connected to FX2N and FX3U PLC, up to 4 units to FX2NC PLC, and up to 7 or 8 units to FX3UC PLC to control multiple independent axes.
• A max. 100 kHz pulse train can be output.
• Positioning control is conducted with the sequence program.

Applicable PLC
Number of occupied I/O points
Mass (weight)
Programming language
Pulse output system
Pulse output form
Number of control axes
Maximum frequency
Acceleration/deceleration process
Control unit
Detection of absolute position (Reads out the current value of ABS.)
Positioning range
Position data
Power supply specifications
Power supply voltage
Input specifications
Control input
Input signal voltage STOP, DOG
PG0
Input signal form
Input signal current STOP, DOG
PG0
Input ON sensitivity STOP, DOG
PG0
Input OFF sensitivity STOP, DOG
PG0
Input receiving speed DOG
STOP
PG0
Insulation of circuit
Indication of input operation
Output specifications
No. of output points
Output form Pulse output section (FP/RP)
Rated load voltage Clear signal (CLR)
Maximum load current Pulse output section (FP/RP)
Clear signal (CLR)
VIN current consumption Pulse output section (FP/RP)
Output frequency
Indication of output operation
FX2N, FX3U, FX2NC, FX3UC

[Connecting to the connector-type PLC]
The FX2NC-CNV-IF is required to connect the FX2NC.
The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC.
Number of I/O occupied 8 points (taken from either the input or output points of the PLC)
0.3 kg
Sequence program (BFM can be specified directly with the operand of the FROM/TO instruction or the applied instruction.)
Open collector system
Pulse train + Direction, Forward/reverse pulse train
1 independent axis
100 kHz
Trapezoidal ac-/deceleration control
pulse, μm, 10-4inch, mdeg
Using the ABS instruction of the PLC
-999,999 to +999,999 [× (Position data magnification) pulse]
-999,999 to +999,999 [× (Position data magnification) μm]
-999,999 to +999,999 [× (Position data magnification) × 10-4inch]
-999,999 to +999,999 [× (Position data magnification) mdeg]
The position data magnification sets the 1, 10,102 or 103 in parameters.
1 point (set in sequence program)

5 V DC 55 mA (internal power supply from PLC main unit)
24 V DC ±10% 40 mA (External power supply)

3 points (STOP, DOG, PG0)
24 V DC
5 to 24 V DC
Contact or open collector transistor
7 mA
20 mA or less
4.5 mA or more
4 mA or more
1.5 mA or less
0.5 mA or less
1 ms
4 ms
4 μs
Photocoupler insulation
LED is lit when input is on

3 points (FP, RP, CLR)
5 to 24 V DC (Power supplied from VIN terminal)
5 to 24 V DC
20 mA or less
20 mA or less
35 mA or less
100 kHz
LED is lit when output is on


General specifications

Ambient temperature
Ambient humidity
Vibration resistance Installed on DIN rail Frequency: 10 to 57 Hz
Frequency: 57 to 150 Hz
Direct installing Frequency: 10 to 57 Hz
Frequency: 57 to 150 Hz
Shock resistance
Noise resistance
Dielectric withstand voltage
Insulation resistance
Working atmosphere
Working altitude
0 to 55°C when operating and -25 to 75°C when stored
5 to 95%RH (no condensation) when operating
Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Acceleration: 4.9 m/s2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Acceleration: 9.8 m/s2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
147 m/s2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Between all external terminals and ground terminal of PLC main unit: 500 V AC for 1 min
Between all external terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Free from corrosive or flammable gas and excessive conductive dusts
2000 m or less
Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
