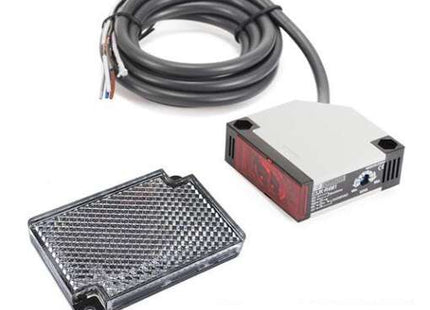

MODEL-PHOTO SENSOR E3JK-R4M1 OMRON FOR ST CONVEYOR

Description

DELIVERY TIME : 1-2 WEEKS

Specification Value
Sensing Method Retroreflective
Sensing Distance 4 m
Light Source Red LED
Power Supply Voltage 50/60 Hz 12 to 240 VDC ±10%, 24 to 240 VAC ±10
Current Consumption 2 W max.
Control Output Relay output: 3 A max. at 250 VAC (cosφ = 1), 10 mA min. at 5 VDC
Operation Mode Light-ON mode
Response Time 30 ms max.
Sensitivity Adjustment Fixed
Indicators Light (red)
Ambient Temperature Range Operating: –25°C to 55°C (with no icing)
Material Plastic

The Omron E3JK-R4M1 is a reliable retroreflective photoelectric sensor built for long-distance object detection in general industrial environments. With a sensing range of up to 4 meters, this sensor uses a red LED light source and operates in conjunction with a reflector to detect the presence or absence of objects accurately. It is ideal for applications such as pallet detection, carton counting, and conveyor automation.

This sensor supports dual power input: 12 to 240 VDC and 24 to 240 VAC (±10%), allowing flexible installation in both AC and DC systems. The E3JK-R4M1 provides a relay output capable of switching up to 3 A at 250 VAC (cosφ = 1), with a minimum switching capacity of 10 mA at 5 VDC. The sensor operates in Light-ON mode and features a fixed sensitivity setting with a fast 30 ms maximum response time, suitable for moderate-speed automation processes.

Power consumption is limited to 2 W max., making it energy-efficient in continuous operation. The red LED status indicator offers clear visibility of sensor activity. Although sensitivity is fixed, the sensor provides reliable performance across a variety of materials and surface finishes when properly aligned with its retroreflective target.

The housing is made of durable plastic, and the sensor functions reliably within an ambient temperature range of −25°C to 55°C. It includes essential protections such as insulation resistance, dielectric strength, and tolerance to vibration and shock, ensuring durability in active production environments. With a design focused on simplicity and ruggedness, the Omron E3JK-R4M1 is ideal for OEMs, maintenance engineers, and system integrators looking for dependable long-range sensing in space-efficient form factors.

MODEL-PHOTO SENSOR E3JK-R4M1 OMRON FOR ST CONVEYOR

Product form

DELIVERY TIME : 1-2 WEEKS  Specification Value Sensing Method Retroreflective Sensing Distance 4 m Light Source Red LED Power Supply... Read more

Rs. 1,350.00 Incl. VAT

      Description

      DELIVERY TIME : 1-2 WEEKS

      Specification Value
      Sensing Method Retroreflective
      Sensing Distance 4 m
      Light Source Red LED
      Power Supply Voltage 50/60 Hz 12 to 240 VDC ±10%, 24 to 240 VAC ±10
      Current Consumption 2 W max.
      Control Output Relay output: 3 A max. at 250 VAC (cosφ = 1), 10 mA min. at 5 VDC
      Operation Mode Light-ON mode
      Response Time 30 ms max.
      Sensitivity Adjustment Fixed
      Indicators Light (red)
      Ambient Temperature Range Operating: –25°C to 55°C (with no icing)
      Material Plastic

      The Omron E3JK-R4M1 is a reliable retroreflective photoelectric sensor built for long-distance object detection in general industrial environments. With a sensing range of up to 4 meters, this sensor uses a red LED light source and operates in conjunction with a reflector to detect the presence or absence of objects accurately. It is ideal for applications such as pallet detection, carton counting, and conveyor automation.

      This sensor supports dual power input: 12 to 240 VDC and 24 to 240 VAC (±10%), allowing flexible installation in both AC and DC systems. The E3JK-R4M1 provides a relay output capable of switching up to 3 A at 250 VAC (cosφ = 1), with a minimum switching capacity of 10 mA at 5 VDC. The sensor operates in Light-ON mode and features a fixed sensitivity setting with a fast 30 ms maximum response time, suitable for moderate-speed automation processes.

      Power consumption is limited to 2 W max., making it energy-efficient in continuous operation. The red LED status indicator offers clear visibility of sensor activity. Although sensitivity is fixed, the sensor provides reliable performance across a variety of materials and surface finishes when properly aligned with its retroreflective target.

      The housing is made of durable plastic, and the sensor functions reliably within an ambient temperature range of −25°C to 55°C. It includes essential protections such as insulation resistance, dielectric strength, and tolerance to vibration and shock, ensuring durability in active production environments. With a design focused on simplicity and ruggedness, the Omron E3JK-R4M1 is ideal for OEMs, maintenance engineers, and system integrators looking for dependable long-range sensing in space-efficient form factors.
