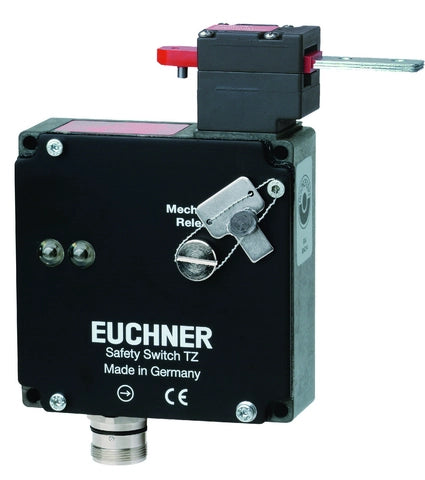

Description
Horizontal
Can be adjusted in 90° steps
Guard locking principle
Power to unlock: On a guard with guard locking based on the closed-circuit current principle, the guard is locked by spring force until the guard locking solenoid is supplied with power. Unlocking is by solenoid force. The term mechanical guard locking is also used.
LED indicator
The switch has two freely assignable LED indicators (red and green).
Switching element
|
SK
|
2131
|
Slow-action switching contact
|
|
|
Contacts for door monitoring: 2 positively driven contacts  + 1 NO contact
|
|
ÜK
|
3131
|
Slow-action switching contact
|
|
|
Contacts for guard locking: 2 positively driven contacts  + 2 NO contact
|
Auxiliary release
The auxiliary release on the front makes it possible to access the machine if there is a malfunction, e.g. a power failure. Unlocking is performed using a tool or a key. The auxiliary release must be protected against misuse (sealing, lacquer).
Accessories required
Actuator is not included.
