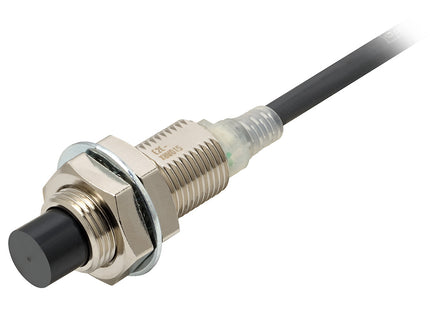

SWITCH PROXIMITY 2 WIRE E2E-X8ND1 OMRON

Description

DELIVERY PERIOD : 1-2 WEEKS

Size M8 M12
Shielded Shielded Shielded Unshielded
Model E2E-X2D[] E2E-X3D[] E2E-X8MD[]
Sensing distance 2 mm ±10% 3 mm ±10% 8 mm ±10%
Set distance *1 0 to 1.6 mm 0 to 2.4 mm 0 to 6.4 mm
Differential travel 15% max. of sensing distance 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron,
8 × 8 × 1 mm
Iron,
12 × 12 × 1 mm
Iron,
30 × 30 × 1 mm
Response frequency *2 1.5 kHz 0.8 kHz
Power supply voltage
(operating voltage range)
12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
Leakage current 0.8 mA max.
Control
output
Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models
Residual
voltage
3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators D1 Models: Operation indicator (red) and setting indicator (green)
D2 Models: Operation indicator (red)
Operation mode
(with sensing object
approaching)
D1 Models: NO
D2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Diagnostic output delay 0.3 to 1 s
Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output)
Ambient temperature
range
Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range Operating/storage: 35% to 95% (with no condensation)
Temperature influence ±15% max. of sensing distance at 23°C
in the temperature range of -25 to 70°C
±10% max. of sensing distance at 23°C in
the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 500 m/s2 10 times each in X,
Y, and Z directions
Destruction: 1,000 m/s2 10 times each in X,
Y, and Z directions
Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant
Connector Models: IEC 60529 IP67
Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wired
Connector Models (Standard cable length: 0.3 m)
Weight
(packed
state)
Pre-wired
Models
Approx. 60 g Approx. 70 g
Pre-wired
Connector
Models
--- Approx. 40 g
(Shielded Models only)
Connector
Models
Approx. 15 g Approx. 25 g
Materi-
als
Case Stainless steel (SUS303) Nickel-plated brass
Sensing surface PBT
Clamping nuts Nickel-plated brass
Toothed washer Zinc-plated iron
Accessories Instruction manual





Size M18 M30
Shielded Shielded Unshielded Shielded Unshielded
Model E2E-X7D[] E2E-X14MD[] E2E-X10D[] E2E-X20MD[]
Sensing distance 7 mm ±10% 14 mm ±10% 10 mm ±10% 20 mm ±10%
Set distance *1 0 to 5.6 mm 0 to 11.2 mm 0 to 8 mm 0 to 16 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron,
18 × 18 × 1 mm
Iron, 30 × 30 × 1 mm Iron,
54 × 54 × 1 mm
Response frequency *2 0.5 kHz 0.4 kHz 0.1 kHz
Power supply voltage
(operating voltage range)
12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
Leakage current 0.8 mA max.
Control
output
Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models
Residual
voltage
3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators D1 Models: Operation indicator (red) and setting indicator (green)
D2 Models: Operation indicator (red)
Operation mode
(with sensing object
approaching)
D1 Models: NO
D2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Diagnostic output delay 0.3 to 1 s
Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output)
Ambient temperature
range
Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range Operating/storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant
Connector Models: IEC 60529 IP67
Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wired
Connector Models (Standard cable length: 0.3 m)
Weight
(packed
state)
Pre-wired
Models
Approx. 130 g Approx. 175 g
Pre-wired
Connector
Models
--- ---
Connector
Models
Approx. 40 g Approx. 90 g
Materi-
als
Case Nickel-plated brass
Sensing surface PBT
Clamping nuts Nickel-plated brass
Toothed washer Zinc-plated iron
Accessories Instruction manual

SWITCH PROXIMITY 2 WIRE E2E-X8ND1 OMRON

Product form

DELIVERY PERIOD : 1-2 WEEKS Size M8 M12 Shielded Shielded Shielded Unshielded Model E2E-X2D[] E2E-X3D[] E2E-X8MD[] Sensing distance 2 mm... Read more

Rs. 6,266.00 Rs. 3,696.94 Incl. VAT

      Description

      DELIVERY PERIOD : 1-2 WEEKS

      Size M8 M12
      Shielded Shielded Shielded Unshielded
      Model E2E-X2D[] E2E-X3D[] E2E-X8MD[]
      Sensing distance 2 mm ±10% 3 mm ±10% 8 mm ±10%
      Set distance *1 0 to 1.6 mm 0 to 2.4 mm 0 to 6.4 mm
      Differential travel 15% max. of sensing distance 10% max. of sensing distance
      Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
      Engineering Data on Data Sheet.)
      Standard sensing object Iron,
      8 × 8 × 1 mm
      Iron,
      12 × 12 × 1 mm
      Iron,
      30 × 30 × 1 mm
      Response frequency *2 1.5 kHz 0.8 kHz
      Power supply voltage
      (operating voltage range)
      12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
      Leakage current 0.8 mA max.
      Control
      output
      Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models
      Residual
      voltage
      3 V max. (Load current: 100 mA, Cable length: 2 m)
      Indicators D1 Models: Operation indicator (red) and setting indicator (green)
      D2 Models: Operation indicator (red)
      Operation mode
      (with sensing object
      approaching)
      D1 Models: NO
      D2 Models: NC
      Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
      Diagnostic output delay 0.3 to 1 s
      Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output)
      Ambient temperature
      range
      Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
      Ambient humidity range Operating/storage: 35% to 95% (with no condensation)
      Temperature influence ±15% max. of sensing distance at 23°C
      in the temperature range of -25 to 70°C
      ±10% max. of sensing distance at 23°C in
      the temperature range of -25 to 70°C
      Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
      Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
      Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case
      Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
      directions
      Shock resistance Destruction: 500 m/s2 10 times each in X,
      Y, and Z directions
      Destruction: 1,000 m/s2 10 times each in X,
      Y, and Z directions
      Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant
      Connector Models: IEC 60529 IP67
      Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wired
      Connector Models (Standard cable length: 0.3 m)
      Weight
      (packed
      state)
      Pre-wired
      Models
      Approx. 60 g Approx. 70 g
      Pre-wired
      Connector
      Models
      --- Approx. 40 g
      (Shielded Models only)
      Connector
      Models
      Approx. 15 g Approx. 25 g
      Materi-
      als
      Case Stainless steel (SUS303) Nickel-plated brass
      Sensing surface PBT
      Clamping nuts Nickel-plated brass
      Toothed washer Zinc-plated iron
      Accessories Instruction manual





      Size M18 M30
      Shielded Shielded Unshielded Shielded Unshielded
      Model E2E-X7D[] E2E-X14MD[] E2E-X10D[] E2E-X20MD[]
      Sensing distance 7 mm ±10% 14 mm ±10% 10 mm ±10% 20 mm ±10%
      Set distance *1 0 to 5.6 mm 0 to 11.2 mm 0 to 8 mm 0 to 16 mm
      Differential travel 10% max. of sensing distance
      Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
      Engineering Data on Data Sheet.)
      Standard sensing object Iron,
      18 × 18 × 1 mm
      Iron, 30 × 30 × 1 mm Iron,
      54 × 54 × 1 mm
      Response frequency *2 0.5 kHz 0.4 kHz 0.1 kHz
      Power supply voltage
      (operating voltage range)
      12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
      Leakage current 0.8 mA max.
      Control
      output
      Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models
      Residual
      voltage
      3 V max. (Load current: 100 mA, Cable length: 2 m)
      Indicators D1 Models: Operation indicator (red) and setting indicator (green)
      D2 Models: Operation indicator (red)
      Operation mode
      (with sensing object
      approaching)
      D1 Models: NO
      D2 Models: NC
      Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
      Diagnostic output delay 0.3 to 1 s
      Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output)
      Ambient temperature
      range
      Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
      Ambient humidity range Operating/storage: 35% to 95% (with no condensation)
      Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
      Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
      Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
      Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case
      Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
      directions
      Shock resistance Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
      Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant
      Connector Models: IEC 60529 IP67
      Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wired
      Connector Models (Standard cable length: 0.3 m)
      Weight
      (packed
      state)
      Pre-wired
      Models
      Approx. 130 g Approx. 175 g
      Pre-wired
      Connector
      Models
      --- ---
      Connector
      Models
      Approx. 40 g Approx. 90 g
      Materi-
      als
      Case Nickel-plated brass
      Sensing surface PBT
      Clamping nuts Nickel-plated brass
      Toothed washer Zinc-plated iron
      Accessories Instruction manual
