Mounting Type
DIN Rail
Brand
Siemens
Usage/Application
Industrial Application
Model Name/Number

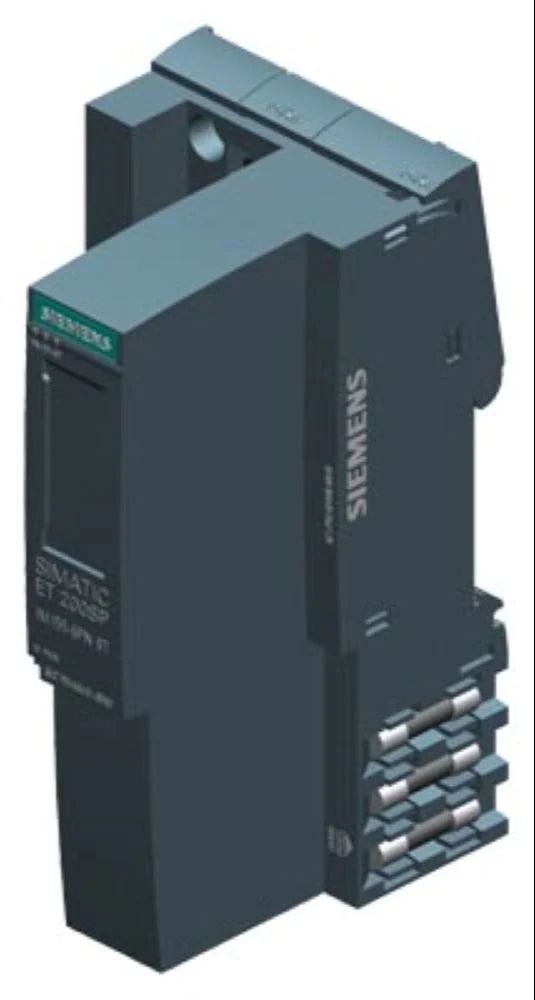

6ES7155-6AU01-0BN0
Manufacturer Series
SIMATIC ET 200SP
Output Type
Communication Module
Pulse Transmission Output
No
Communication Port
No
Design
Standard
Availability
In Stock
Display Size
9 Inch Widescreen TFT Display
Model Name/Number
6AV2123-2JB03-0AX0
Brand
Siemens
Mounting Type
Panel Mount
Phase
Single phase
Operating System
Windows 8
Supply Voltage
24 V DC
Usage/Application
Industrial Automation
Manufacturer Series
KTP Basic
Availability
In Stock
DELIVERY TIME : 1-2 WEEKS

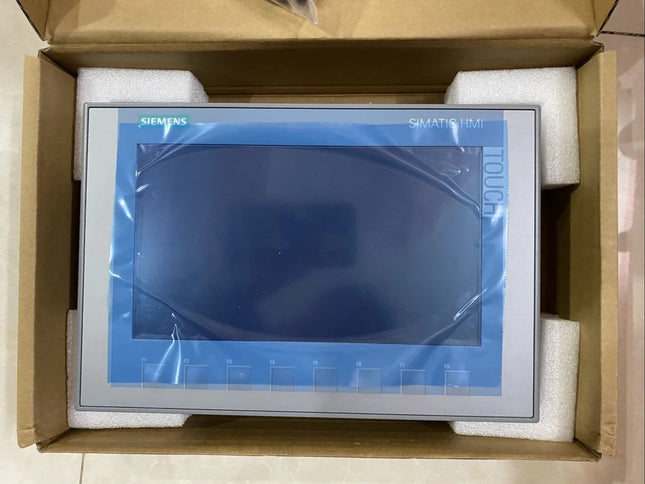

Siemens KTP900 Basic HMI Panel
The Siemens KTP900 Basic HMI Panel (KTP-900 Basic – 6AV2 123-2JB03-0AX0) is a 9-inch TFT touchscreen HMI designed for industrial automation applications. With a 64K color display and an 800 x 480 px resolution, it provides clear and intuitive visualization for operators. It features both touchscreen controls and 8 function keys, offering flexibility in operation.
Equipped with 10 MB of user memory, the KTP-900 Basic supports 1000 messages, 32 message classes, 100 process screens, and 800 tags for efficient data management. It includes built-in vector and bar graphics along with f(t) curve diagrams, enhancing real-time data visualization. The device also supports 50 recipes, allowing easy parameter adjustments.
For connectivity, the KTP900 Basic includes an RJ45 PROFINET port for seamless integration into industrial networks and a USB host port for additional functionality. Designed for rugged environments, the IP65/NEMA 4X-rated front panel ensures protection against dust and water when mounted, while the rear side has an IP20 rating.
It requires a 251 x 166 mm installation cutout, with an overall front panel dimension of 267 x 182 mm and a device depth of 47 mm. The HMI is configured using WinCC Comfort (TIA Portal) V13 or higher, ensuring compatibility with modern automation systems
DELIVERY TIME : 1-2 WEEKS
Specification
Value
Product Description

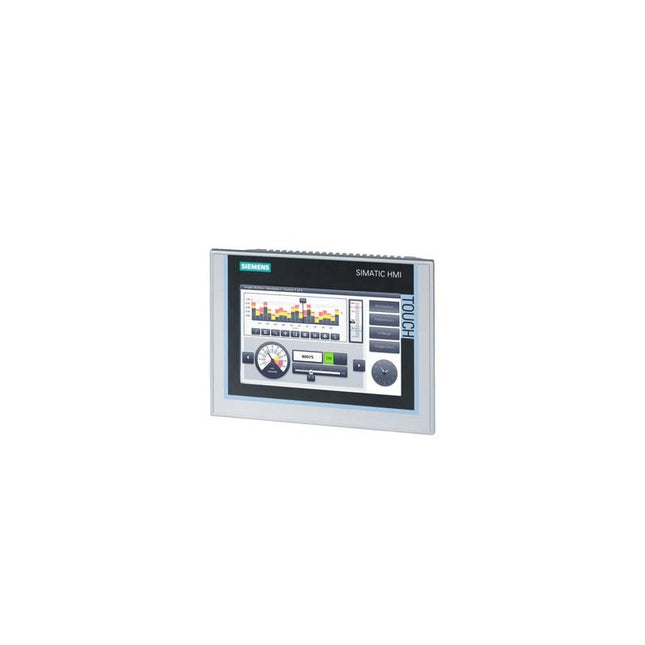

SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
Product family
Comfort Panels standard devices
Product Lifecycle (PLM)
PM300:Active Product
Net Weight (kg)
1,614 Kg
Packaging Dimension
19,70 x 26,60 x 11,80
Package size unit of measure
CM
Country of origin
Germany
Product
Article Number (Market Facing Number)
6AV2124-0GC01-0AX0
Product Description
SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
Product family
Comfort Panels Standard devices
Product Lifecycle (PLM)
PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group
239 / 239
Surcharge for Raw Materials
None
Metal Factor
None
Delivery information
Export Control Regulations
AL : N / ECCN : 5A992
Standard lead time ex-works
110 Day/Days
Net Weight (kg)
1,463 Kg
Packaging Dimension
19,70 x 26,60 x 11,80
Package size unit of measure
CM
Quantity Unit
1 Piece
Packaging Quantity
1
Additional Product Information
EAN
4025515079026
UPC
Not available
Commodity Code
85371098
LKZ_FDB/ CatalogID
ST80.1N
Product Group
3403
Group Code
R141
Country of origin
Germany
Compliance with the substance restrictions according to RoHS directive
Since: 30.11.2015
Product class
A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation
Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Module 6ES7132-6BH01-0BA0 is a digital output module belonging to the SIMATIC ET 200SP system from Siemens. Below is its detailed description and technical data:
General description:
Type: Digital Output Module (Digital Output - DQ)
Series: SIMATIC ET 200SP
Number of outputs: 16
Output voltage: 24 V DC
Output current: 0,5 A per output
Output type: Source (PNP)
Base: Type BU-A0
Color code: CC00
Diagnostics: Built-in diagnostics for short circuit to L+ and ground, open circuit, and supply voltage.
Additional functions: Substitute value output.
Main technical data:
Supply voltage: 24 V DC (allowable range 19.2 V to 28.8 V)
Output current per channel: 0.5 A
Level of security: IP20
Dimensions:
Width: 15 mm
Height: 73 mm
Depth: 58 mm
Montage: DIN rail
Application: SIMATIC ET 200SP distributed I/O systems.
Safety standards: the module meets safety standards.
Functions and features:
Module designed to control digital actuators (e.g. valves, contactors).
Built-in diagnostics make it easy to identify and troubleshoot problems.
The compact design saves space in the control cabinet.
The module is compatible with other components of the SIMATIC ET 200SP system.
Application:
The 6ES7132-6BH01-0BA0 module is widely used in industrial automation, including:
Machine control systems
Production lines
Transport and logistics systems
Process control systems
DELIVERY TIME : 1-2 WEEKS
Brand
SIEMENS
Manufacturer Series
S7-300
I/O Points
CPU
Output Type
CPU
Communication Port
Profinet DP
Usage/Application
Automation
Number of Inputs
CPU
Data Register
6ES7317-2EK14-0AB0
Processing Speed
HIGH SPEED
Program Language
PLC
Degree of Protection
IP65
Interface
MPI
Connection Method
RACK
SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required. SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card requiredSIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required .
DELIVERY TIME : 1-2 WEEKS

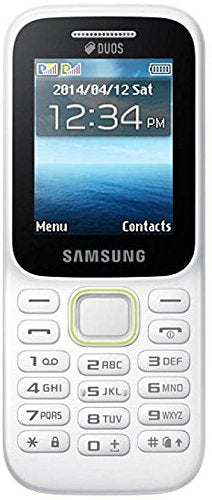

Colour: White
Brand
Samsung
Operating System
Basic Phone
CPU Model
Cortex
Memory Storage Capacity
32 GB
Screen Size
2 Inches
About this item
FM Radio, FM Recording
2-Inch (5.1 centimeters) QQVGA display with 128 x 160 pixels resolution
Memory expandable up to 16GB and dual SIM (GSM GSM); SIM size:Full-size (FF)
800mAH lithium-ion battery providing talk-time of 11 hours ; Standby Time Upto 100 hrs ; Expandable upto 16 GB ; User Memory Less than 200 MB
1 year manufacturer warranty for device and 6 months manufacturer warranty for in-box accessories including batteries from the date of purchase
Browse Type: Feature Phones ; Quick Charging: No ; Other Features: Vibration Alert, Stereo FM Radio with RDS, Predictive Text Input, Music Play-pause Button, Organizer, Voice Memo, Games
