TECO CU-11 magnetic contactor  3-pole  440V coil voltage 3A1b (Normally CLOSED) contacts Please confirm coil voltage before ordering, CU-11 has many variants for different coil voltages.

Read more less

TECO CU-11 magnetic contactor  3-pole  440V coil voltage 3A1b (Normally CLOSED) contacts Please confirm coil voltage before ordering, CU-11 has many variants for different coil voltages.

Read more less

Thermoplastic enclosure Good resistance to oil and petroleum spirit Wide range of alternative actuators 30 mm x 58,5 mm x 30 mm Double-insulated Mounting details to EN 50047 Actuator heads can be repositioned by 4 x 90°

Read more less

Sensing head size 3 dia. Type Cylinder type, Shielded Power source DC 2-wire models Sensing distance 0.8 mm ±15% Setting distance 0 to 0.56 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 5 x 5 x 1 mm Response frequency 1.5 kHz (Average value) Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 5 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃ Ambient temperature (Storage) -25 to 70 ℃ Ambient humidity (Operating) 35 to 95 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof (For Sensor Head only) Connection method Pre-wired models (2 m) Weight Package: Approx. 45 g Material Case: BrassSensing surface: ABS Accessories Instruction manual, Amplifier Mountig Brackets

Read more less

Sensing head size 3 dia. Type Cylinder type, Shielded Power source DC Three-wires models Sensing distance 0.8 mm ±10% Setting distance 0 to 0.56 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 3 x 3 x 1 mm Response frequency 5 kHz Power supply voltage 10 to 30 VDC ripple (p-p) 10% included Operating voltage range 10 to 30 VDC Current consumption 10 mA max. Control output (Output type) NPN open collector Control output (Switching capacity) 50 mA max. Control output (Residual voltage) 2 V max. (Load current 50 mA with cable length of 2 m) Indicator Operation indicator (yellow) Operation mode NC Protective circuit Output short-cut protectionOutput reverse polarity protectionPower supply reverse polarity protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃ Ambient temperature (Storage) -25 to 70 ℃ Ambient humidity (Operating) 35 to 95 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Weight Package: Approx. 25 g Material Case: SUS303 (EN1.4305)Sensing surface: Heat-resistant ABS resinCable: PVC Accessories Instruction manual, Model label

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Basic / Snap Action Switches Delivery Restrictions:  Mouser does not presently sell this product in your region. RoHS:   REACH - SVHC: Series: D5C Type: Touch Switch Actuator: Plunger, Pin Current Rating: 200 mA Voltage Rating AC: 240 VAC Voltage Rating DC: 24 VDC Termination Style: Wire Lead Mounting Style: Chassis Mount IP Rating: IP67 Brand: Omron Automation and Safety Illuminated: Non-Illuminated Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Snap Action Switches 1 Subcategory: Switches Part # Aliases: D5C1DS0 Unit Weight: 258.552 g

Read more less

Weight 0.4 Kg Model No OM1300 Type of Product VIF Meter Weight (g) 400 g Dimension 96x96 sqmm Voltage 80-300 V Certification CE, UL Display Resolution 4 Digit 3 Row LED Display Country of Origin India Data Sheet Catalog Alpha & EDC Port Type - Inbuilt Ct 5A Name of Manufacturer/Packer/Importer Elmeasure India Pvt. Ltd.

Read more less

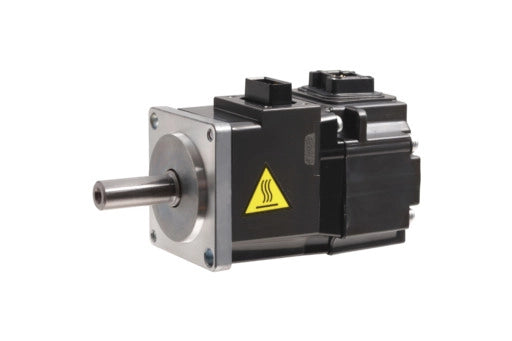

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,2 Inertia LOW INERTIA Rated Torque (Nm) 0,64 Maximum Torque (Nm) 2,2 Rated Speed (rpm) 3000 Maximum Speed (rpm) 6000 Inertia (kg*cm2) 0,221 Brake NO Shaft Type STRAIGHT SHAFT Protection Class IP65 Current Type AC Encoder Type 22-BIT Encoder Resolution (p/rev) 4194304 Product Dimensions & Weight Width (mm) 60 Height (mm) 77,1 Depth (mm) 76,6 Weight (kg) 0,91 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,2 Inertia LOW INERTIA Rated Torque (Nm) 0,64 Maximum Torque (Nm) 2,2 Rated Speed (rpm) 3000 Maximum Speed (rpm) 6000 Inertia (kg*cm2) 0,243 Brake YES Shaft Type STRAIGHT SHAFT Protection Class IP65 Current Type AC Encoder Type 22-BIT Encoder Resolution (p/rev) 4194304 Product Dimensions & Weight Width (mm) 60 Height (mm) 77,1 Depth (mm) 113,4 Weight (kg) 1,3 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,4 Inertia LOW INERTIA Rated Torque (Nm) 1,3 Maximum Torque (Nm) 4,5 Rated Speed (rpm) 3000 Maximum Speed (rpm) 6000 Inertia (kg*cm2) 0,393 Brake YES Shaft Type STRAIGHT SHAFT Protection Class IP65 Current Type AC Encoder Type 22-BIT Encoder Resolution (p/rev) 4194304 Product Dimensions & Weight Width (mm) 60 Height (mm) 77,1 Depth (mm) 135,1 Weight (kg) 1,8 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less

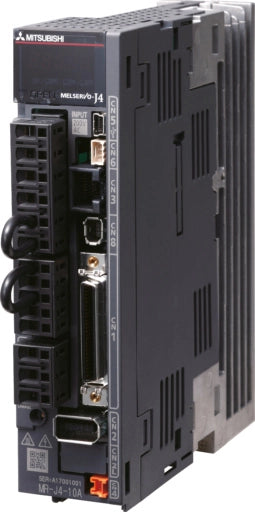

FA-Servo-Motion: Servo Amplifier Series MELSERVO-J4 Type MR-J4 Command Interface GENERIC INTERFACE Rated Capacity (kW) 0,4 Number of Axes 1 Safety Function Type STO (IEC/EN 61800-5-2) Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Dynamic Break BUILT-IN Product Dimensions & Weight Width (mm) 40 Height (mm) 168 Depth (mm) 170 Weight (kg) 1 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT

Read more less
