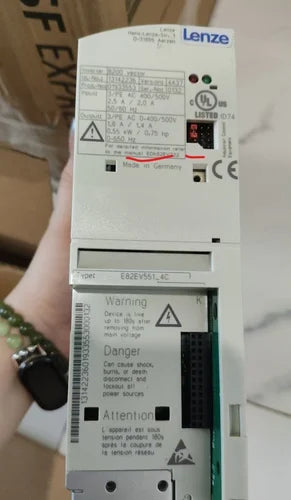

Power Rating 0.55 kW Input Phase Three Phase Brand Lenze Input Voltage 400-500V AC Control Mode Variable Frequency Drive IP Rating IP20 Output Frequency 0-650Hz Availability In Stock

Read more less

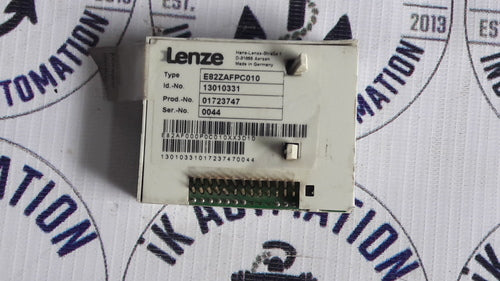

Product Specifications Efficiency High Operating Temperature 0AdegC to +55AdegC Color Grey Overheating Protection Other, Yes (System Dependent) Shape Rectangular Insulation Material Plastic Connector Type Fieldbus Connector IP Rating IP20 Surface Finish Matte Feature Robust and Easy to Install Humidity % Max 95% Non-Condensing Mounting Type Plug-in Slot Product Type Fieldbus Communication Module Application Industrial Automation, Frequency Inverter Connectivity Protection Level Other, Standard Rated Voltage 24V DC Energy Consumption Low Output Type Communication Interface Dimension (L*W*H) Approx. 60 x 30 x 30 mm Weight 0.150 kg Size Compact Input Voltage 24V DC Phase Three Phase Connection Type Plug-in Material Plastic, Electronic Components Payment Terms Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Others, Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA) Supply Ability 100 Per Day Delivery Time 1 Days Sample Available Yes Sample Policy Contact us for information regarding our sample policy Packaging Details AS PER CUSTOMER Main Export Market(s) Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Africa, Central America, Asia Main Domestic Market All India Certifications LENZE E82ZAFPC010 Product Unit 50 Piece/Pieces Moq 1 Price 5000.00 INR (Approx.) Color Grey Returnable No Stock Quantity 174 Price Type fixed Mop 1 Brand Name LENZE E82ZAFPC010 Packsize 1 Unit Type Piece/Pieces Currency INR Minimum Order Quantity 1 Minimum Ordered Packs 1 GSTIN 0%

Read more less

Brand PLS CONTACT FOR MORE DETAILS Unit count 1.0 Count Screen surface description Glossy Number of Items 1 Manufacturer Koyo UPC 709127071688

Read more less

Specifications Model GT-76A Type Amplifier unit Mounting type Panel mount Output NPN output Main unit/Expansion unit Expansion unit*1 Power consumption Normal At 12 V: 1,140 mW (95 mA) or less, At 24 V: 1,200 mW (50 mA) or less Power saving (Eco) At 12 V: 600 mW (50 mA) or less, At 24 V: 840 mW (35 mA) or less Display power Measured value display 6-digit 7-segment LED (red) Other displays 2-colour 13-level bar LED display (red, green), indicators (red, green) Display range -99.999 to 999.999 Display resolution 1 µm Sampling rate 2,000 times/second Control input Timing/preset/bank input Timing input: Non-voltage input (relay contact, solid state), input time: 2 ms or morePreset/Bank input: Non-voltage input (relay contact, solid state), input time: 20 ms or more Response time hsp (1.5 ms) , 5 ms, 10 ms, 100 ms, 500 ms, 1 s, 5 s HIGH, GO, LOW output NPN Offenkollektor, max. 50 mA (40 V oder weniger), Restspannung: 1 V oder weniger, N.O./N.C. umschaltbar Major functions Preset, Hold, Variable hysteresis, Variable response time, Multiplier setting, Bank function (4 banks),Self-timing, Power save (eco) mode, Application mode, Calibration function, Core alarm Rating Power voltage 12 to 24 VDC, Ripple (P-P) 10 % or less*2 Environmental resistance Ambient temperature -10 to +55 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Material Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: Polycarbonate, Cable: PVC Accessories Panel mounting bracket, protective front cover, power cable, flat cable for expansion, instruction manual Weight Approx. 110 g (: including panel mounting bracket, protective front cover, power cable)

Read more less

Specifications Model LR-W500 Type 2 m cable type Detecting distance 30 to 500 mm Min. spot diameter Adjustable spotApprox. ø3.5 mm at 100 mmApprox. ø9 mm at 250 mmApprox. ø18 mm at 500 mm Light source White LED Mutual interference reduction function Up to 2 units when alternate frequencies set Timer OFF/ON delay/OFF delay/One-shot Response time 200 µs/1 ms/10 ms/100 ms/500 ms selectable *1 I/O Control output NPN open collector/PNP open collector selectable30 VDC or less, 50 mA or less, remaining voltage: 2 V or lessN.O./N.C. selectable*2 External input Tuning /Transmission OFF selectableShort circuit current: 1 mA or less for NPN/2 mA or less for PNPFor the applied voltage, see the wiring diagrams in the instruction manual.For the input times, see the time charts in the instruction manual.*2 Protection circuit Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection Power supply Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS Current consumption 65 mA or less (without load) at 24 VDC;120 mA or less (without load) at 12 VDC *3 Environmental resistance Enclosure rating IP65/IP67 (IEC60529) Ambient light Incandescent lamp: 10,000 lux or less, Sunlight: 20,000 lux or less Ambient temperature -20 to +50 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Material Case: Zinc die cast (Nickel chrome plating),Indicator cover: PPSU, Buttons: PESLens cover and display: PMMA (scratch-resistant coating),Cable bushing: PBT, Cable: PVC, Spot adjustment dial: Iron (triiron tetraoxide coated) Weight Approx. 170 g (including cable)

Read more less

Specifications Model LV-NH42 Type Long-distance FDA (CDRH) Part 1040.10 Class 1 IEC 60825-1 Light source Visible semiconductor laser, Wavelength: 660 nm Detectingdistance MEGA 1200 mm ULTRA 1000 mm SUPER 750 mm TURBO 500 mm FINE 250 mm HSP 200 mm Environmental resistance Ambient temperature -10 to +55°C (No freezing) Relative humidity 35 to 85% RH (No condensation) Material Case Glass-reinforced plastic Lens cover Polyarylate Weight Approx. 65 g Data Sheet (PDF)

Read more less

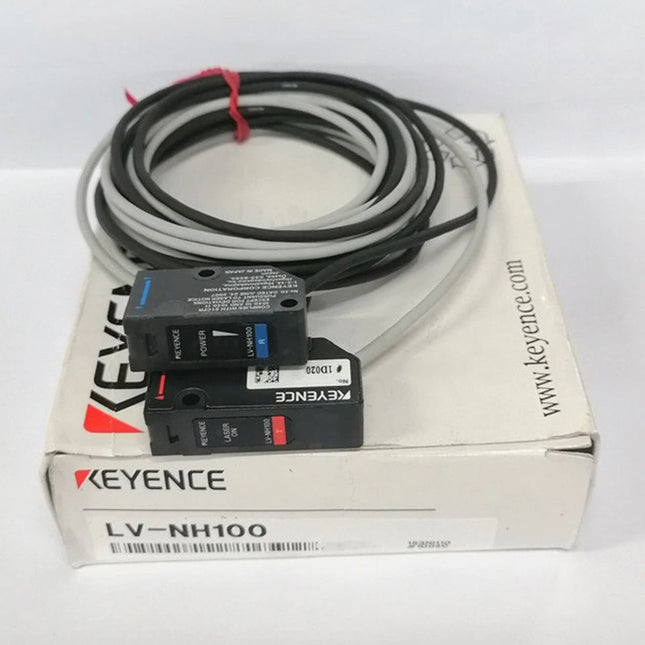

Specification Download A Munual Model LV-NH110 LV-NH100 LV-NH300 Type Area thrubeam, High power Area thrubeam, High performance FDA (CDRH) Part 1040.10 Class 1 Laser Product IEC 60825-1 Light source Visible red semiconductor laser, Wavelength: 660 nm MEGA 2000 mm 78.74″(Detecting area: 10 mm 0.39″) 2000 mm 78.74″(Detecting area: 30 mm 1.18″) ULTRA SUPER TURBO FINE HSP Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing) Relative humidity 35 to 85 % RH (No condensation) Weight Approx. 75 g Approx. 95 g   Model LV-N10 Type Zero line Cable/connector – Main/Expansion unit Expansion unit I/O Control outputs None External input Monitor output Response time 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 Output selection LIGHT-ON/DARK-ON (switch-selectable) Timer function Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer,Timer duration selectable: 1 ms to 9,999 ms,Maximum error against the setting value: ±10% max. Control outputs NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA)(Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less(Multiple connections) 1 output max: 20 mA or less Monitor output – External input Input time 2 ms (ON)/20 ms (OFF) or more*2 Multiple connections toexpansion units Up to 17 units can be connected in total (two-output type is treated as two units) Protection circuit Reverse polarity protection, Over-current protection, Surge absorber Number of interferenceprevention units Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA,Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA*3 Case size H 32.6 mm 1.28″ × W 9.8 mm 0.39″ × L 78.7 mm 3.1″ Rating Power voltage 24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS*4*5 Powerconsumption Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)*6Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)*6Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V)*7 Environmental resistance   Ambient temperature -20 to +55 °C -4 to 131 °F (No freezing)*8 Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions Weight Approx. 20 g

Read more less

Specifications Model LV-N11MN Type Monitor output Output NPN Cable/connector Cable Main/Expansion unit Main unit I/O Control outputs 1 output External input 1 input Monitor output 1 output Output selection LIGHT-ON/DARK-ON (switch-selectable) Timer function Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer,Timer duration selectable: 1 ms to 9,999 ms,Maximum error against the setting value: ±10% max. Control outputs NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA)(Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less(Multiple connections) 1 output max: 20 mA or less Response time 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 Monitor output 1 to 5 V voltage output; load resistance 10 kΩ or more; repeat precision ±0.5% of F.S.;response time: 1 ms (HIGH SPEED, FINE, TURBO), 1.2 ms (SUPER), 1.8 ms (ULTRA), 4.2 ms (MEGA) External input Input time 2 ms (ON)/20 ms (OFF) or more*2 Number of interferenceprevention units Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA,Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA*3 Case size H 32.6 mm × W 9.8 mm × L 78.7 mm Unit expansion Up to 17 units can be connected in total (two-output type is treated as two units) Protection circuit Reverse polarity protection, Over-current protection, Surge absorber Rating Power voltage 24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS Powerconsumption Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)*4Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)*4Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V)*5 Environmental resistance Ambient temperature -20 to +55 °C (No freezing)*6 Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions Material Cable PVC Case Main unit and cover material: Polycarbonate Weight Approx. 75 g *1 80 µs cannot be selected when the LV-S31/S62/S63 is connected*2 Input time is 25 ms (ON)/25 ms (OFF) when external calibration time is selected.*3 These numbers double when "DOUBLE" is selected.*4 Increases 30 mW (1 mA) for High Speed mode.*5 It increases by 15% when connected to the LV-NH100/NH110/NH300. It does not include the power consumption of the load.Power consumption when expansion units are connected is the total power consumption of each amplifier unit. Example: When one main unit (LV-N11N) is connected to 2 expansion units (LV-N12N) and they are used with LV-NH100 heads in HIGH SPEED mode.(1.15 × 860 mW × 1) + (1.15 × 860 mW × 2) = 2967 mW max.*6 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less for a unit.One or two more units connected: -20 °C to +55 °C ; 3 to 10 more units connected: -20 °C to +50 °C; 11 to 16 more units connected: -20 °C to +45 °C. When using 2-outputs, one unit is counted as two units.

Read more less

Specifications Model LV-N11N Type 2 output Output NPN Cable/connector Cable Main/Expansion unit Main unit I/O Control outputs 2 output External input 1 input Monitor output None Output selection LIGHT-ON/DARK-ON (switch-selectable) Timer function Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer,Timer duration selectable: 1 ms to 9,999 ms,Maximum error against the setting value: ±10% max. Control outputs NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA)(Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less(Multiple connections) 1 output max: 20 mA or less Response time 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 Monitor output - External input Input time 2 ms (ON)/20 ms (OFF) or more*2 Number of interferenceprevention units Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA,Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA*3 Case size H 32.6 mm × W 9.8 mm × L 78.7 mm Unit expansion Up to 17 units can be connected in total (two-output type is treated as two units) Protection circuit Reverse polarity protection, Over-current protection, Surge absorber Rating Power voltage 24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS Powerconsumption Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)*4Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)*4Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V)*5 Environmental resistance Ambient temperature -20 to +55 °C (No freezing)*6 Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions Material Cable PVC Case Main unit and cover material: Polycarbonate Weight Approx. 75 g *1 80 µs cannot be selected when the LV-S31/S62/S63 is connected*2 Input time is 25 ms (ON)/25 ms (OFF) when external calibration time is selected.*3 These numbers double when "DOUBLE" is selected.*4 Increases 30 mW (1 mA) for High Speed mode.*5 It increases by 15% when connected to the LV-NH100/NH110/NH300. It does not include the power consumption of the load.Power consumption when expansion units are connected is the total power consumption of each amplifier unit. Example: When one main unit (LV-N11N) is connected to 2 expansion units (LV-N12N) and they are used with LV-NH100 heads in HIGH SPEED mode.(1.15 × 860 mW × 1) + (1.15 × 860 mW × 2) = 2967 mW max.*6 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less for a unit.One or two more units connected: -20 °C to +55 °C ; 3 to 10 more units connected: -20 °C to +50 °C; 11 to 16 more units connected: -20 °C to +45 °C. When using 2-outputs, one unit is counted as two units. Data Sheet (PDF) Specifications Model LV-N11N Type 2 output Output NPN Cable/connector Cable Main/Expansion unit Main unit I/O Control outputs 2 output External input 1 input Monitor output None Output selection LIGHT-ON/DARK-ON (switch-selectable) Timer function Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer,Timer duration selectable: 1 ms to 9,999 ms,Maximum error against the setting value: ±10% max. Control outputs NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA)(Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less(Multiple connections) 1 output max: 20 mA or less Response time 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 Monitor output - External input Input time 2 ms (ON)/20 ms (OFF) or more*2 Number of interferenceprevention units Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA,Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA*3 Case size H 32.6 mm × W 9.8 mm × L 78.7 mm Unit expansion Up to 17 units can be connected in total (two-output type is treated as two units) Protection circuit Reverse polarity protection, Over-current protection, Surge absorber Rating Power voltage 24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS Powerconsumption Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)*4Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)*4Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V)*5 Environmental resistance Ambient temperature -20 to +55 °C (No freezing)*6 Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions Material Cable PVC Case Main unit and cover material: Polycarbonate Weight Approx. 75 g *1 80 µs cannot be selected when the LV-S31/S62/S63 is connected*2 Input time is 25 ms (ON)/25 ms (OFF) when external calibration time is selected.*3 These numbers double when "DOUBLE" is selected.*4 Increases 30 mW (1 mA) for High Speed mode.*5 It increases by 15% when connected to the LV-NH100/NH110/NH300. It does not include the power consumption of the load.Power consumption when expansion units are connected is the total power consumption of each amplifier unit. Example: When one main unit (LV-N11N) is connected to 2 expansion units (LV-N12N) and they are used with LV-NH100 heads in HIGH SPEED mode.(1.15 × 860 mW × 1) + (1.15 × 860 mW × 2) = 2967 mW max.*6 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less for a unit.One or two more units connected: -20 °C to +55 °C ; 3 to 10 more units connected: -20 °C to +50 °C; 11 to 16 more units connected: -20 °C to +45 °C. When using 2-outputs, one unit is counted as two units.

Read more less

Specifications Model FS-N11MN Type Monitor outputCable Output NPN Main unit/Expansion unit Main unit Control output 1NPN open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less Monitor output (1-5 V) 1 External input - Light source Red, 4-element LED APC ON/OFF switchable (Factory setting: OFF) Response time 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA) Number of interference prevention units 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA(When set to double, the number of interference-prevention units will be doubled.) Unit expansion Up to 16 units can be connected total (two output type is treated as two units) Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less Current Consumption Normal: 900 mW or less (36 mA max. at 24 V, 48 mA max. at 12 V)*1Eco on mode: 800 mW or less (32 mA max. at 24 V, 39 mA max. at 12 V)*1Eco Full mode: 470 mW or less (19 mA max. at 24 V, 23 mA max. at 12 V) Environmental resistance Ambient light Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less Ambient temperature -20 to +55 °C (No freezing)*2 Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions Case material Both main unit and expansion unit housing material: Polycarbonate Weight Approx. 75 g

Read more less

Specifications Model PZ-M11*1 Type Intelligent reflective Output NPN Detecting distance 5 to 100 mm (100 x 100 mmwhite mat paper)*2 Setting distance 30 to 100 mm (100 x 100 mmwhite mat paper) Light source Red LED Sensitivity adjustment 1-turn trimmer (230°) Response time 1 ms max. (1.2 ms max. with alternate-frequency type, 2 ms max. with M61 only. The alternate-frequency type is indicated by replacing “1” at the end of model name with “5”. The models are PZ-M65, M15, M35, M75, V15, V35 and V75.) Operation mode LIGHT-ON/DARK-ON (switch-selectable) Indicator lamp Output and power: Orange LED, Stable operation: Green LED Control output 100 mA (24 V) max., Residual voltage: 1 V max. Digital monitor ― Protection circuit Reversed polarity, overcurrent protection, surge absorber Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less Power consumption 30 mA max. Environmental resistance Enclosure rating IP67 Ambient light Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. Ambient temperature -20 to +55 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Case material Glass-fibre reinforced plastic Accessories ― Weight Approx. 55 g (including 2-m cable)
