DELIVERY PERIOD : 1- 2 WEEKS FA-Servo-Motion: Servo Amplifier Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-J4 Type MR-J4 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Safety Function Type STO (IEC/EN 61800-5-2) Command Interface GENERIC INTERFACE Rated Capacity (kW) 0,1 Product Dimensions & Weight Depth (mm) 135 Weight (kg) 0,8 Width (mm) 40 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,1 Inertia LOW INERTIA Rated Torque (Nm) 0,32 Maximum Torque (Nm) 1,1 Rated Speed (rpm) 3.000 Inertia (kg*cm2) 0,084 Brake YES Shaft Type STRAIGHT SHAFT Current Type AC Encoder Resolution (p/rev) 4.194.304 Maximum Speed (rpm) 6.000 Protection Class IP65 Encoder Type 22-BIT Product Dimensions & Weight Depth (mm) 123 Weight (kg) 0,74 Width (mm) 40 Height (mm) 41,7 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

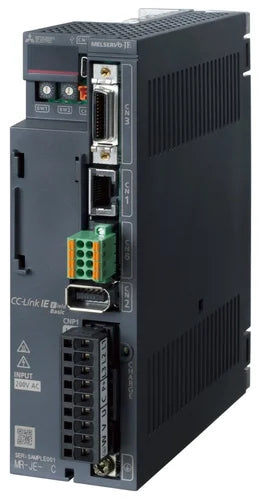

DELIVERY PERIOD : 1- 2 WEEKS FA-Servo-Motion: Servo Amplifier Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-JE Type MR-JE Command Interface GENERIC INTERFACE Rated Capacity (kW) 0,2 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Product Dimensions & Weight Depth (mm) 135 Weight (kg) 0,8 Width (mm) 50 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

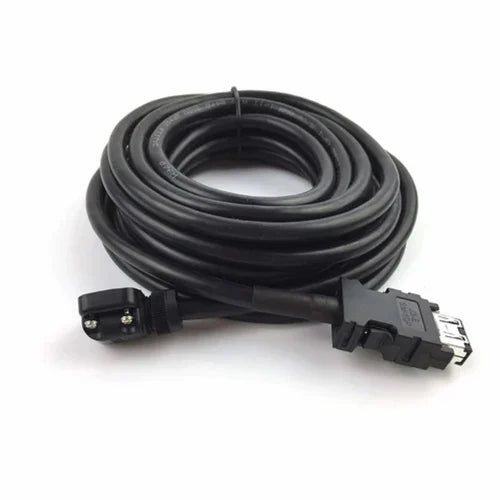

DELIVERY PERIOD : 1- 2 WEEKS Conductor Material Copper Cable Length 5 m Protection Type Shielded Brand Mitsubishi Color Black Type BRAKE CABLE   Cable Length (m) 0,3   Protection Class IP55

Read more less

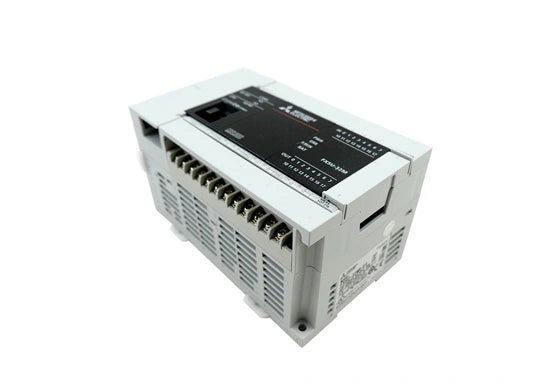

DELIVERY PERIOD : 1- 2 WEEKS Type FX5U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit FLASH Integrated Digital Inputs 16 Integrated Digital Outputs 16 Integrated Analogue Inputs 2 Output Type RELAY Local I/O Points 256 Local + Remote I/O Points 512 Expandable YES Cycle Time LD (ns) 34 Cycle Time MOV (ns) 34 Ethernet Port 1 RS-485 1 Power Consumption (W) 30 Buffer Battery OPTION Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC IQ-F SERIES Product Dimensions & Weight Depth (mm) 83 Weight (kg) 0,65 Width (mm) 150 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

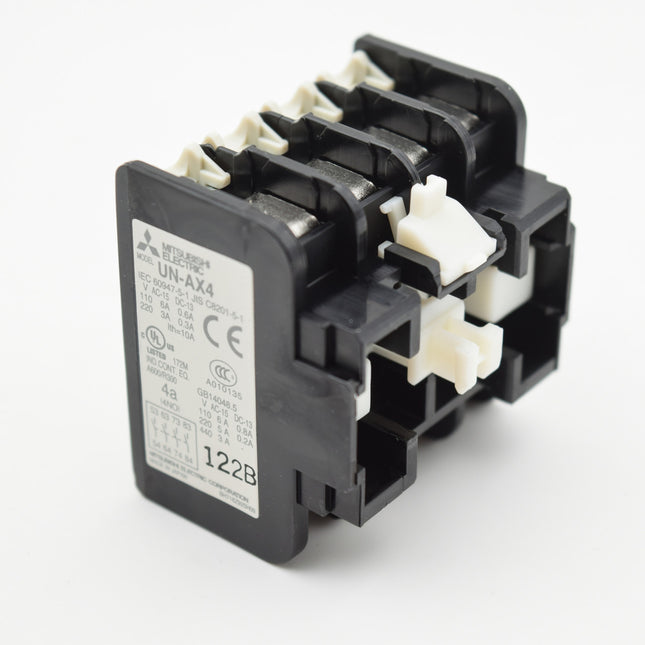

DELIVERY PERIOD : 1- 2 WEEKS The "MODAL-AUXILIARY CONTACT" for a Mitsubishi UT-MAX make Motor Protection Circuit Breaker (MPCB) refers to an auxiliary contact block that provides additional contacts (usually one or more normally open or normally closed contacts) for signaling or control purposes in a motor control circuit. These auxiliary contacts are electrically separate from the main contacts of the MPCB and are used to interface with other control devices or monitoring systems.  Here's a more detailed explanation: Function: Auxiliary contacts are used to signal the status of the MPCB (e.g., tripped, closed, open) to other control or monitoring systems.  Types: They can be either normally open (N.O.) or normally closed (N.C.).  Connection: They are typically front-mounted and electrically isolated from the main contacts of the MPCB.  Application: They can be used to trigger alarms, interlock other devices, or provide feedback to a control system.  Mitsubishi UT-MAX: The UT-MAX series from Mitsubishi Electric is a line of MPCBs that utilize these auxiliary contacts. The auxiliary contact blocks, such as the UT AX4 and UT AX2, are designed to be compatible with this series.  Example: A common application is to use an N.O. auxiliary contact to signal that the MPCB has tripped, which can then be used to shut down other equipment in the circuit.  In essence, the auxiliary contact is an additional feature of the MPCB that extends its functionality by providing feedback or control signals to other parts of the system.

Read more less

DELIVERY PERIOD : 1- 2 WEEKS The "MODEL-AUXILIARY CONTACT FOR MPCB UT-MAL MAKE MITSUBISHI" refers to an auxiliary contact unit, specifically designed for Mitsubishi Electric's Motor Protection Circuit Breakers (MPCB) of the UT-MAL series. These auxiliary contacts are used to provide additional signaling or control functionality by indicating the status (open or closed) of the MPCB's main contacts.  Here's a breakdown: MPCB (Motor Protection Circuit Breaker): A specialized circuit breaker designed to protect electric motors from various electrical faults like overloads and short circuits.  UT-MAL: A specific series or model of Mitsubishi Electric's MPCBs.  Auxiliary Contact: A small switch mechanically linked to the main contacts of the MPCB. It opens and closes along with the main contacts, providing a way to remotely monitor or control other circuits.  Mitsubishi Electric: A well-known manufacturer of electrical and electronic equipment, including MPCBs and their accessories.  In essence, the UT-MAL auxiliary contact unit allows you to: Monitor the MPCB's status: For example, you can use it to signal whether the motor is running or stopped. Interlock other circuits: You can use the auxiliary contact to prevent other devices from operating when the motor is not running, or vice versa.  Specific models mentioned in the search results: UT-AX4 2A2B: A Mitsubishi Electric auxiliary contact unit with 2 normally open (NO) and 2 normally closed (NC) contacts.  UT-MAXLL 1B: A Mitsubishi Electric auxiliary contact unit with 1 NC contact.  UT-MAL 1a, UT-MAL 1b: Possible auxiliary contact units for the UT-MAL MPCB series, with 1 NO and 1 NC contact, respectively.  Where to find more information: Mitsubishi Electric's website: You can often find detailed specifications and ordering information for their products on their official website.  Technical documentation: Look for the technical catalogs or manuals for the UT-MAL series of MPCBs, which may contain details about compatible auxiliary contact units.

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Type FX5U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit FLASH Integrated Digital Inputs 40 Integrated Digital Outputs 40 Integrated Analogue Inputs 2 Output Type TRANSISTOR Output Logic SOURCE Local I/O Points 256 Local + Remote I/O Points 512 Expandable YES Cycle Time LD (ns) 34 Cycle Time MOV (ns) 34 Ethernet Port 1 RS-485 1 Power Consumption (W) 45 Buffer Battery OPTION Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC IQ-F SERIES Product Dimensions & Weight Depth (mm) 83 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MELSEC IQ-F SERIES Type POWERED I/O MODULE (AC) Power Supply (V) 100-240 Current Type AC Occupied I/O Points on PLC 32 Integrated Digital Inputs 16 Integrated Digital Outputs 16 Output Type RELAY Product Dimensions & Weight Depth (mm) 83 Weight (kg) 0,65 Width (mm) 150 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MELSEC IQ-F SERIES Type I/O COMBINED MODULE Power Supply (V) 24 Current Type DC Occupied I/O Points on PLC 16 Integrated Digital Inputs 8 Integrated Digital Outputs 8 Output Type RELAY Product Dimensions & Weight Depth (mm) 83 Weight (kg) 0,21 Width (mm) 40 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1- 2 WEEKS Series MELSERVO-J4   Type HG-SR   Rated Capacity (kW) 1   Rated Torque (Nm) 4,8   Maximum Torque (Nm) 14,3   Rated Speed (rpm) 2000   Maximum Speed (rpm) 3000   Inertia (kg*cm2) 11,6   Brake NO   Shaft Type STRAIGHT SHAFT   Protection Class IP67   Power Supply (V) 200   Current Type AC   Encoder Type 22-BIT   Encoder Resolution (p/rev) 4194304

Read more less

Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UKCA COMPLIANT
