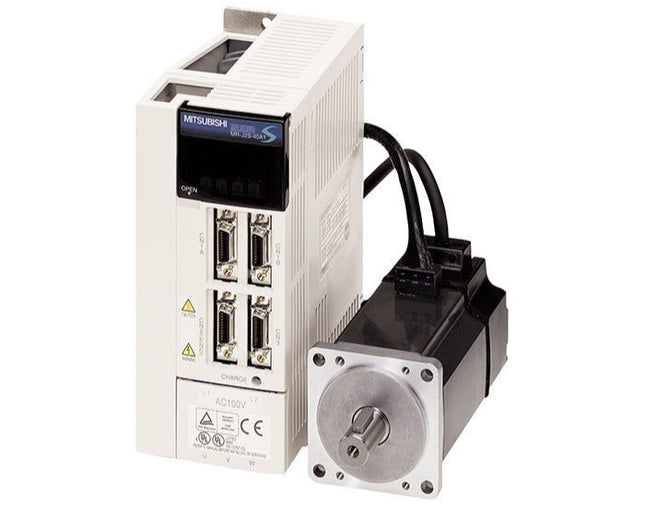

DELIVERY PERIOD : 1- 2 WEEKS Series MELSERVO-J4   Type HG-SR   Rated Capacity (kW) 1   Rated Torque (Nm) 4,8   Maximum Torque (Nm) 14,3   Rated Speed (rpm) 2000   Maximum Speed (rpm) 3000   Inertia (kg*cm2) 11,6   Brake NO   Shaft Type STRAIGHT SHAFT   Protection Class IP67   Power Supply (V) 200   Current Type AC   Encoder Type 22-BIT   Encoder Resolution (p/rev) 4194304

Read more less

Type FX3U Power Supply (V) 100-240 Current Type AC Program Memory 64K STEPS Program Memory Unit RAM Integrated Digital Inputs 40 Integrated Digital Outputs 40 Output Type TRANSISTOR Output Logic SINK Local I/O Points 256 Local + Remote I/O Points 384 Expandable YES Cycle Time LD (ns) 65 Cycle Time MOV (ns) 642 RS-422 1 Power Consumption (W) 50 Buffer Battery YES Protection Class IP10 Min. Ambient Temperature (°C) 0 Max. Ambient Temperature (°C) 55 Series MELSEC-F SERIES Product Dimensions & Weight Depth (mm) 86 Weight (kg) 1,2 Width (mm) 285 Height (mm) 90 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA EAC COMPLIANT UKCA COMPLIANT

Read more less

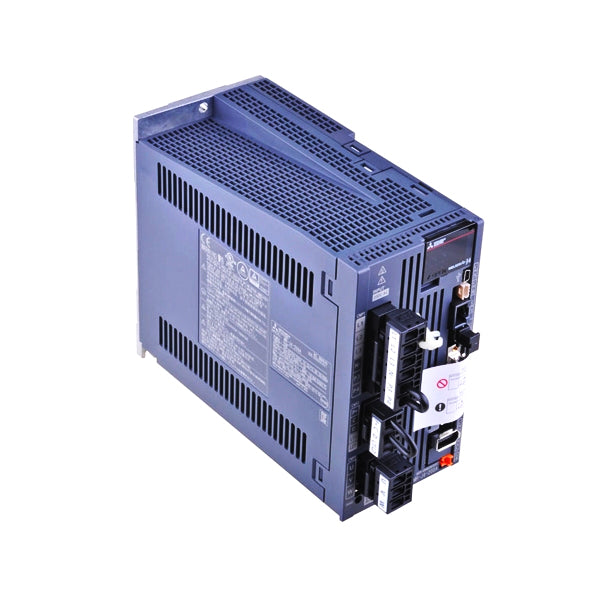

DELIVERY PERIOD : 1-2 WEEKS FA-Servo-Motion: Servo Amplifier Number of Axes 1 Dynamic Break BUILT-IN Series MELSERVO-J4 Type MR-J4 Power Supply (VAC) 3PHASE 230V Safety Function Type STO (IEC/EN 61800-5-2) Command Interface GENERIC INTERFACE Rated Capacity (kW) 3,5 Product Dimensions & Weight Depth (mm) 195 Weight (kg) 2,3 Width (mm) 90 Height (mm) 168 Conformity CE COMPLIANT EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

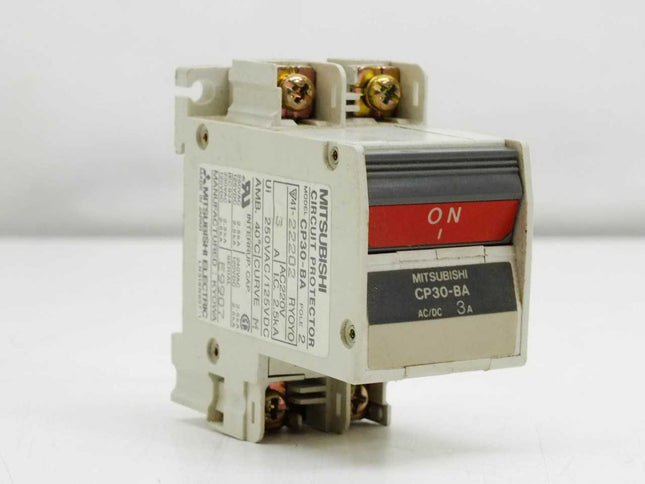

DELIVERY PERIOD : 1-2 WEEKS [Type] Circuit Protector[Series Name] CP SeriesFrame A: 30Model: CP30-BA 2P 1-MPoles: 2[Rated Current (A)] 3[Rated insulation voltage (V)] 250[Rated impulse resistance voltage (kV)] 2.5[Current type] AC/DC[Reverse connection] Yes[Open and close life (times)]Mechanical 10000Electrical 6000[Standard Ambient Temperature] 40 (T40)[Internal Circuit] Series[Characteristics] Medium speedPull off system: Medium speed[Connection method] Screw terminalOperating Method: S-type (IEC 60934)[Pull off free/Operating system] Trip-free (IEC 60934)[External Dimensions (mm)]a 35b 73c 65ca 65Product Weight: 0.3 lbs (0.16 kg).[Installation Method]Surface mountIEC 35mm Rail MountFlush Mount[Marine Association Certified] NK acquired

Read more less

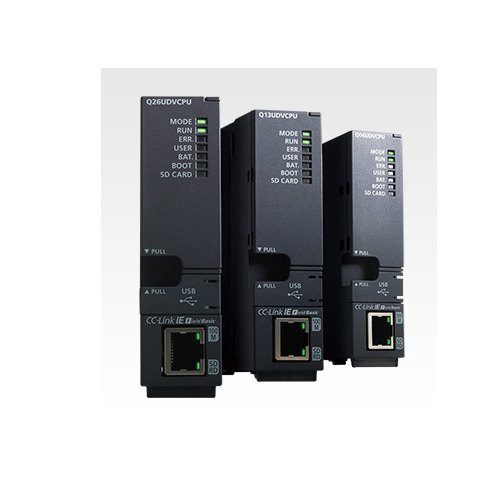

DELIVERY PERIOD : 1-2 WEEKS  Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 60K Program Memory Unit STEPS Local I/O Points 4.096 Local + Remote I/O Points 8.192 Cycle Time LD (ns) 9,5 Cycle Time MOV (ns) 19 USB 1 Ethernet Port 1 Buffer Battery YES Int. Current Consumption (A) 0,39 Product Dimensions & Weight Depth (mm) 89,3 Weight (kg) 0,22 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS Condition: Used Model: HF-SP202B Brand: Mitsubishi Made In: Japan Input: 3Ph  132V  10A Output: 2kw (2000w) RPM: 2000 Weight: 17.1kg Item code: SM23

Read more less

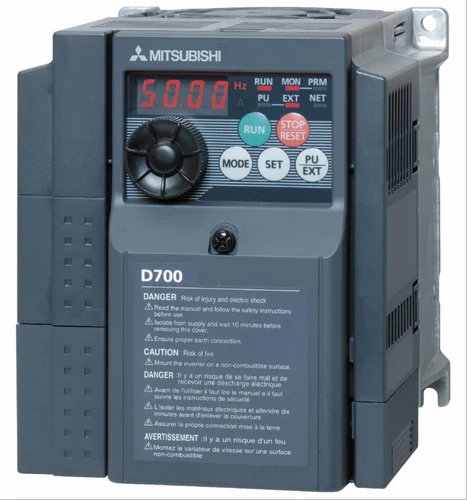

DELIVERY PERIOD : 1-2 WEEKS  Input Phase 3 - Phase Brand Mitsubishi Model Name/Number FR-D700 Series Application Factory Automation Motor Power 0.4 kW to 7.5 kW Input Voltage 380-480 V Input Frequency 50 to 60 Hz Motor RPM 1400 RPM Degree of Protection IP20 Output frequency 0.2 - 400 Hz Mitsubishi AC Drive FR-D700 Series, The user-friendliness of the FR-D700 series makes these units a particularly good choice for standard applications. Entering drive parameters and settings is quick and easy with the one-touch Digital Dial on the integrated control panel, saving time and cutting costs. The FR-D700 series is compliant to the EU Machinery Directive without the addition of previously required external devices. Operation of an external Emergency Stop device results in a highly reliable immediate shutoff of the D700's output to the motor. This safety stop function conforms to the following standards.Features: Spring clamp terminal (control circuit terminal) Long-life design Leading life check function Quick setup with the setting dial Enclosure surface operation panel FR-PA07 (option) Noise filter option which is compatible with EMC Directive (EN61800-3 2nd Environment Category C3) is available RoHS Directive compliant Complies with UL, cUL, EC Directives (CE marking) as a standard model Filterpack FR-BFP2 (option) Easy replacement of cooling fan Easy setting from a personal computer using the FR Configurator (option) Easily replaceable compact body Model Range: FR-D720S-008SC-EC FR-D720S-014SC-EC FR-D720S-025SC-EC FR-D720S-042SC-EC FR-D720S-070SC-EC FR-D720S-100SC-EC FR-D740-012-E16 FR-D740-022-E16 FR-D740-036-E16 FR-D740-050-E16 FR-D740-080-E16 FR-D740-120-E16 FR-D740-160-E16

Read more less

DELIVERY PERIOD : 1-2 WEEKS The part number MR-BKS2CBL03M-A2-L refers to a Mitsubishi Electric cable designed for electromagnetic brakes, specifically for HF-KP/HF-MP series servo motors. It is a 0.3-meter cable with an IP55 rating, and the cable lead is in the opposite direction of the motor shaft.  Here's a breakdown: MR-BKS2CBL03M-A2-L: This is the specific model number for this Mitsubishi Electric cable.  Mitsubishi Electric: This indicates the manufacturer of the cable.  Electromagnetic Brake Cable: The cable is designed for use with electromagnetic brakes on servo motors.  HF-KP/HF-MP Series: This specifies the type of servo motors compatible with this cable.  0.3M: The cable length is 0.3 meters.  IP55: This refers to the Ingress Protection rating, indicating a degree of protection against dust and water.  Opposite of motor shaft: This describes the orientation of the cable lead relative to the motor shaft.

Read more less

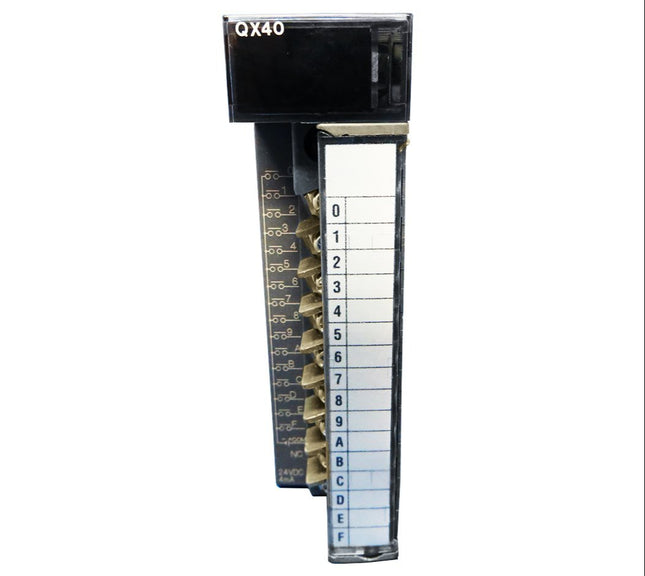

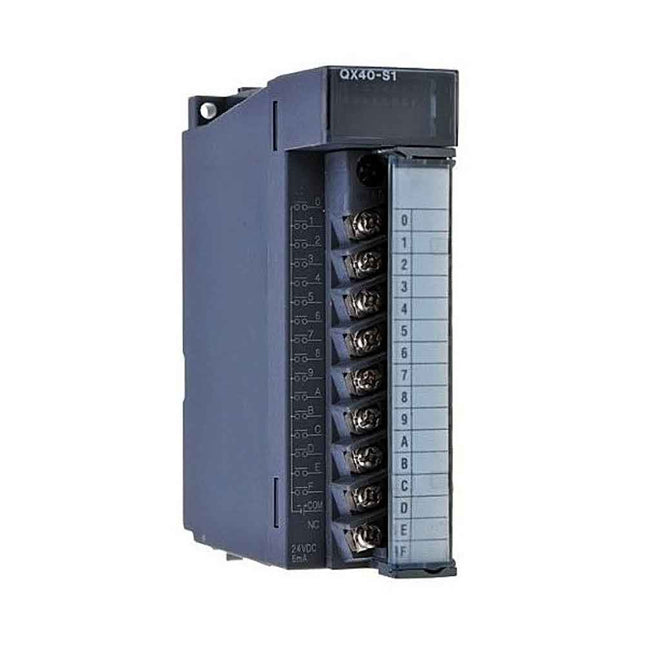

DELIVERY PERIOD : 1-2 WEEKS FA-MOD PLC: Digital Input Module Series MELSEC-Q SERIES Type DC INPUT (PLUS COMMON) Occupied I/O Points on PLC 16 Integrated Digital Inputs 16 Rated Input Voltage (VDC) 24 Wiring SCREW Int. Current Consumption (A) 0,05 Product Dimensions & Weight Depth (mm) 90 Weight (kg) 0,16 Width (mm) 27,4 Height (mm) 98 Conformity CE COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA EAC COMPLIANT UL/cUL COMPLIANT UKCA COMPLIANT

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Specifications Brand Mitsubishi  Cross Section B Height 11 mm Item Code B156 Top Width 16.5 mm Pitch Length 156 inch Inside Circumference 3962 mm Linear Speed 30 m/s Notes Images are for reference purpose only, Actual Product may vary Operating Temperature -40 to 70 deg C Pulley Diameter 150 mm Country of origin India Manufacturer Details 1st Floor, Street No. 1, Freinds Colony G.T. Road, Shahdara. NEW DELHI DELHI, East Delhi, Delhi-110095 Packer Details 1st Floor, Street No. 1, Freinds Colony G.T. Road, Shahdara. NEW DELHI DELHI, East Delhi, Delhi-110095 Common/Generic Name V Belt Dimensions LxWxH 47x8x66 cm Weight 1 kg

Read more less

DELIVERY PERIOD : 1-2 WEEKS Basic information Overview Intelligent device station for CC-Link Conformance standard UL cUL CE(EMC) CE(RoHS) KC(EMC) Sales status On sale Merit CC-Link system interface block • The FX3U-64CCL type CC-Link interface block is a special function block that connects the FX5U/FX5UC CPU module and the FX3G/FX3U/FX3GC/FX3UC PLC to the CC-Link. (CC-Link V2 compatible)The FX3U-64CCL operates as a CC-Link intelligent device station.　Only one FX3U-64CCL can be connected to a single PLC main module.• Using GX Developer, the FX5U/FX5UC CPU module and FX3G/FX3U/FX3GC/FX3UC PLC main unit to which the FX3U-64CCL is connected can be accessed from the Q master station/local station via CC-Link. (Supported with GX Developer Ver. 8.76E or later)
