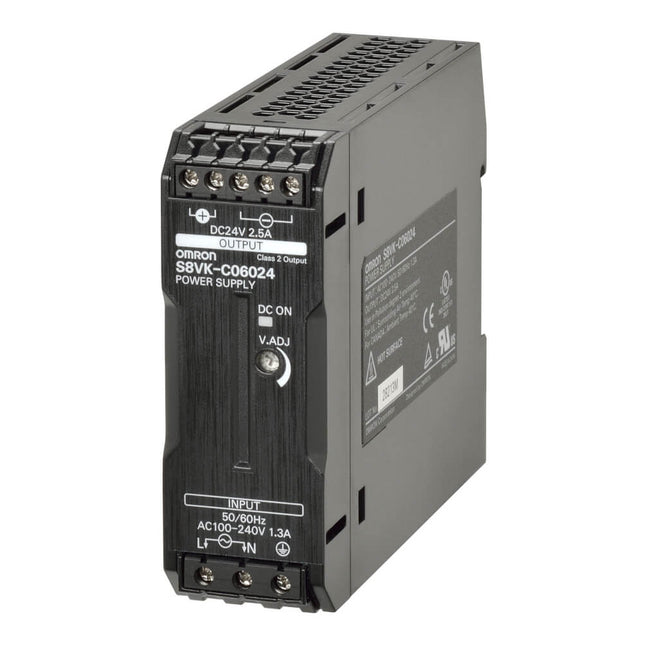

DELIVERY PERIOD : 1-2 WEEKS  Type Book type Mounting method DIN rail Phase Single Power output 60 W Efficiency 88 % Output voltage 24 V Rated output current 2.5 A Power boost ratio 120 % Temperature range -40-70 °C Terminal Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 85-264 V Allowable supply voltage DC 90-350 V Width 32 mm Height 90 mm Depth 110 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Industrial Relays Delivery Restrictions:  Mouser does not sell this product in your region. RoHS:  Details Mounting Style: Through Hole Product: Relays Type: Slim Contact Termination: Plug In Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 6 A Coil Termination: Plug In Coil Type: Non-Latching Coil Voltage: 24 VDC Coil Current: 13.5 mA Switching Voltage: 400 VAC, 125 VDC Contact Material: Silver (Ag) Series: G2RV Length: 30.5 mm Width: 5.2 mm Height: 33 mm Brand: Omron Automation and Safety Contact Form: SPDT (1 Form C) Power Consumption: 300 mW Product Type: Industrial Relays Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: 1278668 G2RV1SDC21 Unit Weight: 17 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Relay Sockets & Fixings RoHS:  Details Product: Relay Sockets Associated Relay Series: G2R-1-S (S) Termination Style: Screw Brand: Omron Automation and Safety Mounting Style: PCB Mount Product Type: Relay Sockets & Hardware Series: G2R Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: P2RFZ05E

Read more less

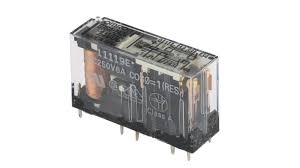

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Safety Relays RoHS:  Details Coil Voltage: 24 VDC Relay Contact Form: 2 Form A (DPST-NO) Contact Termination: Solder Pin Contact Rating: 6 A Brand: Omron Automation and Safety Coil Resistance: 1.6 kOhms Contact Form: DPST (2 Form A) Current Rating - Max: 6 A Product: Safety Relays Product Type: Safety Relays Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: 376123 G7SA2A2B24DC 1221753 G7SA2A2BDC24 Unit Weight: 22 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Manufacturer Part Number G9SA-EX301 Brand Omron Automation Series G9SA SERIES Mounting Type DIN Rail Mount Supply Voltage 100-240 VAC, 24 VAC, 24 VDc Alternate Mfr Part Number G9SAEX301 Function Expansion Unit Current Rating 5 A Contact Form 3PST-NO Overview G9SA-EX301 Expansion Unit: Power Requirements: The G9SA-EX301 connects to G9SA-301, G9SA-501, G9SA-321 or G9SA-TH301. Outputs: The G9SA-EX301 has 3 NO outputs to route power to the coils of power contacts, plus 1 NC auxiliary output for signaling purposes

Read more less

DELIVERY PERIOD : 1-2 WEEKS Technical Specifications Sensing Method Through Beam Supply Voltage Min 12VDC Supply Voltage Max 24VDC Sensor Case / Package Module Collector Current IC Max - IP Rating IP50 Operating Temperature Min -10°C Product Range - Sensing Distance / Slot Width 13mm Supply Voltage DC Min 12V Output Current 80mA Collector Emitter Voltage Max - Sensor Output Type NPN Open Collector Sensor Mounting Through Hole Operating Temperature Max 55°C Qualification

Read more less

DELIVERY PERIOD : 1-2 WEEKS Technical Details Connector Type ‎Screw Contact Material ‎Silver Tin Oxide Contact Type ‎2NO Mounting Type ‎In Top Brand ‎OMRON RELAY Operation Mode ‎Mechanical Coil Voltage ‎24 Volts Contact Current Rating ‎5 Amps Maximum Switching Voltage ‎24 Volts Specification Met ‎RoHS Manufacturer ‎OMRON Model number ‎MY2N-GS DC24 Item Weight ‎99.8 g Product Dimensions ‎10 x 10 x 10 cm; 99.79 g Item model number ‎MY2N-GS DC24 Item Height ‎10 Centimeters Item Width ‎10 Centimeters Voltage ‎24 Volts (DC) Are batteries included? ‎No

Read more less

DELIVERY PERIOD : 1-2 WEEKS Type Enclosed Mounting method Direct mounting Phase Single Power output 100 W Efficiency 87 % Output voltage 24 V Rated output current 4.5 A Temperature range -20-60 °C Features Terminal block facing upward Terminal type Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 85-264 V Allowable supply voltage DC 248-373 V Product Width (unpacked) 97 mm Product Height (unpacked) 38 mm Product Depth (unpacked) 159 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS Power rating 150 W Output voltage 24 VDC Efficiency 87 % typ. (at 100 VAC input)89 % typ. (at 200 VAC input)90 % typ. (at 230 VAC input) Input Rated input voltage 100 to 240 VAC Allowable input voltage variable range 85 to 264 VAC (Single-phase)80 to 370 VDC Frequency 50/60Hz (47 to 450 Hz) Rated input current 3 A typ. (at 100 VAC input)1.8 A typ. (at 200 VAC input) Leakage current 0.5 mA max. (at 100 VAC input)1 mA max. (at 200 VAC input) Inrush current (cold start at 25 ℃) 14 A typ. (at 100 VAC input)28 A typ. (at 200 VAC input) Output Rated output current 6.5 A Output voltage variable range -10 to +15 % (With V.ADJ) Ripple 110 mV(p-p) max. Static input variation influence 0.5 % max. Static load variation influence 1.0 % max. Ambient temperature variation influence 0.05 %/℃ max. Start up time 1000 ms max. (at 100 VAC input)1000 ms max. (at 200 VAC input) Hold time 10 ms typ. (at 100 VAC input)55 ms typ. (at 200 VAC input) Additional functions Overload protection Yes, automatic reset Overvoltage protection Yes, Shut off the input voltage and turn on the input again Overheat protection No Series operation Yes (Up to 2 Power Supplies with external diode) Parallel operation No (However, backup operation is possible, external diodes required.) Output indicator Yes (color: green) Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mABetween all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mABetween all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA Insulation resistance Between all output terminals and all input terminals/PE terminals: 100 MΩ min., at 500 VDC Environment Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours Shock resistance 150 m/s2, in each 6 directions 3 times Altitude 3000 m max. Ambient temperature (Operating) -20 to 70 ℃ (with no freezing or condensation) Ambient temperature (Storage) -25 to 75 ℃ (with no freezing or condensation) Ambient humidity (Operating) 90 %RH max. Ambient humidity (Storage) 90 %RH max. Reliability Life expectancy 10 years min. (at rated input, a load rate of 50% load, under the temperature of 40 ℃ max., standard mounting) Construction Construction Covered type Connection Terminal blocks Terminal type Screw terminal Mounting DIN track mounting Cooling fan Cooling fan No Weight (Main) 500 g max. Note Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.

Read more less

DELIVERY PERIOD : 1-2 WEEKS Sensor Type Type 3 Safety Laser Scanner Performance Level (PL)/Category PLd/Category 3 (ISO 13849-1) Functional Safety ofElectrical/Electronic/ProgrammableElectronic Safety-relatedSystems SIL 2, PFHD = 8.3 × 10-8(IEC 61508) Detection Capability Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm(1.8% reflectivity or greater) (default: 70 mm) Monitoring Zone Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets OperatingRange OS32C-[][][] Safety Zone: 1.75 m (min. obj. resolution of 30 mm)2.5 m (min. obj. resolution of 40 mm)3.0 m (min. obj. resolution of 50 mm or 70 mm)Warning Zone: 10.0 m OS32C-[][][]-4M Safety Zone: 1.75 m (min. object resolution of 30mm)2.5 m (min. object resolution of 40 mm)3.0 m (min. object resolution of 50 mm)4.0 m (min. object resolution of 70 mm)Warning Zone: 15.0 m Maximum Measurement Error 100 mm (at range of 3 m or less) *1110 mm (at distance greater than 3 m and up to 4m) *1 Detection Angle 270° Angular Resolution 0.4° Laser Beam Diameter 6 mm at optics cover, 14 mm (typical) at 3 m. Laser Scan Plane Height 67mm from the bottom of the scanner(see "External Dimensional Drawings" on Catalog for more detail.) Response Time Response time from ON to OFF:From 80 ms (2 scans) to 680 ms (up to 17 scans) *8Response time from OFF to ON:Response time from ON to OFF + 100 ms to 60 s (Configurable) Zone Switching Time 20 to 320 ms Line Voltage 24 VDC +25%/-30% (ripple p-p 2.5 V max.) *2 Power Consumption Normal operation: 5 W max. *3Standby mode: 3.75 W (without output load) Emission Source (Wavelength) Infrared Laser Diode (905 nm) Laser Class Class 1 Laser Product: IEC 60825-1:2014, EN 60825-1:2014+A11:2021 Class 1 Laser Product: JIS C 6802: 2014 Class I: 21 CFR 1040.10, 1040.11 1类激光产品: GB 7247.1:2012 Safety Output (OSSD) PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.,load capacity of 2.2 μF max., leak current of 1 mA max. *3, *4, *5 Auxiliary Output (Non-Safety) NPN/PNP transistor x 1, load current of 100 mA max.,residual voltage of 2 V max., leak current of 1 mA max. *4, *5, *7 Warning Output (Non-Safety) NPN/PNP transistor x 1, load current of 100 mA max.,residual voltage of 2 V max., leak current of 1 mA max. *4, *5, *7 Operation Mode Auto Start, Start Interlock, Start/Restart Interlock Input External DeviceMonitoring (EDM) ON: 0 V short (input current of 50 mA), OFF: Open Start ON: 0 V short (input current of 20 mA), OFF: Open Zone Select ON: 24 V short (input current of 5 mA), OFF: Open Stand-by ON: 24 V short (input current of 5 mA max.), OFF: Open Connection Type Power Cable: 18-pin mini-connector (pigtail)Communication Cable: M12, 4-pin connector Connection with PC Communication: Ethernet *6OS Supported:Windows XP (32-bit version, Service Pack 3 or later),Windows 7 (32-bit version/64-bit version), Windows 8.1 (32-bitversion/64-bit version), Windows 10 (32-bit version/64-bit version) Indicators RUN indicator: Green, STOP indicator: Red, Interlock Indicator: Yellow,Warning Output Indicator: Orange Status/Diagnostic Display: 2 x 7-segmentLEDs, Individual Sector Indicators: Red LED x 8 Protective Circuit Protection against output load short and reverse power connection Ambient Temperature Operation: -10 to 50 °C, Storage: -25 to 70 °C Ambient Humidity Operation & Storage: 95% RH max., non-condensing Ambient OperationIllumination Incandescent lamp: Illumination on receiving surface 1500 lx max.(an angle of laser scanning plane and disturbance light must be +/-5 degreesor more) Insulation Resistance 20 MΩ or higher (500 VDC) Dielectric Withstand Voltage 350VDC, 1 minute Enclosure Rating IP65 (IEC 60529) Enclosure Sensor head: Die-cast aluminum, optical cover: Polycarbonate, I/O block: Die-cast aluminum Dimensions (WxHxD) 133.0 x 104.5 x 142.7 mm (except cable) Impact Resistance 98 m/s2 1,000 times for each of X, Y, and Z directions (IEC 60068-2-29) Vibration 10 to 55 Hz double-amplitude of 0.7 mm, 20 sweepings for X, Y, and Z directions (IEC 60068-2-6) Weight (Main Unit only) 1.3 kg Power Cable Up to 30 m Communication Cable Up to 100 m for 100BASE-TX cable *9 Approvals Certificated by: TÜV Rheinland, UL EN IEC 61496-1 (Type 3 ESPE), EN IEC 61496-3 (Type 3 AOPDDR), EN 61508 (SIL2),IEC 61496-1 (Type 3 ESPE), IEC 61496-3 (Type 3 AOPDDR), IEC 61508 (SIL2),UL 508, UL 1998, CAN/CSA-C22.2 No. 14, CAN/CSA-C22.2 No. 0.8   *1. An additional measurement error may need to be added due to reflective backgrounds.*2. For power source specification, refer to “Safety Precautions” on Catalog.*3. Rated current of OS32C is 1.025 A max. (OS32C 210 mA + OSSD A load + OSSD B load + Auxiliary output load +      Warning output load + Functional Inputs).      Where functional inputs are: EDM input ... 50 mA Start input ... 20 mA Standby input ... 5 mA Zone X input ... 5 mA x 8      (eight zone set select inputs)*4. Output voltage is Input voltage - 2.0 VDC.*5. Total consumption current of 2 OSSDs, auxiliary output, and warning output must not exceed 700 mA.*6. An ethernet cable with an M12, 4-pin connector is required.*7. Output polarity (NPN/PNP) is configurable via the configuration tool.*8. Pollution Tolerance mode will add 6 ms to each scan time.*9. Omron only supplies up to a 15 m Ethernet cable. For longer lengths a connection to a network switch/router is needed.

Read more less

DELIVERY PERIOD : 1-2 WEEKS Type Enclosed Mounting method Direct mounting Phase Single Power output 150 W Efficiency 87 % Output voltage 24 V Rated output current 6.5 A Temperature range -20-60 °C Features Terminal block facing forward Terminal type Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 90-264 V Allowable supply voltage DC 254-373 V Product Width (unpacked) 97 mm Product Height (unpacked) 38 mm Product Depth (unpacked) 199 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches Brand: Omron Automation and Safety Product Type: Limit Switches Factory Pack Quantity: 1 Subcategory: Switches Part # Aliases: WLCA27N

Read more less
