DELIVERY PERIOD : 1-2 WEEKS  Type Enclosed Mounting method Direct mounting Phase Single Power output 100 W Efficiency 87 % Output voltage 24 V Rated output current 4.5 A Temperature range -20-60 °C Features Terminal block facing forward Terminal type Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 85-264 V Allowable supply voltage DC 248-373 V Product Width (unpacked) 97 mm Product Height (unpacked) 38 mm Product Depth (unpacked) 159 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Country of Origin Japan Operating Temperature -25°C ~ 80°C Mount Type Chassis Mount Terminal Spdt Actuator Type Lever, Roller Connector Type Screw Model No WLD2 Name of Manufacturer/Packer/Importer Omron Corporation

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Power rating 120 W Output voltage 24 VDC Efficiency 84 % typ. (at 100 VAC input)87 % typ. (at 200 VAC input) Input Rated input voltage 100 to 240 VAC Allowable input voltage variable range 85 to 264 VAC80 to 370 VDC Frequency 50/60Hz (47 to 63 Hz) Rated input current 1.9 A max., 1.5 A typ. (at 100 VAC input)1.1 A max., 0.71 A typ. (at 200 VAC input) Power factor 0.9 min. Leakage current 0.5 mA max. (at 100 VAC input)1.0 mA max. (at 200 VAC input) Inrush current (cold start at 25 ℃) 17.5 A max., 14 A typ. (at 100 VAC input)35 A max., 28 A typ. (at 200 VAC input) Output Rated output current 5 A Output voltage variable range -10 to +15 % With V.ADJ Ripple 60 mV max. Static input variation influence 0.5 % max. (at 100% load) Static load variation influence 1.5 % max. (at rated input, 0 to 100% load) Ambient temperature variation influence 0.05 %/℃ max. Start up time 550 ms typ. (at 100 VAC input)430 ms typ. (at 200 VAC input) Hold time 52 ms typ. (at 100 VAC input)54 ms typ. (at 200 VAC input) Additional functions Overload protection Yes, automatic reset Overvoltage protection Yes, Shut off the input voltage and turn on the input again Series operation Yes (Up to 2 Power Supplies with external diode) Parallel operation No (However, backup operation is possible, external diodes required.) Output indicator Yes (color: green) Insulation Dielectric strength Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mABetween all input terminals and all output terminals/alarm outputs: 3 kVAC for 1 min, Detection current: 20 mABetween all output terminals/alarm outputs and all PE terminals: 1 kVAC for 1 min, Detection current: 30 mABetween all output terminals and all alarm outputs: 500 VAC for 1 min, Detection current: 20 mA Insulation resistance Between all output terminals/alarm outputs and all input terminals/PE terminals: 100 MΩ min., at 500 VDC Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours Shock resistance 150 m/s2, in each 6 directions 3 times Ambient temperature (Operating) -10 to 60 ℃ Ambient temperature (Storage) -25 to 65 ℃ Ambient humidity (Operating) 25 to 85 % Ambient humidity (Storage) 25 to 90 % Reliability Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) Construction Construction Covered type Connection Terminal blocks Terminal type Screw terminal Mounting DIN track mounting Attachment Terminal block cover Weight (Main) 550 g max. Note Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Categorise Incremental Shaft model Diameter 40 mm dia. Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. Current consumption 80 mA max. Resolution 360 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, B and Z Control output Output type NPN open collector Load power supply voltage 30 V max.DC Sink current 35 mA max. Residual voltage 0.4 V max. (at sink current 35 mA) Starting positional point Equipped Max. response frequency 100 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ) Starting torque 0.98 mN.m max. Moment of inertia 3 x 10-7 kg.m2 max. Shaft loading Radial: 30 NThrust: 20 N Max. permissible rotation 6000 r/min Protective circuit Output short-cut protectionPower supply reverse polarity protection Ambient temperature Operating: -10 to 70 ℃ (with no icing)Storage: -25 to 85 ℃ (with no icing) Ambient humidity Operating: 35 to 85 % (with no condensation)Storage: 35 to 85 % (with no condensation) Insulation resistance Between charged parts and the case: 20 MΩ or higher (500 VDC megger) Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions Shock resistance Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IEC: IP50 Connection method Pre-wired models (Cable length: 2 m) Material Case: ABSMain Unit: AluminumShaft: SUS420J2 Accessories Instruction manual, Couplings, Hex-head spanner

Read more less

DELIVERY PERIOD : 1-2 WEEKS Rad Hardened: No Product Depth (mm): 40(mm) Operating Temperature Min Deg. C: -25C Operating Temperature Max Deg. C: 60C Output Voltage: 24(V) Input Voltage: 85 to 264(V) Output Current: 5(A) Output Power: 120(W) Input Frequency: 47 to 450(Hz) Product Length (mm): 122.2(mm) Type: Switching Isolation Voltage (Min): 3000VAC(V) Product Height (mm): 129.7(mm) Screening Level: Commercial Efficiency: 88(%) Mounting Style: Din-Rail Number of Outputs: 1

Read more less

DELIVERY PERIOD : 1-2 WEEKS Mouser No: 653-E54-CT1 Mfr. No: E54-CT1 Mfr.: Omron Automation and Safety Customer No: Description: Current Transformers CURRENT TRANSFORMER Datasheet:  E54-CT1 Datasheet (PDF) ECAD Model: Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model. More Information Learn more about Omron Automation and Safety E54-CT1

Read more less

DELIVERY PERIOD : 1-2 WEEKS Shape Module type Terminal type Screw terminal (M3) Input type Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input Control output 1 Voltage output (for driving SSR) 2-points Control output 2 Transistor output 2-points Power supply voltage 24 VDC Number of event input 2 point Heater burnout /SSR failure detector 2 points Communications method RS-485 (two-wire, half duplex)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Brand OMRON Encoder Technology Incremental Series E6B2 Pulses Per Revolution 500 Maximum Revolutions 6000rpm Output Signal Type NPN Open Collector Shaft Type Solid Shaft Diameter 6mm Supply Voltage 5 → 24 V dc IP Rating IP50 Overall Height 59mm Switching Frequency 100 kHz

Read more less

Type: Through-beam Photoelectric Sensor Sensing Distance: 15 meters Output: NPN Operating Voltage: 12 to 24VDC Light Source: Infrared LED Cable Length: 2 meters DELIVERY PERIOD : 1-2 WEEKS

Read more less

Type [Timer] Timer Display method Liquid Crystal Mounting Method - Time specifications 0.001s to 9999h Power Supply Voltage AC/DC Output Method Relay Representative Standard CE / UL / CUL / CCC Dimension vertical 48 Dimension width 48 Dimension depth 83.9 Rated power supply voltage AC24/DC12 to 24 Time ranges = N 10 range Contact Configuration Time limit 1c + instant 1c Terminal shape Plug-in terminal Digits = N (counter) 4 digits Pre-scale function (counter) × Input mode (counter) Addition/deduction 瞬時接点 - DELIVERY PERIOD : 1-2 WEEKS

Read more less

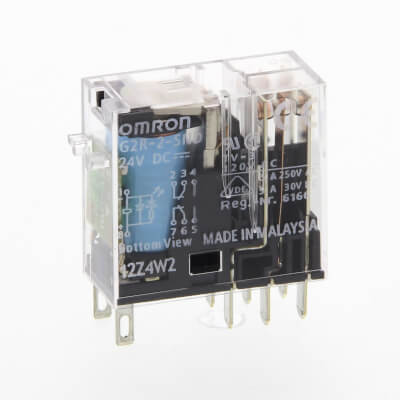

DELIVERY PERIOD : 1-2 WEEKS Contact resistance 100 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Reset time 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Maximum operating frequency Mechanical: 36000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 1000 MΩ min. (at 500 VDC)Between contacts of different polarity: 1000 MΩ min. (at 500 VDC)Between contacts of same polarity: 1000 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 4000 VAC 50/60 Hz 1 minBetween contacts of different polarity (Between pole 3 and pole 5_pole 4 and pole 6_pole 5 and pole 6): 2500 VAC 50/60 Hz 1 minBetween contacts of different polarity (Except for between pole 3 and pole 5_pole 4 and pole 6_pole 5 and pole 6): 4000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1500 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 100 m/s2 Endurance (Mechanical) 10,000,000 operations min. (switching frequency 36,000 operations/h) Endurance (Electrical) 100,000 operations min. (rated load) Failure rate 5 VDC 1 mA (failure level: Preference value, Switching frequency: 300 operations per minute) Ambient temperature (Operating) -40 to 85 ℃ (with no freezing or condensation)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Limit Switches RoHS:  Details Illuminated: Non-Illuminated Contact Form: SPST Actuator: Lever Current Rating: 5 A Voltage Rating AC: 250 VAC Voltage Rating DC: 250 VDC Operating Force: 19.6 N Termination Style: Screw Mounting Style: Panel Mount IP Rating: IP65 Actuator Style: Lever Brand: Omron Automation and Safety Product Type: Limit Switches Series: HL-5000 Factory Pack Quantity: 1 Subcategory: Switches Type: Standard Part # Aliases: HL5050 Unit Weight: 340.200 g
